- Page 1 USER MANUAL Ver. 3.0 10/16/18 In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.
- Page 3 Thank you for your purchase of the EB-7 eBike! The EB-7 fuses a traditional pedal bike with all-electric power to create a green way to travel that helps you protect the environment while you enjoy it. To ensure your safety and the safety of others, please read and follow the guidelines in this user manual carefully and thoroughly before and during riding.
-
Page 4: Table Of Contents
PRODUCT SAFETY NOTICE ..........1 5.1 Disposal at End-of-Life ........14 Section 1. General Information ........3 Section 6. Maintenance ...........15 1.1 About the SWAGTRON EB-7 eBike .....3 6.1 Tire Inflation ............15 1.2 What’s In the Box? ..........4 6.2 Cleaning ...............16 1.3 SWAGTRON EB-7 eBike Diagram ......5 6.3 Storage ..............16... -
Page 5: Product Safety Notice
PRODUCT SAFETY NOTICE The SWAGTRON EB-7 eBike has been designed with the utmost safety in mind for its riders. Extra precautions have been taken to protect the user from product hardware malfunctions through our meticulous design and engineering. However, like any mode of transportation, the SWAGTRON EB-7 eBike has inherent hazards associated with its use (e.g.: losing control, falling off, or riding into hazardous situations). - Page 6 By riding the SWAGTRON EB-7 eBike, the user acknowledges and accepts personal responsibility of all risks associated with the use of the SWAGTRON EB-7 eBike, which may include, but are not limited to, muscle injuries, broken bones, lacerations, or serious injury that may be sustained while using the SWAGTRON EB-7 eBike.
-
Page 7: Section 1. General Information
Before operating your eBike, please read all instructions. This manual will guide you through the functions, usage, and proper care of your EB-7. If you have any questions or cannot find the information you need in the manual, please contact your place of purchase or our customer service at 1-844-299-0625. -
Page 8: What's In The Box
1.2 What’s In the Box? • 1 x SWAGTRON EB-7 eBike • 1 x Charging Cable & Adapter • 2 x Keys • 1 x User Manual SWAGTRON EB-7 Electric Bike x 1 Charging Cable & Adapter x 1 USER MANUAL Ver. -
Page 9: Swagtron Eb-7 Ebike Diagram
1.3 SWAGTRON EB-7 eBike Diagram FRONT BRAKE THROTTLE HORN REAR BRAKE CLAMP HANDLE DISPLAY STEM LATCH LATCH BOLT CHARGING PORT SEAT HEADLIGHT REFLECTOR SEAT CLAMP SUSPENSION STAND REAR WHEEL MOTORIZED HUB FRONT WHEEL PEDAL KICKSTAND SWAGTRON EB-7 16" Electric Bike... -
Page 10: Section 2. Folding, Unfolding & Adjusting Your Ebike
There is a notch on the other side of the latch to make this easier. With the latch undone, fold the stem down. Step 3. Silver bolt ENGLISH SWAGTRON EB-7 16" Electric Bike... -
Page 11: Folding & Unfolding The Frame
2.3 Adjusting the Handlebars Unfold the clamp, then rotate and adjust the direction of the handlebars to a comfortable position ( ). Secure the handlebars by flipping the clamp closed ( Clamp SWAGTRON EB-7 16" Electric Bike ENGLISH... -
Page 12: Unfolding & Folding The Pedals
Lastly, close the clamp to secure the seat in place ( 2.5 Unfolding & Folding the Pedals Holding the crank arm vertical, fold or unfold the pedal. Repeat with the other pedal as needed ENGLISH SWAGTRON EB-7 16" Electric Bike... -
Page 13: Section 3. How To Use The Battery
Step 3. Allow 3~4 hours’ time for charging. The charging adapter’s light will turn red during charging and then turn green once charging is complete. Disconnect all cables once charging is finished. Charging Port Charging Cable SWAGTRON EB-7 16" Electric Bike ENGLISH... - Page 14 Check that it is securely connected to the wall and to the bike. • Use only the charger provided with your EB-7. If you have lost or misplaced your charger, contact customer support to obtain a replacement.
-
Page 15: Lock Instructions
3.2 Lock Instructions For your convenience, the EB-7's battery can be removed and locked as needed. Fold the bike first before using the lock and/or removing the battery. Step 1. Use the included keys to unlock the battery via the keyhole inside the folded frame ( ). -
Page 16: Section 4. How To Ride
• Use the horn and headlight to alert pedestrians and other riders of your presence. 4.2 Buttons Information The EB-7 eBike’s display features several different elements. : Press and hold for ~2 seconds to turn the eBike on/off. Quick-press to cycle between TRIP, VOL, TI, and ODO on-screen. -
Page 17: Display Information
To switch speed measurement (mph/mile or km/h/km). Press the button to enter P0 screen, then use buttons to set the display to the desired measurement type. SWAGTRON EB-7 16" Electric Bike ENGLISH... -
Page 18: Section 5. Safe Riding Techniques & Tips
The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any SWAGTRON product at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. ENGLISH... -
Page 19: Section 6. Maintenance
If you need assistance, please contact customer service. 6.1 Tire Inflation You will need a pressure gauge, a standard bicycle pump to inflate the EB-7 eBike’s tires. Step 1. Ensure the eBike is powered off and stable, so it doesn’t move during inflation. -
Page 20: Cleaning
• Underinflation is strongly recommended if you intend to ride outdoors in temperatures above 90°F degrees. Bring the EB-7 eBike indoors and deflate the tires to 58.5 PSI. If the PSI is too high and the tire are exposed to excessively high temperatures, riding outdoors may cause serious damage to the tire including but not limited to stretching and/or rupturing. -
Page 21: Section 7. Specifications
100V - 240V / 50 - 60Hz /42V 1.5A Horn Voltage 36V 0.5W Wheel Size 16" Front / Rear Wheel Inflation 40-65 PSI/2.8-4.5BAR Charging Time 3~4 Hours Water Resistance IPX4 Warranty 1 Year Limited SWAGTRON EB-7 16" Electric Bike ENGLISH... -
Page 22: Year Limited Hardware Warranty
Warranty services are provided by SWAGTRON®. If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, SWAGTRON® will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or (2) exchange the Product with a product that is new or refurbished which is substantially equivalent to the original product. - Page 23 CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
- Page 24 COPYRIGHT © 2018 SWAGTRON. ALL RIGHTS RESERVED.
Need help?
Do you have a question about the EB-7 and is the answer not in the manual?
Questions and answers
How tight does the latch bolt and latch have to be on the eb7 swag Tron?
The latch bolt and latch on the SWAGTRON EB-7 should be taut and properly fastened to prevent injury and unnecessary wear and tear on the eBike.
This answer is automatically generated
Que número de sensor hall en el mando acelerador utiliza mi eb7 swagtron ya que dejo de acelerar por un golpe qué recibió en el mismo y mi garantía ya expiro y devo solucionarlo consiguiendo el repuesto

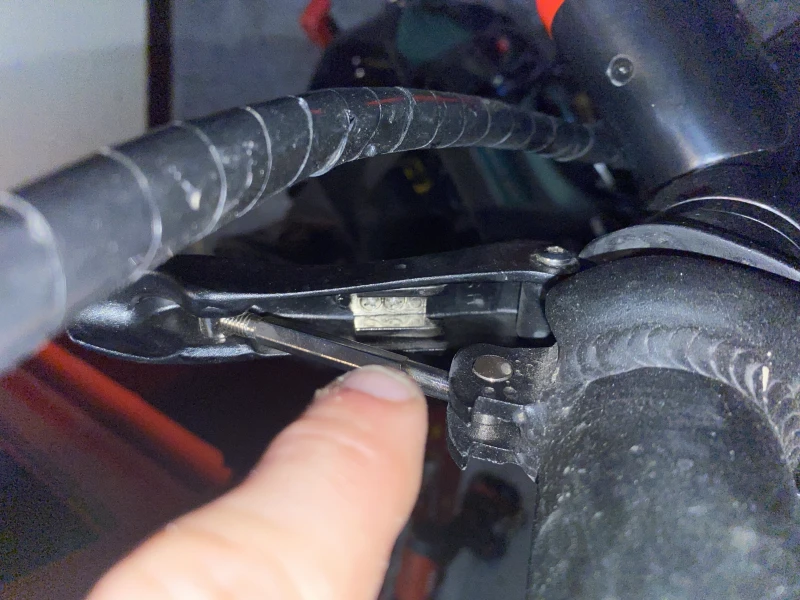

Even 7 fuse location
