Purivox Triplex V Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Instruction
manual
Propan
(LPG)

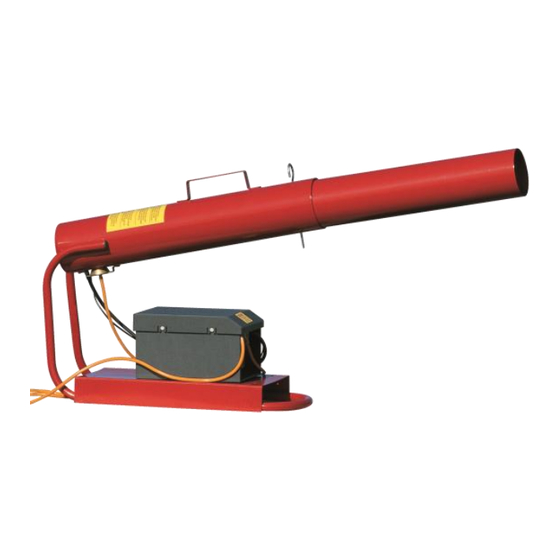

Purivox Triplex V
Hazard warning - Purivox Triplex V
Please read the instruction
manual very carefully before using
and assembling the unit.
Using the device indoors is not permitted.
Never point the sound tube in the direction of people or
flammable objects, because a small jet flame and a pressure
wave will exit the sound tube.
Note regulations in terms of storage, setting up and arranging
the propane gas bottle.
The Purivox Triplex V is only built for using in the
agricultural sector (Proper use)
Any other use is considered improper.
For damage resulting from improper use. The manufacturer of
the equipment shall not be liable.
The Purivox Triplex V may only be used, maintained
and repaired by persons over 18 years, who are acquainted with
the equipment and informed of risks.
The relevant accident prevention regulations as well as other
generally recognized safety, health rules and regulations must
be observed.
Any modifications to the equipment shall immediately exclude
the manufacturer from any liability or resulting damages.
1
