USER GUIDE
DIABLO MK9 • AXIS MK5 • JOYSTICK MK12 • SIRIUS MK6
CHARGING
Fully Charge your light before first use.
Locate the charging port by pulling away the silicone Storm Cap.
Axis/Diablo/Joystick: Fully insert either the Smart Charger or USB top up cable and begin charging
from a mains or USB supply respectively.
If you are using the Smart Charger the LED on the charger will go red for the first 95% and then go
green for the trickle charge.
Sirius: Fully insert the USB top up cable and begin charging from a USB supply.
On the back of the light there is a single LED which will flash green to indicate that it is charging
and then turn solid green when the light is 95% charged, then the remaining 5% is trickle charged
Approximate charge times are:
3 hrs from the mains charger (1500mA)
Up to 7 hours from the USB top up cable using a 500mA source
IMPORTANT: After charging is complete replace the Storm Cap to prevent ingress of mud and grit.

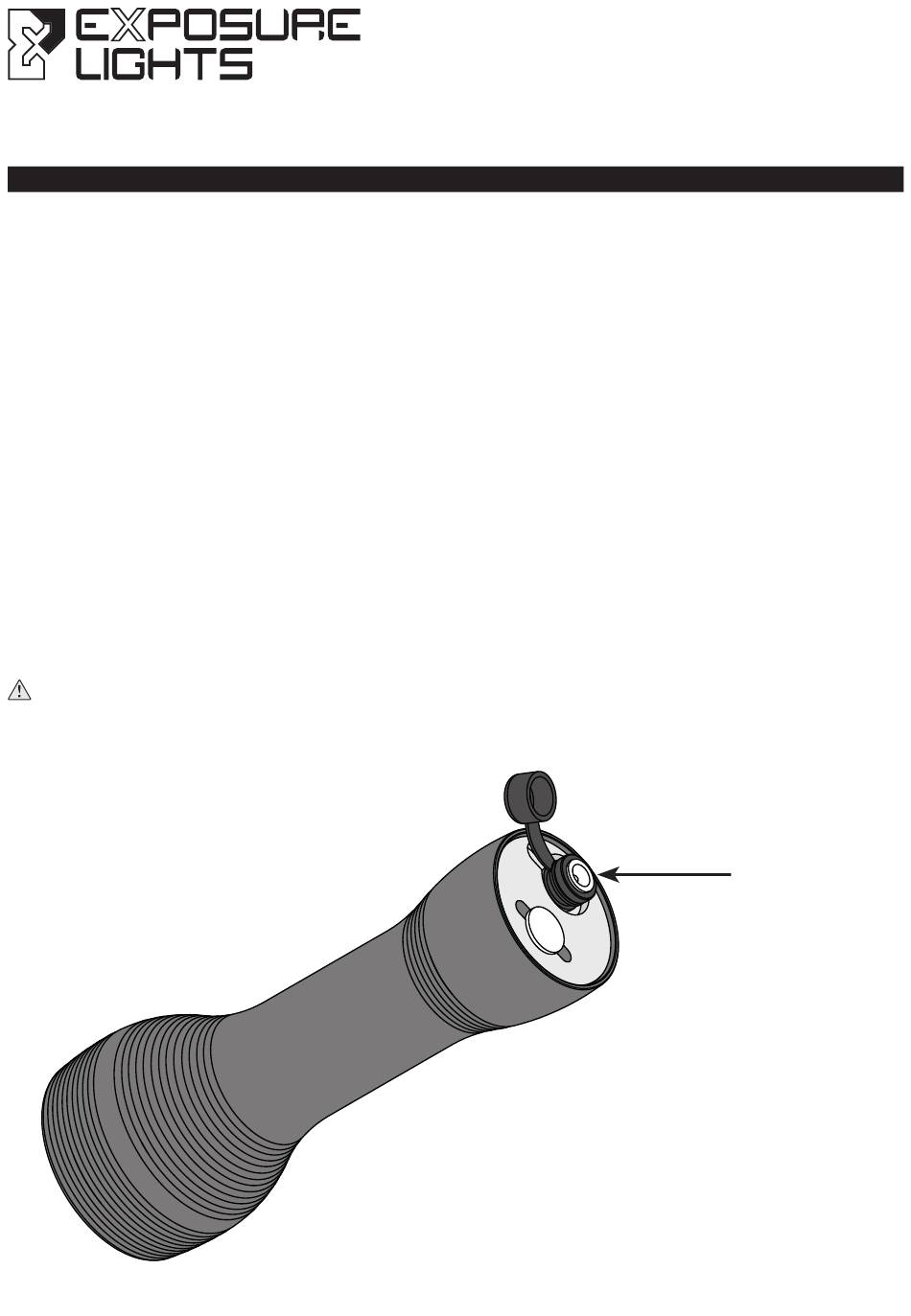

CHARGE PORT
/SMART PORT
