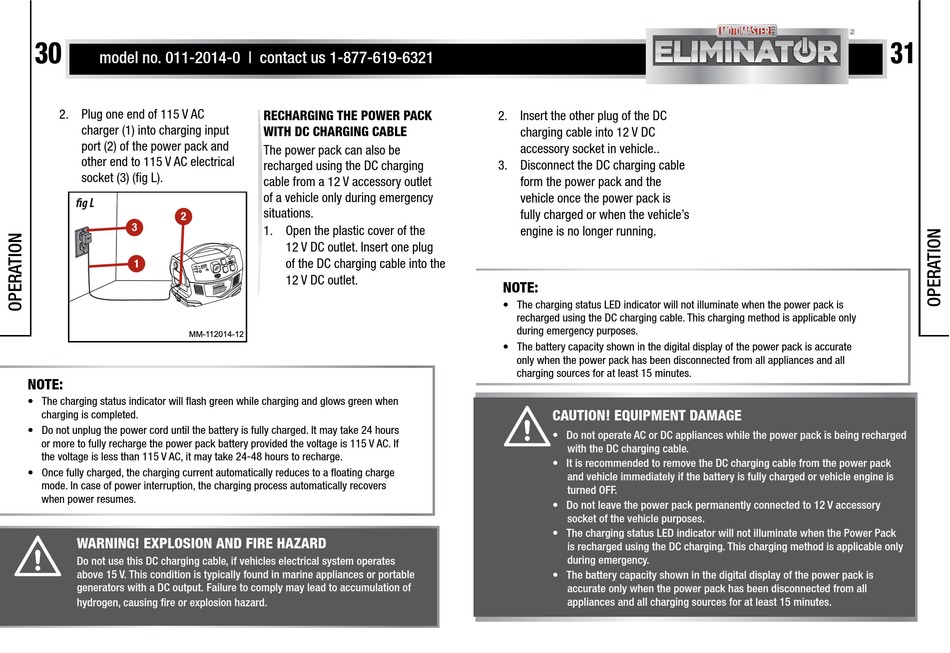

Recharging The Power Pack With Dc Charging Cable - Eliminator 011-2014-0 Instruction Manual

30
model no. 011-2014-0 | contact us 1-877-619-6321
2. Plug one end of 115 V AC
charger (1) into charging input
port (2) of the power pack and
other end to 115 V AC electrical
socket (3) (fig L).
fig L
2
3
1
MM-112014-12
NOTE:
• The charging status indicator will flash green while charging and glows green when
charging is completed.
• Do not unplug the power cord until the battery is fully charged. It may take 24 hours
or more to fully recharge the power pack battery provided the voltage is 115 V AC. If
the voltage is less than 115 V AC, it may take 24-48 hours to recharge.
• Once fully charged, the charging current automatically reduces to a floating charge
mode. In case of power interruption, the charging process automatically recovers
when power resumes.
WARNING! EXPLOSION AND FIRE HAZARD
Do not use this DC charging cable, if vehicles electrical system operates
above 15 V. This condition is typically found in marine appliances or portable
generators with a DC output. Failure to comply may lead to accumulation of
hydrogen, causing fire or explosion hazard.
RECHARGING THE POWER PACK
WITH DC CHARGING CABLE
The power pack can also be
recharged using the DC charging
cable from a 12 V accessory outlet
of a vehicle only during emergency
situations.
1. Open the plastic cover of the
12 V DC outlet. Insert one plug
of the DC charging cable into the
12 V DC outlet.
2. Insert the other plug of the DC
charging cable into 12 V DC
accessory socket in vehicle..
3. Disconnect the DC charging cable
form the power pack and the
vehicle once the power pack is
fully charged or when the vehicle's
engine is no longer running.
NOTE:
• The charging status LED indicator will not illuminate when the power pack is
recharged using the DC charging cable. This charging method is applicable only
during emergency purposes.
• The battery capacity shown in the digital display of the power pack is accurate
only when the power pack has been disconnected from all appliances and all
charging sources for at least 15 minutes.
CAUTION! EQUIPMENT DAMAGE
• Do not operate AC or DC appliances while the power pack is being recharged
with the DC charging cable.
• It is recommended to remove the DC charging cable from the power pack
and vehicle immediately if the battery is fully charged or vehicle engine is
turned OFF.
• Do not leave the power pack permanently connected to 12 V accessory
socket of the vehicle purposes.
• The charging status LED indicator will not illuminate when the Power Pack
is recharged using the DC charging. This charging method is applicable only
during emergency.
• The battery capacity shown in the digital display of the power pack is
accurate only when the power pack has been disconnected from all
appliances and all charging sources for at least 15 minutes.
31
