Siemens 1015N-2MFM-1A Field Manual

Siemens 1015N-2MFM-1A Field Manual

Dial-up modem option card for system 1010n flowmeters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

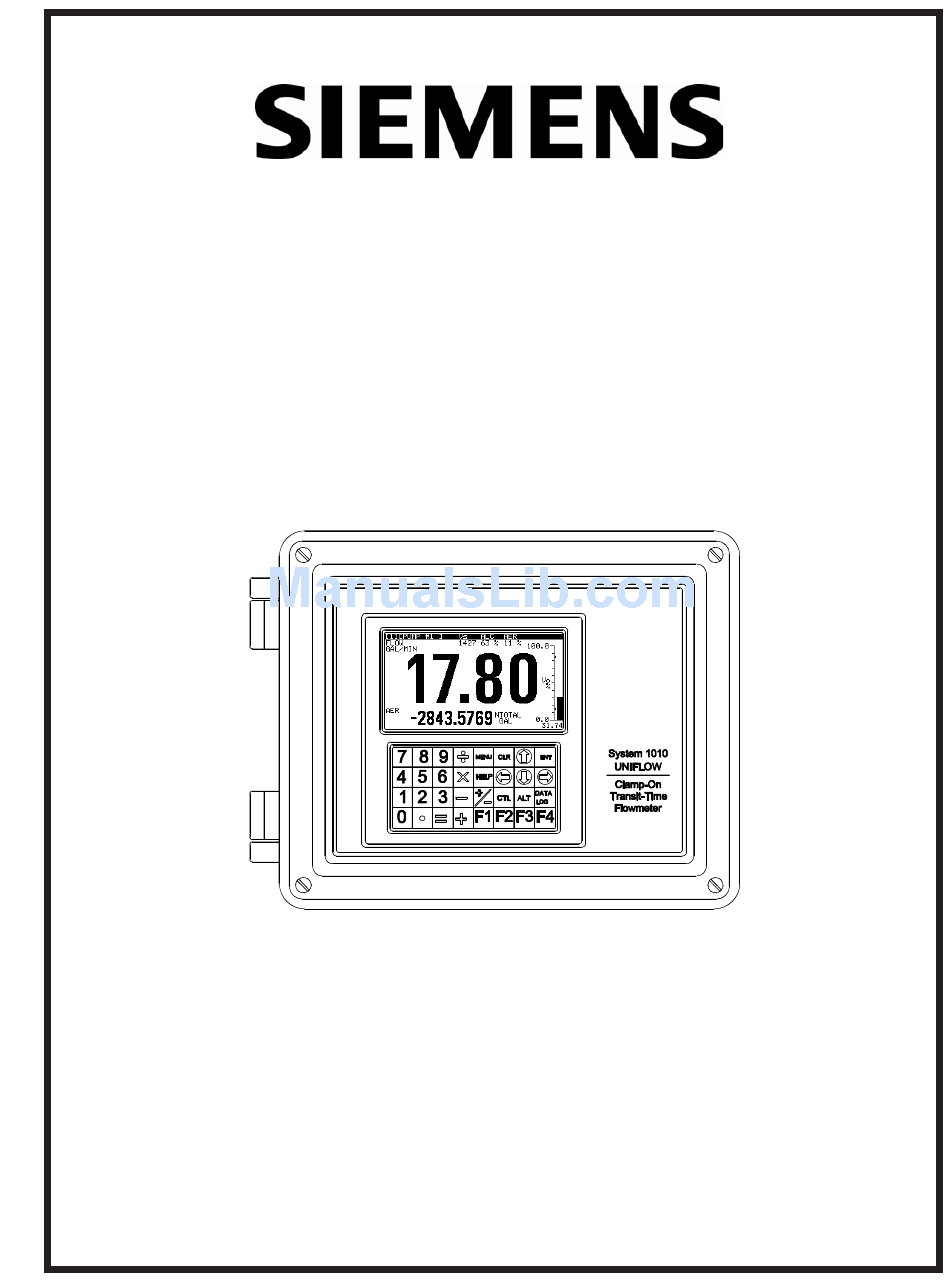

1015N-2MFM-1A
FIELD MANUAL
1015N-2M DIAL-UP MODEM
OPTION CARD
FOR SYSTEM 1010N
FLOWMETERS
FOR TECHNICAL ASSISTANCE
Call: (800) 275-8480
(631) 231-3600
Fax: (631) 231-3334
E-mail: TSG .ultrasonicflow@siemens.com
FOR GENERAL INFORMATION
Website: www.controlotron.com
E-mail: info.ultrasonicflow@siemens.com
Or: sales.ultrasonicflow@siemens.com
Copyright©2006 Siemens Energy & Automation, Inc. All Rights Reserved
Made in the USA

Advertisement

Table of Contents
loading

Related Manuals for Siemens 1015N-2MFM-1A

Summary of Contents for Siemens 1015N-2MFM-1A

  • Page 1 FOR SYSTEM 1010N FLOWMETERS FOR TECHNICAL ASSISTANCE Call: (800) 275-8480 (631) 231-3600 Fax: (631) 231-3334 E-mail: TSG .ultrasonicflow@siemens.com FOR GENERAL INFORMATION Website: www.controlotron.com E-mail: info.ultrasonicflow@siemens.com Or: sales.ultrasonicflow@siemens.com Copyright©2006 Siemens Energy & Automation, Inc. All Rights Reserved Made in the USA...
  • Page 2 FOR TECHNICAL ASSISTANCE: Call: (800) 275-8480 (631) 231-3600 Fax: (631) 231-3334 E-mail: TSG .ultrasonicflow@siemens.com Copyright©2006 Siemens Energy & Automation, Inc. All Rights Reserved IMPORTANT NOTICE Controlotron is now part of: Siemens Energy & Automation, Inc. CoC Ultrasonic Flow Field Manual 1015N-2MFM-1A...
  • Page 3 Manual Changes NOTE: For the latest updates and revisions to this field manual go to www.controlotron.com/downloads.htm and check the Product Manual listing.

  • Page 4: Table Of Contents

    Option 1 Mounting Kit 1015N-2M-MK1 ... 1 Option 2 Mounting Kit 1015N-2M-MK2 ... 1 Option 3 Mounting Kit 1015N-2M-MK3 ... 1 Figure 1. 1015N-2M Modem Card and Attaching Hardware ... 2 Technical Specifications ... 2 1010N Flowmeter System Requirements ... 2 Preliminary Installation Notes and Cautions ...

  • Page 5: Introduction

    INSTALLATION INSTRUCTIONS INTRODUCTION The 1015N-2M Modem Card is one of three option cards used for remote communications within the Controlotron 1010N family of flowmeters. External communication is achieved through an on board dial-up miniature modem with asynchronous line speeds of 2400 bps, 1200 bps, or 300 bps.

  • Page 6: Figure 1. 1015N-2M Modem Card And Attaching Hardware

    CAUTION: It is highly recommended that installation be done in a static free environment or damage to the 1015N-2M Modem Card may result. NOTE: The 1015N-2M Modem will not function if the 1010 flowmeter RS-232 port is connected to the serial port of your PC.

  • Page 7: Module Loading Option 1

    WARNING: Set flowmeter and instrumentation power to OFF when inserting or removing the 1015N-2M Modem Card. Before proceeding with the following installation procedures, identify the Module Loading option and installation drawing for your Modem Card (see Appendix A). The options are as follows: a. Module Loading Option 1 1010N-5 with 1010N-2 in 1010N/DN Type System.

  • Page 8: Figure 3. Option 1 Installation (Side View)

    CAUTION: Do not connect a serial data cable to J1 on the 1015N-2M Modem Card or damage to the Modem Card and flowmeter may result. 4. Loosen the four captive screws (1) at the corners of the 1010N-2 module (7) and carefully lift out the module disengaging it from the connector on the 1010N-5 module (2).

  • Page 9: Option 2 Installation Procedure (Mounting Kit 1015N-2M-Mk2)

    11. Install the 1015N-2M Modem Card (9) on top of the 1010N-2 module (7) carefully engaging connector P1 on the 1015N-2M with its mate P1 on the 1010N-2 module. Secure the 1015N- 2M by engaging its four captive screws with the four standoffs on the 1010N-2 module.

  • Page 10: Option 3 Installation Procedure (Mounting Kit 1015N-2M-Mk3)

    9. Install the large threaded cover mount standoff (5) from the mounting kit through the hole at the center of the 1015N-2M Modem Card, through the spacer on the 1010N-2 module and then into the threaded receptacle on the 1010N-1 module shield (6).
  • Page 11 5. Leave the 1010N-2M module in place. Check to assure that the four corner standoffs (4) are securely threaded in place. CAUTION: Do not connect a serial data cable to J1 on the 1015N-2M Modem Card or damage to the Modem Card and flowmeter may result.

  • Page 12: Setting 1010N Flowmeter Rs-232 Parameters

    8. Install the 1015N-2M Modem Card (7) on top of the 1010N-8M module (2) carefully engaging connector P1 on the 1015N-2M with its mate P2 on the 1010N-8M module. Secure the 1015N-2M by engaging its four captive screws (1) with the four standoffs (4) on the 1010N- 8M module.

  • Page 13: Communications Configuration

    Step 3. Type in your meter’s telephone number. Step 4. Then click on Modify, then Configure and select 2400 baud as the modem speed. Step 5. Now click on Advanced Tab and set Data Bits to 7 and Parity to Odd. You may leave Stop Bits at 1.

  • Page 14: Appendix A "At" Command Set And "S" Registers

    When a carriage return is received, (which terminates the command line), the commands are performed in the order in which they are sent to the modem. If more than 40 characters are sent to the modem, an error occurs and all commands must be re-entered.

  • Page 15: At" Commands

    When modem receives a break from the DTE: \K0,2,4 Enter on-line command mode, no break sent to the remote modem. \K1 Clear buffers and send break to remote modem. \K3 Send break to remote modem immediately. \K5 Send break to remote modem in sequence with transmitted data.
  • Page 16 &Q5, &Q6 Asynchronous escape. &Q2, &Q3 The modem hangs up. &D2 Interpret DTR ON-to-OFF transition per &Qn: &Q0 thru &Q6 The modem hangs up. &D3 Interpret DTR ON-to-OFF transition per &Qn: &Q0, &Q1, &Q4. &Q5, &Q6 The modem performs soft reset.

  • Page 17: S" Registers

    Fax transmit attenuation level Result code messages control* Leased line transmit level Remote access escape character ECC S Registers LAPM failure control’ Data compression control* V.42 negotiation control’ Break handling control Call failure reason code Cellular Registers Cellular transmit level 1015N-2MFM-1A...

  • Page 18: Dial Modifiers

    Parameters: none Wait for Dial Tone. W causes the modem to wait up to a specified time for the dial tone to occur. The telephone number is dialed immediately upon dial tone detection. The S7 register value determines the maximum wait time. If a busy signal is detected instead of dial tone, the modem returns a BUSY result code and goes on-hook, abandoning subsequent instructions on the command line.

  • Page 19: At" Commands And "S" Registers Exclusive To The Pe2400

    =1 The auxiliary telco relay is controlled by off-hook/on-hook. If the modem is off-hook, the relay is commanded to close (connecting A to A1); if the modem is on-hook. the relay is commanded to open (disconnecting A from A1).

  • Page 20: S" Registers

    Range 0-250 0-127 S22* Mapped Notes: *This S-Register is stored in the modem NVRAM upon receipt of the &W command so that the contents are preserved when modem power is removed. EXCLUSIVE TO THE PE2400 “S” Registers Units Default 4 ms...

  • Page 21: Appendix Bengineering Drawings

    ENGINEERING DRAWINGS 1015N-2M-MK-7 Assembly, 1015N-2M Module in 1010 Series Flow and Energy Computers 1015N-2M-7 Installation Drawing, Communications Module APPENDIX B...
