- Page 1 — M A N UA L CEM11-FBP.xxx Earth leakage monitor...
-
Page 2: Important Notice
Thermal Overload Relay Electronic Overload Relay Universal Motor Controller: High grade motor protection and control device from ABB STOTZ-KONTAKT GmbH Common Accessory, Earth Leakage Monitor Positive Temperature Coefficient thermistor sensors. PTC sensors are commonly embedded in motor stator windings to monitor the motor winding temperature —... -
Page 3: Table Of Contents
C E M 1 1 - F B P. X X X E A R T H L E A K A G E M O N I T O R M A N U A L — Table of contents Contents Important notice Overview... -
Page 4: Overview

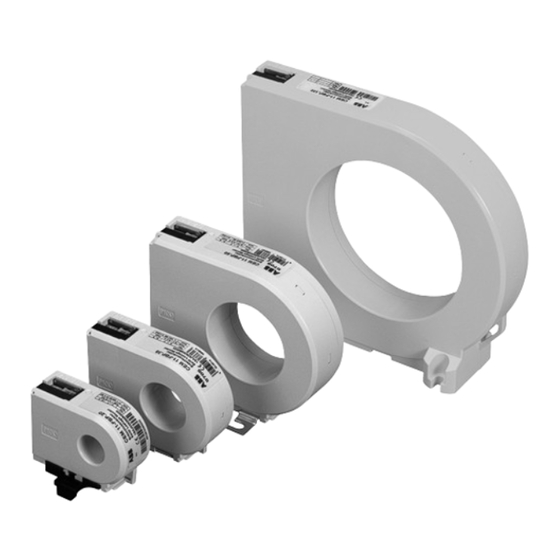

With only four products a wide residual current range can be covered: Type Pass through-hole size Current range CEM11-FBP.20 20 mm 80 mA … 1700 mA CEM11-FBP.35 35 mm 100 mA … 3400 mA CEM11-FBP.60 60 mm 120 mA … 6800 mA CEM11-FBP.120 120 mm 240 mA ... -
Page 5: Product Description
1500 Tolerance ± 10 % 1700 Tolerance ± 10 % for functional test for functional test — CEM11-FBP.35 Rotary switch set to Earth fault current threshold [mA] Comment Tolerance ± 30 % Tolerance ± 10 % 1000 Tolerance ± 10 % 1400 Tolerance ±... - Page 6 C E M 1 1 - F B P. X X X E A R T H L E A K A G E M O N I T O R M A N U A L — CEM11-FBP.60 Rotary switch set to Earth fault current threshold [mA] Comment Tolerance ±...
-
Page 7: Connection To Umc100.3 / Plc
C E M 1 1 - F B P. X X X E A R T H L E A K A G E M O N I T O R M A N U A L — Connection to UMC100.3 / PLC The following figure shows the application of CEM11 together with UMC100.3. -
Page 8: Mounting Instructions
C E M 1 1 - F B P. X X X E A R T H L E A K A G E M O N I T O R M A N U A L — Mounting instructions The CEM11-FBP.xxx can be DIN rail or alternatively wall mounted, using the provided accessories. -
Page 9: Technical Data
Max. 1000 V AC, isolated wires have to be used Selectable earth fault CEM11-FBP.20 , 300, 550, 750, 1000, 1200, 1500, 1700 mA current thresholds CEM11-FBP.35 , 500, 1000, 1400, 2000, 2400, 3000, 3400 mA CEM11-FBP.60 , 1000, 2000, 2800, 4000, 4800, 6000, 6800 mA CEM11-FBP.120... -
Page 10: Dimensional Drawings
C E M 1 1 - F B P. X X X E A R T H L E A K A G E M O N I T O R M A N U A L — Dimensional drawings ‡ Ø — Dimensions CEM11-FBP.xxx — Dimensions Type CEM11-FBP.20 76.40 20.35 29.50 6.50 CEM11-FBP.35 99.50 48.50 12.85 41.50 6.50 CEM11-FBP.60 54.50 69.50 6.50 All dimensions in mm... -
Page 11: Cem11-Fbp
C E M 1 1 - F B P. X X X E A R T H L E A K A G E M O N I T O R M A N U A L — Dimensions CEM11-FBP.120 —... -
Page 12: Ordering Details
Order No. Type Description 1SAJ929200R0020 CEM11-FBP.20 Earth Leakage Monitor, pass through-hole size 20 mm 1SAJ929200R0035 CEM11-FBP.35 Earth Leakage Monitor, pass through-hole size 35 mm 1SAJ929200R0060 CEM11-FBP.60 Earth Leakage Monitor, pass through-hole size 60 mm 1SAJ929200R0120 CEM11-FBP.120 Earth Leakage Monitor, pass through-hole size 120 mm... -
Page 13: Cem11-Fbp
Any reproduction, regard to purchase orders, the agreed disclosure to third parties or utilization of particulars shall prevail. ABB AG does not its contents – in whole or in parts – is accept any responsibility whatsoever for forbidden without prior written consent potential errors or possible lack of infor- of ABB AG.
