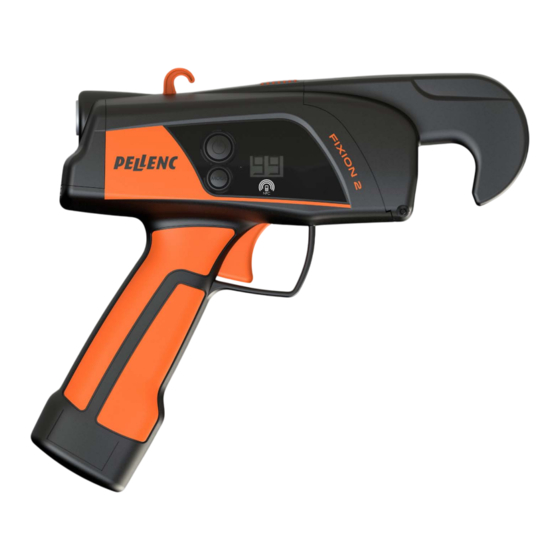

pellenc FIXION 2 User Manual

Tying machine
Hide thumbs Also See for FIXION 2:
Table of Contents

Advertisement

Quick Links

ATTACHER
FIXION 2
FIXION 2
USER GUIDE
CONTENT OF THE CARRY-CASE
• A FIXION 2 tying machine
• A user guide
• Warranty card
• A charger with adapters
• Disgorging scissors
29_133084_B
29_133084_B
05/2018
05/2018
READ THE USER'S GUIDE CAREFULLY BEFORE USE
• A holster
• A belt
• A small coil with reel adaptable for use with the tool
• A large coil with lateral reel
ENG
Translation of the original
user guide
Quartier Notre-Dame
84120 Pertuis (FRANCE)
Tél : +33 (0)4 90 09 47 00
Fax : +33 (0)4 90 09 64 09
www.pellenc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIXION 2 and is the answer not in the manual?

Questions and answers

Related Manuals for pellenc FIXION 2

Summary of Contents for pellenc FIXION 2

  • Page 1 USER GUIDE 05/2018 05/2018 READ THE USER’S GUIDE CAREFULLY BEFORE USE CONTENT OF THE CARRY-CASE • A FIXION 2 tying machine • A holster • A user guide • A belt • Warranty card • A small coil with reel adaptable for use with the tool •...

  • Page 3: Table Of Contents

    Fixion 2 USER GUIDE 29_133084_B TAB L E O F C ON TENTS SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 INTRODUCTION .

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS ʚ INTRODUCTION Dear Customer, Thank you for buying the Pellenc FIXION 2 attacher. Correctly used and maintained, this tool will give a satisfactory performance for years to come. ENVIRONMENTAL PROTECTION Your equipment comprises numerous materials which can be valorised or recycled.

  • Page 5: General Safety Instructions For The Tool

    Fixion 2 USER GUIDE 29_133084_B ■ SAFETY INSTRUCTIONS ʚ GENERAL SAFETY INSTRUCTIONS FOR THE TOOL CAUTION Read all the safety measures, instructions, illustrations and specifications provided with this power tool. Failure to comply with the following instructions risks causing electric shock, fire and/or serious injury.
  • Page 6 Fixion 2 USER GUIDE 29_133084_B ■ SAFETY INSTRUCTIONS PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating the power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention when using a power tool can result in serious personal injury.
  • Page 7 END OF LIFE MANAGEMENT OF THE TOOL When the tool reaches the end of its useful life, PELLENC provides an information sheet for equipment end of life. This information sheet provides instructions for the safe withdrawal of the components from service.

  • Page 8: Description And Technical Characteristics

    제조업체 조회 번호: CB1205 製造者品番 : CB1205 CB1205 CB1205 Réf. Pellenc / Pellenc ref. / Art.-Nr. Pellenc / Ref. Pellenc / Rif. Pellenc / Pellenc 조회 번호 133140 ペランク品番 : 133140 133140 133140 Puissance / Power / Leistung / Potencia / Potenza / 전력...

  • Page 9: Technical Properties

    Fixion 2 USER GUIDE 29_133084_B ■ DESCRIPTION AND TECHNICAL CHARACTERISTICS ʚ TECHNICAL PROPERTIES Max tying capacity 25 mm Power supply voltage of tying machine 10.9 V Charger supply voltage see requirement on charger Average charger power see requirement on charger Li-lon battery capacity 38 Wh 3.5 Ah...

  • Page 10: Preparation Before First Use Of The Tool

    Fixion 2 USER GUIDE 29_133084_B ■ PREPARATION BEFORE FIRST USE OF THE TOOL ʚ SETTING UP BELT AND HOLSTER - Remove the belt (4) from the carry-case. - Put the holster (1) in place on the belt (4), on the left or right side according to whether you are left or right-handed.

  • Page 11: Putting Adaptable Dispenser Fitted With The Small Coil Onto The Tying Machine

    Fixion 2 USER GUIDE 29_133084_B ■ PREPARATION BEFORE FIRST USE OF THE TOOL ʚ PUTTING ADAPTABLE DISPENSER FITTED WITH THE SMALL COIL ONTO THE TYING MACHINE. - Remove the guard (14) on the back of the tying machine. - Place the guard (14) into the slot reserved inside the carrycase.

  • Page 12: First Use Of The Tool

    Fixion 2 USER GUIDE 29_133084_B ■ FIRST USE OF THE TOOL ʚ TYING MACHINE ON/OFF The tying machine is started and stopped with the on/off button (20). DOC_29_17_014A ʚ ADJUSTING THE TIGHTNESS OF THE TIE You can adjust the tightness of the tie to suit the type of wood you have to tie in place, by using the MODE button (23).
  • Page 13 Fixion 2 USER GUIDE 29_133084_B ■ FIRST USE OF THE TOOL DOC_29_17_017A DOC_29_17_016A - Turn off the tying machine (on/off button (20), - Remove the upper guide (13) levering it out with see page 12). the disgorging scissors (5). - Open the swivel dispenser (11) with the lock/ unlock button (10).

  • Page 14: Reload The Large Coil

    Fixion 2 USER GUIDE 29_133084_B ■ FIRST USE OF THE TOOL ʚ RELOAD THE LARGE COIL - Block the rear flange and turn the front flange clockwise to unlock it. - Remove the front flange from the lateral dispenser (7).

  • Page 15: Reload The Small Coil

    Fixion 2 USER GUIDE 29_133084_B ■ FIRST USE OF THE TOOL ʚ RELOAD THE SMALL COIL - Block the rear flange and turn the front flange clockwise to unlock it. - Remove the front flange from the adaptable dispenser (6).

  • Page 16: Insert The Cord Into The Tying Machine

    Fixion 2 USER GUIDE 29_133084_B ■ FIRST USE OF THE TOOL ʚ INSERT THE CORD INTO THE TYING MACHINE Large coil: - Insert the tie, flat, into the opening (15) of the tying machine until the tie cord reaches the end stop.

  • Page 17: Use

    Fixion 2 USER GUIDE 29_133084_B ■ FIRST USE OF THE TOOL ʚ USE It takes a few hours handling to become familiar with the tying machine. The tying process is not automatic. To ensure your tool is working properly, and you are comfortable with it, always comply with the following conditions:...
  • Page 18 Fixion 2 USER GUIDE 29_133084_B ■ FIRST USE OF THE TOOL - Correct position of the cord when using the small coil. DOC_29_17_046A - Incorrect position of the cord when using the small coil. DOC_29_17_047A - Correct position of wood in the tying machine.

  • Page 19: Charging The Tool

    - Only the battery supplied with the charger must be used. Failing to comply with this instruction leads to premature deterioration of the battery, and increases the risk of physical injury. - Pellenc declines all responsibility if the charger is used for an application other than that specified. TAKE CARE: BEFORE USING THE BATTERY FOR THE FIRST TIME AT THE START OF A NEW SEASON, IT MUST BE FULLY CHARGED (99% STEADY).
  • Page 20 Fixion 2 USER GUIDE 29_133084_B ■ CHARGING THE TOOL - Use the correct adaptor (24) on the charger (25) according to your own country's standard. Press on the “PUSH” button to remove an adapter. DOC_29_17_030A - Connect the charger connector (25) to the mains. The charger LED lights up green.
  • Page 21 Fixion 2 USER GUIDE 29_133084_B ■ CHARGING THE TOOL - When the gauge display (21) flashes, the battery is charging. Charging is complete when the message appears steadily on the gauge display (21). DOC_29_17_033A - Once the battery is charged, disconnect the charging lead on the battery first, then the charger mains connector (25).

  • Page 22: Maintenance

    - At least once a year, or every 200,000 ties, return your tying machine in its original packaging to an approved repair shop, for a proper overhaul to ensure a long life for your tool. Spares references: Fixion 2 wearing parts kit Ref. 140588 Go to your dealer to change this kit.

  • Page 23: Built-In Battery Replacement

    Fixion 2 USER GUIDE 29_133084_B ■ MAINTENANCE ʚ BUILT-IN BATTERY REPLACEMENT TAKE CARE: THE BATTERY MUST BE REPLACED ONLY BY AN APPROVED DISTRIBUTOR. ʚ WHEN NOT IN USE - Store the tying machine and charger in their original carry-case, away from heat, dust and moisture, and check the tool is turned off (power indicator light on the tool off).

  • Page 24: Incidents

    Fixion 2 USER GUIDE 29_133084_B ■ INCIDENTS ʚ SUMMARY OF CHARGE INDICATOR AND BEEP MESSAGES NORMAL MESSAGES USAGE fixed Battery charge level (0 to 99) Battery empty, recharge immediately with 1 beep per minute flashing with 1 beep every 10...

  • Page 25: Pellenc Warranty And After Sales Service

    (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. In the case of products connected to a Pellenc battery, parts that are replaced in the under the product warranty after the 12th month of use, are covered for a period of one (1) year.

  • Page 26: Ec" Statement Of Compliance

    Fixion 2 USER GUIDE 29_133084_B ■ "EC" STATEMENT OF COMPLIANCE MANUFACTURER PELLENC ADDRESS Quartier Notre Dame 84120 Pertuis (FRANCE) PERSON/ENTITY AUTHORISED TO COMPILE THE PELLENC TECHNICAL DOSSIER ADDRESS Quartier Notre Dame 84120 Pertuis (FRANCE) WE HEREBY DECLARE THAT THE MACHINE HEREINAFTER REFERRED TO AS :...
