SIMATIC industrial PC
PC – PROFINET IRT
CP 1625 / CP 1625Dev
Operating Instructions
Siemens Automation Parts
04/2018
A5E43075902-AA
___________________
Preface
___________________
Safety information
___________________
Product overview
___________________
Mounting
___________________
Installing/connecting
___________________
Configuration
___________________
Technical specifications
Standards, approvals and
___________________
EMC guidelines
1
2
3
4
5
6
A
Advertisement
Table of Contents
Related Manuals for Siemens CP 1625
Summary of Contents for Siemens CP 1625
- Page 1 ___________________ Preface ___________________ Safety information ___________________ SIMATIC industrial PC Product overview ___________________ Mounting PC – PROFINET IRT CP 1625 / CP 1625Dev ___________________ Installing/connecting ___________________ Configuration Operating Instructions ___________________ Technical specifications Standards, approvals and ___________________ EMC guidelines Siemens Automation Parts...
- Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 3: Preface
The following names identified by ® and possibly some names without this identifier are registered trademarks of Siemens AG: SIMATIC NET, HARDNET, SOFTNET, CP 1612, CP 1613, CP 1625, CP 5612, CP 5613, CP 5614, CP 5622 Siemens Automation Parts... - Page 4 CP 1625. You can find additional information here: ● TIA Portal documentation ● Software Controller You can find additional information on using the CP 1625 for development purposes here: ● PROFINET Driver Commissioning Manual (https://support.industry.siemens.com/cs/ww/de/view/86655396/en) Updated operating instructions on the Internet You will find the current version of these operating instructions on the Product Support (https://support.industry.siemens.com/cs/ww/en/view/109756564) Internet pages...
- Page 5 For answers and solutions concerning automation technology. ● mySupport Your personal working area in Industry Online Support for messages, support queries, and configurable documents. This information is provided by the Siemens Industry Online Support in the Internet (http://www.siemens.com/automation/service&support). Siemens Automation Parts CP 1625 / CP 1625Dev...
-
Page 6: Table Of Contents
Properties ..........................18 Mounting ............................... 19 Installing the holding plate ..................... 19 Installing/connecting ..........................20 Installing and connecting the CP 1625 .................. 20 Configuration ............................22 Technical specifications ........................23 Standards, approvals and EMC guidelines .................... 25 Standards and approvals ....................... 25 Electromagnetic compatibility .................... -
Page 7: Safety Information
ESD. ● Handle modules fitted with ESDs only by their edges. ● Do not touch any connector pins or conductors on modules containing ESDs. Siemens Automation Parts CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA... -
Page 8: Security Information
Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers' exposure to cyber threats. -
Page 9: Product Overview
Product overview Principle The following table provides an overview of the components of the CP 1625 and CP 1625Dev: Components CP 1625 CP 1625Dev Strain relief Adhesive feet - 4 units Terminal block for 24 V DC power supply Advanced interface configuration X500: UART0 •... -
Page 10: View Of Front Panel
Product overview 2.2 View of front panel View of front panel Connection elements The following figure shows the front panel of the communications processor CP 1625: ① Port 1 of the X1 interface ② Port 2 of the X1 interface... - Page 11 2.2 View of front panel RJ45 sockets The connection of the CP 1625 to the LAN (Local Area Network) is made via one of the two RJ45 sockets on the front panel of the communications processor. The two sockets lead to the integrated real-time switch.
-
Page 12: Communications Processor Cp 1625

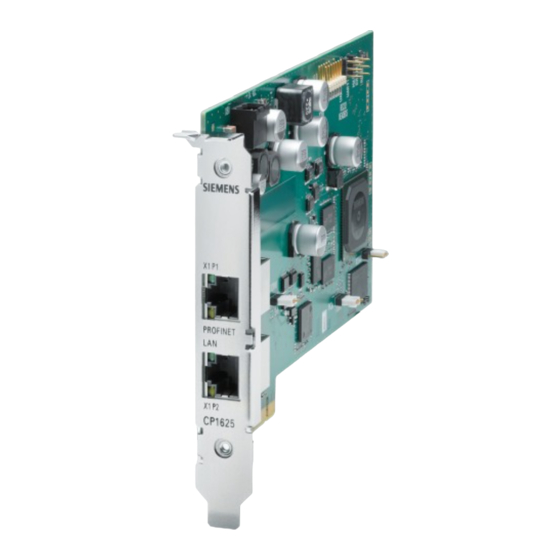

Communications processor CP 1625 2.3.1 Interfaces and display elements Appearance The following figure shows the most important interfaces of the communications processor CP 1625. Figure 2-1 View of the CP 1625 interfaces CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA... -
Page 13: Properties
2.3 Communications processor CP 1625 2.3.2 Properties Properties The CP 1625 is a PCIe module for the connection of PCs to Industrial Ethernet. Note The PROFINET ports must not be connected directly to the Internet. The essential properties are as follows: ●... -
Page 14: Communications Processor Cp 1625Dev
X602 Interface for PROFINET certification ⑤ X2200 Jumper for selecting boot source ⑥ X1600 Jumper for selecting restart behavior ⑦ X2000 Jumper for selecting power supply source Figure 2-2 CP 1625Dev CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA... - Page 15 XPLL_OUT signal. The signal is available on the circuit board for measuring purposes. ④ The interface is designated with the number in the figure above. Figure 2-4 X602 Signal XPLL_OUT (SYNC Out) GND (1M) Siemens Automation Parts CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA...
- Page 16 Figure 2-5 X1600 Pin assignment Description Pins 1 and 2 Restart via PCIe bus Pins 2 and 3 Manual restart (with external use of the CP 1625Dev) CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA...
- Page 17 Damage can occur if the jumper is inserted incorrectly on the X2000 interface and the IPC is then connected to a 24 V DC power supply. Set the position of the jumper on the X2000 interface according to the use of the CP 1625. Interface/jumper X2200 At interface X2200 you use the jumper to set whether the SOC1 is to boot from NAND flash.
-
Page 18: Properties
2.4 Communications processor CP 1625Dev 2.4.2 Properties The CP 1625 is a PCIe module for the connection of PCs to Industrial Ethernet. Note The PROFINET ports must not be connected directly to the Internet. The essential properties are as follows: ●... -
Page 19: Mounting
This improves the mechanical stability of the plug-in connection. You fasten the outgoing cables to the holding plate with cable ties. Figure 3-1 Correct mounting of holding plate Siemens Automation Parts CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA... -
Page 20: Installing/Connecting
● Before installation, make sure that the jumpers are set correctly on the CP 1625Dev. You can find information on this in the section: Interfaces and display elements (Page 14). ● The communications processor CP 1625 requires a PCIe slot with master capability. CP 1625 / CP 1625Dev... - Page 21 When handling the communications processor, make sure that you do not touch the connectors or the electronic components. 5. Insert the CP 1625 into the PCIe slot according to the instructions. Make sure that the CP 1625 is inserted securely and evenly in the slot socket.
-
Page 22: Configuration
Configuration After the communications processor is installed in the PC, it needs to be configured. The communications processor CP 1625 is configured in the TIA Portal. Requirements ● TIA Portal ≥ V15 incl. Update 1 ● S7-1500 Software Controller CPU 1507S (F) ≥ V2.5 is installed on the IPC... -
Page 23: Technical Specifications
Technical specifications Communications processor CP 1625 The following technical specifications apply to the communications processor CP 1625: Data transfer Transmission rate 100 Mbps Interfaces Connection to 10BaseT/100BaseTx RJ-45 connector (2 units) Connection to PC PCI-Express X1 V1.0a Plug & Play... - Page 24 Electrical isolation required Voltage range 19.2 V DC to 28.8 V DC CP 1625 current consumption with the PC turned off Approx. 0.25 A at 24 V NOTICE Damage to the IPC and/or the CP 1625Dev If you connect a plugged CP 1625Dev communications processor to a 24 V DC power supply, this can result in undefined states.
-
Page 25: Standards, Approvals And Emc Guidelines
For environmentally friendly recycling and disposal of your old equipment, contact a certified electronic waste disposal company and dispose of the equipment according to the applicable regulations in your country. Siemens Automation Parts CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA... - Page 26 ● AS/NZS 3548 ● IEC 61000-6-3 ICES The communications processor CP 1625 meets the requirements of the Canadian standard ICES-003. The communications processor CP 1625 is classified as a "Class B digital apparatus". CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA...
- Page 27 ● Consult the dealer or an experienced radio/TV technician for help. Siemens AG is not responsible for any radio television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Siemens AG. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.
- Page 28 Declaration of conformity with the technical requirements of the Customs Union (TR CU). PROFINET standard The communications processor CP 1625 is based on the standard IEC 61158 Type 10. Reference The certificates for the markings and approvals can be found on the Internet under Service&Support (https://support.industry.siemens.com/cs/ww/en/).
-
Page 29: Electromagnetic Compatibility
The communications processor meets the requirements of the EC Directive 2004/108/EC (EMC directive). Use in industrial environments The communications processor CP 1625 is designed for use in industrial areas. It meets the following standards for this type of use: ● Requirements for emitted interference EN 61000-6-4 ●... -
Page 30: Index
Writing conventions, 3 Requirements Delivery variants Hardware, 9 CP 1625, 3 Software, 9 CP 1625Dev, 3 Safety information Electromagnetic compatibility (EMC), 29 ESD guidelines, 7 EMC (Electromagnetic compatibility), 29 Repairs, 7 CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA... - Page 31 Specialist terms SIMATIC NET glossary, 4 Standards, 26 Technical specifications CP 1625, 23 CP 1625Dev, 23 Electromagnetic compatibility (EMC), 29 Standards and approval, 26 Trademarks, 3 Writing conventions, 3 Siemens Automation Parts CP 1625 / CP 1625Dev Operating Instructions, 04/2018, A5E43075902-AA...
