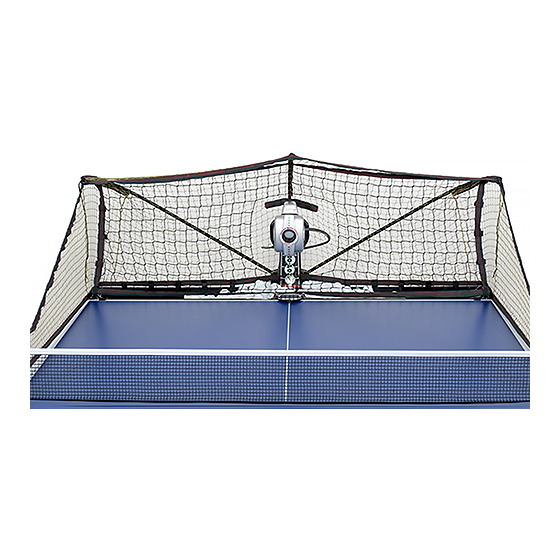

Newgy Robo-Pong 3050XL Owner's Manual

Table tennis robot
Hide thumbs Also See for Robo-Pong 3050XL:

Advertisement

Table of Contents

OWNER'S MANUAL
1
www.newgy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Robo-Pong 3050XL and is the answer not in the manual?

Questions and answers

Related Manuals for Newgy Robo-Pong 3050XL

Summary of Contents for Newgy Robo-Pong 3050XL

  • Page 1 OWNER’S MANUAL www.newgy.com...

  • Page 2: Table Of Contents

    CONTENTS TABLE OF Welcome .......................... Page 3 Quick Start of Your Robo-Pong 3050XL ............Page 4 Operating Your Robot ....................Page 8 Drill Descriptions ......................Page 19 Quick Take-Down, Storage & Transport ............Page 25 Robot Adjustments ....................Page 27 Care and Maintenance ....................

  • Page 3: Welcome

    I know exactly what an Olympic-level training session should be. With the development of the Robo-Pong 3050XL, robot training has “come to life” for me. With human-like combinations of different spins, deceptive serves, powerful smashes, no-spin balls, spinny loops and excellent variations, I can now get an Olympic training session from the convenience of my own home.

  • Page 4: Quick Start Of Your Robo-Pong 3050Xl

    If a part is missing, please it downward and against the table. contact Newgy immediately The support legs should be as wide as possible before they go underneath the (see back page for contact info).
  • Page 5 Newgy App from your device’s App looping it over the table net clamp screw. Store. For the Windows App visit https://www.
  • Page 6 START QUICK IMPORTANT - Calibrate Your Robot The calibration step is required to make sure your robot functions properly. This step will ensure all drills perform correctly. SETUP ROBOT OWNER’S MANUAL HELP 0.0.0 / 000 / 0 Control Mode Drill Mode STANDARD INTRODUCTORY ADVANCED...
  • Page 7 6” Ball You are now ready to begin using your Newgy Robo-Pong 3050XL robot! Once Set Up is complete, the settings are saved and this step will not need to be completed the next time the 3050XL is operated. If you are experiencing position or height issues during play, the Set Up command can be used to re-calibrate...

  • Page 8: Operating Your Robot

    CONTACT PLAY: Press this button to launch the Newgy Robo-Pong 3050XL experience. SHOP: Press this button to navigate to www.newgy.com with a large inventory of table tennis equipment. SUPPORT: Press this button to navigate to a wide-range of support information.
  • Page 9 Press this button to launch your robot’s set-up process. This can also be used if your robot needs re-calibration (see page 7 for further explanation). Owner’s Manual: Press this button for the Newgy Robo-Pong 3050XL Owner’s Manual for more detailed information on your 3050XL.
  • Page 10 Control Mode: Standard In the Standard Mode, the user interface allows you to indicate where and what types of ball(s) the robot should throw. You select the landing position and properties of each ball and the 3050XL robot calculates the settings needed to deliver the ball(s) to each position.
  • Page 11 Control Mode: Standard Ball Type: Top Spin Spin Speed: Lowest Side Spin: None Angle: 0º Cancel Once you select the characteristics you want, press SET and the ball will appear on the table. Each ball on the table is “draggable”, which means you can touch it and move it to a new location. You can also double touch it to change its characteristics.
  • Page 12 Control Mode: Precision In the Precision Mode, the interface uses a “Position” to define where the ball(s) will be delivered. In this mode it is the user (not the 3050XL) that controls and calculates the 7 attributes which are applied to all balls in each Position.
  • Page 13 Control Mode: Precision Position #1 Position #2 Control Mode: Precision # Balls # Balls Count Wait Time Wait Time Delay (Seconds) 1000 1000 Top Motor Top Motor Bottom Motor Bottom Motor Oscillation Oscillation START Height Height SAVE LOAD Rotation Rotation BACK CLEAR Each position in the interface gives you 7 attributes to control each ball:...
  • Page 14 Drill Mode Your Robo-Pong 3050XL comes pre-programmed with several table tennis drills. These drills are divided up in to skill levels (including Introductory, Beginner, Intermediate and Advanced - plus Bonus Drills), giving you the flexibility to choose your training based off your experience, skill level and goals. Please refer to the Newgy App to access the pre-programmed drills.
  • Page 15 Enter a name for the drill in the Drill Name text field, and optionally enter details about the drill in the Description text field. Select Save and note that the drill is now saved in My Drill Library under My Custom Drills. Newgy Drills are saved as .XML files.
  • Page 16 Enter a name for the drill in the Drill Name text field, and optionally enter details about the drill in the Description text field. Select Save and note that the drill is now saved in My Drill Library under My Custom Drills. Newgy Drills are saved as .XML files.
  • Page 17 USB Drive Transfer Drills may also be Exported from the Newgy App to a Windows 10 device and then transferred to a USB drive, as well as downloaded from a USB drive and imported to the Newgy App. However, Newgy does...
  • Page 18 Indicator Lights The Newgy Robo-Pong 3050XL has excellent spin variation in the rallies, just like playing against a real opponent in a tournament! The green and red indicator lights will let you know the exact spin on the ball so that you can choose the correct stroke to use.

  • Page 19: Drill Descriptions

    DRILL DESCRIPTIONS INTRODUCTORY DRILLS Three Balls Forehand Warmup Topspin, underspin & no spin to test your spin ready This drill gives you a steady no-spin ball, slowly to skills. your forehand. No Spin Forehand Backhand Warmup Deep with no spin, so return with maximum spin! This drill gives you a steady no-spin ball, slowly to No Spin Backhand the backhand.
  • Page 20 In-And-Out Footwork to your forehand then a high ball to the backhand. Move in for the short forehand, then move back Get in position and smash both high balls with your for the deep forehand. Next, move in for the short powerful forehand! backhand, then move back a bit for the deep Serve, Then Speed...
  • Page 21 Right Sidespin Serve Anywhere the ball as it approaches. Prepare for the long sidespin serve, but always be Middle, Corner ready to move in slightly with the right foot for the surprise short one! To control the spin, touch the This is one of the world’s most popular drills! Play left side of the ball.
  • Page 22 Twelve Ball Rally Left Sidespin Topspin Serve It all starts with a short backspin serve followed by a The left sidespin topspin serve is like a right handed long backspin push, then the marathon begins – ten player serving a forehand pendulum serve. To return fast topspins anywhere.
  • Page 23 One or Two Backhands, One or Two Middle No-Spin Serve then Backhand, Forehand You can use backhand or forehand for this drill, just After pushing the no-spin serve, use a controlled make sure that you are moving for every ball. Also, stroke and block with your backhand then block watch the robot’s head to see where the next ball with your forehand.
  • Page 24 Random Smashing BONUS DRILLS Speed balls will be coming anywhere on the table. Instead of merely guessing, you should keep your Topspin to Either Corner racket neutral in-front, move into position, and try This drill gives you deep topspin balls randomly to to touch every ball.

  • Page 25: Quick Take-Down, Storage & Transport

    QUICK TAKE-DOWN, STORAGE & TRANSPORT Your Robo-Pong 3050XL is quick and easy to take-down, store and transport. Unplug Power Cable and Place Insert Ball Dams Push the balls into the Center Trough Side Nets in Trays and place the Ball Dams in their retaining First, unplug the power cable from the slots.
  • Page 26 From the back of the robot, detach If you own the optional Robo-Tote the left and right Curved Net Support carrying case, your Robo-Pong 3050XL Tubes from their associated Straight will now fit inside the case. The Robo- Net Support Tubes. Place the curved...

  • Page 27: Robot Adjustments

    Support Plate LEVELING ADJUSTMENT Wing Robo-Pong 3050XL is designed to sit level when attached to the table. In proper position (Figure 1), the CT Support Legs fit underneath the table and the CT Front Support Plate sits on top of the table. If the robot does not sit level, balls will not feed 10, 11, 12 properly.

  • Page 28: Care And Maintenance

    CARE MAINTENANCE Robo-Pong robots are easy to maintain. The only maintenance that our robots require is an occasional cleaning. The Drive Wheels are prone to dirt build-up. Periodically inspect parts and clean with Rubber Drive Cleaner (available in USA only) or a general purpose cleaner and a cloth. One indicator that these parts are dirty is reduced ball speed or erratic delivery—...

  • Page 29: Parts List

    PARTS LIST NET ASSEMBLY 10,11,12 NOTE: The key numbers on this parts list correspond to the numbers used to identify parts in this manual. Key# Part # Item Qty. Key# Part # Item Qty. 2000-100 2000-130 Net Support Tube, Curved, L & R Center Trough 2000-101 CT Rubber Feet...
  • Page 30 PARTS LIST ROBOT BODY ASSEMBLY 24 32...
  • Page 31 52 2000-274 Warning Label 9 2040-161C BF Spring, Short 53 3050-192 BS Lower Drive Wheel 10 2040-162B BF Clear Front Cover 54 3050-260 3050 Newgy Head Label 11 2050-145 BF Mounting Plate 55 3050-306 BS Discharge Wheel Screw 12 2050-149 BF Main Gear...

  • Page 32: Glossary Of Table Tennis Terms

    GLOSSARY OF TABLE TENNIS TERMS Antispin - An inverted rubber sheet that is very Down-the-Line - A ball that is hit along the side of slick so that spin does not take on it. It usually has the table, parallel to the sidelines, is hit down the a very dead sponge underneath.
  • Page 33 Lob - A high defensive return of a smash. Usually sheet of rubber with pips, with the pips pointing done with topspin or sidespin. either in or out. If pointed in, it is inverted sponge. If pointed out, it is pips out sponge. Long - See deep.

  • Page 36: Warranty

    SERVICE POLICY When your 1 Year Limited Warranty expires, Newgy will repair any normal wear and tear to the robot for for a flat fee (depending on robot model), plus shipping and handling (for Contiguous U.S., other areas carry additional fees) for a period of 5 years from date of purchase.
