Summary of Contents for Eaton iLight UIG-2

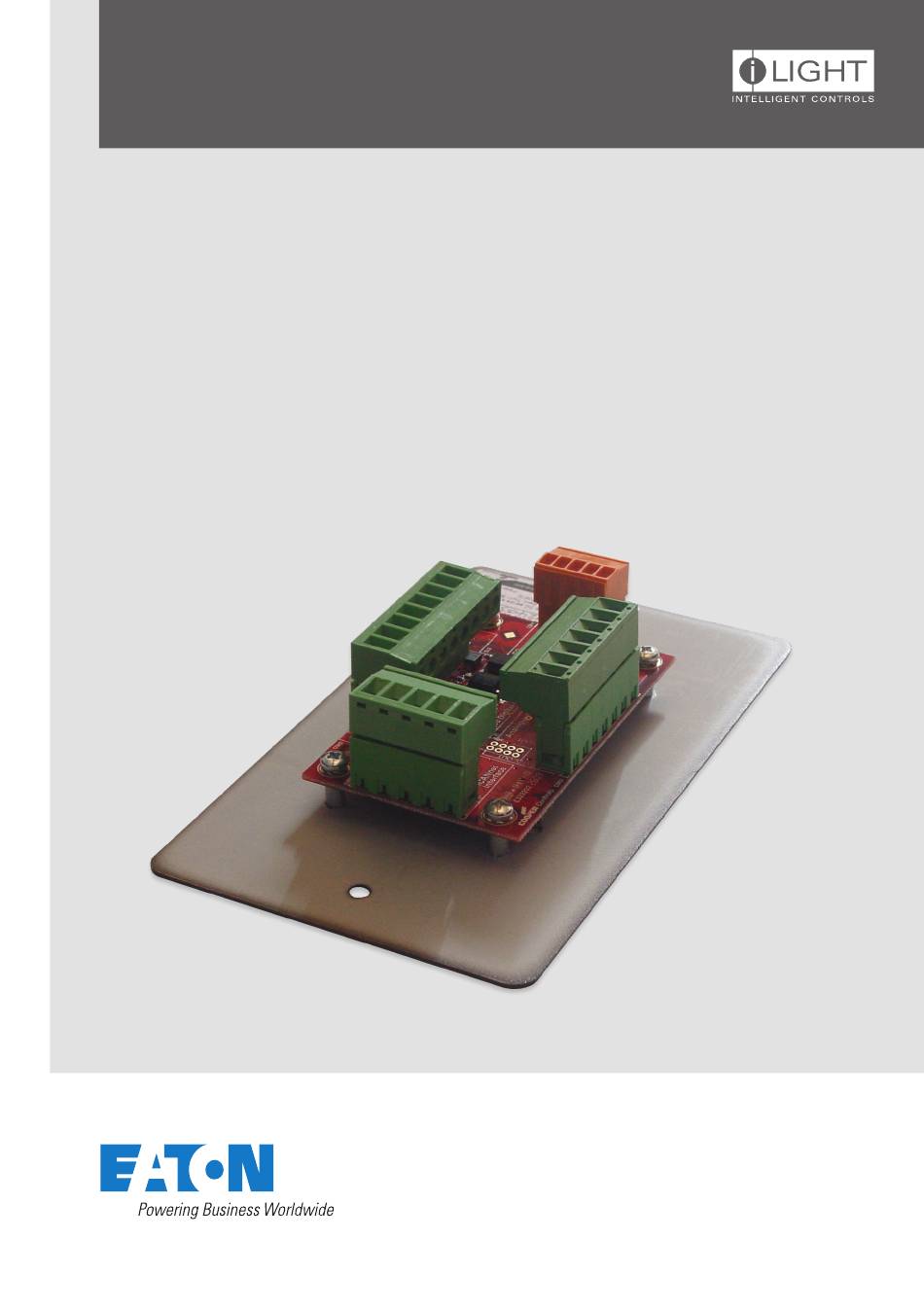

- Page 1 Installation guide UIG-2 Universal Interface...
-
Page 2: Table Of Contents
With configurable room join functions, just moving room partitions can open or close contacts to enable individual or combined room control. Dimensions Eaton - Lighting Systems iLight Product Series - UIG-2 73-898-00 IM8840 Iss.02... -
Page 3: Specification
4. All analogue / digital inputs wire with 2 part connectors with screw terminals. Wire sizes part connectors with screw terminals. Wire sizes 4mm2 (12 AWG) to 0.25mm2 (24 AWG). 4mm2 (12 AWG) to 0.25mm2 (24 AWG). Eaton - Lighting Systems iLight Product Series - UIG-2 73-898-00 IM8840 Iss.02... -
Page 4: Installation
F . Maximum wiring distance of inputs should not exceed 10m (32 feet). Ambient atmosphere requirements Temperature: 0°C to +40°C (32°F to 104°F) Humidity: 0 to 95% non-condensing. Eaton - Lighting Systems iLight Product Series - UIG-2 73-898-00 IM8840 Iss.02... -
Page 5: Ican Network Connections
Identification Button The UIG-2 features a small button, accessible through the front panel, which sends an identification message across the iCANnet network when pressed. Eaton - Lighting Systems iLight Product Series - UIG-2 73-898-00 IM8840 Iss.02... -
Page 6: Input And Output Connection
In digital mode, switches can be connected between the appropriate input and 0V. The input functions can be programmed to operate on both a switch closure and release. Eaton - Lighting Systems iLight Product Series - UIG-2 73-898-00 IM8840 Iss.02... -
Page 7: Led Output Drives
The UIG-2 allows 4 room joins with up to 3 partitions each. A Technical Note on Room Joins and partitioning, with examples, is available. Eaton - Lighting Systems iLight Product Series - UIG-2 73-898-00 IM8840 Iss.02... - Page 8 Cooper Controls cannot accept responsibility for repairs or modifications that are not competently executed and in accordance with service or upgrade information. CE compliant to all relevant standards Eaton - Lighting Systems 20 Greenhill Crescent, Watford Business Park, Watford, Herts, WD18 8XG. UK...
