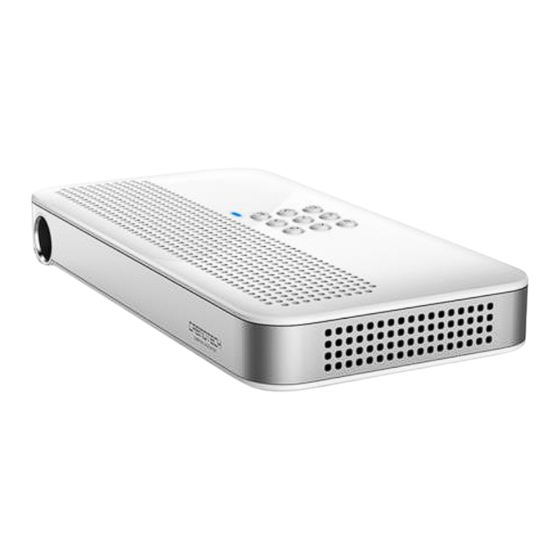

Cremotech Laser Beam Pro User Manual
  1. Manuals
  2. Brands
  3. Cremotech Manuals
  4. Projector
  5. laser beam pro
  6. User manual

Cremotech Laser Beam Pro User Manual

Hide thumbs Also See for Laser Beam Pro:
Table of Contents

Advertisement

Quick Links

See also: User Manual
User Guide
2016/10 Rev 1.0
www.cremotech.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Laser Beam Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Cremotech Laser Beam Pro

Summary of Contents for Cremotech Laser Beam Pro

  • Page 1 User Guide 2016/10 Rev 1.0 www.cremotech.co.kr...

  • Page 2: Table Of Contents

    Table of Contents Getting Started Settings Supplied Items Keystone Adjustment Parts and Controls Brightness Adjustment Keypad Functions Auto Shut-Off Timer Connecting to the Internet Remote App Media Player Software Upgrade Using USB, micro SD System Reset Connecting to Bluetooth Connecting to Technical Details another device Specifications...

  • Page 3: Getting Started

    Getting Started Supplied Items Beam Projector Power Adapter Simple Manual...

  • Page 4: Parts And Controls

    Getting Started Parts and Controls Keypad LED Indicator USB Port Lens micro HDMI Input (Supported up to HDMI 1.4) Speaker Power Socket Audio Jack USB Port micro SD Port...

  • Page 5: Keypad Functions

    Getting Started Keypad Functions Directional Keys Volume Up Power Enter/OK Exit/Back Volume Down Mouse Pointer (Long-press) Power On Press and hold the Power Key for four seconds until LED indicator displays yellow to turn the projector on. Power Off Press and hold the Power Key until ‘Power Off’ alert is seen on the screen.

  • Page 6: Connecting To The Internet

    Getting Started Connecting to the Internet Please connect the projector to an AP (Access Point) to connect to the Internet. Select Settings. Select Wi-Fi to connect to an AP.

  • Page 7: Media Player

    Getting Started Media Player Select Media Player. You can play video files stored in the internal storage (NAND Flash), USB Memory, or micro SD card).

  • Page 8: Using Usb, Micro Sd

    Getting Started Use Applications You can download apps from Google Play You can use pre-installed apps – YouTube, Netflix, etc. – as well as the apps you have downloaded.
  • Page 9 Getting Started Use USB, SD Card You can connect USB memory, USB mouse to the USB host. micro SD card (up to 128GB) can be used through micro SD card slot. ※ USB mouse, USB memory, micro SD card are not included. USB host micro SD slot...
  • Page 10 Getting Started Use Bluetooth You can connect Bluetooth devices such as mice, keypads, speakers to the projector. On Settings > Bluetooth, you can select a Bluetooth device you want to connect. ※ Bluetooth mouse, keypad, speaker are not included.

  • Page 11: Connecting To Another Device

    Connecting to another device Connecting to iOS device (1/2) You can mirror your iOS device’s screen to the projector. Select iOS Mirroring.
  • Page 12 Connecting to another device Connecting to iOS device (2/2) AP Mode The iOS device needs to be connected to the same Wi-Fi network. Hotspot Mode you can directly connect your iOS device to the projector via Hotspot mode. On your iOS device, run AirPlay and select the projector name to mirror you screen to the projector.

  • Page 13: Connecting To Android Device

    Connecting to another device Connecting to Android device You can mirror your Android device’s screen to the projector. Your Android device needs to support Miracast. Select Android Mirroring. Select Miracast menu on your Android device, and connect to the projector device name.

  • Page 14: Connecting To Hdmi

    Connecting to another device Connecting to a PC via HDMI micro HDMI port Connect micro HDMI port and your PC with a HDMI cable. * Highly recommend to use a shielded HDMI cable. * Up to HDMI Ver. 1.4 is supported. HDMI cable is not included.

  • Page 15: Settings

    Settings Keystone Adjustment You can adjust keystone in Settings > Keystone. Select a display shape and press OK button to adjust the keystone.
  • Page 16 Settings Brightness Select Brightness and chose one between Low, Medium, and High. Use Left/Right key button to select your preferred brightness.

  • Page 17: Auto Shut-Off Timer

    Settings Auto Shut-Off Timer You can set auto shut-off timer at Settings > About Device > Auto Shut- Off Timer. Use Left/Right key button to choose between 5 min, 10 min, 20 min, and none.

  • Page 18: Remote App

    Settings Remote App You can download Remote App from Google Play or Apple App Store. Please use the Remote App to control the projector after connecting the app to the projector. Please start the app and select the projector name after searching.
  • Page 19 A new SW update is available. Do you want to update? SW Update Using Your PC via USB Please visit Cremotech home page (http://www.cremotech.co.kr) and download the up-to-date software and SW installation tool. Install the SW installation tool on your PC and connect your PC with the projector using USB cable.
  • Page 20 Settings Reset You can reset the projector when it doesn’t work. You can find the reset hole at the bottom-right on the back side of the projector. Please use a clip or pin to press the reset button inside to reset the projector.

  • Page 21: Technical Details

    Technical Details Specifications Specifications Dimensions 70.9 x 140.5 x 18.8 (mm) Weight 210 g Battery Capacity 6000 mAh Processor Quad Core Internal Storage Expandable Storage micro SD (up to 128GB) Android Lollipop Speaker 1W Mono Speaker Wi-Fi 802.11 a/b/g/n (2.4/5.0 GHz) Bluetooth v 4.0 HDMI Input...
  • Page 22 Safety Warning and Caution We sincerely appreciate your purchase of our product. Please read all the safety information prior to using this product. Warning Violation of these instructions may result in fire, injury, or damage to the product or other property. Do not use this product while driving a car.
  • Page 23 This product is designed to work and to be stored in ambient temperatures ℃ and ℃. between 10 This product can be damaged and battery life shortened if stored or operated outside of this temperature range. Please be extra careful since temperature inside ℃...
  • Page 24 Do not touch the lens directly with the hands, fingers or skin. A dirty or smudged lens leads to lower image quality. When cleaning the product, wipe slowly with a soft, dry cloth. Ensure the charger is disconnected from the product and that the power is off. Do not use solvents, alcohol or thinner to wipe the product.
  • Page 25 FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation.
