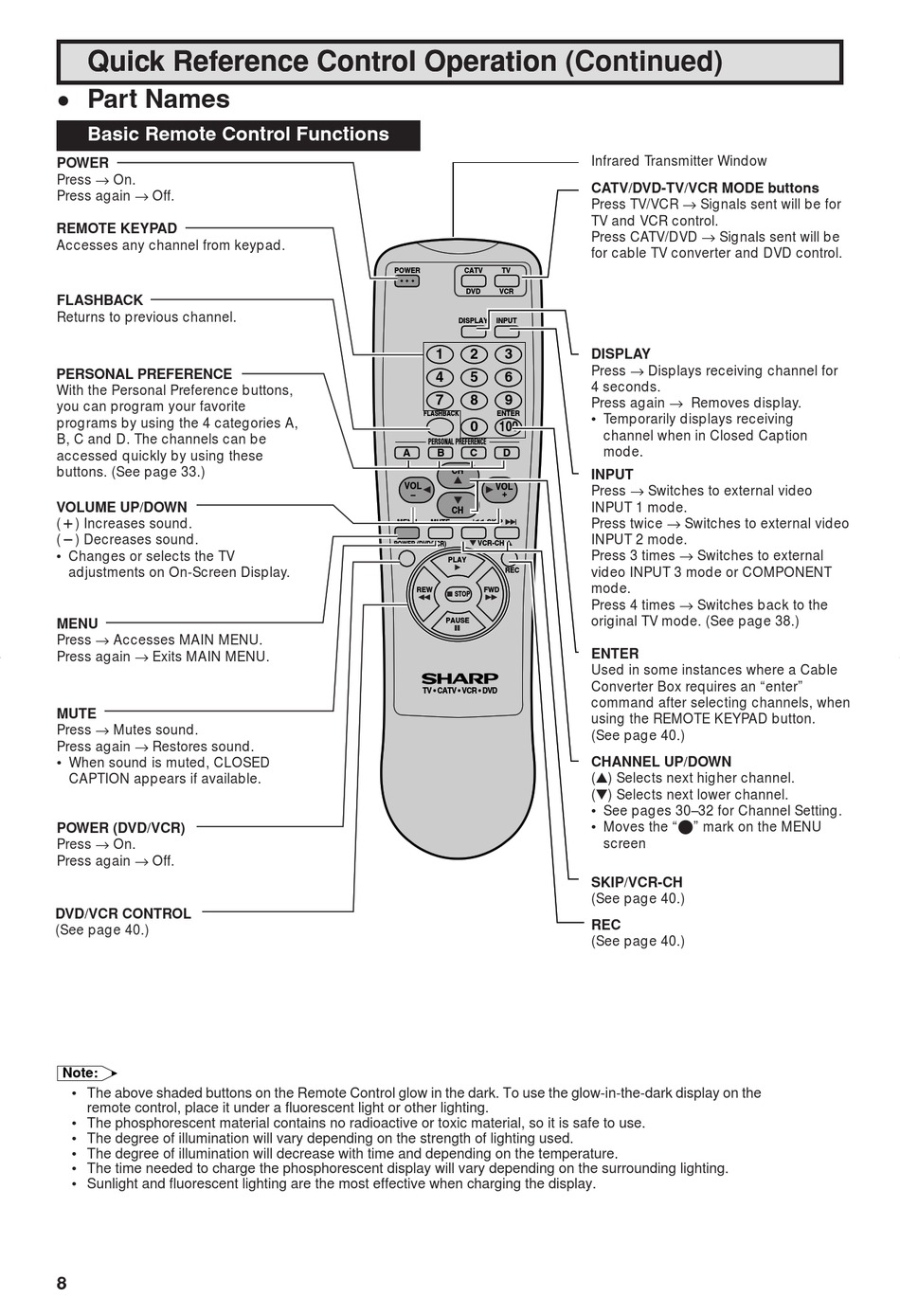

Quick Reference Control Operation (Continued)
Quick Reference Control Operation
•
Part Names
Basic Remote Control Functions
POWER
Press → On.
Press again → Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
PERSONAL PREFERENCE
With the Personal Preference buttons,
you can program your favorite
programs by using the 4 categories A,
B, C and D. The channels can be
accessed quickly by using these
buttons. (See page 33.)
VOLUME UP/DOWN
(k) Increases sound.
(l) Decreases sound.
• Changes or selects the TV
adjustments on On-Screen Display.
MENU
Press → Accesses MAIN MENU.
Press again → Exits MAIN MENU.
MUTE
Press → Mutes sound.
Press again → Restores sound.
• When sound is muted, CLOSED
CAPTION appears if available.
POWER (DVD/VCR)
Press → On.
Press again → Off.
DVD/VCR CONTROL
(See page 40.)
Note:
• The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the
remote control, place it under a fluorescent light or other lighting.
• The phosphorescent material contains no radioactive or toxic material, so it is safe to use.
• The degree of illumination will vary depending on the strength of lighting used.
• The degree of illumination will decrease with time and depending on the temperature.
• The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.
• Sunlight and fluorescent lighting are the most effective when charging the display.
8
POWER
CATV
TV
DVD
VCR
DISPLAY
INPUT
1
2
3
4
5
6
7
8
9
FLASHBACK
ENTER
0
100
PERSONAL PREFERENCE
A
B
C
D
CH
8
VOL
VOL
;
:
–
+
9
CH
MENU
MUTE
g
SKIP
f
VCR-CH
POWER (DVD/VCR)
9
8
PLAY
:
REC
REW
FWD
STOP
L
(
)
PAUSE
J
TV • CATV • VCR • DVD
Infrared Transmitter Window
CATV/DVD-TV/VCR MODE buttons
Press TV/VCR → Signals sent will be for
TV and VCR control.
Press CATV/DVD → Signals sent will be
for cable TV converter and DVD control.
DISPLAY
Press → Displays receiving channel for
4 seconds.
Press again → Removes display.
• Temporarily displays receiving
channel when in Closed Caption
mode.
INPUT
Press → Switches to external video
INPUT 1 mode.
Press twice → Switches to external video
INPUT 2 mode.
Press 3 times → Switches to external
video INPUT 3 mode or COMPONENT
mode.
Press 4 times → Switches back to the
original TV mode. (See page 38.)
ENTER
Used in some instances where a Cable
Converter Box requires an "enter"
command after selecting channels, when
using the REMOTE KEYPAD button.
(See page 40.)
CHANNEL UP/DOWN
(a) Selects next higher channel.
(s) Selects next lower channel.
• See pages 30–32 for Channel Setting.
• Moves the "E" mark on the MENU
screen
SKIP/VCR-CH
(See page 40.)
REC
(See page 40.)
