USER MANUAL

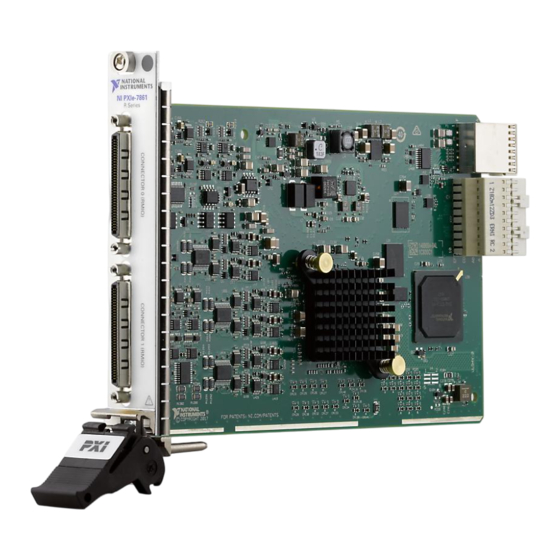

NI PXIe-7861
R Series Reconfigurable I/O Module (AI, AO, DIO) for PXI Express,
16 AI, 8 AO, 32 DIO, 1 MS/s AIO, 512 MB DRAM,
Kintex-7 160T FPGA
This document provides compliance, pinout, connectivity, mounting, and power information
for the NI PXIe-7861.
Hardware Overview
The following high-level block diagram represents the NI PXIe-7861.
Overvoltage
Protection
Overvoltage
Protection
Overvoltage
Protection
Overvoltage
Protection
Overvoltage
Protection
Figure 1. NI PXIe-7861 Block Diagram
AI (x8)
ADC
INA
+5 V
Reference
AO (x8)
DAC
DIO (x16)
AI (x8)
ADC
INA
+5 V
Reference
DIO (x16)
100 MHz
DDR3 RAM
OSC
AI
AO
Kintex-7
FPGA
Data/
Address/
DIO
Control
AI
DIO
Device
Temperature
Flash
Memory
NI ASIC
NI PXIe-7861
Advertisement
Table of Contents
Related Manuals for National Instruments R Series
Summary of Contents for National Instruments R Series
- Page 1 USER MANUAL NI PXIe-7861 R Series Reconfigurable I/O Module (AI, AO, DIO) for PXI Express, 16 AI, 8 AO, 32 DIO, 1 MS/s AIO, 512 MB DRAM, Kintex-7 160T FPGA This document provides compliance, pinout, connectivity, mounting, and power information for the NI PXIe-7861.
- Page 2 Pinout AI0+ 68 34 AI0– AI8+ 68 34 AI8- AIGND0 67 33 AIGND1 AIGND8 67 33 AIGND9 AI1+ 66 32 AI1– AI9+ 66 32 AI9- AI10- AI2+ 65 31 AI2– AI10+ 65 31 AIGND11 AIGND2 64 30 AIGND3 AIGND10 64 30 AI11+ AI11- AI3+...
-
Page 3: Connectivity Options
RMIO Shielded Cable, 68 pin D- RMIO 189588-01 Type to 68 pin VHDCI (1 m) NI SHC68-68- RMIO RMIO Shielded Cable, 68 pin D- 189588-02 Type to 68 pin VHDCI (2 m) NI PXIe-7861 User Manual | © National Instruments | 3... -
Page 4: Analog Input
Analog Input The NI PXIe-7861 provides connections for 16 AI channels. Each channel has an AI+ pin, AI- pin, and AIGND pin to which you can connect both single-ended or differential voltage signals. Use the AISENSE pin to connect non-referenced single-ended signals. Connecting Single-Ended Voltage Signals To connect referenced single-ended voltage signals to the NI PXIe-7861, you must connect the voltage ground signal to AI GND in order to keep the common-mode voltage in the specified... -
Page 5: Analog Output
NI PXIe-7861 Analog Output The NI PXIe-7861 provides connections for eight analog output channels. Each channel has an AO pin and AOGND pin to which you can connect a load. NI PXIe-7861 User Manual | © National Instruments | 5... - Page 6 Figure 6. Connecting a Load LOAD AOGND Connection NI PXIe-7861 Accessory Digital I/O The NI PXIe-7861 provides connections for 32 digital input/output (DIO) channels. Connector 0 and Connector 1 each contains 16 low-speed channels that can run up to 10 MHz signal frequencies.
-
Page 7: Field Wiring Considerations
Caution Never connect the +5 V power terminals to analog or digital ground or any other voltage source on the NI PXIe-7861 or any other device. Doing so can NI PXIe-7861 User Manual | © National Instruments | 7... -
Page 8: Worldwide Support And Services
National Instruments is not liable for damage resulting from such a connection. The power rating is 4.75 to 5.1 V DC at 0.5 A per connector. Worldwide Support and Services The NI website is your complete resource for technical support. At ni.com/support, you have access to everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
