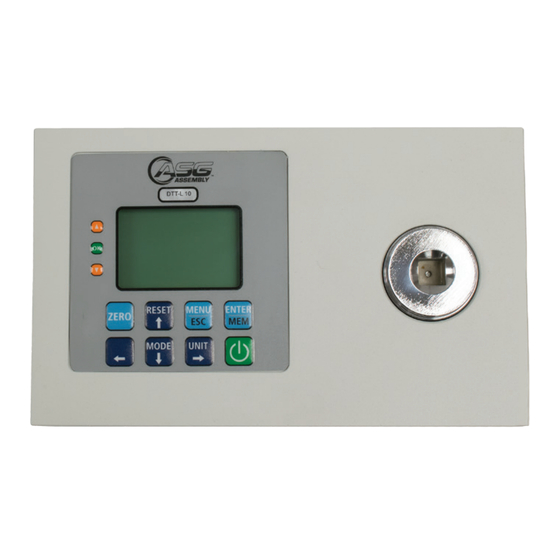

ASG DTT-L Series User Manual

Digital torque testers
Hide thumbs
Table of Contents

Advertisement

Quick Links

DTT-L Series Digital Torque Testers
ASG, Division of Jergens, Inc.
S. Waterloo Road | Cleveland, OH
15700
Phone: (
| Fax: (
888) 486-6163
216) 481-4519
Email: asginfo@asg-jergens.com | Web: www.asg-jergens.com
User Manual
44110-3898
© 2017 Jergens, Inc. All Rights Reserved | Revision Date: 02/19/18
Page 1 of 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTT-L Series and is the answer not in the manual?

Questions and answers

Related Manuals for ASG DTT-L Series

Summary of Contents for ASG DTT-L Series

  • Page 1 DTT-L Series Digital Torque Testers User Manual ASG, Division of Jergens, Inc. S. Waterloo Road | Cleveland, OH 15700 44110-3898 Phone: ( | Fax: ( 888) 486-6163 216) 481-4519 © 2017 Jergens, Inc. All Rights Reserved | Revision Date: 02/19/18 Page 1 of 15 Email: asginfo@asg-jergens.com | Web: www.asg-jergens.com...

  • Page 2: Table Of Contents

    DTT-L Series Digital Torque Testers User Manual Table of Contents Service and Warranty ....................3 Overload Capacity Caution ..................3 System Overview ...................... 3 Battery Chargers .................... 5 Standard Equipment ....................5 Instructions for Using the Driver Adapter ..............6 Usage ........................

  • Page 3: Service And Warranty

    ASG, Division of Jergens, Inc., warrants to the original purchaser buying the ASG DTT-L meter with the intention of use rather than resale, for a period of 1 year. ASG will replace those items found to be defective or otherwise fail to conform, or at ASG’s option repay the price paid for the item.
  • Page 4 Graphics LCD display size 128x64 dots Battery 28 Hours (NiMH 4.2/v rechargeable) Battery Charger 9V 500mA 110 Volt with US Plug (Optional International Charger Available: 9 Volt, 670 mA, 90-264 VDC, ASG # 66619) 16 Bit 8 Bit Key Button...

  • Page 5: Battery Chargers

    DTT-L Series Digital Torque Testers User Manual Battery Chargers 9 Volt, 500 mA, 90-264 VDC 9 Volt, 670 mA, 90-264 VDC International US Power Adapter (Supplied) Power Adapter (Optional, Must Order Separately) ASG #66603 ASG #66619 Standard Equipment All DTT-L meters are supplied with the following standard items: •...

  • Page 6: Instructions For Using The Driver Adapter

    5.65 - 22.6 66642 3/8" Hex 50.0 - 500.0 5.65 - 56.5 * ASG Adapter #66612 comes with two springs covering torque range from 1.3-5.0 lbf.in (0.15-0.56) and 4.5-26.0 lbf.in (0.51-2.94 N.m) ASG #66620 ASG #66631 ASG #66612 ASG #66617...

  • Page 7: Usage

    DTT-L Series Digital Torque Testers User Manual Usage Procedure for Manual Torque Drivers • Attach a proper adapter to connect the driver to the 3/8” female square. • NOTE: It is NOT recommended to use the power tool adapters to calibrate hand torque tools.

  • Page 8: Battery Indicator

    DTT-L Series Digital Torque Testers User Manual Battery Indicator If the battery level is less than 4.6 V, the “Battery Empty” message will be displayed and the tester will power down automatically. NOTE: Only use the 9V adapter/charger supplied. Battery Basic Function Battery Level >...

  • Page 9: Zeroing The Tester

    DTT-L Series Digital Torque Testers User Manual Basic Function (Continued) Zeroing the Tester While operating the tester, it may be necessary to zero the display so that residual torque does not become part of the measured reading. Press and release the ZERO key.

  • Page 10: Backlit Display

    DTT-L Series Digital Torque Testers User Manual Basic Function (Continued) Backlit Display When you press any key or apply torque to the transducer greater than 0.5% of full scale, the backlight will go on for 60 seconds. Saved Reading to Memory Any reading can be saved anytime by pressing the MEM key.

  • Page 11: Auto-Shutdown

    DTT-L Series Digital Torque Testers User Manual Main Menu (Continued) Auto-Shutdown • To set Auto-Shutdown, press the MENU/ESC key, the display will show the main menu page. Use the UP and DOWN ARROW keys to move the cursor point to SETTING.

  • Page 12: Pass-Fail

    DTT-L Series Digital Torque Testers User Manual Main Menu (Continued) Pass-Fail The pass-fail feature is used to set a defined acceptable maximum and minimum torque range for measuring. It is activated by setting the lower level and upper level torque limit. As long as the torque value is within this range, the green LED display button will light up OK.

  • Page 13: Load Default

    DTT-L Series Digital Torque Testers User Manual Main Menu (Continued) Load Default The Load Default setting is used to restore the auto-shutdown, auto-reset, and pass- LOAD DEFAULT fail to its original setting. These features will all be turned off. AUTO-SHUTDOWN AUTO-RESET •...

  • Page 14: Delete Last

    YES and press the ENTER key, the meter will delete all saved records and return to the memory menu page. Calibration ASG service technicians to calibrate the meter; please contact ASG for additional calibration information. ASG, Division of Jergens, Inc.

  • Page 15: Transducer State

    The display will show the TRANSDUCER STATE menu page. Press the ESC key to return to the main menu page • If the % offset is greater than 10%, please contact ASG to arrange for evaluation • Transducer state offset number is for reference only and does not determine whether the transducer is yielded •...

This manual is also suitable for:

Dtt-l 5Dtt-l 10Dtt-l 30Dtt-l 50Dtt-l 100Dtt-l 200
