Chapter 1 Setting up the SC-2345/2350 Carrier

SCC-PWR02

1 SC-2345/2350 Carrier
2 PS01 Power Supply
3 DAQ Device
SC-2345/2350 Carrier User Manual
The SCC-PWR02 is a two-part system that consists of a desktop power
supply (PS01) and a filtering component (SCC-PWR02 inside the carrier
enclosure). The PS01 is a 15 W switching supply powered by 90 to
264 VAC (50/60 Hz 1.0 A). To install the PS01, plug the 6-position
connector of the PS01 into connector J25 on the SC-2345/2350.
1

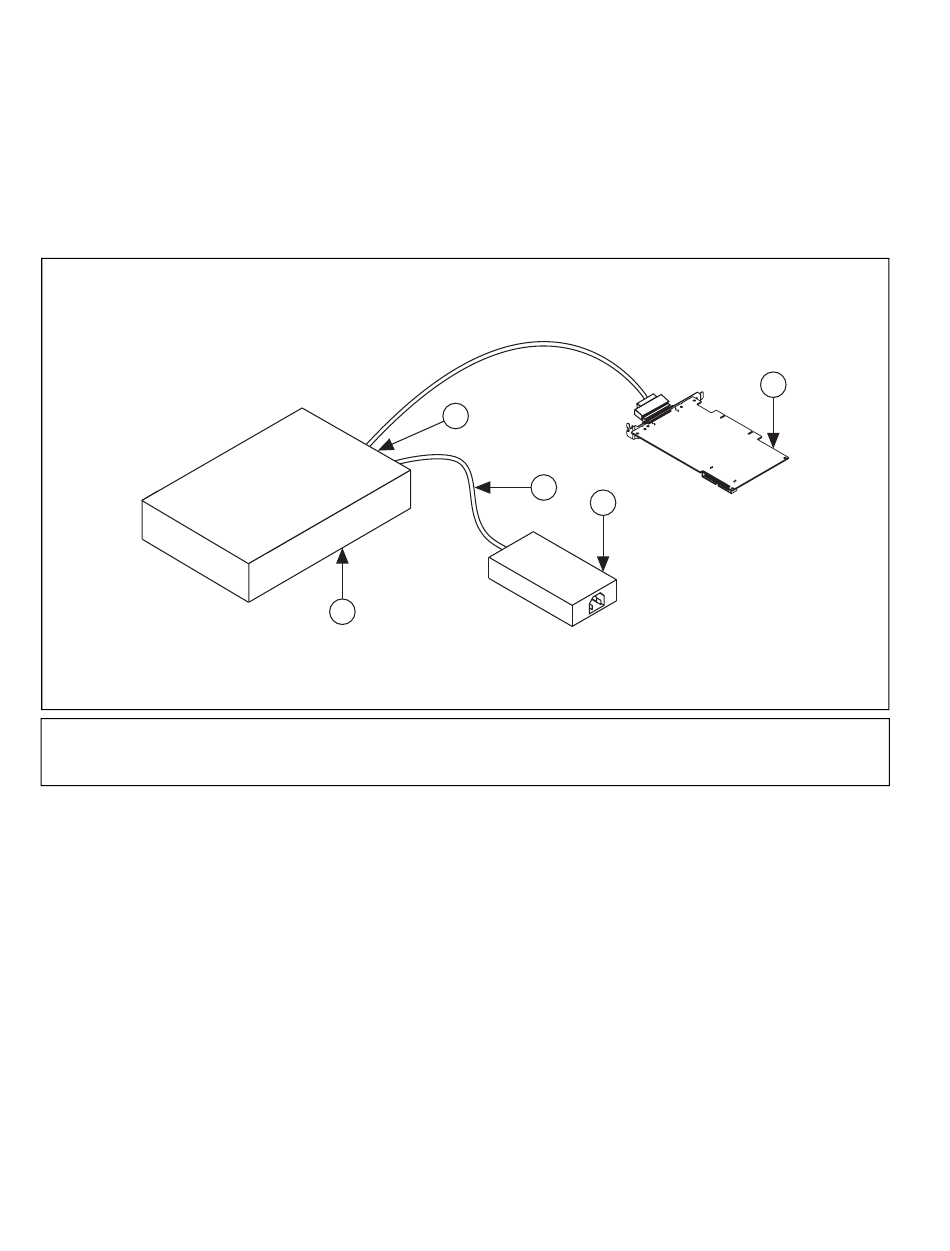

Figure 1-11. Using the SCC-PWR02
4
5
2
4 To Connector J24
5 To Connector J25
1-18
3
