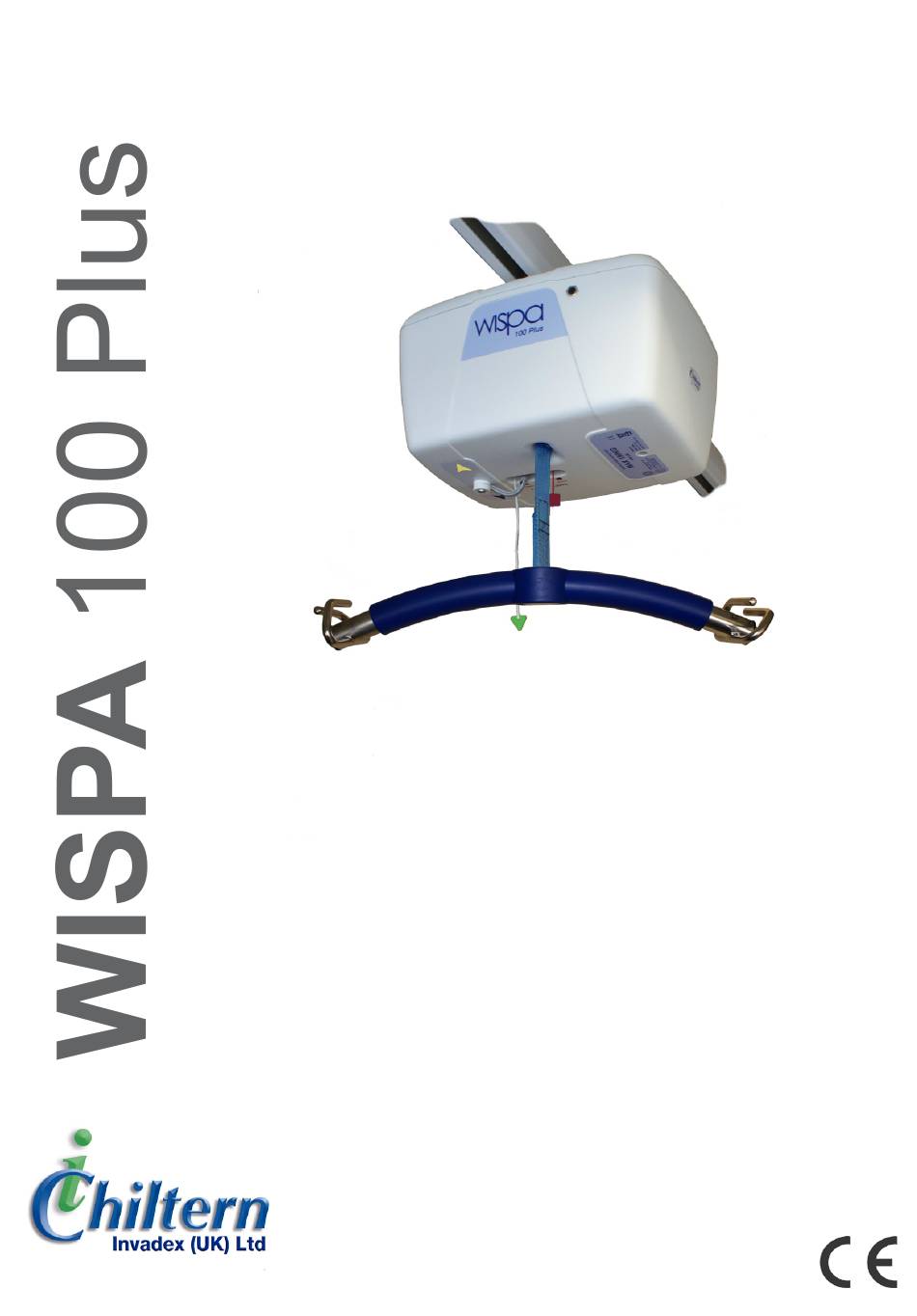

- Page 1 This user guide contains essential information in relation to safe use and troubleshooting and should be retained with the hoist for reference User Guide All 100 Plus models Unit 6C Thorpe Drive Banbury OX16 4UZ UK...
-
Page 2: Table Of Contents
Overhead Hoist supplier. Your Chiltern Invadex hoist has been designed and tested to meet the highest standards of safety. Read the safety section of this guide prior to use, this is contained on pages 1-2. -
Page 3: Intended Use
Page 1 HOIST 100 Series Intended Use of the Product The Wispa 100+ hoist has been designed to lift and transfer a disabled or sick person with the help of a carer. It should be used with a Wispa sling or other lifting accessories, as assessed by a trained person. Note: Not all slings and accessories are compatible with this hoist. - Page 4 The outer case, mechanical parts and track should only be removed by a qualified service engi- neer. • Do not touch any of the moving parts in the hoist unit or in the track. Contact Chiltern Invadex for assistance. •...
-
Page 5: Using The Controls
Page 3 HOIST 100 Series User Guide Using the controls Overload Reset Button In event of overload press button to re-set w i s p Colour coded directional arrows P lu s 1 0 0 match handset buttons Product Identification Label (serial number, model, SWL) Handset Cable Retaining Socket... - Page 6 Page 4 HOIST 100 Series Hand controls The controls use air to operate the hoist and are therefore completely safe to use with wet hands. Two Button Four Button Six Button Hand Control Hand Control Hand Control PLEASE NOTE: For all battery powered models, the hoist must be moved away from the charging point at the end of the track before the lifting and lowering functions will operate.
-
Page 7: Emergency Stop & Reset Procedure
Page 5 HOIST 100 Series Emergency Stop To operate in case of an emergency, pull the red cord to switch off the hoist completely. Reset Procedure Once the emergency stop or overload device have been activated, the hoist will need to be reset. To reset slide the plastic tube on the red cord upwards through RESET the hole in the case and push to reset the switch. -
Page 8: Charging Wispa Battery Hoists
The reset procedure on page 5 will need to be performed to resume normal hoist function. If the hoist fails to respond contact Chiltern Invadex or your supplier. June 2018... -
Page 9: Servicing And Maintenance
Please note: hand controls are the only spare part which can be safely replaced by untrained persons all other works should be carried out by a competent engineer. A full list of replacement parts can be obtained on request from Chiltern Invadex or your local dealer 2 Button... -
Page 10: Troubleshooting
Further assistance Please telephone Chiltern Invadex on 01869 365500 further assistance. Remember that service calls made after the warranty period will be chargeable. If the maintenance of the equipment is the responsibility of a third party, for example the Social Services, please contact them in the first instance. -
Page 11: Hoist Specification
Extended tapes are available to accommodate high ceilings **600mm up and down cycle with average 70kg (11 stone) patient weight. CE Mark The Chiltern Invadex Wispa 100Plus Hoist carries the CE mark and complies with the Medical Devices Directive (93/42/EEC) as amended 2007/47/EC 370mm... -
Page 12: Installation Notes
Page 10 HOIST 100 Series Installation Notes Important Information - Battery Powered Models Where this hoist is to be a replacement unit on an existing track installation, the charging unit included in the box MUST be used. This hoist is NOT compatible with the old RED charging unit. Use of this hoist with the old RED charger may result in damage to the PCB and WILL invalidate the product warranty. -
Page 13: Carry/Spreader Bar Installation
For safety reasons a lift tape should be renewed if any sign of wear is visible or every two years regardless of condition. Chiltern Invadex (UK) Limited, 126 Churchill Road, Bicester, Oxfordshire OX26 4XD Tel: 01869 365500 Fax: 01869 365588 Email: sales@chilterninvadex.co.uk Registered in England No: 04704248 CINV 576.02 October 2012... -
Page 14: Warranty
HOIST 100 Series Warranty Your Chiltern Invadex (UK) Limited Overhead Hoist carries a 12 month warranty from the date of purchase, subject to the following :- Should you experience any problems with your product within the first 12 months period please contact your point of purchase. -
Page 15: Wispa Hoist Service Record
Page 13 HOIST 100 Series Wispa Hoist Service Record Year 1 Date of Service Load tested to Serviced by Address Engineer name Comments Year 2 Date of Service Load tested to Serviced by Address Engineer name Comments Year 3 Date of Service Load tested to Serviced by Address... - Page 16 Page 14 HOIST 100 Series Year 5 Date of Service Load tested to Serviced by Address Engineer name Comments Year 6 Date of Service Load tested to Serviced by Address Engineer name Comments Year 7 Date of Service Load tested to Serviced by Address Engineer name...
- Page 17 Page 15 HOIST 100 Series Year 9 Date of Service Load tested to Serviced by Address Engineer name Comments Year 10 Date of Service Load tested to Serviced by Address Engineer name Comments In addition to regular service and maintenance a requirement to provide 6 monthly LOLER inspections may apply.
- Page 18 Page 16 HOIST 100 Series The below space can be used to store details of your service contractor, if the equipment has been provided by a third party for example the Local Authority, this information will be available from them. Contractor name: Contact number: Address:...
-
Page 19: Declaration Of Conformity
CI 2.10 Declaration of Conformity – Patient hoists Chiltern Invadex (UK) Ltd Page 1 of 1 Chiltern Invadex (UK) Limited hereby declare the products identified below are Class 1 Medical Devices as defined by the Medical Devices Directive 93/42/EEC and carry the mark. - Page 20 C o p yri g h t ©...
