Schwintek In-Wall™ Slideout System
TROUBLESHOOTING GUIDE
Page 1
Rev: 01.30.2015
Lippert In-Wall Troubleshooting Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the In-Wall Slide-Out and is the answer not in the manual?

Questions and answers

Related Manuals for Lippert Components In-Wall Slide-Out

Summary of Contents for Lippert Components In-Wall Slide-Out

  • Page 1 Schwintek In-Wall™ Slideout System TROUBLESHOOTING GUIDE Page 1 Rev: 01.30.2015 Lippert In-Wall Troubleshooting Guide...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SYSTEM INOPERATIVE Controller Motors and Harnesses ROOM STUCK OUT (RETAIL) Electronic Manual Override Disengage Motors, Manually Retract Room and Travel Lock ROOM STUCK IN (DEALER ONLY) Electronic Manual Override Remove Exterior Fascia to Access Motor Retention Screw VISUAL INSPECTIONS Measurements Floor Rollers...

  • Page 3: System Inoperative

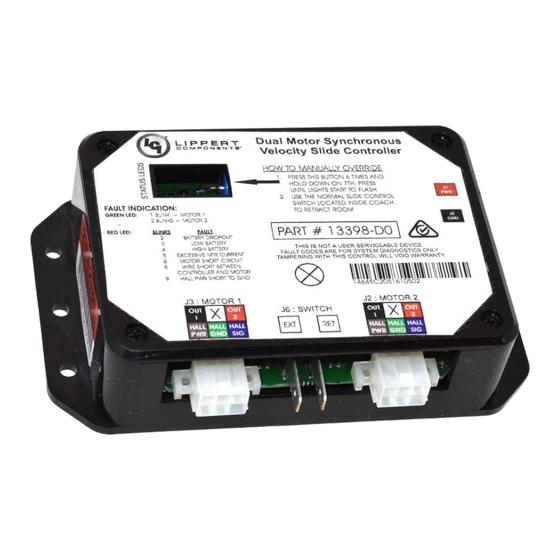

    SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE System Inoperative Controller Locate Controller (Fig. 1). Activate switch. Look for the status LEDs on the controller to light while switch is activated (Fig. 1E). If status LEDs light, but no error codes are present, skip to page 9 of this guide to do a visual inspection of the mechanical portions of this system.

  • Page 4: Motors And Harnesses

    SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE Motors and Harnesses Check for proper connections between the motors and harnesses. Visually inspect the exposed harnesses to ensure they are not pinched or damaged. If test harness is available, connect the test harness from the controller to the motor and try to operate the slide-out using the normal switch.

  • Page 5: Room Stuck Out (Retail)

    SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE Room Stuck Out (Retail) Electronic Manual Override Locate the controller. Press the "mode button" six times quickly. Press and hold a seventh time for approximately five seconds (Fig. 3). The red and green LED lights will begin to flash, confirming the override mode. Release mode button.

  • Page 6: Disengage Motors, Manually Retract Room And Travel Lock

    SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE Disengage Motors, Manually Retract Room and Travel Lock Bend back wipe seal. Visually locate motor and motor retention screw. Remove the screw (Figs. 4, 5 and 7). Pull the motor up until disengaged. Replace the motor retention screw to hold the motor in this position (Fig.

  • Page 7: Room Stuck In (Dealer Only)

    SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE Room Stuck In (Dealer Only) Electronic Manual Override Locate the controller. Press the "mode button" six times quickly. Press and hold a seventh time for approximately five seconds (Fig. 8). The red and green LED lights will begin to flash, confirming the override mode. Release mode button.

  • Page 8: Remove Exterior Fascia To Access Motor Retention Screw

    SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE Remove Exterior Fascia to Access Motor Retention Screw Remove exterior fascia carefully so as not to damage it. Locate and remove motor retention screw located near the top of each vertical column (Figs. 9 and 12). Bend back wipe seal and visually locate motor (Fig.

  • Page 9: Visual Inspections

    SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE Visual Inspections Measurements Measure from the outside edge of the column to the face of the gear rack (Fig. 13 and 14). The standard measurement should be 2 " plus or minus ". Take this measurement when the room is fully extended and again when the room is 3"...

  • Page 10: Floor Rollers

    SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE Floor Rollers Check that the seals are not getting caught in the rollers, which could cause binding to the slide-out. Check for proper roller engagement: A. Rollers should not be digging into the floor of the slide-out. B.
  • Page 11 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”).  LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided.  Any unauthorized use shall void any applicable warranty.  The information contained in this manual is subject to change without notice and at the sole discretion of LCI. ...
