Summary of Contents for Koldfront WTCSLV

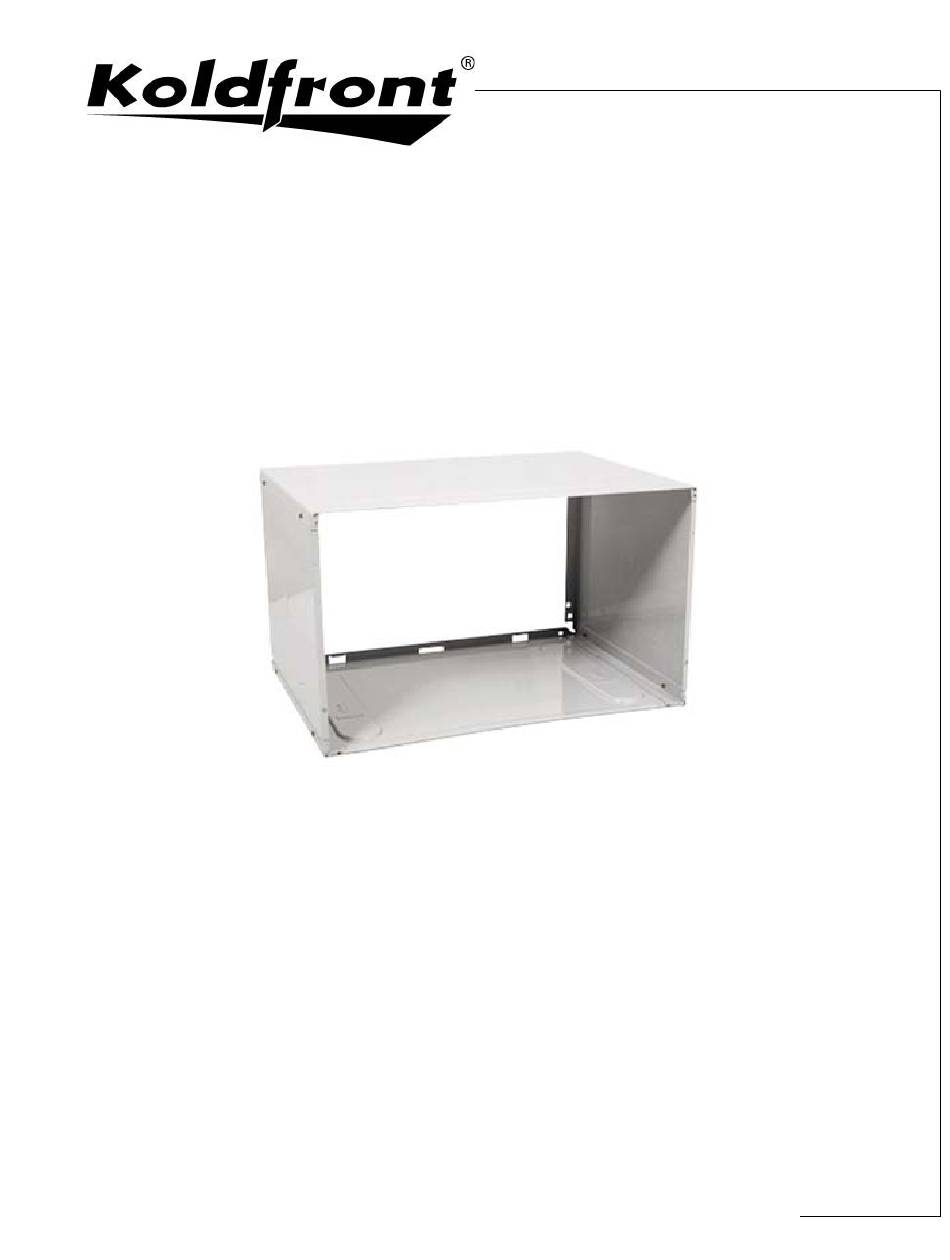

- Page 1 Through The Wall Air Conditioner Sleeve Model: WTCSLV Assembly Instructions For more information on other great EdgeStar products on the web, go to http://www.edgestar.com ...
-
Page 2: General Instructions
ITEM DESCRIPTION TOP PANEL BOTTOM PANEL LEFT SIDE PANEL RIGHT SIDE PANEL FRONT COVER PANEL REAR COVER PANEL BRACKET CLASP FOR SLEEVE SCREWS WASHER GENERAL INSTRUCTIONS: If replacing an existing unit, remove the air conditioner and wall sleeve according to the manufacturer’s instructions. - Page 3 ASSEMBLE THE WALL SLEEVE: 1. Use four (4) screws to fasten the side panels to the bottom panel as shown below. NOTE: The arrows on the bottom panel point to the interior side of the wall sleeve. 2. Fasten the top panel with four (4) screws as shown below.
- Page 4 3. Insert the four (4) plastic clasps into the square openings as shown below. 4. Insert the louvered rear grill or expanded rear grill (included with the your air conditioner unit that you purchased separately) and fasten four (4) screws with four (4) washers as shown below.
- Page 5 5. Install two (2) brackets on top of the sleeve and one (1) bracket on each side of the sleeve and fasten with four (4) screws. There are two options for installing the brackets which are shown in the image below. Figure A and Figure B below show 2 alternative bracket placement options.
- Page 6 7. Slide the assembled wall sleeve into the wall opening as shown below. NOTE: Use a carpenter’s level to ensure that the wall sleeve is level front to back and left to right. 8. After the wall sleeve has been secured properly to the wall it is important that you seal any remaining openings or cracks with a high grade caulking product in order to eliminate all points of possible air or water infiltration.
-
Page 7: Additional Instructions
ADDITIONAL INSTRUCTIONS: When the air conditioner will not be in use for an extended period of time or if the air conditioner unit needs to be removed for any reason you may use the provided front and rear cover panels to enclose the wall sleeve opening. 1. - Page 8 Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar & Koldfront products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2015 Living Direct, Inc.
