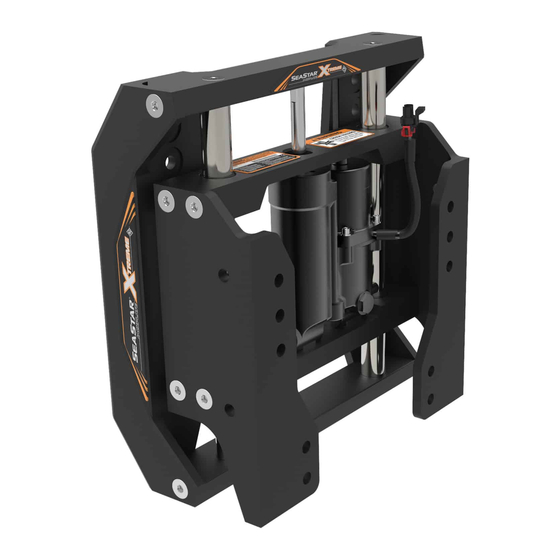

- Page 1 INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL w w w . s e a s t a r s o l u t i o n s . c o m N I N E T Y O N E ISO 9001 Hydraulic Jackplates...
- Page 2 SeaStar Solutions throughout this publication. These safety alerts alone cannot eliminate all of the hazards that may be present while on the water. SeaStar Solutions recommends that all users of the Jackplate take an accredited 'boating safety course', follow safe boating practices and are made aware of the environment that they will be in.
-
Page 3: Table Of Contents
4.2 Return Goods Procedure ......... 17 4.3 Technical Support ........... 17 Introduction Congratulations on your purchase of a SeaStar Jackplate. You have chosen to install one of the sleekest and most durable engine Jackplates available. Prepare for increased performance, gains in fuel economy and the ability to run in shallow water. - Page 4 This page left intentionally blank. SeaStar Hydraulic Jackplate...
-
Page 5: Safety Information
If you have any questions regarding any of these warnings, contact SeaStar Solutions. 1.1 Before Installation The safe operation of the SeaStar Jackplate is dependent upon proper installation and maintenance, common sense, safe judgment and the knowledge/expertise of the operator. Every installer/user of the Jackplate should know the following requirements before installing/ using the SeaStar Jackplate. -
Page 6: Prior To Each Use
1.3 Prior to Every Use 1. Verify immediate response when switch is engaged (UP/DOWN). 2. Inspect the Jackplate(s) for damage, cracks, deformation, wear and binding. Check for loose mounting bolts and/or nuts. 3. Confirm that there is no interference between the SeaStar Jackplate(s) and the steering cylinder(s), tiebars, steering hoses, outboard engine, outboard engine hoses or any combination of these parts by performing the CLEARANCE CHECKS as detailed... -
Page 7: Maintenance
1.6 Maintenance WARNING Any work being performed with this system MUST be completed by a qualified mechanic with a working knowledge of the system. After FIRST use and every 100 hours or 6 months thereafter (whichever comes first). 1. Ensure the transom bolts and engine bolts are torqued to their recommended values. -
Page 8: Trailering And Storage
1.8 Trailering and Storage 1. The SeaStar Jackplate will maintain position during operation and short term storage, however it should not be relied on to provide long term support over extended storage or trailering conditions. 2. During storage or trailering, the outboard motor must be... -
Page 9: Jackplate Installation
2.0 JACKPLATE INSTALLATION WARNING Before proceeding with the installation, read these instructions thoroughly. SeaStar Solutions cannot accept responsibility for Failure to adhere to these installations where instructions have not been followed, where instructions may result in loss of substitute parts have been used, or where modifications have boat control, leading to possible been made to our products. - Page 10 Check the outboard engine manufacturer’s instructions carefully for specifications regarding connection hardware. Ensure the outboard engine manufacturer’s requirements are followed. The following parts are included with your SeaStar Jackplate product. If any of these components are missing, contact your dealer or SeaStar Solutions.
-
Page 11: Mount Jackplate To Boat
2.2 Mount Jackplate to Boat NOTICE The following procedure outlines the process of first mounting the Jackplate on the boat, followed by installing the engine to the Jackplate. If desired, the Jackplate can first be installed on the engine, followed by installation on the boat. The order of installation may be altered but individual steps must be followed and all warnings and cautions must be followed. - Page 12 3. If the Jackplate setback is 10 inches or more, or if the outboard engine output is 250 horsepower or more, it is recommended to use 6 mounting bolts at the transom connection. Additional mounting bolts should be used in the upper holes on the Jackplate hole pattern.
- Page 13 4 X BOLT 4 X NUT WITH NYLON LOCKING FEATURE 4 X WASHER OR TRANSOM STIFFENER 4 X WASHER NOTE ALL HARDWARE TO BE SUPPLIED OR APPROVED BY THE OUTBOARD ENGINE MANUFACTURER TRANSOM JACKPLATE TRANSOM BRACKET Figure 7. Jackplate to transom connection. 6 X BOLT 6 X NUT WITH NYLON LOCKING FEATURE...
-
Page 14: Install Relay Wiring Harness
2.3 Install Relay Wiring Harness CAUTION 1. Find a dry and accessible place to mount the Relay Wiring Harness. Use the mounting holes on the relay brackets to Before operating the Jackplate, secure the harness to the boat. check mounting bolt clearances and ensure that shift and throttle cables, electrical lines, tiebars, MOUNTING... - Page 15 Main Wiring Diagram ACTUATOR DOWN ACTUATOR UP RELAY RELAY ROCKER SWITCH BLUE/WHITE GREEN/WHITE 16 AWG WIRE POWER SUPPLY BLACK BLACK BLACK 10A FUSE BLACK CIRCUIT BREAKER – HYDRAULIC ACTUATOR BATTERY Figure 11. Main Wiring diagram. Installation Instructions and Owner's Manual...
-
Page 16: Install Rocker Switch
2.4 Install Rocker Switch 1. Cut an appropriate rectangular opening in the dashboard or console panel where the rocker switch is to be mounted. NOTICE Position the rocker switch so that it is within easy reach of the operator. ROCKER NOTICE SWITCH The switch leads from the relay... -
Page 17: Mount Outboard To Jackplate
2.5 Mount Outboard to Jackplate NOTICE 1. Using an appropriate hoist and lifting eye, lift the outboard into place. Jackplate position can be extended 2. Select the hole set on your outboard engine that will best suit or retracted during installation to the boat and application. -
Page 18: Clearance Checks
Check for interference between the SeaStar Jackplate and the steering cylinder(s), tiebars, steering hoses, outboard engine, engine hoses or any other components. 3. If any interference exists, action must be taken to do one of... -
Page 19: Troubleshooting Guide
3.0 TROUBLESHOOTING GUIDE FAULT CAUSE SOLUTION 1. Unit leaks down over short • Internal fluid bypass. • Actuate Jackplate several times in extend and retract direction. period of time. 2. Unit fails to reach limit of • Mechanical interference • Check for interference between moving with other components. - Page 20 6. Does not run in one • Faulty relay. • Check for correct function of relays on harness. On activation of the switch in direction. either direction, there should be an audible click in the relay and continuity across relay lines when switching. Replace faulty relay if necessary.
-
Page 21: Warranty
In such a case SeaStar Solutions products found to be defective and covered by this warranty, will be replaced at SeaStar Solutions’ option, and returned to the customer. - Page 22 ______________________________________________ Notes ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ SeaStar Hydraulic Jackplate...
- Page 24 SEASTAR SOLUTIONS 3831 NO. 6 ROAD RICHMOND, B.C. CANADA V6V 1P6 FAX 604-270-7172 www.seastarsolutions.com © 2018 MARINE CANADA ACQUISITION INC. DBA SEASTAR SOLUTIONS PRINTED IN CANADA 03/18 ISO 10592 Please scan FORM NO. 469449 REV. A this QR code and watch our latest Boating Safety video.
