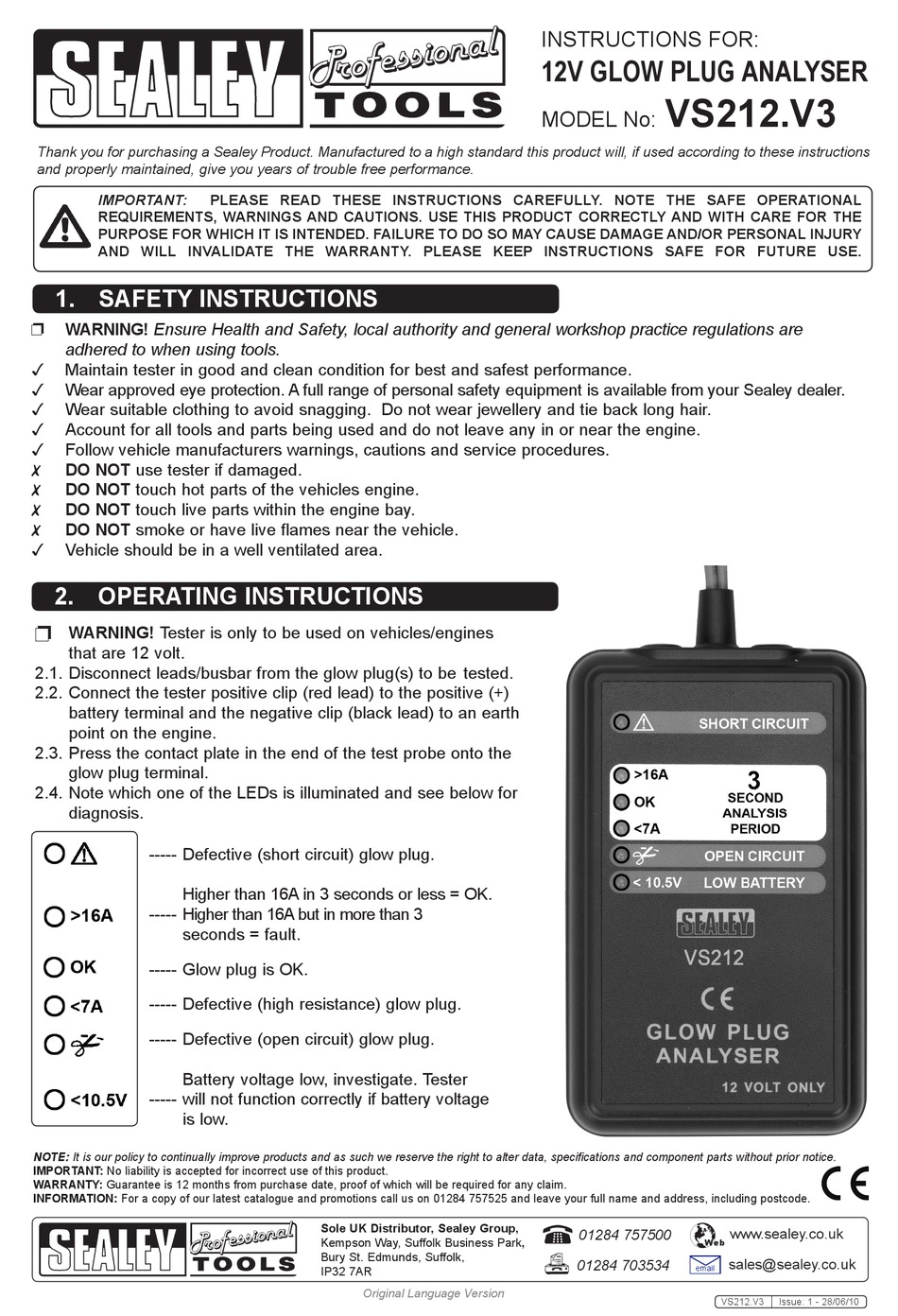

Sealey VS212.V3 Instructions For

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT:
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY
AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are
adhered to when using tools.
 Maintain tester in good and clean condition for best and safest performance.
 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.
 Wear suitable clothing to avoid snagging. Do not wear jewellery and tie back long hair.
 Account for all tools and parts being used and do not leave any in or near the engine.
 Follow vehicle manufacturers warnings, cautions and service procedures.
DO NOT use tester if damaged.

DO NOT touch hot parts of the vehicles engine.

DO NOT touch live parts within the engine bay.

DO NOT smoke or have live flames near the vehicle.

 Vehicle should be in a well ventilated area.
2. OPERATING INSTRUCTIONS
 WARNING! Tester is only to be used on vehicles/engines
that are 12 volt.
2.1. Disconnect leads/busbar from the glow plug(s) to be tested.
2.2. Connect the tester positive clip (red lead) to the positive (+)
battery terminal and the negative clip (black lead) to an earth
point on the engine.
2.3. Press the contact plate in the end of the test probe onto the
glow plug terminal.
2.4. Note which one of the LEDs is illuminated and see below for
diagnosis.
----- Defective (short circuit) glow plug.
Higher than 16A in 3 seconds or less = OK.
----- Higher than 16A but in more than 3
seconds = fault.
----- Glow plug is OK.
----- Defective (high resistance) glow plug.
----- Defective (open circuit) glow plug.
Battery voltage low, investigate. Tester
----- will not function correctly if battery voltage
is low.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
Original Language Version
INSTRUCTIONS FOR:
12V Glow PluG AnAlyser
VS212.V3
MODEL No:
01284 757500
Web
01284 703534
email
www.sealey.co.uk
sales@sealey.co.uk
VS212.V3 Issue: 1 - 28/06/10
