Toro 220G Series Installation And Operating Instructions

Introduction
The 220G Series valve offers two electrical activation types:
AC powered and DC powered.
For satellite systems, the 24 VAC Spike Guard solenoid provides 20,000 volt
lightning protection to minimize down time and service costs. Moreover, it
draws less than half the wattage of traditional solenoids for a lower long-term
cost of ownership.
For GDC 2-wire systems, a DC-latching solenoid reduces the system wire load
to lower initial system cost. It is activated by a momentary pulse "on" and "off",
meaning there is no continuous power draw, providing a lower long-term cost
of ownership.
The 220G brass valve adjusts easily with the micro-adjust dial and indicator to
provided constant downstream pressure between 5-100 psi (,34-6,9 bar).
Note: The 220G valve should be installed below grade in a valve box or vault
(see opposite page) to provide service access and vandal resistance. The valve
installation site should be readily accessible by grounds maintenance personnel
and well clear of hardscape features, cart paths, and foot traffic areas.

Specifications

Configuration
• globe, forward flow
• ingot brass and stainless steel
construction
• 1" (25 mm), 11/4" (32 mm),
1 1/2" (40 mm), 2" (50 mm)
NPT and BSP models
• electric actuation
• pressure regulating
Dimensions
1" 53/4" H x 5" W
146 mm H x 127 mm W
11/4" 61/2" H x 6" W
165 mm H x 152 mm W
11/2" 61/2" H x 6" W
165 mm H x 152 mm W
2" 71/2" H x 7" W
191 mm H x 178 mm W
Flow Range
1" (25 mm) 5-40 gpm
19-151 lpm
11/4" (32 mm) 20-100 gpm
76-379 lpm
11/2" (40 mm) 20-130 gpm
76-492 lpm
2" (50 mm) 30-180 gpm
114-681 lpm

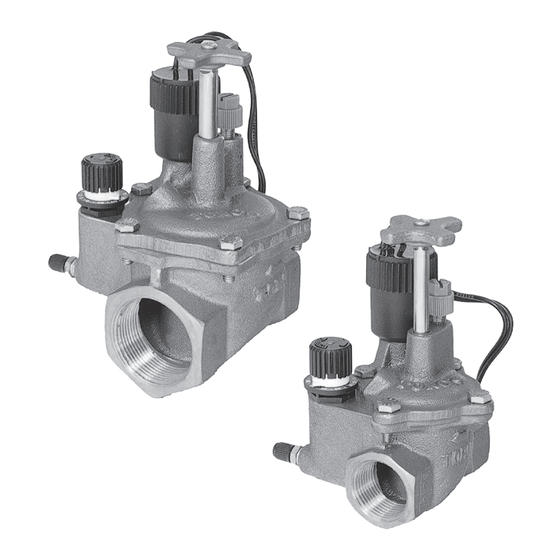

220G Series Brass Valve
220G Series Brass Valve
Installation and Operating Instructions Installation and Operating Instructions
Operating Pressure Range
• Inlet: 10-220 psi (,69-15,2 bar)
• Outlet: 5-100 +/- 3 psi
(,34-6,9 bar +/- ,2 bar)
• minimum inlet / outlet differential:
10 psi (,69 bar)
• burst pressure safety rating:
750 psi (51,7 bar)
Friction Loss in PSI
GPM 5 10 15
1" 1.75 2.00 2.20 3.10 5.05 7.80
1 1/4" 1.85 2.50 2.70 3.50 4.10 5.60
1 1/2" 2.15 2.45 2.80 3.05 3.80 5.00 6.55
2"
Friction Loss in BAR
LPM ,35 ,69 1,0
25 mm 1.21 1.38 1.52 2.14 3.48 5.37
32 mm 1.27 1.72 1.86 2.41 2.82 3.86
40 mm 1.48 1.69 1.93 2.10 2.62 3.45 4.51
50 mm
SpikeGuard solenoid
(for satellite control systems)
24 VAC, 50/60 Hz
Inrush - 0.12 amps
Holding - 0.10 amps
DC-latching solenoid
(for GDC 2-Wire control systems)
momentary low-voltage pulse
Diaphragm
double-beaded, fabric-reinforced
Filter screen
•
•
Manual Flow Control
adjustable to zero flow
20 30 40 50 60
3.05 3.20 2.90 2.95 3.25 3.40 4.50 6.50 10.10 13.45 14.85
1,4 2,1 2,8 3,4 4,1
2.10 2.20 2.00 2.03 2.24 2.34 3.10 4.48 6.96 9.27 10.23
Manual Bleed Screw
enables manual valve operation
bleeds off water internally downstream
EZReg Pressure Regulator
•
•
•
•
120-mesh stainless steel
self-flushing, contamination resistance
70 80 100 120 150
4,8 5,5 6,9 8,3 10,3 11,7
compact, precision-dial design
regulates during atomatic and
manual operation
serviceable while valve is pressurized
poppet valve (Schrader-type) for
downstream pressure verification
170 180
12,4
