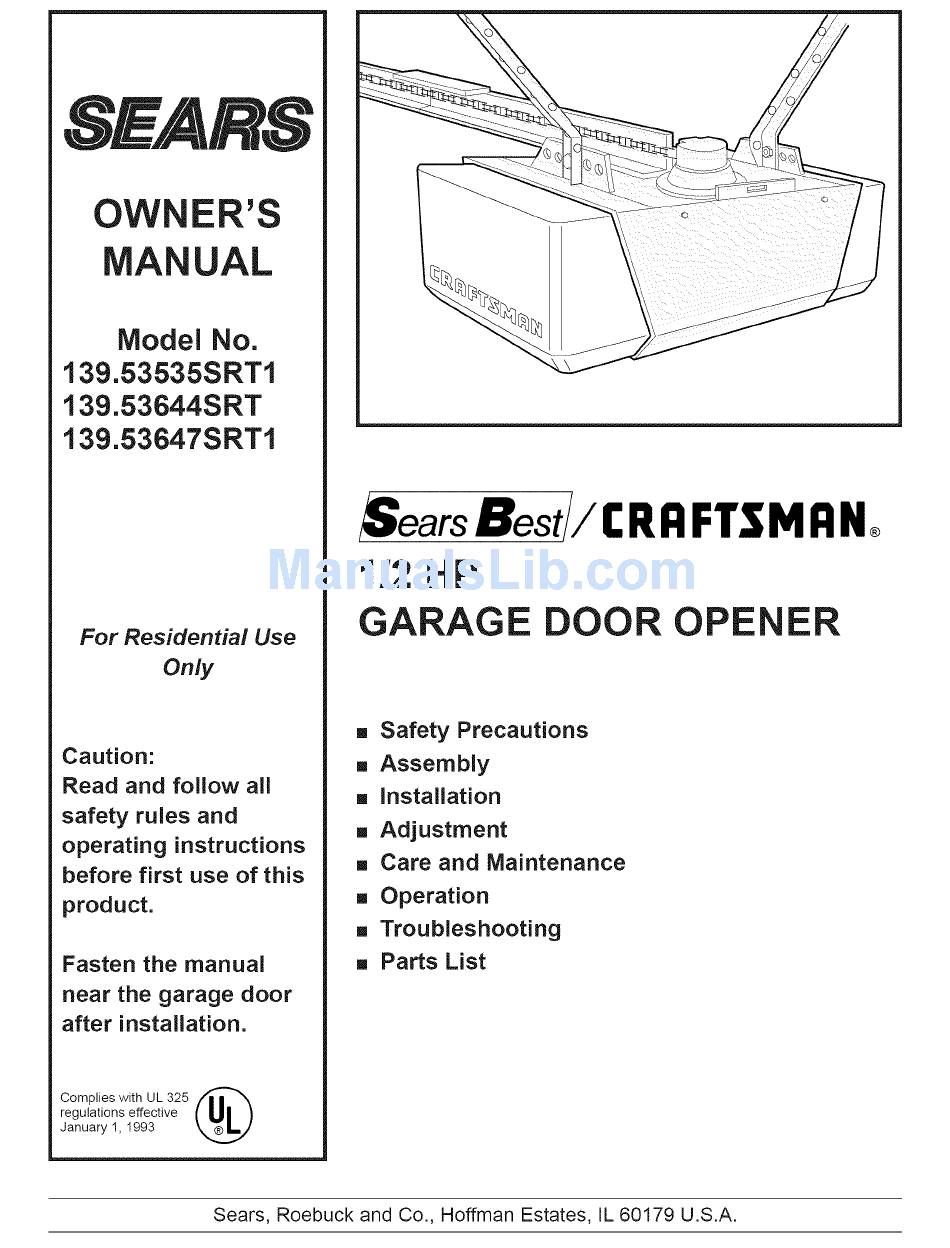

OWNER'S
UAL
Model No.
139.53535SRT1
139.53644SRT
139.53647SRT1
For Residential
Use
Only
Caution:
Read and follow
all
safety rules and
operating
instructions
before first use of this
product.
Fasten the manual
near the garage
door
after installation,
Complies with UL 325 _11
"_
regulations effective
January I, I993
1/2
P
GARAGE
DOO
[] Safety Precautions
[] Assembly
[] installation
[] Adjustment
[] Care and Maintenance
[] Operation
[] Troubleshooting
[] Parts List
I:RRFTSMRNo
OPENE
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 139.53535SRT1

Summary of Contents for Craftsman 139.53535SRT1

  • Page 1 OWNER'S Model No. 139.53535SRT1 139.53644SRT 139.53647SRT1 For Residential Only Caution: Read and follow safety rules and operating instructions before first use of this product. Fasten the manual near the garage door after installation, Complies with UL 325 _11 "_ regulations effective...

  • Page 2: Table Of Contents

    Mechanical When you see this Safety Symbol on the following to your garage door and/or the garage door opener if you do not comply with the corresponding instructions. Read the instructions This garage door opener is designed maintained...

  • Page 3: You'll Need Tools

    During assembly, installation and adjustment of the opener, instructions will call for hand tools shown below. Carpenter's Level Dritt Stepladder An unbalanced garage door might not reverse when required and someone could be seriously injured or killed. If your garage door binds, sticks balance, call for professional service.

  • Page 4: Illustration Of Sectional Door Installation

    Before you begin, survey your garage area to see whether any of the conditions to your installation. Horizontal and vertical reinforcement is needed for lightweight garage doors (fiberglass, steel, aluminum, door with glass panels, etc.). See page 24 for details. \ Header Wall across width of door.

  • Page 5: Illustration Of One-Piece Door Installation

    Before you begin, survey your garage area to see whether any of the conditions to your installation. Header Wall ) between floor and bottom Safety of door must not exceed 1/4". Reversing Sensor Based on your particular requirements, there are several installation steps which might call for materials and/or hardware not included in the carton.

  • Page 6: Carton Inventory

    Your garage door opener is packaged in two cartons which contain all parts illustrated below. If anything is missing, carefully check the packing material. Parts may be "stuck" in the foam. Hardware for assembly and installation is shown on page 7.

  • Page 7: Hardware Inventory

    Separate all hardware from the packages shown below, for the assembly Washered Screw Hex Screw 5/16"-18x 1/2" (2) 5/16"-18x7/8" (mounted in opener) Trotley Threaded Shaft (1) l E I I E I I I E I I I_ Lag Screw 5/16"-18xl -7/8"...

  • Page 8: Assembly Section - Pages

    Hardware Shown Actual Size © Lock Nut Carriage BoIts 1/4"-20x7/16" 1/4"-20xl/2" Hex Screw 5/16"-18x7/8" 5/16"-18 Section: Pages 8 - 11 do not run the garage door opener Make sure bolt seated in the square aligned before tighten lock nuts. right...

  • Page 9: Install Trolley

    Assembly Step 2 install the Trolley on the T-rail * Attach the threaded shaft to the trolley with the lock washer and nuts as shown. Lock Washer 5/16" Outer Nut Inner Nut Trolley Temporary Stop Screwd river Assembly Step 3 Fasten the T-rail to the Opener Place the opener on packing material to protect...

  • Page 10: Install Chain/Cable

    Assembly Step 4 Install the Chain/Cable & Attach the Sprocket Cover Dispensing Carton Leave Chain and Cable Inside Dispensing Carton to Prevent Kinking. Keep Chain and Cable Taut When Dispensing • Detach the cable loop from the carton and fasten it to the trolley with a master link from the hardware bag.

  • Page 11: Tighten The Chain And Cable

    Assembly Step 5 Tighten the Chain & Cable • Spin the inner nut and lock washer down the threaded shaft, away from the trolley. • To tighten the chain, turn outer nut in the direction shown. As you turn the nut, keep the chain from twisting.

  • Page 12: Installation Section: Pages

    installation Section: installation Step 1 Determine Header Bracket Location Installation procedures vary according garage door types. Follow the instructions which apply to your door. VerticaI Guideline Header Walt • Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 2"...

  • Page 13: One-Piece Door

    Read the Safety instructions * Close the door and mark the inside vertical centerline of your garage door. Extend the line onto the header wall above door. If headroom clearance is minimal, you can install the header bracket on the ceiling. See page 14.

  • Page 14: Install The Header Bracket

    Fasten • Center the bracket on the vertical guideline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling), __ Header Wall StructuraI Support Highest Point of Travel (of Garage Door) Fasten •...

  • Page 15: Attach The T-Rail To Header Bracket

    installation Step 3 Attach the T=rai! to the Header Bracket --Header Wall Header Bracket Cable Pulley Bracket Garage Door • Position the opener on the garage floor below the header bracket. Use packing material as a protective base. if the door spring Have someone hold the opener securely temporary support spring.

  • Page 16: Position The Opener

    installation Step 4 Position the Opener Follow instructions which apply to your door type as illustrated. A 2×4 laid fiat is convenient for setting an ideal door-to-T=rail distance. • Raise the opener onto a stepladder. You will need help at this point if the ladder is not tail enough.

  • Page 17: Hang The Opener

    installation Step 5 Hang the Opener Two representative installations are shown. Yours may be different. Hanging brackets should be angled, Figure 1, to provide rigid support. On finished ceilings, Figure 2, attach a sturdy metal bracket to structural supports before installing the opener.

  • Page 18: Install The Door Control

    installation Step 6 Install the Premium Control Console Locate the door control within sight of the door at a minimum height of 5 feet where small children cannot reach, and away from all moving parts of the door and door hardware. The door control is typically attached directly to the wall.

  • Page 19: Install The Lights And Lenses

    6.AttachtheUserSafety Instruction l abel t othewall nearthedoorcontrol, a ndtheMaintenance Instruction l abelina prominent location onthe inside of thegarage door. Page32explainshowto usethe doorcontrol. Installation Step 7 Instafl the Lights and the Lenses Install the lights: • Install a 75 watt maximum light bulb in each socket.

  • Page 20: Electrical Requirements

    installation Step 9 Electrical Requirements To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will onlyfit into a grounding type outlet. If the plug doesn't fit into the outlet you have, contact a qualified electrician to install the proper outlet.

  • Page 21: Safety Reversing Sensor Information

    The Safety Reversing System Information you'll need before you begin the installation The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. required safety device and cannot be disabled. Installation procedures are the same for sectional and one-piece doors.

  • Page 22: Install The Safety Reversing Sensor

    installation Step 10 install the Safety Reversing Figures 2 and 3 show assembly of brackets and "C" wrap based on the recommended the sensors as shown on page 21. However, Figures 4 and 5 are variations which may fit your installation requirements better. Make sure the wraps and brackets are aligned so the sensors will face each other across the garage...
  • Page 23 * Center each sensor unit in a "C" wrap with lenses pointing toward each other across the door (see Figure 6). Secure sensors with the hardware shown. Finger tighten the wing nut on the receiving eye to allow for final adjustment. Securely tighten the sending eye wing nut.

  • Page 24: Fasten Door Bracket (Sectional Door)

    installation Step 11 Fasten Door Bracket Follow instructions which apply to your door type as illustrated below or on page 25. A horizontal brace should be long enough to be secured to 2 vertical cover the height of the top panel. The illustration shows one piece of angle iron as the horizontal angle iron are used to create a "U"-shaped support.

  • Page 25: Fasten Door Bracket (One-Piece Door)

    Please read and comply with the warnings They apply to one-piece doors Header Walt 2x4 Support Header Bracket Door Bracket * Center the bracket on the top of the door, in line with the header bracket as shown. Mark holes. * Drill 5/16"...

  • Page 26: Connect Door Arm To Trolley (Sectional Door)

    installation Step 12 Connect Door Arm to Trolley Follow instructions which apply to your door type as illustrated below and on page 27. Make sure garage door is fully closed. Pull the emergency from the inner trolley. Slide the outer trolley back (away from the door) about 2" as shown Figures 1, 2 and 3.

  • Page 27: Connect Door Arm To Trolley (One-Piece Door)

    Assemble the DoorArm: • Fasten thestraight a ndcurved doorarmsections together t othe longest possible length, with a 2 or 3 hole overlap. • With the door closed, connect the straight door arm section to the door bracket with the 5-16" x 1-1/4" clevis pin.

  • Page 28: Adjustment Section - Pages

    Adjustment Adjustment Step 1 Adjust the UP and DOWN Limits Do not make any limit adjustments until the safety reversing sensors are completely installed. Limit adjustment settings regulate the points at which the door will stop when moving up or down. The door will stop in the up direction if anything interferes with door travel.

  • Page 29: Force Adjustments

    Adjustment Step 2 Adjust the Force Force adjustment controls are located on the right side panel of the opener. Force adjustment settings regulate the amount of power required to open and close the door. The door will stop in the up direction if anything interferes with its travel.

  • Page 30: Test The Safety Reversing Sensor

    Professional service is required if the opener closes the door when the safety reversing sensor is obstructed. The garage door opener will not close from a remote control if the indicator light in either sensor is off(alerting you to the fact that the sensor is misaligned or obstructed).

  • Page 31: Operation Safety Instructions

    iMPORTANT To reduce the risk of severe injury or death to persons: 1. READ AND FOLLOW ALL iNSTRUCTiONS. 2. Do not permit children either to operate or to play with the opener. Keep remote control location inaccessible to children. 3. Operate opener only when the door is in full view and free from any obstruction.

  • Page 32: Operation Of Your Opener

    Operation Activate the opener with any of the following: • The Remote Control: Hold push button down until the door starts to move. • The Door Control: Hold push button down until the door starts to move. • The Outdoor Key Switch or Keyless (See Accessories)

  • Page 33: Receiver And Remote Control Programming

    Series Garage Door Openers (With "SRT" Button) Your "SRT" garage door opener will operate with as many as four "SRT" portable remote controls and one Multi-Function Keyless Entry. To Add A Remote Control 1. Press and hold the selected remote control push button, see Figure 1.

  • Page 34: Having A Problem

    Situation Probable The opener doesn't 1. Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light, operate from either check the fuse box or the circuit breaker. (Some outlets are controlled by a door switch.) the Door Control or 2.
  • Page 35 The opener fights: ... don't turn on: Replace the light bulbs (75 watts maximum). Use a standard neck garage door opener bulb if regular bulb burns out..don't turn off: Is the Light feature on? Turn it off.

  • Page 36: Repair Parts, Rail Assembly

    Rail Assembly__Parts Installation Parts PART DESCRIPTION 41A4884 Premium control console 41A4873 3-function remote control housing (no circuit board) 10A19 3V 2016 Lithium battery (2 required) 29B134 Visor clip for Part No. 41A4873 31D431 Keyless entry keypad cover 31B430 Keyless entry battery cover 10A2 12Volt battery 41A2828...

  • Page 37: Repair Parts, Opener Assembly

    Opener Assembly PaNs PART DESCRIPTION 31 D380 Sprocket cover 41 C4220A Gear and sprocket assembly Complete with: Spring washer Thrust washer Retaining ring Bearing plate Roll pins (2) Drive gear and worm gear Helical gear w/retainer and grease 41A2817 Drive/worm gear kit w/grease Roll pins (2) 41 B4245 Line cord...

  • Page 38: Accessories

    Sears offers many useful accessories Sears model numbers and descriptions. 139.53702 Emergency Key Release: Required for a garage with NO access door. Enables homeowner to open garage door manually from outside by disengaging trolley. 139.53703 Outdoor Key Switch: Operates the garage door automatically from outside when remote control is not handy.

  • Page 39: Index

    Access Door/Outside Key Release Accessory Chain Tension ... Electrical Safety Warnings ... Garage Door Testing for balance, binding and sticking ... Determining high point of travel: Sectional door ... One-piece door ... Disabling existing locks ... Door clearance brackets (for garages with low headroom) ... Force controls Adjustment procedures ...

  • Page 40: How To Order Repair Parts

    1-8OO-827-6655 SEARS WARRANTY FULL 90-DAY WARRANTY For 90 days from the date of purchase, Sears will repair this Garage Door Opener, free of charge, if defective in material or workmanship. LIMITED WARRANTY From the 91st day until one year from the date of purchase, Sears will furnish replacement parts for any defective parts, free of charge.
