- Page 1 User Manual WITH WITH QUICK QUICK START START Spend a little Live a lot GUIDE GUIDE GUIDE GUIDE 2.2 KW HIGH PRESSURE WASHER Original instructions ID: #05007...
- Page 2 Try it out now Just scan the QR code with your smartphone and find out more about the Aldi product you have purchased.* Your Aldi Service Portal All details mentioned above can also be found in the Aldi Service Portal at www.aldi.co.uk.
-
Page 3: Table Of Contents
Contents Overview ..................4 Use ....................5 Product contents/device parts ............ 6 General information ..............7 Reading and storing the user manual ..........7 Explanation of symbols ...............7 Safety .................... 9 Proper use .................... 9 Safety notes ..................9 Residual risks ................12 First use .................. -
Page 6: Product Contents/Device Parts
Product contents/device parts Handle Hand crank High pressure hose (with hose clamp) Cord holder ON/OFF switch 2.2 kW high pressure washer Mains cord Threaded socket Protective cap Cleaner container Holder for the spray gun Rotating brush (low pressure accessory) Turbo lance Adjustable spray lance (used with the high pressure nozzle) Spray gun Trigger... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this 2.2 kW high pressure washer. It contains important information on start-up and handling. Before using the 2.2 kW high pressure washer, read the user manual carefully. - Page 8 General information Immediately disconnect the mains plug from the power supply if the cord is damaged, twisted or knotted, if it has been severed or if the 2.2 kW high pressure washer is left unsupervised – even for a short period of time. Never point the high pressure jet directly at persons, animals, the 2.2 kW high pressure washer or the electrical components.
-
Page 9: Safety
Safety Safety Proper use The 2.2 kW high pressure washer is only designed for cleaning the walls of buildings, façades, patios, walkways, garden tools, machines, vehicles, tools etc. with a high pressure nozzle. It is only intended for private use and is not suitable for commercial use. Only use the 2.2 kW high pressure washer as described in this user manual. - Page 10 Safety − If the mains cord of the 2.2 kW high pressure washer is dam- aged, the manufacturer, its customer service team or a person with similar qualifications must replace it to avoid risks. − Do not open the housing; instead, have a qualified professional perform the repairs.
- Page 11 Safety − Always turn the 2.2 kW high pressure washer off and pull the mains plug out of the socket in the event of a fault. WARNING! Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowledge (e.g.
-
Page 12: Residual Risks
Residual risks WARNING! Risk of injury! The high pressure jet could be dangerous if used improperly. The high pressure jet must not be pointed at persons, animals, active electrical equipment or the 2.2 kW high pressure washer itself. − Do not use the 2.2 kW high pressure washer within range of other persons unless they are wearing protective clothing. - Page 13 Residual risks − Eye injury from the high pressure jet or flying parts or particles of dirt. They can inflict severe eye injury if proper eye protection is not worn. − Injury to the skin due to accidental contact with the high pressure jet or projectile parts and dirt particles if you do not wear suitable protective equipment, clothing and firm footwear.
-
Page 14: First Use
First use First use Checking the 2.2 kW high pressure washer and product contents NOTICE! Risk of damage! If you are not cautious when opening the packaging with a sharp knife or other pointy objects, you may quickly damage the 2.2 kW high pressure washer. - Page 15 First use − In this case, use a water backflow preventer or a supply hose set approved in accordance with IEC 61770. The following work steps are required to prepare the device for operation: 1. Fit the handle on the 2.2 kW high pressure washer .
-
Page 16: Operation
Operation 7. Connect the supply hose with the water supply and open the feed valve (see fig. 7). The water temperature may amount to no more than 40 °C. 8. Make sure that the ON/OFF switch of the 2.2 kW high pressure washer is switched off (OFF position) (see fig. -
Page 17: Starting And Stopping
Operation Starting and stopping NOTICE! Risk of damage! Using the 2.2 kW high pressure washer without water could result in damage. − Never operate the 2.2 kW high pressure washer without water as dry operation could damage the pump. Use a water filter if the supplied water is contaminated. -
Page 18: Instructions For Operation
Operation Instructions for operation Working with the 2.2 kW high pressure washer − The high pressure jet must not be pointed at organisms (persons, animals), live equipment or the 2.2 kW high pressure washer itself. − Always wear personal protective equipment such as safety shoes, protective gloves, protective goggles, ear protection etc. -
Page 19: Using The Adjustable Spray Lance
Operation − Before you start work, also observe the quiet hours in your community for working with machines that produce noise. Working with the high pressure jet − Hold the spray gun and the lance tightly with both hands. − Be prepared for a kickback when you switch on the spray gun. −... -
Page 20: Using The Turbo Lance
Operation Turning the nozzle head by 180° changes from the dot jet to the flat jet: − Turn the nozzle head counterclockwise to set a dot jet. The further you turn the nozzle head clockwise the wider the flat jet will become (see fig. 12). Figure 12 The dot jet is particularly suitable for cleaning very dirty, confined areas;... -
Page 21: Automatic Supply Of Cleaners
Operation 1. Stop the 2.2 kW high pressure washer and switch the ON/OFF switch to OFF. 2. Briefly depress the trigger for the spray gun to release system pressure. 3. Instead of the spray lance or turbo lance , insert the rotating brush (see fig. -
Page 22: Cleaning And Maintenance
Operation 3. Take the cap off of the cleaner container on the back of the 2.2 kW high pressure washer and pull the hose out (see fig. 15). Figure 15 4. Take the cleaner container out of the holder and, if necessary, fill it will diluted cleaning solution 5. -
Page 23: Maintenance
Storage and transport Check the filter after each use and clean it if necessary. To do so, proceed as follows: 1. Screw the water inlet adapter off and take the dirt filter (arrow) out (see fig. 16). Figure 16 2. Rinse the dirt filter out until it is free of dirt and deposits. 3. -
Page 24: Storage Of Accessories
Storage and transport − Store the 2.2 kW high pressure washer upright in a dry, frost- free, well ventilated location that is protected against being accessed by children. Storage of accessories − Store the spray lance and the rotating brush in the accessory compartment next to the cleaner container on the back of the 2.2 kW... -
Page 25: Transport
Troubleshooting 4. Secure the end of the cord with the cord clamp as shown in the figure. Transport − If possible, use the original packaging for transport. Troubleshooting WARNING! Risk of injury! Tampering with the 2.2 kW high pressure washer could pose a risk to life due to an electric shock, damage to the 2.2 kW high pressure washer and void warranty claims: −... - Page 26 Troubleshooting Fault Cause Solution Mains cord damaged 2.2 kW high pressure Internal electrical − Consult the customer washer is working, but connection separated service team keeps cutting out ON/OFF switch defective Air in the system − Operate the 2.2 The air must be bled from kW high pressure the device washer without the...
-
Page 27: Technical Data
Technical data Technical data Model: Q1W-SP20-1900A Article number: 93107 Power consumption: 2200 W Appliance class: Operating pressure: max. pressure: 15 MPa (150 bar) Nominal pressure: 11 MPa (110 bar) Input pressure/temperature max.: 1.0 MPa (10 bar)/40 °C Power consumption: Sound power level:... -
Page 28: Declaration Of Conformity
EU Declaration of Conformity MEROTEC GmbH D-47877 Willich, Hanns-Martin-Schleyer Str. 18a, Germany herewith declare that our product High Pressure Water Cleaner Model no. Q1W-SP20-1900 und Q1W-SP20-1900A complies with the following directives: Machinery Directive 2006/42/EC EMC Directive 2004/108/EC Noise Directive 2000/14/EC... -
Page 29: Spare Part List
Spare part list Spare part list Part no. Name 1151C01 Water inlet adapter 1119005 Holder for the spray gun 1129010 Cord holder 1130013 Cleaner container 1142005 Nozzle pin B620008 Assembly consisting of self-tapping screw and washer ST3.5X9.5 1151C11 Handle 1119202 Hose line 1132802 Rotating brush... - Page 30 AFTER SALES SUPPORT www.coreservice.co.uk 01904727501 019022605...
-
Page 31: Warranty Card
AFTER SALES SUPPORT you are requested to return the faulty 01904727501 www.coreservice.co.uk product please return the completed 019022605 warranty card together with it. MODEL: Q1W-SP20-1900A PRODUCT CODE: 93107 03/2016 Unit A&B Escrick Business Park Call charges from your Escrick regular landline operator. -
Page 32: Warranty Conditions
Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits: Warranty period: 3 years from date of purchase. Costs: Free repair/exchange. No transport costs. ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors. - Page 33 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD.
Need help?
Do you have a question about the Q1W-SP20-1900A and is the answer not in the manual?
Questions and answers

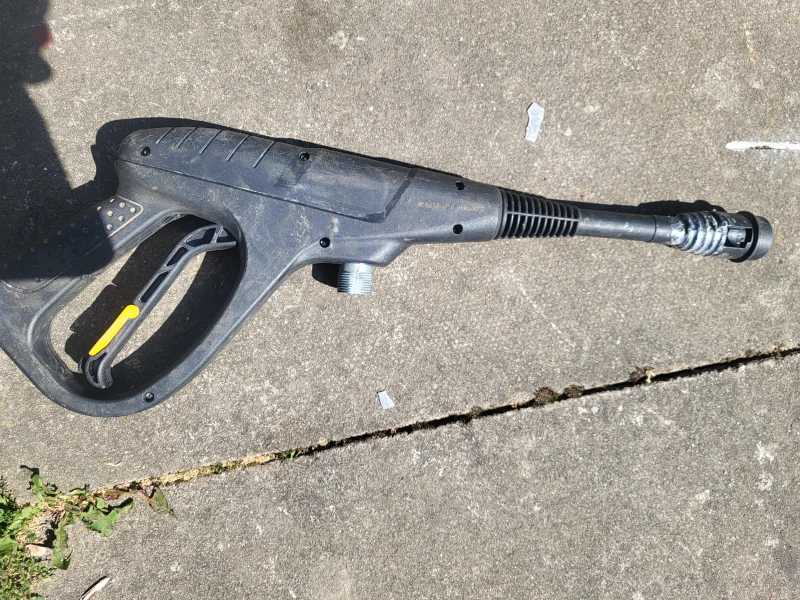

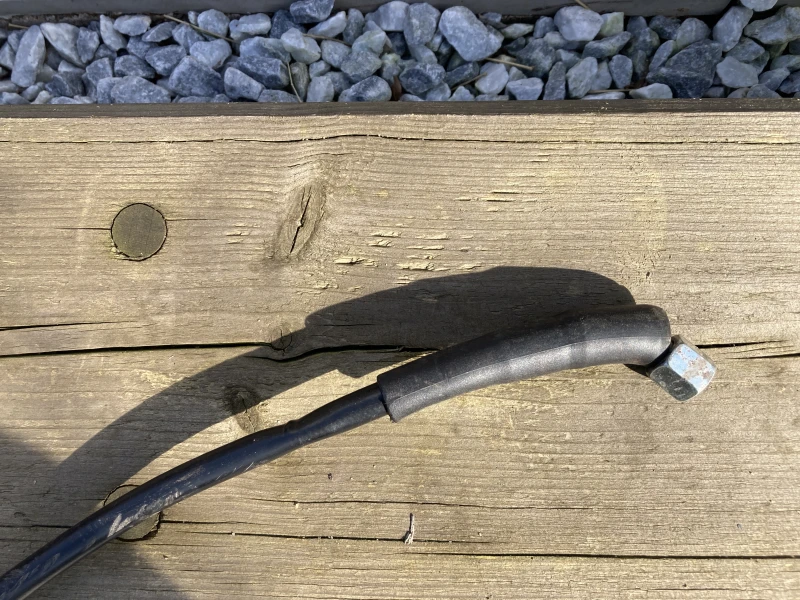

Can I purchase a replacement hose?
