- Page 1 MANUAL – INSTALLATION, OPERATION, AND MAINTENANCE Air Volume Control Valve RDV / RDVQ Series v004 – Issue Date: 07/14/16 © 2016 Price Industries Limited. All rights reserved.
-
Page 2: Table Of Contents
AIR VOLUME CONTROL VALVE TABLE OF CONTENTS Product Overview General ................. 1 Receiving Inspection ............. 1 Wiring ................1 Installation Instructions Installing the RDV/RDVQ 5000 Terminal Unit ....2 Air Volume Ranges ............2 SP300 Cal. Curves - RDV ..........3 SP300 Cal. -
Page 3: Product Overview General

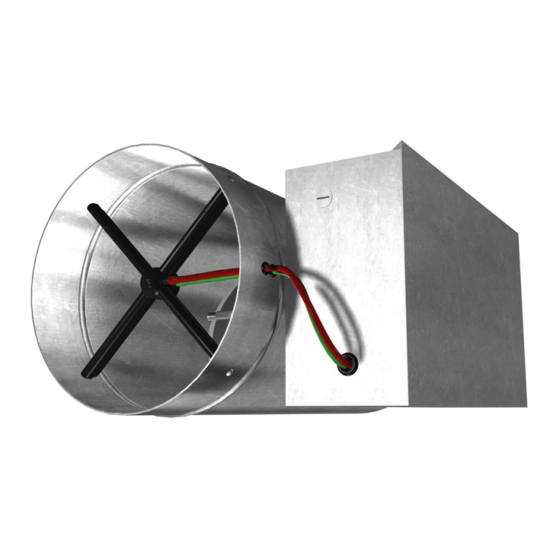

AIR VOLUME CONTROL VALVE PRODUCT OVERVIEW General The RDV/RDVQ is supplied with the duct, damper, and airflow PACK sensor. The RDV/RDVQ assembly is designed to accept Direct 4 1/2” (114) SILEN DAMPER SHAFT Digital Controls (DDC) for VAV pressure independent operation. The terminal unit controls are supplied by the controls contractor and either factory or field mounted and wired. -
Page 4: Installation Instructions
On controls mounted by Price but supplied by others, the air volume ranges are guidelines only. Selection of air flow limits below the listed values is not recommended. -
Page 5: Sp300 Cal. Curves - Rdv
The flow- 3045 controls provided. constant through transducer operates on the 4074 For field calibration of air flow limits principle of mass flow rather than refer to the control contractors pressure differential. documentation. priceindustries.com | PRICE FUME HOOD CONTROLLER - Manual... -
Page 6: Sp300 Cal. Curves - Rdvq W/Absorptive Silencer
AIR VOLUME CONTROL VALVE INSTALLATION INSTRUCTIONS SP300 Calibration Curves - RDVQ w/Absorptive Silencer Calibration Equation VP - differential pressure Notes: VP = at sensor, inches w.g. Gauge taps are normally supplied Controls utilizing a dead-ended with the pneumatic controls to allow Q - air flow rate, cfm at pressure transducer will allow field field measurement of the differential... -
Page 7: Sp300 Cal. Curves - Rdvq W/Packless Silencer
AIR VOLUME CONTROL VALVE INSTALLATION INSTRUCTIONS SP300 Calibration Curves - RDVQ w/Packless Silencer Calibration Equation VP - differential pressure Notes: VP = at sensor, inches w.g. Gauge taps are normally supplied Controls utilizing a dead-ended with the pneumatic controls to allow Q - air flow rate, cfm at pressure transducer will allow field field measurement of the differential... - Page 8 This document contains the most current product information as of this printing. For the most up-to-date product information, please go to priceindustries.com © Price Industries Limited. All rights reserved. 2016...
