Sanyo PLC-WL2500 Owner's Manual

Sanyo projector user manual
Hide thumbs Also See for PLC-WL2500:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Manual

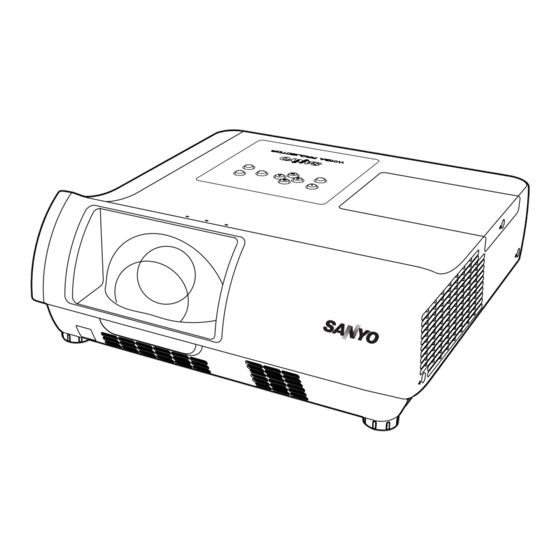

Multimedia Projector
PLC-WL2500
MODEL
Owner's Manual
Network Supported
□ Wired LAN
* Refer to the owner's manual
below for details about network
function.
□
Network Set-up and Operation

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PLC-WL2500

Summary of Contents for Sanyo PLC-WL2500

  • Page 1 Multimedia Projector PLC-WL2500 MODEL Owner’s Manual Network Supported □ Wired LAN * Refer to the owner’s manual below for details about network function. □ Network Set-up and Operation...

  • Page 2: Features And Design

    Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.  Large Screen in Limited Space Large Screen in Limited Space Short focus lens allows you to project large images from short distance. (p.13)  Security Features The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control (p.55). PIN code lock function prevents unauthorized use of the projector (pp.19, 55–56). Logo Function The Logo function allows you to customize the screen logo. The Logo page identifies the owner of the projector. (pp.47, 48) Closed caption This is a printed version of the program sound or other information displayed on the screen. You can turn on the feature and switch the channels. (p.53) Simple Computer System Setting The projector has a Multi-scan system to conform to almost all computer output signals quickly. (p.29)

  • Page 3: Table Of Contents

    Safety Instructions . . . . . . . . . . . . . . . . . . . . .5 Air Circulation Installing the Projector in Proper Position Moving the Projector Compliance .

  • Page 4: To The Owner

    50cm CAUTION DO NOT SET THE PROjECTOR IN GREASy, WET, OR SMOKy CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER . IF THE PROjECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAy BECOME DETERIORATED .

  • Page 5: Safety Instructions

    Safety Instructions All the safety and operating instructions should be read before the product is operated. Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Follow all warnings and instructions marked on the projector. For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges. Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc... Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturers. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating. The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register. This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

  • Page 6: Air Circulation

    – Keep the exhaust vent at least 3’ (1 m) away from any objects. – D o not touch a peripheral part of the exhaust vent, especially screws and metallic parts. These areas will become hot while the projector is being used. – D o not put anything on the cabinet. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat. Cooling fans are provided to cool down the projector. The fans’ running speed is changed according to the temperature inside the projector. Air Intake Vent Air Intake Vent Exhaust Vent (Hot air exhaust) Installing the Projector in Proper Position Install the projector properly. Improper installation may reduce the lamp life and cause fire hazard. Do not roll the projector more than 20 degrees from side to side. Do not pitch the projector more than 20 degrees backward and forward. Choose the running speed of cooling fans in the fan control setting according to the altitude in which the projector is being used (p.57). Failure to do so may affect the projector life. For ceiling mounting, you need the ceiling mount kit designed for this projector. When not mounted properly, the projector may fall, causing hazards or injury. For details, consult your dealer.

  • Page 7: Compliance

    – R eorient or relocate the receiving antenna. – I ncrease the separation between the equipment and receiver. – C onnect the equipment into an outlet on a circuit different from that to which the receiver is connected. – C onsult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : PLC-WL2500 Trade Name : Sanyo Responsible party : SANYO NORTH AMERICA CORPORATION Address : 21605 Plummer Street, Chatsworth, California 91311 Telephone No. : (818)998-7322 The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada: AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

  • Page 8: Part Names And Functions

    ② Adjustable feet ③ Infrared Remote Receiver ④ Projection Lens ⑤ Speaker ⑥ Lens Cover ⑦ ⑥ ③ ⑤ Do not turn on a projector with lens cover attached. High temperature from light beam may damage lens cover and result in fire hazard. ⑦ ⑧ Exhaust vent ⑨ ⑩ ⑪ ⑫ Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side. ⑨ LAN Connection Terminal Indicators ⑩ Focus Ring ⑪...

  • Page 9: Side Terminal

    Side Terminal ② ③ ④ ⑤ ⑩ ⑥ AUDIO OUT (VARIABLE) Connect an external audio amplifier to this jack (pp.14-16). This terminal outputs sound from AUDIO IN terminal (⑧ or ⑨) or HDMI terminal ② (digital audio). ⑦ CONTROL PORT When controlling the projector with RS-232C, connect the control equipment to this connector with the serial control cable. ⑧ COMPUTER / COMPONENT AUDIO IN Connect the audio output (stereo) from a computer or video equipment connected to ②, ③ or ④ to this jack (pp.14,16). ⑨ AUDIO IN Connect the audio output signal from video equipment connected to ⑤ or ⑩ to this jack. For a monaural audio signal (a single audio jack), connect it to the L (MONO) jack (p.15). ⑩ VIDEO IN Connect the composite video output signal to this jack (p.15).

  • Page 10: Top Panel

    Part Names and Functions Indicators ① ② Top controls ① ② Top Panel POWER indicator ① It turns red when the projector is in the stand-by mode. It remains green while the projector is under operation. (pp.18, 70) ③ WARNING indicator ② Emit a red light when the projector detects abnormal condition. This also blinks red when the internal temperature of the projector exceeds the operating range. (pp. 60, 70) LAMP REPLACE indicator ③ Turn yellow when the life of the projection lamp draws to an end. (pp. 63, 70) ① ON/STAND-By button Turn the projector on or off (pp.18-20). ② Point ▲▼◄► ( VOLUME – / + ) buttons – Select an item or adjust the value in the On-...

  • Page 11: Remote Control

    ① ② HDMI ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ASPECT ⑩ ⑪ ⑫ ① ON/STAND-By button Turn the projector on or off. (pp.18-20) ② AUTO SET button Execute the setting of Auto setup (includes Input search function and Auto PC adj. function). (pp.23, 45) ③ COMPUTER 1/2 buttons Select the COMPUTER 1 or COMPUTER 2 input source. (pp.27-28, 38) Note: To ensure safe operation, please observe the following precautions: – Do not bend, drop, or expose the remote control to moisture or heat. – For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any chemical material.

  • Page 12: Remote Control Battery Installation

    ● Do not use a new battery with a used battery. ● Avoid contact with water or liquid. ● Do not expose the remote control to moisture or heat. ● Do not drop the remote control. ● If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries. ● Risk of an explosion if battery is replaced by an incorrect type. ● Dispose of used batteries according to the instructions or your local disposal rule or guidelines. Point the remote control toward the projector (Infrared Remote Receiver) when pressing the buttons. Maximum operating range for the remote control is about 16.4'(5 m) and 60 degrees in front of the projector. The two different remote control codes (Code 1 - Code 2) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See "Remote control" in the Setting Menu on page 54. Press and hold the MENU and IMAGE buttons for more than five seconds to switch between the Code 1 and Code 2. The initial code is set to Code 1. Install new batteries into the compartment. Two AAA size batteries For correct polarity (+ and –), be sure...

  • Page 13: Installation

    Throw distance Projection angle can be adjusted up to 10.0 degrees with the adjustable feet. Rotate the adjustable feet and tilt the projector to the proper height; to raise the projector, rotate the both feet clockwise. To lower the projector or to retract the adjustable feet, rotate the both feet counterclockwise. To correct keystone distortion, press the KEYSTONE button on the remote control or on the top control or select Keystone from the menu (see pages 23, 46). Positioning the Projector 3.93' (119.7 cm) 2.83’ (86.1 cm) 2.09’ (63.6 cm) 60” 80” 1292 x 808 1723 x 1077 2.09’ (63.6 cm) 2.83’ (86.1 cm) 3.93' (119.7 cm) 7.9”...

  • Page 14: Connecting To A Computer

    Installation Cables used for connection • VGA cables (Mini D-sub 15 pin) * • Audio cables • HDMI-DVI cable (*One cable is supplied; other cables are not supplied with the projector.) Output HDMI-DVI cable HDMI Note: • Input sound to the COMPUTER/COMPONENT AUDIO IN terminal when using the COMPUTER IN 1/COMPONENT IN terminal as input. • When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1/COMPONENT IN and not the COMPUTER IN 2 /MONITOR OUT. • Analog RGB and component signals can be output from the COMPUTER IN 2/MONITOR OUT terminal when using the COMPUTER IN 2/MONITOR OUT terminal as output. Connecting to a Computer Monitor Output Monitor Audio Output Monitor Input Output VGA VGA Audio cable cable cable (stereo) COMPUTER IN 1 /...

  • Page 15: Connecting To Video Equipment

    Connecting to Video Equipment Cables used for connection • Video and Audio cable (RCA x 3) • S-video cable • Audio cable (Cables are not supplied with the projector. ) Video and Audio Output S-video cable Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. S-video Output (Video) Video and audio cable S-VIDEO IN VIDEO AUDIO IN Installation External Audio Equipment Audio Input Audio cable (stereo) AUDIO OUT (stereo)

  • Page 16: Connecting To Component Video Equipment

    Installation Connecting to Component Video Equipment Cables used for connection • Audio cables • Scart-VGA cable • Component cable • Component-VGA cable • HDMI cable (Cables are not supplied with this projector.) Component Video Output HDMI Output Component cable HDMI cable Component- VGA cable HDMI Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. RGB Scart 21- Audio Output (Y, Pb/Cb, Pr/Cr) pin Output Scart-VGA cable Audio cable (stereo) COMPUTER IN 1/ COMPONENT IN COMPUTER IN/ COMPONENT AUDIO IN...

  • Page 17: Connecting The Ac Power Cord

     Note: Unplug the AC power cord when the projector is not in use. When this projector is connected to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power. NOTE ON THE POWER CORD AC power cord must meet requirement of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If supplied AC power cord does not match your AC outlet, contact your sales dealer. Projector side For the U .S .A . and Canada To power cord To the AC outlet. connector on your projector. (120 V AC) Connect the AC power cord (supplied) to the projector. AC outlet side For Continental Europe Ground To the AC outlet.

  • Page 18: Basic Operation

    • When the Logo select function is set to Off, the logo will not be shown on the screen. (p.47) • When Countdown off or Off is selected in the Display function, the countdown will not be shown on the screen. (p.46) • During the countdown period, all operations are invalid. • When the Input search function is set to On 2, the input signal will be searched automatically. (p.45) • When Off is selected in the Display function, the Video /PC selection window and the input signal guidance window are not shown on the screen. (p.46) Turning On the Projector The preparation display will disappear after 15 seconds. Selected Input Source and Lamp Control Video (See page 54 for Lamp control status.)  Note: The Filter warning and Lamp replacement icons may appear on the screen depending on the usage state of the projector. Video / PC selection window Input signal guidance window...
  • Page 19 What is PIN code? PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector. A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 55-56 for locking operation of the projector with your PIN code. CAUTION ON HANDLING PIN CODE If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 76 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center.  Note: • If the PIN code number is not entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically. • The “1234” is set as the initial PIN code at the factory. PIN Code Input Dialog Box button to move ◄ Basic Operation After the OK icon disappears, you can operate the projector.

  • Page 20: Turning Off The Projector

    • The running speed of cooling fans is changed according to the temperature inside the projector. • Do not put the projector in a case before the projector is cooled enough. • If the WARNING indicator blinks or lights red, see “WARNING indicator” on page 60. • While the POWER indicator is blinking, the lamp is being cooled down and the projector can not be turned on. Wait until the POWER indicator stops blinking to turn on the projector again. • The fan rotation will terminate directly if the AC power cord is unplugged immediately after the projector is turned off. • The projector can be turned on after the POWER indicator turns red. The waiting time to restart will be shortened when the normal power-off processing for fan cooling is completed, compared with the time the AC power cord is immediately unplugged after the power- off. Turning Off the Projector Power off? disappears after 4 seconds. You can disconnect the power cord from the wall outlet or turn off the breaker even during projection without pressing the on/stand-by button. Note: • When using the Direct OFF function, you cannot restart the projector immediately after the power is disconnected. If the external power supply is suddenly cut off, the fan stops immediately. The lamp remains high temperature and needs to be cooled. Direct OFF Function...

  • Page 21: How To Operate The On-Screen Menu

    How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. The menu has a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual. Press the MENU button on the remote control or on the top control to display the On-Screen Menu. Use the Point buttons to highlight and select a ▲▼ main menu item. Press the Point button to access the submenu items. (The selected item is highlighted in orange.) Use the Point buttons to select the desired ▲▼ submenu item and press the SELECT button to set or access the selected item. Use the Point buttons to adjust the setting or ▲▼◄► switch between each option and press the SELECT button to activate it and return to the submenu. Press the Point button to return to the main menu. ◄ Press the MENU button to exit the On-Screen Menu. Remote Control MENU button Top Control or the SELECT ►...

  • Page 22: Menu Bar

    (Red/Green/Blue), Sharpness, Gamma, Noise reduction and Progressive]. (pp.41-42) ⑤ Screen For computer source, used to adjust size of the image [Normal, True, Full, Custom and Digital zoom +/– ]. (pp.35-36) For video or HDMI source, used to set size of image [Normal, Full, Zoom, Wide, Natural wide and Custom]. (p.43) Sound ⑥ Used to adjust the volume or mute the sound. (p.24) ⑦ Setting Used to set the projector’s operating configurations. (pp.44-58) Information ⑧ Display the input source information: Input , H-sync freq ., V-sync freq ., Screen, Language, Lamp status, Lamp counter, Power management, Key lock, PIN code lock and Remote control . (p.59) Network ⑨ See owner’s manual of “Network Set-up and Operation”. Guide ⑩ The key operation is displayed.

  • Page 23: Focus Adjustment

    Adjust the lens focus with the focus lever. Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search and Auto PC adj. functions) in the Setting Menu by just pressing the AUTO SET button on the remote control. Refer to page 45 for the setting of the Auto setup function. Note: Fine sync, Total dots, Horizontal and Vertical position of some computers can not be fully adjusted with the Auto PC adjustment function. When the image is not provided properly with this operation, manual adjustments are required. (pp.31-32) Press the KEYSTONE button on the remote control or on the top control. The Keystone dialog box appears. Use the Point buttons to correct keystone distortion. The ▲▼ keystone adjustment can be stored (see page 46). Reduce the upper width Reduce the lower width with the Point button. with the Point ▲ • The white arrows indicate that there is no correction. • A red arrow indicates the direction of correction. • An arrow disappears at the maximum correction. • If you press the KEYSTONE button on the remote control or on the top control once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled. • The adjustable range is limited depending on the input signal. Focus Adjustment Focus Lever Auto Setup Function Remote Control Keystone Correction Remote Control...

  • Page 24: Sound Adjustment

    Basic Operation Direct Operation Volume Press the VOLUME+/– buttons on the remote control or on the top control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Mute Press the MUTE button on the remote control to select On to temporarily turn off the sound. To turn the sound back on, press the MUTE button again to select Off or press the VOLUME +/– buttons. The MUTE function is also effective for the AUDIO OUT jack. Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Sound. Press the ▲▼ Ponit or the SELECT button to access the submenu ► items. Use the Point buttons to select the desired submenu ▲▼ item and press the SELECT button to access the selected item. Volume Press the Point button to turn up the volume; press the ► Point button to turn down the volume. ◄ Mute Press the SELECT button to switch the Mute function On/ Off. When the sound is turned off, On is displayed. Press the VOLUME +/– buttons again to turn the sound back on. Sound Adjustment Remote Control Top Control...

  • Page 25: Remote Control Operation

    Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER 1/2, HDMI, VIDEO, S-VIDEO and COMPONENT buttons Press the COMPUTER 1/2, HDMI, VIDEO, S-VIDEO and COMPONENT buttons on the remote control to select the input source. See pages 27-28, 37-38 for details. FREEZE button Press the FREEZE button on the remote control to freeze the picture on the screen. To cancel the Freeze function, press the FREEZE button again or press any other button. Fig.1 will appear on the Screen menu while the Freeze function is working. Fig .1 Note: When use the MUTE button to release the Freeze function, the mute function can not be operated at the same time. INFO . button Display the input source information: Input, H-sync freq ., V-sync freq ., Screen, Language, Lamp status, Lamp counter, Power management, Key lock, PIN code lock and Remote control. (p.59) D .ZOOM buttons Press the D.ZOOM buttons on the remote control to enter to...

  • Page 26: Image Button

    Basic Operation NO SHOW button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as User in the Logo selection (p.47), the screen changes each time you press the NO SHOW button as follows. black out → the captured image → normal → • • • • • Note: When use the MUTE button to release the No Show function, the mute function can not be operated at the same time. P-TIMER button Press the P-TIMER button on the remote control to operate the Count up/Count down function. Refer to p.52 for detail of Setting for the P-timer function. To stop the count time, press the P-TIMER button. To cancel the P-timer function, press and hold the P-TIMER button for a few seconds. IMAGE button Press the IMAGE button on the remote control to select a desired image mode of the screen. See pages 33, 40 for details. SCREEN button Select the screen size (See pages 35-36, 43 for details). No show disappears after 4 seconds. HDMI Remote Control SCREEN button P-TIMER button NO SHOW button ASPECT IMAGE button...

  • Page 27: Computer Input

    Computer Input Input Source Selection (Computer 1: RGB) Direct Operation Choose Computer 1(RGB) by pressing the COMPUTER 1 button on the remote control or press the INPUT button on the top control. Before using these buttons, correct input source should be selected through Menu operation as described below. Top Control INPUT button COMPUTER 2 can not be selected when using the COMPUTER IN 2/ MONITOR OUT terminal as MONITOR OUT output. Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲ ▼ then press the Point or the SELECT button. ► Use the Point ▲ buttons to select Computer 1. ▼ When Computer 1 is selected, press the Point access the submenu items. Use the Point ▲ to select the RGB input source and then press the SELECT button. Note: When the Input Search function is set to On 1 or On 2 in the Auto setup function, the input signal will be searched...

  • Page 28: Input Source Selection (Computer 2: Rgb)

    Computer Input Input Source Selection (Computer 2: RGB) Direct Operation Choose Computer 2 (RGB) by press the COMPUTER 2 button on the remote control or press the INPUT button on the top control. Before using these buttons, correct input source should be selected through Menu operation as described below. Top Control INPUT button Menu Operation Press the MENU button to display the On-Screen Menu. Press the Point ▲ to Input and then press the Point button. Use the Point ▲ buttons to select Computer 2 and ▼ then press the SELECT button. When Computer 2 is selected, analog RGB input source will be selected directly. Note: When the Input Search function is set to On 1 or On 2 in the Auto setup function, the input signal will be searched automatically (p.45).

  • Page 29: Computer System Selection

    PC Systems, Auto is displayed on the System Menu box and the Auto PC adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required. (pp.31-32) There is no signal input from the computer. ----- Check the connection between your computer and the projector. (See “Troubleshooting” on page 66.) The preset system is manually adjusted in the Mode 1 PC adjust Menu. The adjusted data can be stored in Mode 1-10. (pp.31-32) PC Systems provided in this projector is chosen. SVGA 1 The projector chooses a proper system provided in the projector and displays it. * Mode 1 and SVGA 1 are examples. Selecting Computer System Manually PC system can also be selected manually. Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Input and ▲▼ then press the Point or the SELECT button. ► Use the Point buttons to select System and then ▲▼...

  • Page 30: Auto Pc Adjustment

    Menu Operation Auto PC adj . Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ and then press the Point Use the Point buttons to select Auto PC adj . and ▲▼ then press the SELECT button. To store adjustment parameters The adjusted parameters from the Auto PC adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1-10) in the PC System Menu (see page 29). See also “Store” on page 32. Note: • Fine sync, Total dots, Horizontal and Vertical position of some computers can not be fully adjusted with the Auto PC adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.31-32). • The Auto PC adjustment can not be operated when 480i, 575i, 480p, 575p, 720p, 105i or 1080i is selected in the PC System Menu (p.29) , or when the signal is coming from the HDMI terminal.

  • Page 31: Manual Pc Adjustment

    Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer. Press the MENU button to display the On-Screen Menu. Use the Point buttons to select PC adjust ▲▼ and then press the Point or the SELECT button. ► Use the Point buttons to select the desired item ▲▼ and then press the SELECT button to display the adjustment dialog box. Use the Point adjust the setting value. Fine sync Use the Point buttons to adjust the value, eliminating a ◄► flicker from the image displayed (from 0 to 31). Total dots Use the Point buttons to adjust the number of total dots ◄► in one horizontal period to match your PC image. Horizontal Use the Point buttons to adjust the horizontal picture ◄► position. Vertical Use the Point buttons to adjust the vertical picture ◄► position.
  • Page 32 Mode that you want to clear and then press the SELECT button. Store To store the adjusted data, select Store and then press the Point or the SELECT button. Move the highlight to one ► of the Modes 1 to 10 in which you want to store, and then press the SELECT button. Note: • Display area (H/V) can not be selected when 480i, 575i, 480p, 575p, 720p, 105i, or 1080i is selected in the PC System Menu (p.29). • When input computer signal to the projector, PC adjust will become available. Mode free Menu This Mode has stored parameters. Values of Total dots, Horizontal, Vertical, Display area H, and Display area V. Store Menu Press MENU button Press SELECT button to to close this dialog store adjusted data. box.

  • Page 33: Image Mode Selection

    Real, Blackboard (Green), Colorboard, Image 1, Image 2, Image , and Image 4 by pressing the IMAGE button on the remote control. Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Image ▲▼ select and then press the Point button. Use the Point buttons to select the desired item ▲▼ and then press the SELECT button. Dynamic For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. Real Picture mode with improved halftone for graphics. Blackboard (Green) For the image projected on a blackboard. This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board. Colorboard Press the Point button at Colorboard, and then use the ► Point buttons to switch the desired item (Red, Blue, ▲▼ yellow, Green) and then press the SELECT button. At the time of simple projection on the colored wall, you...

  • Page 34: Image Adjustment

    Computer Input Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Image ▲▼ adjust and then press the Point button. Use the Point buttons select the desired item ▲▼ and then press the SELECT button to display the adjustment dialog box. Use the Point adjust the setting value. Contrast Press the Point button to decrease the contrast; press the ◄ Point button to increase the contrast (from 0 to 63). ► Brightness Press the Point button to decrease the brightness; press ◄ the Point button to increase the brightness (from 0 to 63). ► Color temp . Use the Point buttons to select the desired Color temp. ◄► level (XLow, Low, Mid, or High). White balance (Red) Press the Point button to lighten red tone; press the Point ◄...

  • Page 35: Screen Size Adjustment

    True Provide the image in its original size. When the original image size is larger than the screen size (1280 x 800), the projector automatically switches to the panning mode. Use the Point buttons to pan the image. When adjusted, ◄►▲▼ the arrows turn red. When reached to the correction limit, the arrows disappear. Full Provide the full screen image. Custom Provide the last stored aspect screen image. Note: • T his projector can not display any resolution higher than 1920 x 1200. If your computer’s resolution is higher than that, lower the resolution before connecting to the projector. • T he image data other than 1280 x 800 is modified to fit the screen size in initial mode. • True and Digital zoom +/- are not available when the 4:3 or 16:9 function is selected in the Screen aspect (p.50). • True, Full, and Digital zoom +/– can not be selected when 480i, 575i, 480p, or 575p is selected in the PC System Menu (p.29). Computer Input Store Menu A confirmation box appears and then select yes . Screen Menu...
  • Page 36 Computer Input Custom adj . Adjust the screen scale and position manually with this function. Press the Point ► button at Custom adj . and the Custom adjustment menu is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust. Scale H/V ... Adjust the Horizontal/Vertical screen scale. H&V .. When set to On, the aspect ratio is fixed. Scale V appears dimmed and becomes unavailable. Adjust Scale H, then the screen scale is automatically modified based on the aspect ratio. Position H/V ... Adjust the Horizontal/Vertical screen position. Common ... Save the adjusted scale or position to all the inputs. Press the SELECT button at Common to display a confirmation box. To save the scale or position, press the SELECT button at "Yes". When Custom is selected, the saved scale or position is used. Reset .. Reset the all adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at "Yes".

  • Page 37: Video Input

    Video Input Input Source Selection (Video, S-video) Direct Operation Choose Video or S-video by pressing the VIDEO button or the S-VIDEO button on the remote control or press the INPUT button on the top control. Before using these buttons, correct input source should be selected through Menu operation as described below. Top Control INPUT button Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Input and ▲▼ then press the Point or the SELECT button. ► Use the Point buttons to select either Video or ▲▼ S-video and then press the SELECT button. When video input signal is connected to the Video VIDEO jack, select Video.

  • Page 38: Input Source Selection (Component, Rgb Scart 21-Pin, Hdmi)

    Video Input Input Source Selection (Component, RGB Scart 21-pin, HDMI) Direct Operation Choose Computer 1(Component) or Computer 1(Scart) by pressing the the COMPONENT or COMPUTER 1 button on the remote control or press the INPUT button on the top control; choose HDMI by pressing the HDMI button on the remote control or press the INPUT button on the top control. Before using these buttons, correct input source should be selected through Menu operation as described below. Top Control INPUT button Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select Computer 1 and then press the Point ► button; use the Point ▲▼ buttons to select Component or RGB(Scart) and then press the SELECT button. Use the Point ▲▼ buttons to select HDMI, and then press the SELECT button;...

  • Page 39: Video System Selection

    The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select the system manually. PAL/SECAM/NTSC/NTSC4 .4/PAL-M/PAL-N If the projector can not reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC, NTSC 4 .4, PAL-M, and PAL-N. Component Auto The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance.

  • Page 40: Image Mode Selection

    Image 1, Image 2, Image , and Image 4 by pressing the IMAGE button on the remote control. Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ► or the SELECT button. Use the Point buttons to select the desired item ▲▼ and then press the SELECT button. Dynamic For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. Cinema Picture mode adjusted with fine tone. Blackboard (Green) For the image projected on a blackboard. This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board. Colorboard Press the Point button at Colorboard, and then use the ► Point buttons to switch the desired item (Red, Blue, ▲▼...

  • Page 41: Image Adjustment

    Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select the Image adjust and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point adjust the setting value. Contrast Press the Point button to decrease the contrast; press the ◄ Point button to increase the contrast (from 0 to 63). ► Brightness Press the Point button to decrease the brightness; press ◄ the Point button to increase the brightness (from 0 to 63). ► Color Press the Point button decrease the intensity of the color; ◄ press the Point button increase the intensity of the color ► (from 0 to 63). Tint Press the Point buttons to adjust the tint value to get a ◄► proper color balance (from 0 to 63). Color temp . Use the Point buttons to select the desired Color temp. ◄►...
  • Page 42 Noise interference on the screen can be reduced. Select one of the following options to get smoother images. Off ... Disabled. L 1 ... Lower reduction. L 2 ... Higher reduction. Progressive An interlaced video signal can be displayed in progressive mode. Select one of the following options. Off ... Disabled. L 1 ... For an active picture. L 2 ... For a still picture. Film ... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality. Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select yes. All adjustments will return to their previous figures. Store To store the adjusted data, select Store and press the Point button or the SELECT button. Use the Point ▲▼ buttons ► to select one from Image 1 to 4 and press the SELECT button.

  • Page 43: Screen Size Adjustment

    This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Screen and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons select the desired item and then press the SELECT button. Normal Provide the image to fit the screen size while maintaining the aspect ratio of input signal. Full Provide the full screen image. Zoom Pan the horizontal direction of the image and cut the vertical direction of the image to fit the screen size (16:9). Only for 4:3 video aspect ratio signals. Wide Provide the image at the 16:9 wide screen ratio. Natural wide Modify the 4:3 aspect ratio image to fit the screen size (16:9 aspect ratio) by stretching the image to make it look natural. Custom Provide the last stored aspect screen image. Custom adj . Adjust the screen scale and position manually with this function. Press the Point ► button at Custom adj . and the Custom adjustment menu is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust. Scale H/V ... Adjust the Horizontal/Vertical screen scale. H&V .. When set to On, the aspect ratio is fixed.

  • Page 44: Setting

    Setting This projector has a Setting Menu that allows you to set up the other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ buttons to select the Setting and press the Point ► or the SELECT button to access the submenu items. Use the Point ▲▼ buttons to select the desired item and then press the Point ► or the SELECT buttons to access the selected item. Use the Point ▲▼ buttons select the desired item and then press the SELECT button. Language The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Norwegian, Danish, Polish, Hungarian, Romanian, Russian, Brazilian Portuguese, Turkish, Arabic, Kazak, Simplified Chinese, Traditional Chinese, Korean, and Japanese. Menu position This function is used to change the position of the On-Screen Menu. Select Menu position and press the SELECT button. The Menu position changes each time you press the SELECT button as follows. the top left → the top right → the center → the bottom left → the top right → the center → the bottom left the top right →...
  • Page 45 Input search This function detects the input signal automatically. When a signal is found, the search will stop. Use the Point buttons to select one of the following options. Off ... Input search dose not work. On 1... Input search works under the following situation. – When pressing the AUTO SET button on the remote control. On 2... Input search works under the following situation. – When turning on the projector by pressing the ON/STAND-BY button. – When pressing the AUTO SET button on the remote control. – When the current input signal is cut off.* * If the No show or Freeze function is active, cancel it to activate the Input search. It is also unavailable when On-Screen Menu is displayed. Auto PC adj . On..Enables Auto PC adjustment when pressing the AUTO SET button on the remote control.
  • Page 46 User . . . Project an image captured in the Logo setting. Black . . Project a black background. Display This function decides whether to display On-Screen Displays. On ... Show all the On-Screen displays. Use this function when you want to project images after the lamp becomes bright enough. The factory default setting is this option. Countdown off ... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough. Off ... Hide the On-Screen Displays except; ● On-Screen Menu ● Power off? (p.20) ● No signal for Power management. (p.51) ● Please wait . . . ● Arrows for the True mode in the Screen Menu (p.35)
  • Page 47 Logo (Logo and Logo PIN code lock settings) This function allows you to customize the screen logo with Logo select, Capture, Logo PIN code lock and Logo PIN code change functions. Note: When On is selected in the Logo PIN code lock function, Logo select and Capture functions can not be selected. Logo select This function decides on the starting-up display from among following options. Off ... Show the countdown display only. Default ... Show the factory-set logo. User ... Show the image you captured. Logo select Setting...
  • Page 48 Setting Capture This function enables you to capture an image being projected to use it for a starting-up display or interval of presentations. Select Capture and press the SELECT button. A confirmation box appears and select yes to capture the projected image. After capturing the projected image, go to the Logo select function and set it to User. Then the captured image will be displayed the next time you turn on the projector. To cancel the capture function, select yes in the "Quit?" confirmation box. Note: • Before capturing an image, select Standard in the Image select Menu to capture a proper image (pp.33, 40). • A signal from a computer can be captured up to WXGA (1280 x 800). A signal from video equipment can be captured except for 720p, 105i, and 1080i. • When capturing the image that has been adjusted by the Keystone function, the adjusted data is automatically reset and the projector captures an image without keystone correction. • When Logo PIN code lock function is set to On, Logo select and Capture can not be selected. • When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing. • When there is no captured image or it is interrupted while capturing an image, User is not included in Logo Select Menu, you can only switch between Default and Off. Logo PIN code lock This function prevents an unauthorized person from changing the screen logo.
  • Page 49 Enter a Logo PIN code Use the Point buttons to enter a number. Press the ▲▼ Point button to fix the number and move the red frame ► pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point move the pointer to the number you want to correct, and then enter the correct number. Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to Set and press the SELECT button. If you entered an incorrect Logo PIN code, Logo PIN code and the number () will turn red for a moment. Enter the correct Logo PIN code all over again. Change the Logo PIN code lock setting Use the Point buttons to switch On or Off, and then ▲▼ press the SELECT button to make a choice. Logo PIN code change Logo PIN code can be changed to your desired four- digit number. Press the SELECT button to select Logo PIN code change. Current logo PIN code dialog box appears, use the Point buttons to enter the correct...
  • Page 50 Setting Ceiling When this function is set to On, the picture will be top/ bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen. Screen aspect This function is used to project the image to a 4:3 or 16:9 projection screen. 4: ... Set to a 4:3 projection screen. 16:9 ... Set to a 16:9 projection screen. 16:10 ...16:10 is the aspect of the LCD panel. The orignal Screen Menu is available. HDMI setup This function is only used for HDMI input source. Image Select Normal or Enhanced to match the video range setting of your HDMI Digital RGB equipment. Sound HDMI: When using the HDMI cable, select HDMI. Both video and audio are transferred and you need not to connect any additional cables for audio. Computer : When using the DVI-HDMI cable, select Computer and connect the audio cable to COMPUTER/COMPONENT AUDIO IN terminal. The names for the output setting of Digital RGB vary from equipment to equipment. For details, refer to the owner’s manual of your Digital RGB equipment. When the black parts of the image are destroyed or stand out, please switch to Normal or Enhanced, and then switch the output type of the HDMI Digital RGB output equipment. Terminal...
  • Page 51 Standby mode This function is available when operating the projector via network. Network ... Supply the power to the network function even after turning off the projector. You can turn on/ off the projector via network, modify network environment, and receive an e-mail about projector status while the projector is powered off. Eco .. Select Eco when you do not use the projector via network. The projector’s network function will stop when turning off the projector. Refer to the owner’s manual of “Network Set-up and Operation”. Note: • Factory default is Network. • When Eco is selected and the projector is in Stand-by, the communication of RS-232C serial port is not available. Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Select one of the following options: Ready .. When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the remote control is pressed.
  • Page 52 Setting Direct on When this function is set to On, the projector will be automatically turned on just by connecting the AC power cord to a wall outlet. Note: Be sure to turn off the projector properly (see “Turning Off the Projector” on page 20). If the projector is turned off in the incorrect sequence, the Direct on function does not work properly. P-timer This function allows you to change the presentation of the P-timer and execute it. Select one of the following options: Count up ... The P-timer display 000:00 appears on the screen and the count starts (000:00-180:00) Count down... The time set in the Timer setting appears on the screen and the countdown starts. Timer ..Use the Point ▲▼ buttons to set the Timer (1-180 Min). Only set to Count down, Timer is active. Factory default value is 10 Min. Start ... It executes the count up or count down function. Press the SELECT button at Start and the indication changes into Stop. To stop Count up or Count down, press the SELECT button at Stop on the screen menu, then the indication changes into Restart.
  • Page 53 Closed caption Closed caption is a printed version of the program sound or other information displayed on the screen. If the input signal contains Closed captions, you can turn on the feature and switch the channels. Press the Point Off, CC1, CC2, CC or CC4. If the Closed caption is not clear, you can change the text from Color to White. Note: The Closed caption is available only under the situation below. . • When the input signal is • When the input signal is NTSC of composite and S-video, and the system is set according to the signal or set on Auto. • The system must be set on NTSC or Auto in Video System Selection. (p.39) • The item of Closed caption is displayed in gray while it is not available. • Closed caption is unavailable when On-Screen Menu and P-timer are displayed. Closed caption buttons to select ▲▼ Setting Press the Point buttons to ▲▼ select Off, CC1, CC2, CC or CC4, and then Press Select button.
  • Page 54 Lamp control This function allows you to change brightness of the screen. Normal ... Normal brightness. Eco .. Lower brightness reduces the lamp power consumption and extends the lamp life. Remote control This projector provides two different remote control codes: the factory-set initial code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when operating several projectors or video equipment at the same time. When operating the projector in Code 2, both the projector and the remote control must be switched to Code 2.
  • Page 55 PIN code lock This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security. Off ..Unlocked. On 1 ..Enter the PIN code every time turning on the projector. On 2 ..Enter the PIN code to operate the projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without a PIN code. Whenever you change the PIN code lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. The "1234" is set as the initial PIN code at the factory. If you want to change the PIN code lock setting, Press the SELECT button and the PIN code dialog box appears.
  • Page 56 WHEN yOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO . MEMO ON PAGE 76, AND KEEP IT SECURELy . IF yOU FORGET yOUR PIN CODE, THE PROjECTOR CAN NO LONGER BE STARTED . Enter a PIN code Change the PIN code...
  • Page 57 This function provides the following options in the cooling fans’ operation when the projector is turned off (p.20). L 1 ... Normal operation L 2 ... Slower, lower-sound and longish-time than the normal operation (L1). Fan control Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector. Off ... Normal speed. Set this function to Off when using the projector in non-high altitude environment. On 1 ... Faster than Off mode. Select this mode when using the projector in high altitudes (about 1,200 meters or more above the sea level) where the fans have less cooling effect. On 2 ... Faster than On 1 mode. Select this mode when using the projector in higher altitudes than above where the fans have lesser cooling effect. Video delay control When you want to make a digital processing of a projected image faster, set this function. Use the Point ▲▼ buttons, select an item of Off or On. Lamp counter This function is used to display the cumulative lamp operating time and reset the lamp counter.
  • Page 58 Setting Filter counter This function is used to set a frequency for the filter replacing. When the projector reached a specified time between replacings, a Filter warning icon appears on the screen, notifying the replacing is necessary. After replacing the filter, be sure to select RESET and set the timer. The Filter warning icon will not turn off until the filter counter is reset. For details about resetting the timer, refer to “Resetting the Filter Counter” on page 61. Fig .1 Filter warning icon Filter warning icon appears on the screen at a set time(Off/2000H/ 3000H/4000H). Note: This icon also appears at turning on. Note: The Filter warning icon (Fig.1) will not appear when the Display function is set to Off (p.46), or Freeze (p.25), or No show (p.26). Warning log This function records anomalous operations while the projector is in operation and use it when diagnosing faults. Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order. Note: When the Factory default function is executed, all the warning log records will be deleted. Factory default This function returns all setting values except for the User logo, PIN code lock, Logo PIN code lock, Lamp counter and Filter counter to the factory default settings.

  • Page 59: Information

    Information Input Source Information Display The Information Menu is used for checking the status of the image signal being projected and the operation of the projector. Direct Operation Press the INFO. button on the remote control to display the Information Menu. Menu Operation Press the Point buttons to select the Information. The ▲▼ Information Menu is displayed. See below for displayed information. Input The selected input source is displayed. H-sync freq . The horizontal frequency of the input signal is displayed in KHz, or - - - -KHz when no signal. V-sync freq . The vertical frequency of the input signal is displayed in Hz, or - - - - Hz when no signal. Numbers of Hz doubles when during Interlace. Screen The selected screen size is displayed.

  • Page 60: Maintenance And Cleaning

    Maintenance and Cleaning The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is blinking red . When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down enough (to its normal operating temperature), it can be turned on again by pressing the ON/ STAND-BY button. Note: The WARNING indicator continues to blink even after the temperature inside the projector returns to normal. When the projector is turned on again, the WARNING indicator stops blinking. Then check the matters below: – Did you provide appropriate space for the projector to be ventilated? Check the installing condition to see if the air vents of the projector are not blocked.

  • Page 61: Replacing The Filter

    Do not operate the projector with the filter removed. Dust may accumulate on the optical elements degrading picture quality. Do not put anything into the air vents. Doing so may result in malfunction of the projector. Do not wash the filter with water or any other liquid matter. Otherwise the filter may be damaged. RECOMMENDATION We recommend avoiding dusty/smoky environments when you operate the projector . Usage in these environments may cause poor image quality . When using the projector under dusty or smoky conditions, dust may accumulate on a lens, LCD panels, or optical elements inside the projector degrading the quality of a projected image. When the symptoms above are noticed, contact your authorized dealer or service center for proper cleaning. Resetting the Filter Counter Be sure to reset the Filter counter after replacing the Filter .

  • Page 62: Attaching The Lens Cover

    Attaching the Lens Cover When moving the projector or while it is not in use, replace the lens cover. Thread the string through the hole on the lens cover and then tie a knot in the string to secure it in place. To pass the other end of the string into the hole on the top of the projector and pull at it. Cleaning the Projection Lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the lens. Cleaning the Projector Cabinet Unplug the AC power cord before cleaning. Gently wipe the projector body with a soft dry cleaning cloth. When the cabinet is heavily soiled, use a small amount of mild detergent and finish with a soft dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet. When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches. CAUTION Do not use any flammable solvents or air sprays on the projector and in its vicinity. The explosion or fire hazard may occur even after the AC power cord is unplugged because the temperature inside the projector is extremely high due to the lamps. In...

  • Page 63: Lamp Replacement

    Model No . of your projector ● Replacement Lamp Type No . ● Lamp Replacement Top Panel Lamp replacement icon Note: The Lamp replacement icon (Fig.1) will not appear when the Display function is set to Off (p.46), during Freeze(p.25), or No show (p.26). CAUTION For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury. Lamp Cover Screw : PLC-WL2500 : POA-LMP141 (Service Parts No. 610 349 0847) Maintenance and Cleaning This indicator turns yellow when the projection lamp reaches the end of its life. Screws Lamp Handle...

  • Page 64: Resetting The Lamp Counter

    ▲▼ and then press the SELECT button. Use the Point buttons to select Lamp counter reset and then ▲▼ press SELECT button. Lamp replacement counter Reset? appears. Select yes to continue. Another confirmation dialog box appears, select yes to reset the Lamp counter.  Note: Do not reset the Lamp counter without implementing lamp replacement. Be sure to reset the Lamp counter only after replacing the lamp. LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee ● of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps. If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights ● up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion. A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its ● lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used. IF A LAMP EXPLODES, THE FOLLOWING SAFETy PRECAUTIONS SHOULD BE TAKEN .

  • Page 65: Appendix

    Appendix Before calling your dealer or service center for assistance, check the items below once again. – M ake sure you have properly connected the projector to peripheral equipment as described on pages 14-16. – M ake sure all equipment is connected to AC outlet and the power is turned on. – W hen the projector does not project an image from the connected computer, restart the computer. Problem: No power projector can not be turned on. See page 60. – Unlock the Key lock function for the projector. See page 55. The initial display is not shown . function. See page 46. The initial display is not same as the default set . Input signal switches automatically .
  • Page 66 The setting does not remain after turning off power . Power management does not work . Capture function does not work . Auto setup does not work properly . – Make sure Off is not selected at any function of Auto setup. See page – Check the connection between your computer or video equipment and the projector. See pages 14-16. – See if the input signal is correctly output from your computer. Some laptop computers may need to change the setting for monitor output when connecting to a projector. See your computer’s instruction manual for the setting. – It takes about 15 seconds to display an image after turning on the projector. See page 18.
  • Page 67 Top control does not work . Unable to unlock the Logo PIN code lock or Security PIN code lock . WARNING : High voltages are used to operate this projector . Do not attempt to open the cabinet . If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service. The CE Mark is a Directive conformity mark of the European Community (EC).

  • Page 68: Menu Tree

    Appendix Computer Input/HDMI Input/Video Input Input Input Computer 1 Computer 2 HDMI Video S-video Sound Sound Volume Mute Computer Input System * Systems displayed in the System Menu vary depending on an input signal. PC adjust Auto PC adj. Fine sync Total dots Horizontal Vertical Clamp Display area H Display area V Reset Mode free Store Image select Dynamic Standard Real Blackboard (Green) Colorboard Image 1 Image 2...
  • Page 69 Video Input System Auto 1080i 1035i 720p 575p 480p 575i 480i System Auto SECAM NTSC NTSC 4.43 PAL-M PAL-N HDMI Input/Video Input Image select Dynamic Standard Cinema Blackboard (Green) Colorboard Image 1 Image 2 Image 3 Image 4 Image adjust Contrast Brightness Color Tint Color temp. Green Blue Sharpness Gamma...

  • Page 70: Indicators And Projector Condition

    Appendix Check the indicators for projector condition. Indicators LAMP POWER WARNING REPLACE red/green yellow • • • green. • • • blinks green. When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow. When this  indicator lights yellow, replace the projection lamp with a new one promptly. Indicators and Projector Condition Projector Condition The projector is off. (The AC power cord is unplugged.) The projector is in stand-by mode. Press the ON/STAND-BY button  to turn on the projector.  The projector is operating normally. The projector is preparing for stand-by or the projection lamp is  being cooled down. The projector can not be turned on until cooling is completed and the POWER indicator stops blinking.  The projector is in the Power management mode. The temperature inside the projector is abnormally high. The projector can not be turned on. When the projector is cooled  down enough and the temperature returns to normal, the POWER indicator stops blinking and the projector can be turned on. (The WARNING indicator keeps blinking.) The projector has been cooled down enough and the temperature ...

  • Page 71: Compatible Computer Specifications

    Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock. When selecting these modes, PC adjustment can be limited. ON-SCREEN RESOLUTION H-Freq . DISPLAy (KHz) VGA 1 640 x 480 31.47 VGA 2 720 x 400 31.47 VGA 3 640 x 400 31.47 VGA 4 640 x 480 37.86 VGA 5 640 x 480 37.86 VGA 6 640 x 480 37.50 VGA 7 640 x 480 43.269 MAC LC13 640 x 480 34.97 MAC 13 640 x 480 35.00 480p 640 x 480 31.47...
  • Page 72 D-WXGA 7 1280 x 768 D-WXGA 8 1280 x 768 D-WXGA 9 1280 x 800 D-1080i 1920 x 1080 D-1080p 1920 x 1080 D-1080p 1920 x 1080 D-1080p 1920 x 1080  Note: • The specifications are subject to change without notice. • Depending on your PC settings, the digital signals of your PC may not be projected correctly. In such a case, confirm your PC settings. • When you project a DVI signal, connect the cables, turn the projector on, then select the input. Finally, turn on your PC. Be sure to follow this procedure, otherwise an image may not be projected on the screen. If an image is not projected correctly, restart your PC. • Do not disconnect the cable while the projector is running. If the cable has been disconnected and then reconnected, an image may not be correctly projected. H-Freq . V-Freq . ON-SCREEN RESOLUTION (KHz) (Hz) DISPLAy 31.47 59.88 D-WXGA 10 31.25 50.00 D-WXGA 11 37.50 50.00...

  • Page 73: Technical Specifications

    Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment 0˚ to 10˚ Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System SD/HDTV Signal Scanning Frequency Optical Information Projection Image Size (Diagonal) Throw Distance Projection Lens Projection Lamp Interface Video Input Jack RCA Type x 1 S-Video Input Jack Mini DIN 4 pin x 1 Audio Input Jacks RCA Type x 2 Computer Input 1 / Component Input Terminal Analog RGB (Mini D-sub 15 pin) Terminal x 1 Computer Input 2 / Monitor Output Terminal Analog RGB (Mini D-sub 15 pin) Terminal x 1 (In/Out switchable) Computer/ Component Audio Input Jack Mini Jack (stereo) x 1 Control port D-sub 9 pin x 1 Audio Output Jack Mini Jack (stereo) x 1 (Variable) LAN Connection Terminal RJ45 HDMI x 1 Audio Internal Audio Amp 10 W RMS Built-in Speaker 1 speaker, φ1.46" (37mm) Power Voltage and Power Consumption AC 100-240 V (3.9 - 2.2 A Max. Ampere), 50/60Hz (For other countries) Operating Environment...

  • Page 74: Optional Parts

    The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer. SCART-VGA Cable COMPONENT-VGA Cable VGA-Cable (10 m) TERMINAL COVER It is recommended to attach the terminal cover to hide the unsightly cables when hanging the projector from the ceiling. The optional terminal cover set (including Terminal Cover, Terminal Cover Attachment and two(2) Screws) is sold separately. Please contact sales dealer where you purchased the projector. Remove the five (5) screws and pull out the terminal panel. (Fig.1) Attach the terminal cover attachment and make sure that it is set properly and secure the five (5) screws. (Fig 2) Connect the cables from the peripheral equipment to the projector.

  • Page 75: Configurations Of Terminals

    Configurations of Terminals COMPUTER IN 1 /COMPONENT IN Terminal: Analog RGB (Mini D-sub 15 pin) ----- COMPUTER IN 2/MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) HDMI (19 PIN Type A) 1 3 5 7 9 11 13 15 17 19 LAN TERMINAL Red(R/Cr) Input Green(G/Y) Input...

  • Page 76: Pin Code Number Memo

    Appendix Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No . Logo PIN Code Lock No . While the projector is locked with the PIN code. Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code. PIN Code Number Memo Factory default set No: 1 2 3 4* Factory default set No: 4 3 2 1* *Should the four-digit number be changed, the factory set number will be invalid.

  • Page 77: Dimensions

    3.54(90) 4.23(115) 3.94(100) 6.77(172) This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). The projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1. Projector Input Computer 1 RGB Component RGB (Scart) Computer 2 HDMI (Digital) Video Video S-video PJLink is a registered trademark of JBMIA and pending trademark in some countries. Dimensions 6.29(159.8) 6.56(166.7) 7.53(191.3) 4.33(110) 5.60(142.2) 15.11(383.9) Pj Link Notice PJLink Input Parameter RGB 1 RGB 2 RGB 3 RGB 4 DIGITAL 1 VIDEO 2 VIDEO 3 Appendix Unit: inch(mm) Screw Holes for Ceiling Mount Screw: M5 Depth: 0.394(10.0)
  • Page 78 KJ8AD...
