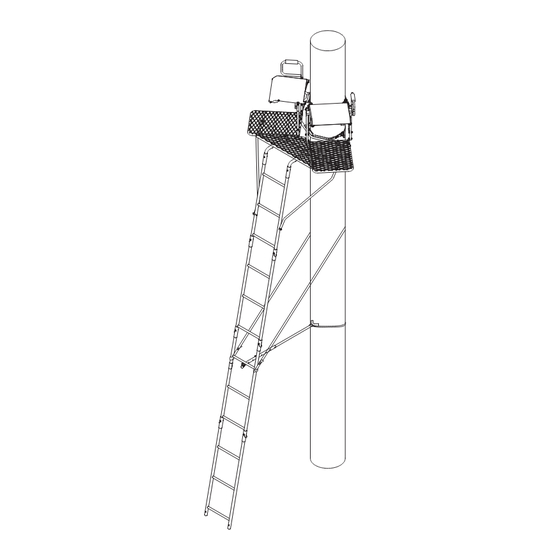

Operator's Manual
2-MAN BOWMAN
Ladder Stand
MODEL RE636
Maximum Height
19' 9" to armrests
Maximum Field Rating
500 lbs; no more than
300 lbs per person.
Tree Diameter Range
12" to 20"
Wear Your Harness!
© 2018 RETI
P/N: 17392
All Rights Reserved
REV4: 02/28/18
™
Advertisement
Table of Contents
Related Manuals for Rivers Edge 2-MAN BOWMAN RE636
Summary of Contents for Rivers Edge 2-MAN BOWMAN RE636
- Page 1 Operator's Manual 2-MAN BOWMAN ™ WE ARE HUNTERS Ladder Stand MODEL RE636 Maximum Height 19' 9" to armrests Maximum Field Rating 500 lbs; no more than 300 lbs per person. Tree Diameter Range 12" to 20" Wear Your Harness! PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY Get parts online at...
-
Page 2: Table Of Contents
If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge® customer service department at 800-450-EDGE (3343) for assistance. -
Page 3: Warnings
Operator's Manual 2-MAN BOWMAN Ladder Stand ™ READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL RE636 WARNING MAXIMUM USE HEIGHT - 19'9" TO ARMRESTS Never jump or bounce on a treestand to seat it to the tree. MAXIMUM OCCUPANCY - TWO (2) Pull up a bow, backpack, or firearm or other equipment only after being secure in the treestand and a firearm TOTAL WEIGHT LIMIT - 500 LB... -
Page 4: Inspection And Maintenance
Operator's Manual 2-MAN BOWMAN Ladder Stand ™ WARNING INSPECTION AND MAINTENANCE Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and BEFORE EACH USE PERFORM THE FOLLOWING: stepping onto the platform. •... -
Page 5: Hardware Identification Chart
Bolts shown are for size reference. HARDWARE IDENTIFICATION CHART Extra hardware may be included in the parts bag. Quick Tip: Cut page out to use as a reference tool while following assembly instructions 1/4-20 X 1-1/4 IN Bolt - Qty 2 1/4-20 X 1-1/2 IN Bolt - Qty 4 1/4-20 Nut 5/16-18 Nut... -
Page 7: Assembly Instructions
Operator's Manual 2-MAN BOWMAN Ladder Stand ™ ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: All assembly must be done in this order at ground Do not tighten any nut and bolt combinations completely level before uprighting. until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the Do not remove labels/warnings from product, they are lock- nut on the bolt while helping alignment of all parts! - Page 8 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ 3. Attach the platform support brace (16) to the bottom of previously assembled platforms (12 & 13) using four 1/4-20 x 2-1/2 IN bolts (10), four 1/4 IN washers (30) and four 1/4- 20 nuts (25).
- Page 9 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ RIGHT SEAT ASSEMBLY 5. Attach one partially factory-assembled seat (19) and one 23 8 armrest (18) to each of the seat supports (17) using two 5/16-18 x 3 IN bolts (24), two 5/16-18 x 3-3/4 IN bolts (22), two 1/4-20 x 2-1/4 IN bolts (26), four plastic spacers (23), eight 5/16 IN washers (8), two 1/4 IN washers (30), four LEFT SEAT ASSEMBLY...
- Page 10 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ assembled seat 7. Attach previously assembled seats to the previously assembled platform using four 1/4-20 x 1-1/2 IN bolts (28), four plastic washers (9) and 1/4-20 nuts (25). SEE FIGURE 7. NOTE: Pay close attention to make sure you put the “left” seat assembly on the left hand side of platform and the “right”...
- Page 11 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ 9. Insert the platform ladder section (11) into the ladder J-tubes (15). Secure together using two 1/4-20 x 1-3/4 IN bolts (29) and two 1/4-20 nuts (25). SEE FIGURE 9. 10. Attach the two flared platform support braces (20) to the welded-on tabs of platform support brace (16) and platform ladder section (11) using two 1/4-20 x 1-1/4 IN bolts (30), two 1/4-20 x 2-1/4 IN bolts (26) and four 1/4-20...
- Page 12 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ 11. Ladder sections are assembled on the ground in the following order: bottom ladder section (7), middle ladder section with stabilizer slot (6), third ladder section (7) and the top ladder section (11) with the treestand top assembly. Connect all sections together using six lockpins (21).
- Page 13 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ 13. Attach the sewn armrest cover (36) to the armrests (18) by wrapping around tubing and attaching hook and loop together. 14. Attach the two long ends of the 16’ criss-cross straps (34) to the tree blade (14).
-
Page 14: Warnings
Operator's Manual 2-MAN BOWMAN Ladder Stand ™ READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Double check assembly steps to be certain you have Bring ratchet strap(s) up with you in a pocket - Do Not correctly assembled this product. -
Page 15: Setup And Use Instructions
Operator's Manual 2-MAN BOWMAN Ladder Stand ™ SETUP AND USE INSTRUCTIONS FIGURE 14 WARNING Never use a treestand on a dead, leaning, diseased or loose barked tree, or a utility pole. Always avoid electrical power lines. Bring ratchet strap(s) up with you in a pocket - Do Not carry in your hands! During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness... - Page 16 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ 4. a. Loop the D-loop end of the two 16' criss cross straps (34) through the loop end to form a cinch knot around the ladder rail tube. Secure beneath step rung, at the stabilizer bar height location.
- Page 17 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ NOTE: Make sure there is at least two full revolutions of strap on the ratchet spool before the strap tightens. Proper tension will ensure the stand is secured to the tree. TREE Do not allow excessive strap to build up in the ratchet as this will prevent the ratchet teeth from engaging and can cause slippage.
-
Page 18: Finished Ladder
Operator's Manual 2-MAN BOWMAN Ladder Stand ™ FINISHED LADDER Cam Strap Ratchet Straps Platform Platform Ladder Section Criss-Cross Strap Third Ladder Section Stabilizer Bar Strap Stabilizer Bar Middle Ladder Section Bottom Ladder Section Lockpins Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... - Page 19 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ NOTES: Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5...
- Page 20 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ ILLUSTRATED PARTS BREAKDOWN Platform Parts MESH REMOVED FOR CLARITY Ladder Parts Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5...
-
Page 21: Parts Explosion/Parts List
Operator's Manual 2-MAN BOWMAN Ladder Stand ™ PARTS LIST KEY # PART # DESCRIPTION QTY. ITEMS BELOW ARE NOT SHOWN 1ML23 TUBE, STABILIZER, SUPPORT KEY # PART # DESCRIPTION QTY. 60G5NYB NUT 5/16-18 48415 RATCHET STRAP 8909B BOLT 1/4-20 X 1-1/4 IN 17405 CAM STRAP ASSEMBLY 13092... - Page 22 Operator's Manual 2-MAN BOWMAN Ladder Stand ™ NOTES: Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5...
- Page 23 2-MAN BOWMAN Ladder Stand ™ OTHER GREAT PRODUCTS BY RIVERS EDGE TREESTANDS Portable ground blinds take a beating from the sun, wind, rain and snow. Colors fade, materials rot, poles break and fabric tears. The Landmark Perma- nent Blind was designed and constructed to resist the elements year after year.
- Page 24 WE ARE HUNTERS Rivers Edge® Treestands, Inc. Phone: 800-450-EDGE (3343) 1160 Eighth Avenue, PO Box 755 Fax: 715-822-2124 Cumberland, WI 54829 www.huntriversedge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product...
