Bosch RFRC-OPT Installation Manual

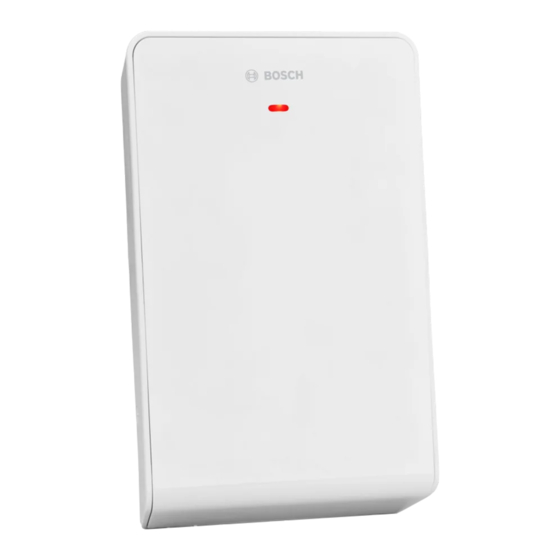

RADION receiver OP
RFRC-OPT
Installation Manual
1
P/N: F.01U.261.835 - RFRC-OPT
© 2018 Bosch Security Systems, Inc.
EN
EN 50131-3
EN 50131-5-3
NFA2P
Grade 2
AFNOR: www.marque-nf.com
Environment Class II
CNPP: www.cnpp.com
NF324-H58
EN 300 220-1
Category 1
INCERT
B-509-0068
2
139.70 mm
(5.50 in)
209.60 mm
(8.25 in)
P/N: F.01U.261.835 - RFRC-OPT
P/N: F.01U.261.835 - RFRC-OPT
Functional range: -10°C to +49°C (+14°F to +120°F)
UL only: 0°C to +49°C (+32°F to +120°F)
EN 50130-5 Class II only: -10°C to +40°C (+14°F to +104°F)
P/N: F.01U.261.835 - RFRC-OPT
200 m (656 ft), > 0.34 mm
10 - 14 VDC, 12 VDC nominal,
70 mA
111.58 mm
31.80 mm
(4.39 in)
(1.25 in)
175.79 mm
(6.92 in)
433.42 MHz
10 mW maximum
0 - 93% Non-condensing humidity
3
F.01U.261.830 | 06 | 2018.05 | 1
