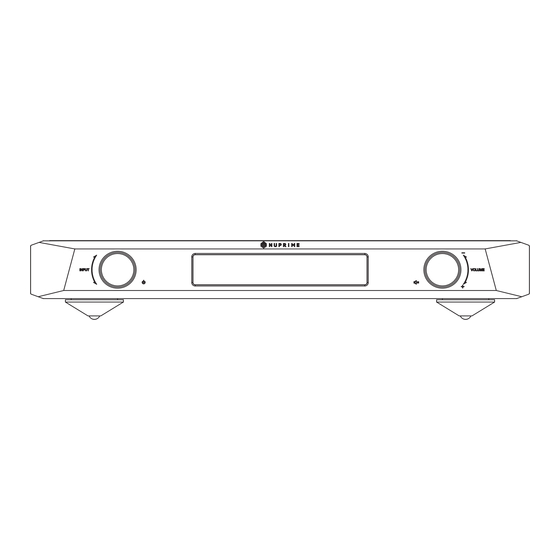

- Page 1 Evolution DAC User Manual...
-
Page 2: Eu Declaration Of Conformity
Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA The Authorized Representative for EMC and product safety is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA. - Page 3 Safe Use and Operation of Your Device This equipment emits stray RF energy and will interfere with the reception of signals by airborne electronic navigational devices or medical devices. Do not operate this equipment near any sensitive medical devices. WARNING: Use only grounded AC power cords Always immediately disconnect the power to the equipment in the event the device emits an unusual odor or sound or generates smoke.
- Page 4 To get the cleanest and most stable power to the circuitry, no expense was spared when designing the power supply section of the Evolution DAC. The AC inlet goes right to a filter, which reduces the AC high frequency line noise by at least 20dB in the 100kHz to 5MHz region.
- Page 5 • USB Supports native MQA decode. • Individually adjustable volume on each input for precise level matching of sources • Exclusive driver software for Windows, standard driver software for Mac • NuPrime vibration-free isolation feet. • Available in black or silver anodized aluminum finish.
-
Page 6: Front Panel
PC's USB port which is able to send digital audio up to PCM 384KHz and DSD 256. IIS/DSD Input: With HDMI cable to transfer IIS and DSD data from NuPrime source devices. Do not connect to the HDMI output of Set Top Box or BD / DVD player. - Page 7 Coaxial Input: Both COAX1 and COAX2 accept up to 768KHz. For DSD DOP standard input up to DSD256. Optical Input: Both OPT1 and OPT2 digital inputs accept up to 192KHz. For DSD DOP standard input up to DSD64. AES/EBU Input: Professional digital input accepts up to 192KHz. For DSD DOP standard input up to DSD64.
- Page 8 • Output Phase: Normal • Output Phase: Invert CASE Pin 1 : Ground Pin 1 : Ground Pin 2 : Positive (+) Pin 2 : Negative (-) Pin 3 : Negative (-) Pin 3 : Positive (+) • AC Inlet: Pin 1 : Live Conductor : L Pin 2 : Ground Conductor : PE Pin 3 : Neutral Conductor : N...
-
Page 9: Front Panel Display
4. Front Panel Display 4.1 PCM sample rate 4.2 DSD sample rate 4.3 MQA original sample rate 4.4 MQA Studio original sample rate 4.5 Setup Menu... - Page 10 5. Setup Menu structure Item ▲▼ Value ▲▼ SAMPLE RATE ADJUST PCM 44.1K PCM 48K PCM 88.2K PCM 96K PCM 176.4K PCM 192K PCM 352.8K PCM 384K PCM 705.6K PCM 768K DSD 2.8M DSD 3.0M DSD 5.6M DSD 6.1M DSD 11.2M DSD 12.2M DSD 22.6M DSD 24.6M...
-
Page 11: Mqa - Master Quality Authenticated
• Dimensions [W x H x D]: 430 mm x 55 mm x 315 mm. • Weight: 5.2Kg • Power consumption: 13.5W (0.9W Standby) 8. Package Content • The NuPrime EVO DAC (Black or Silver) • Aluminum remote • Power cord... -
Page 12: Limited Warranty
OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product. -
Page 13: Exclusions And Limitations
(e) to cosmetic damage, including but not limited to scratches, dents, and broken plastic on ports; (f ) to defects caused by normal wear and tear or otherwise due to the normal aging of the product; or (g) if any NuPrime serial number has been removed or defaced.
