Changing The Cutting Blade - KEENCUT SteelTrak 165 Instruction Manual

6.3
2

Changing the Cutting Blade

Unlock and swing down the cutter guard, rotate the turret so the cutting blade is
facing towards you.

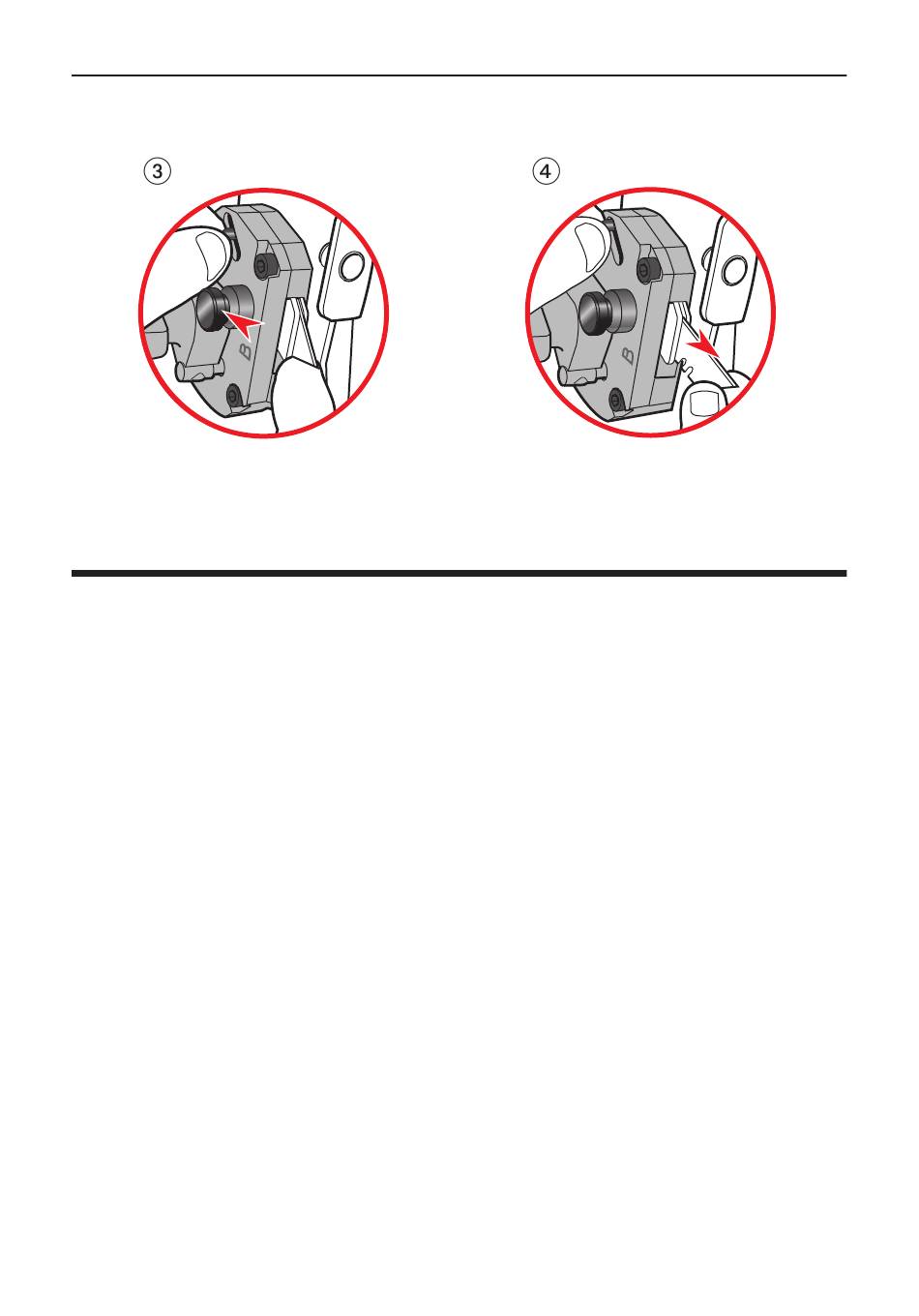

3. Undo the blade clamping screw a number of turns to release the blade.
4. Change or turn over the blade, insert it back into the turret as far as it will go.
Tighten the blade clamping screw, the safety pin will engage to hold the blade in
position. At this point the position of the Blade Support Plates can be adjusted to
suit the thickness of material being cut, further tightening of the screw will clamp the
blade firmly in position.
Rotate the turret back to the cutting position. Replace the guard ensuring it is locked
closed.
Operation
Changing the Cutting Blade
6.3
2
