Lightly apply fine-grained oil stone to the cutting edge.
•
Observe a minimum length of 89 mm Shorter punches must be
replaced (risk of collision).

Dies

Dies can not be resharpened.
5.3

Checking/replacing the wearing plate

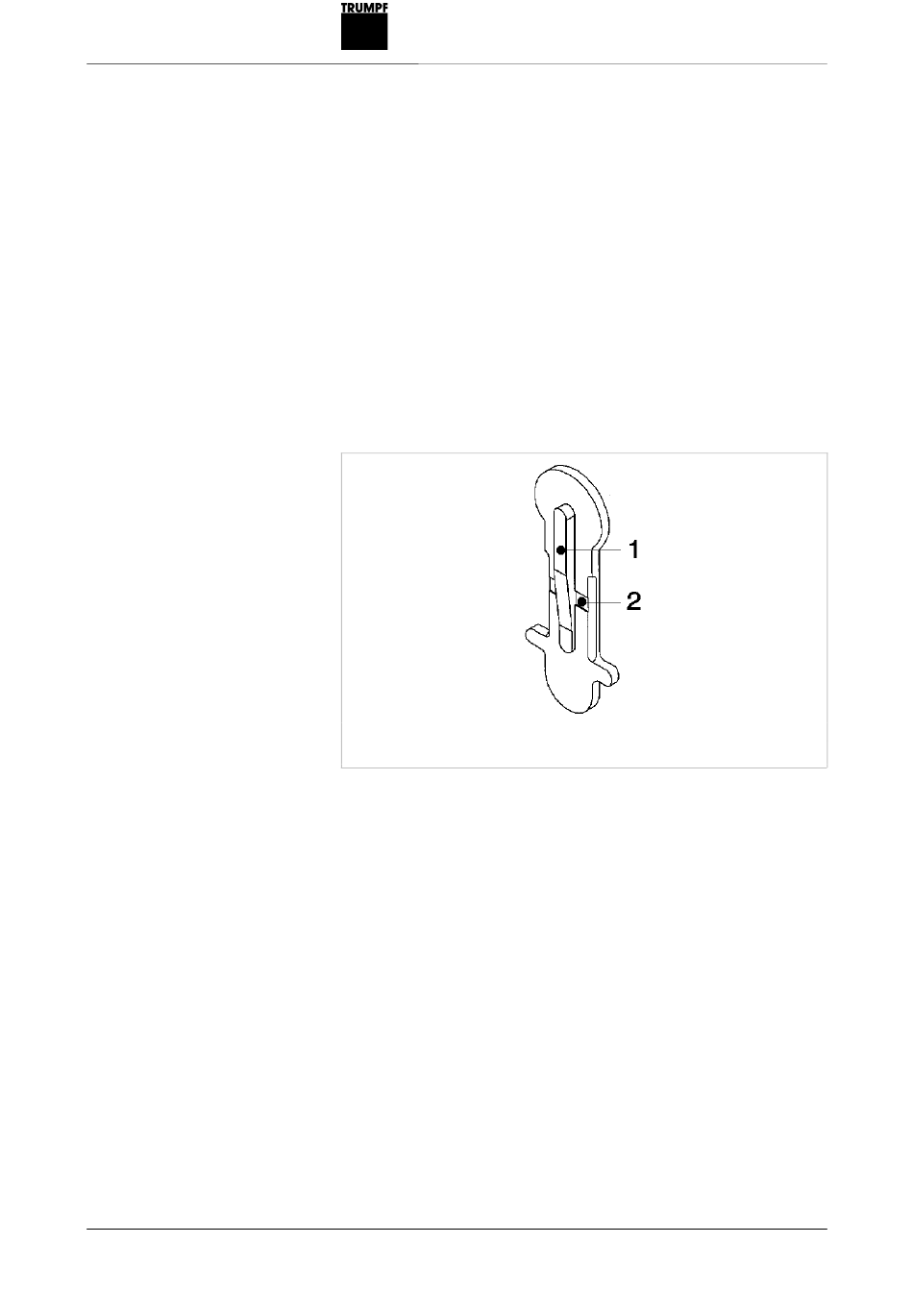

1 Elevation
Wearing plate
The wearing plate protects the die carrier against excessive wear
(order no. 0119173).
1. Replace the wearing plate when the elevation (1) is worn
down.
2. Replace the wearing plate when the depression (2) is no
longer visible.
Note
Excessive wear can overload the machine and lead to a deteriation
in cutting quality.
2 Depression
Maintenance
Fig. 9468
