Instruction Manual

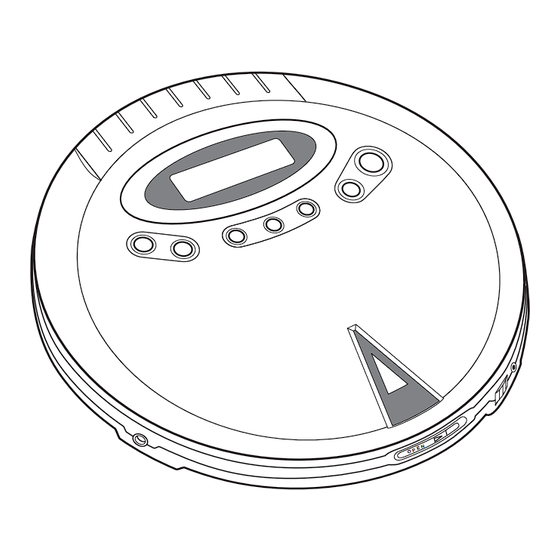

Personal CD Player
CD MOBILE
SANYO Canada Inc.
www.sanyocanada.com
CDP-244
CDP-244CRB
SAFETY TIPS
Thank you for purchasing the SANYO
CDP-244/CDP-244CRB.
The CDP-244 comes with headphones and
an AC adapter.
The CDP-244CRB comes with headphones,
an AC adapter, car cassette adapter and
cigarette lighter adapter.
CAUTIONS FOR SAFETY
Do not take the unit apart. The laser beam
used in the unit could harm your eyes.
Ê
Do not insert pins or other objects inside
the unit. This unit is equipped with a
safety device which automatically turns
the laser beam off when the disc
compartment is opened. If a pin or other
metal object should get inside the unit,
however, this safety device may be
deactivated.
Ë
Do not drop the unit or subject it to
strong shocks. Doing so could result in
damage.
Do not place the unit in the following
locations:
Ê
Locations where the temperature is
high. The cabinet may warp or the unit
may otherwise be damaged if it is placed
in direct sunlight, near heaters (where
L
L
the temperature is 140 F/60 C or
greater) or in cars with the windows
closed. (In the summer, the temperature
L
L
may get as high as 212 F/110 C or
more.) Use the unit within a temperature
L
L
L
L
range of 41 F/5 C to 95 F/35 C.
Ë
In humid or dusty locations.
Ì
In
locations
exposed
to
heavy
vibrations.
Í
On unstable or tilted surfaces.
CONDENSATION
If cold water is poured into a glass, water
droplets form on the outside of the glass.
This is called condensation. Condensation
may occur on internal operating parts of the
laser pickup.
CONDENSATION OCCURS:
Ê
When the unit is brought from the
outdoors into a warm room, or if it is in a
cold room which is heated quickly.
Ë
In the summer, if the unit is moved
suddenly from an air-conditioned room or
car to a hot or humid location.
SHOULD CONDENSATION OCCUR:
The unit may not operate properly if
condensation occurs. Wait for 1 to 2 hours
(to allow the internal parts to adjust to the
surrounding temperature) before using the
unit.
1
Advertisement
Table of Contents
Related Manuals for Sanyo CDP-244
Summary of Contents for Sanyo CDP-244
- Page 1 Thank you for purchasing the SANYO CONDENSATION If cold water is poured into a glass, water CDP-244/CDP-244CRB. The CDP-244 comes with headphones and droplets form on the outside of the glass. This is called condensation. Condensation an AC adapter. The CDP-244CRB comes with headphones,...
-
Page 2: Safety Tips
SAFETY TIPS LASER SAFETY THIS SET EMPLOYS AN OPTICAL LASER BEAM SYSTEM IN THE CD MECHANISM, DESIGNED WITH BUILT-IN SAFEGUARDS. DO NOT ATTEMPT TO DISASSEMBLE. EXPOSURE TO THIS INVISIBLE LASER LIGHT BEAM MAY BE HARMFUL TO THE HUMAN EYE. THIS IS A CLASS-1 LASER PRODUCT. USE OF CONTROLS, ADJUSTMENTS OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS LASER LIGHT BEAM EXPOSURE. -
Page 3: Power Supply
POWER SUPPLY Plug one end of the AC adapter into the NOTE ON ALKALINE BATTERIES DC 4.5V jack, then plug the other end Ê When replacing the alkaline batteries, into an AC wall outlet. use two new batteries of the same type. -
Page 4: Handling Compact Discs
CAR CASSETTE ADAPTER (FOR CDP-244CR ONLY) USING IN A CAR BEFORE USE Ê Check the cassette tape insert slot of Plug the cord into LINE OUT jack. Ë your car stereo. If necessary, change the Insert the pack into the tape slot of direction of the cord on the cassette the car stereo. -
Page 5: Playing A Disc
PLAYING A DISC Ë Be sure to reduce the volume before Slide the OPEN latch to release the CD plugging in or unplugging the headphones. lid. Ê Plug cord from pair headphones into the PHONES jack. Ì Hold the disc with the label side up and press it onto the spindle until it "clicks"... - Page 6 Use this function to increase the bass output. AUTO POWER ON FUNCTION The power turns on automatically when The output from the CD player can be recorded. Connect a patch cable (not supplied) from the AUX OUT jack on the CD player to the LINE INPUT jacks on a cassette recorder.
-
Page 7: Programmed Play
PROGRAMMED PLAY Ì Press the PROGRAM button. The first The tracks on the disc can be programmed for play in any order. (Up to 22 tracks can track is now stored in memory. The be programmed.) program number changes to " During programming, "... -
Page 8: Troubleshooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM CAUSE Replace both batteries. CD Player will not turn Dead or weak batteries. The AC adapter is not Check the AC adapter connection at connected properly. AC outlet and side of set. -
Page 9: Specifications
Ë Ë Audio products purchased in a used In no event shall SANYO Canada Inc. or any of condition. its Authorized Dealers be liable for special or Ì Problems due to product set-up and installation.
