O P E R A T I N G
I N S T R U C T I O N S
V
A
L
V
E
G
U
I
T
A
R
A M P L I F I E R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tramp and is the answer not in the manual?

Questions and answers

Related Manuals for TRACE ELLIOT Tramp

Summary of Contents for TRACE ELLIOT Tramp

  • Page 1 O P E R A T I N G I N S T R U C T I O N S A M P L I F I E R...
  • Page 2 The tone networks in the Tramp Tube are all of the traditional passive kind - this type of interactive EQ was chosen as the best and most natural sounding for an electric guitar. It has been designed to ‘colour’ the inherent character and tone of the guitar and amplifier, rather than radically or artificially change the fundamental sound.

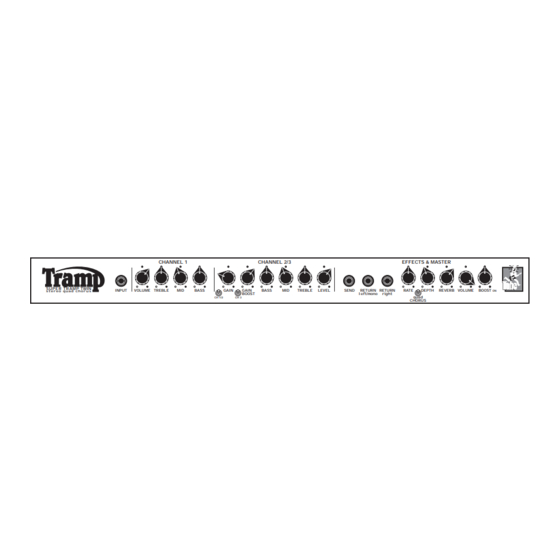

  • Page 3: Front Panel Features

    Improper use of loudspeaker loads may cause damage to the amplifier and will invalidate the warranty. If you are unsure as to the overall load impedance of your cabinets, please contact the Trace Elliot Service Department on +44 (0) 1621 840959 before proceeding.
  • Page 4 Channel one treble, mid, bass The 3 band passive EQ network has been primarily voiced for clean sounds. As the circuit is of the passive variety, all the controls are interactive and will have a pronounced effect upon one another. Experiment with the settings to find a sound that suits your guitar and style of playing.
  • Page 5 It is the dynamic response of the Tramp Tube amplifier that gives it its ‘valve like’ feel to play.

  • Page 6: Master Volume

    - the discrete power amplifier has been designed to overdrive in a ‘musical’ way and will provide you with significantly more gain and overall volume level. When being overdriven hard, the Tramp Tube can deliver power levels well in excess of its quoted ‘clean’ output power.

  • Page 7: Rear Panel Features

    REAR PANEL FEATURES MANUFACTURED IN THE UNITED KINGDOM BY:- TRACE ELLIOT LIMITED POWER CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR SPEAKER SPEAKER BOOST/ CHANNEL/ CHORUS RIGHT LEFT GAIN WARNING - ATTENTION THIS APPARATUS MUST BE EARTHED.

  • Page 8: Specifications

    Specifications Input impedance 1MΩ Input sensitivity 37mV rms for full power out (channel one) Overdrive gain Maximum of approximately 80dB Effects send 0dBu nominal @ 10K impedance Effects return 0dBu nominal @ 68K impedance Load impedance 8 - 16Ω per channel Output power At least 65W rms clean per channel Loudspeaker(s)

  • Page 9: Safety Instructions

    It is inherent in the design of a loudspeaker and in the design of guitar pickups that they should emit or be affected by electro magnetic fields. Trace Elliot loudspeaker enclosures should not be champs électromagnétiques ou en émettent les enceintes de haut-parleur Trace Elllot ne devraient used less than 2 metres away from equipment which is likely to be affected by electro magnetic pas étre utilisées à...
  • Page 10 Alle høyttalere og pick–up'er til gitarer gir nødvendigvis fra seg eller påvirkes av röd färg. elektromagnetiske felter. Trace Elliot–høyttalerkabinetter må ikke brukes mindre enn 2 m fra utstyr Om en A 13 amp (BS1363) stickpropp används måste en 13 amp säkring användas eller om som trolig kan påvirkes av elektromagnetisk støy.

  • Page 11: Instruções De Segurança

    áhrifum af rafsegulsviom. Trace Elliot hátalarakerfi ætti ekki ao nota í innan vio 2 metra fjarlægo frá tækjum, EMC advarsel sem kynnu ao veroa fyrir áhrifum rafsegultruflana.
  • Page 12 πρε ´πει να εκπε ´ µπουν η ´ να επηρεα ´ζονται απο ´ τα ηλεκτροµαγνητικα ´ πεδι ´ α. Τα εσω ´κλειστα µελαϕω ´νου της TRACE ELLIOT να µην χρησιµοποιου ´νται λιγο ´τερο απ ´ο 2 µε ´ τρα µακρια ´ απο ´ τηε συσκευη ´ που πιθανο ´ν να επηρεα ´ζονταιι απο ´ ηλεκτροµαγνητικη ´...
