Summary of Contents for Workzone Q1W1524

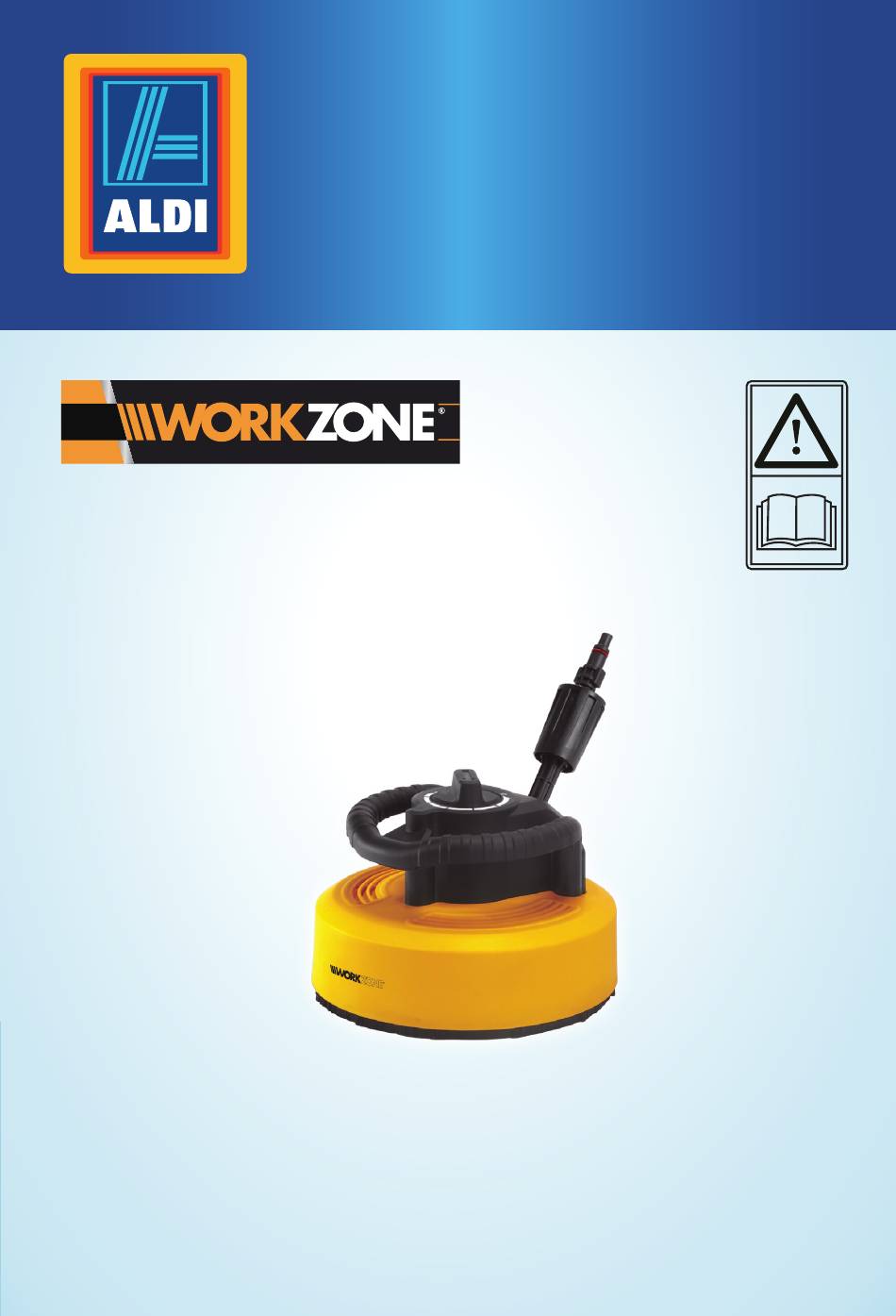

- Page 1 User Manual Spend a little Live a lot PATIO AND WALL CLEANER Original instructions...
-
Page 2: Table Of Contents
Content Introduction................... General information and Safety instructions....... Assembly and Parts List..............Connect..................Features..................Instructions..................FAQ....................Other Useful Information.............. -
Page 5: Introduction
• Cleaning the object according to its manufacturer’s information. • The device is designed for use with the WORKZONE high pressure washer. • The device is suitable for other pressure washers if the adaptor is used. - Page 6 General notes on safety General notes on safety • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
- Page 7 Assembly and parts list parts from the manufacturer or approved by the manufacturer. • WARNING: High pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses ,fittings and couplings recommended by the manufacturer. • Do not use the appliance if a supply cord or important parts of the appliance are damaged, e.g.
-
Page 8: Assembly And Parts List
Technical specifications Technical specifications Patio and wall cleaner Q1W1524 Max. permissible pressure P max. 15 MPa Inlet flow temperature t in max. 60°C The patio and wall cleaner is designed for pressure washers working at a nominal pressure (p) of 90-150bar . -
Page 9: Connect
Connect Connect Fig.4 Assemble the extension tube (1) to your spray gun, then start to work. Spray gun can kick back .Always hold with both hands on the appliance When the spray trigger is released, water pressure is trapped in the discharge hose. -
Page 10: Instructions
Instructions Instructions WARNING! Before operation , make sure no obstacle (etc. stone) has blocked the rotation device below. • When cleaning horizontal surfaces, move nozzle wand from side to side. (Fig 6) • When cleaning building interiors or exteriors , work from top to bottom. This will help eliminate streaks. -
Page 11: Faq
Frequently Asked Questions(FAQ) WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service centre or a similarly qualified specialist if you cannot solve the problem yourself! Suspected malfunctions, disturbances or damages are often due to causes that the user can find themselves. -
Page 12: Other Useful Information
Plug-in and twist to connect the adaptor (3/4) to the high pressure spray gun. • Adaptor H (emboss marked “H”) can be connected to: WORKZONE spray gun SINCE 2012 DURO spray gun SINCE 2012 Fig 8. • Adaptor E (emboss marked “E”) can be connected to: Gun of common used DIY market spray gun limited by 150bar Fig.9... - Page 13 Other useful information NOZZLES (5) Enclosed 2 extra nozzles (5) could be replaced in case damaged or blocked. (Fig.10) -Remove the clip -Remove the nozzles -Reinstall the high pressure nozzle. -Re-insert the clip Fig.10 Cleaning/Maintenance/ Storage Disconnect all water connections. Turn on the appliance for a few seconds, until the water which has remained in the pump exits.
- Page 14 Waste disposal and environmental protection Waste disposal and environmental protection Disposal WARNING Inspecting the device Check all fastenings regularly. These can come loose over time because of the vibration. Do NOT DISPOSE OF THE PACKAGING IN YOUR HOUSEHOLD WASTE. The packaging is entirely made from recyclable materials. Dispose of the packaging in the appropriate recycling container.
- Page 15 Original EU Declaration of Conformity MEROTEC GmbH D-47877 Willich, Hanns-Martin-Schleyer Str. 18a, Germany herewith declare under our own, sole responsibility that our product Patio and wall cleaner Modell Nr.: Q1W1524 complies with the following directives: Machinery Directive 2006/42/EC RoHS 2011/65/EU Place, date: Willich, 10.11.2017...
- Page 17 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 95614 +353 (0)1 902 2605 +44 (0)1904 727501 www.coreservice.co.uk YEAR WARRANTY MODEL: Q1W1524 04/2018...
