This product can only be
installed on the driver's side
installed on the driver's side
of the vehicle.

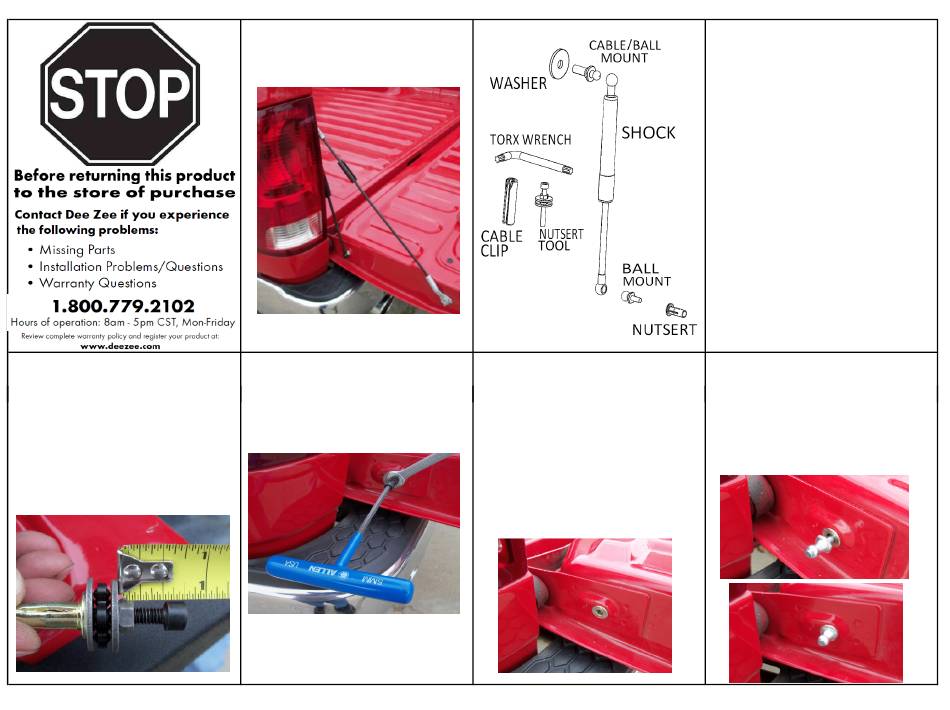

STEP 1)
Adjust the nutsert tool so
there is 3/4" from the washer
to the head of the bolt.
DZ 43300
TAILGATE ASSIST
DODGE RAM 2002-2011
STEP 2)
Using a M5 Allen wrench and
Using a M5 Allen wrench and
a 10mm wrench, install the
nutsert in the opening by the
tailgate pivot point.
The nutsert should be
tightened between 9 and 12
360 degree turns.
Mark one side of the nut and
Mark one side of the nut and
count the number of revolutions
to insure the correct number
of full turns.
Overtightening the nutsert
can strip the threads and cause
the nutsert to be unusable.
Remove the nutsert tool
when installation is complete.
PARTS LIST:
ITEM
QTY
NUTSERT TOOL
1
SHOCK
1
CABLE/BALL MOUNT
1
WASHER
1
BALL MOUNT
1
NUTSERT
1
TORX WRENCH
1
CABLE CLIP
1
THREAD LOCK TUBE
1
TOOLS REQUIRED:
T-45 TORX
M5 ALLEN WRENCH
PLIERS
10MM WRENCH
13MM WRENCH
17MM WRENCH
TAPE MEASURE
STEP 3)
Apply thread lock to the
Apply thread lock to the
threads of the ball mount.
Install the ball mount into the
nutsert using a 13mm
wrench/socket.
