MC-312 PG2
Outdoor PowerG wireless magnetic contact with auxiliary input
1. INTRODUCTION
The MC-312 PG2 is a two-way wireless PowerG magnetic contact device
that is compatible with PowerMaster control panels.
The device has the following features:
Weatherproof, water-resistant outdoor transceiver
l
Functions in extreme temperature (-40 °C to 66 °C / -40 °F to 151
l
°F) and is IP66 certified.
Battery life of up to 5 years (with typical use)
l
Integrated magnetic sensor
l
Anti-masking protection, based on panel software version.
l
Auxiliary hard-wired input, programmable as either NO, NC, EOL or
l
DEOL (based on panel version support) for use with additional
devices
Maximum magnet gap of 44.5 mm (1¾ in) on wood and 31.8 mm
l
(1¼ in) in on metal.
Ability to disable the magnetic sensor if the auxiliary input only is
l
required
The sensor and the auxiliary input can behave as separate
l
transmitters, although they trigger the same RF transmitter.
Front and back tamper protection (back tamper not available in US
l
market)
Automatic periodic supervision at regular intervals
l
PowerG two- way Frequency Hopping Spread Spectrum FHSS-
l
TDMA technology
2. INSTALLATION
The equipment is designed to be installed only by qualified service persons.
It is recommended to place the transmitter above the door or window on the fixed frame and the magnet to the movable part of the door or window.
Make sure that the magnet is located not more than 44 mm (1.75 in) from the marked side of the transmitter.
It is also possible to mount the MC-312 PG2 on a curved surface, such as a fence pole or similar, to monitor outdoor areas.
In case of roller shutter assembly, the magnet needs to be assembled 25mm – 35mm from the sensor.
Note: Once the battery cover is removed, a tamper message is transmitted to the panel. Subsequent removal of the battery prevents transmission of
the TAMPER RESTORE alert, leaving the receiver in permanent alert. To avoid this, press the tamper switch when you remove the battery.
Caution! Risk of explosion if the battery is replaced by an incorrect type. Dispose of the used battery according to the manufacturer's instructions.
Attention! The unit has an optional back tamper switch behind the device. As long as the device is seated firmly within the bracket, the switch lever will
be pressed against a special break-away bracket segment that is loosely connected to the bracket. Be sure to fasten the break-away segment to the
wall. If the detector unit is forcibly removed from the wall, this segment will break away from the bracket, causing the tamper switch to open.
2.1. Mounting the MC-312 PG2 on a flat surface
To mount the device on a flat surface, complete the following steps:
1. Insert a flat-head screwdriver into the slot provided and push upward to remove the decorative cover, as in Fig. 2.
2. Unscrew the lower screw from the device cover, as in Fig. 3.
3. Separate the device from the bracket, as in Fig. 4.
4. Mark and drill four holes in the mounting surface, as in Fig. 5.
5. Screw in the bracket with four screws provided.
6. Reattach the device to the bracket.
7. Mount the magnet base with two supplied screws to an adjacent surface and attach the magnet to the magnet bracket, as in Fig. 5.
Note: Align the device and magnet according to the specifications in "Range coverage directions" on the next page.
D-307174 MC-312 PG2 Installation Instructions

Installation Instructions

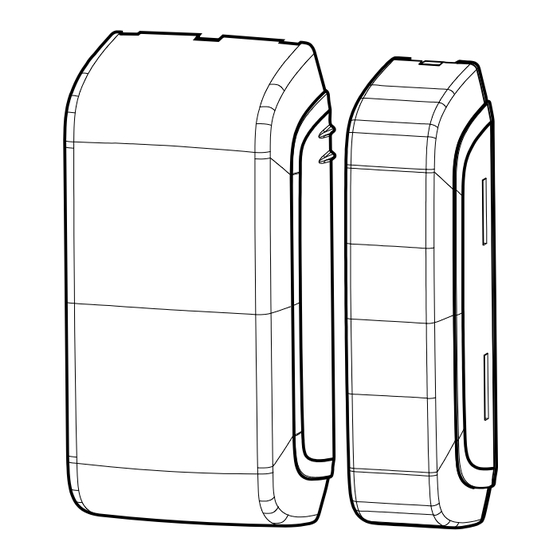

Figure 1 - MC-312 PG2
A: Device B: Magnet
1
