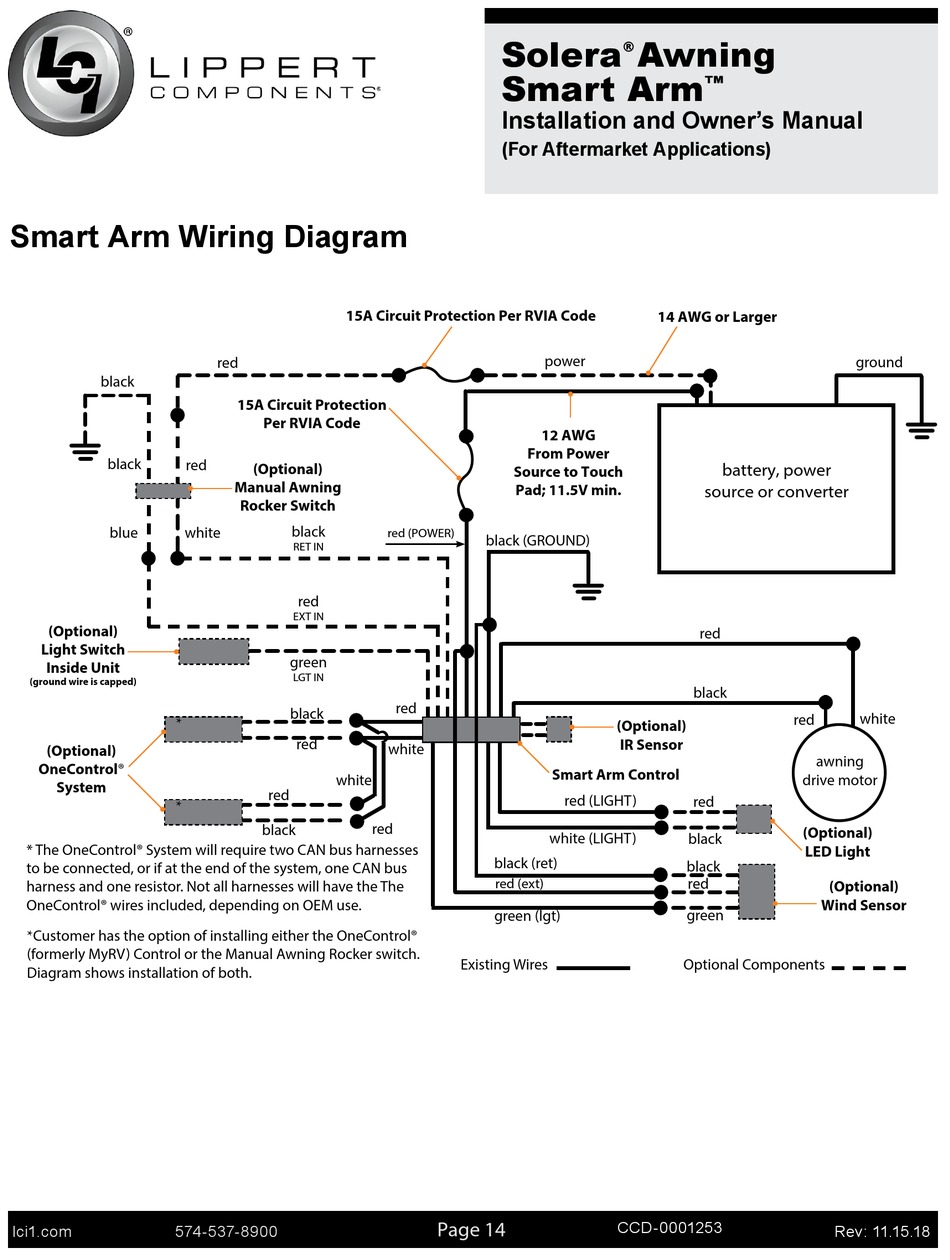

Smart Arm Wiring Diagram

black
black
red
blue white
(Optional)
Light Switch
Inside Unit
(ground wire is capped)
*
(Optional)
OneControl®
System
*
* The OneControl® System will require two CAN bus harnesses
to be connected, or if at the end of the system, one CAN bus
harness and one resistor. Not all harnesses will have the The
OneControl® wires included, depending on OEM use.
*Customer has the option of installing either the OneControl®
(formerly MyRV) Control or the Manual Awning Rocker switch.
Diagram shows installation of both.
lci1�com 574-537-8900
15A Circuit Protection Per RVIA Code
red
15A Circuit Protection
Per RVIA Code
(Optional)
Manual Awning
Rocker Switch
black
red (POWER)
RET IN
red
EXT IN
green
LGT IN
red
black
red
white
white
red
red
black
Solera
Smart Arm
Installation and Owner's Manual
(For Aftermarket Applications)
power
12 AWG
From Power
Source to Touch
Pad; 11.5V min.
black (GROUND)
Smart Arm Control
red (LIGHT)
white (LIGHT)
black (ret)
red (ext)
green (lgt)
Existing Wires
Page 14
Awning
®
™
14 AWG or Larger
battery, power
source or converter
red
black
red
(Optional)
IR Sensor
red
black
black
red
green
Optional Components
CCD-0001253
ground
white
awning
drive motor
(Optional)
LED Light
(Optional)
Wind Sensor
Rev: 11�15�18
