Summary of Contents for Samsung HT-THQ22

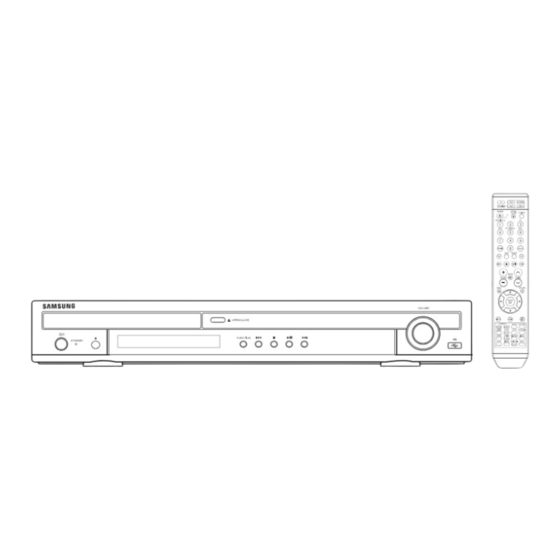

- Page 1 DIGITAL HOME CINEMA SYSTEM HT-THQ22 HT-THQ25 THIS APPLIANCE IS MANUFACTURED BY: Instruction Manual AH68-01888B COMPACT DIGITAL VIDEO...
-
Page 2: Safety Warnings
Safety Warnings Use of controls, adjustments or performance of procedures other than CLASS 1 LASER PRODUCT those specified herein may result in hazardous radiation exposure. KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE CAUTION-INVISIBLE LASER RADIATION WHEN OPEN KLASS 1 LASER APPARAT AND INTERLOCKS DEFEATED, AVOID PRODUCTO LASER CLASE 1 EXPOSURE TO BEAM. -
Page 3: Table Of Contents
Features Multi-Disc Playback & FM Tuner The HT-THQ22/HT-THQ25 combines the convenience of multi-disc playback capability, including DVD-VIDEO, VCD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated FM tuner, all in a single player. USB HOST Function support You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. -
Page 4: Notes On Discs
Notes on Discs DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall. DVD players and the discs are coded by region. -
Page 5: Description
Description —Front Panel— Stop ( Disc Tray Play/Pause ( Open/Close button Remote Function button Control Sensor Tuning Up & Skip ( Standby indicator Tuning Down & Skip ( Power ( ) button DOLBY DIGITAL indicator DTS Disc indicator REPEAT indicator LINEAR PCM indicator TITLE indicator CHAPTER indicator... -
Page 6: Remote Control
Description —Remote Control— TV button DVD RECEIVER button POWER button RDS Selection button Number(0~9) buttons REMAIN button STEP button SEARCH buttons VOLUME button MENU button INFO button PL II EFFECT button PL II MODE button TUNER MEMORY button ZOOM button SLEEP button SLOW, MO/ST button DIMMER button... -
Page 7: Connecting The Speakers
Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. HT-THQ22 Center Speaker Front Speaker (R) Rear Speaker (R) Subwoofer Position of the DVD Player Selecting the Listening Position •... -
Page 8: Speaker Installation
Speaker Installation How to install the speaker and the stand (Tallboy type) Component A: SPEAKER B: STAND C: STAND BASE D: Screw E: Screw Turn the STAND (B) upside-down Turning the screw (D) clockwise, and connect it to the STAND connect it to two holes marked BASE (C). -
Page 9: Connecting The Video Out To Tv
Connecting the Video Out to TV Choose one of the four methods for connecting to a TV. METHOD 1 METHOD 2 Composite Video ... Good Quality METHOD 1 Connect the supplied video cable from the VIDEO OUT jack on the back panel of the sys- tem to the VIDEO IN jack on your television. -
Page 10: Hdmi Function
HDMI Function (Con’t) Resolution Selection • This function allows the user to select screen resolution for HDMI output. In Stop mode, press and hold the SD/HD (Standard Definition/High Definition)button on the remote control. • Resolutions available for the HDMI output are 576p(480p), 720p and 1080i. -
Page 11: Connecting The Fm Antenna
Your Home Theater is capable of playing DVD, VCD, CD, MP3/WMA and JPEG discs.Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using. To Operate your Samsung TV and the Home Theater with the HT-THQ22/HT-THQ25's Remote Control Plug the main unit's power cord into the AC power supply. -
Page 12: Disc Playback
Before Using Your Home Theater Disc terminology Titles and chapters (DVD-VIDEO) • DVD-video is divided into several large sections called "titles" and smaller sections called "chapters". Numbers are allotted to these sections. These numbers are called "title numbers" and "chapter numbers". TITLE 1 TITLE 2 CHAPTER 1... -
Page 13: Mp3/Wma-Cd Playback
MP3/WMA-CD Playback Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3/WMA format can be played. Press the In Stop mode, use OPEN/CLOSE button to select to open the disc tray, the album, and then and then load the press the ENTER MP3/WMA disc. -
Page 14: Jpeg File Playback
JPEG File Playback Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater. Slide Mode Place the JPEG disc on the disc tray. Press SLIDE MODE button. -
Page 15: Divx Playback
DivX Playback The functions on this page apply to DIVX disc playback. Skip Forward/Back During playback, press the button. • Goes to the next file whenever you press button, if there are over 2 files in the disk. • Goes to the previous file whenever you press button, if there are over 2 files in the disk. -
Page 16: Checking The Remaining Time
Checking the Remaining Time Press the REMAIN button. • For checking the total and remaining time of a title or chapter being played. Each time the REMAIN button is pressed DVD- VIDEO TITLE ELAPSED TRACK ELAPSED TITLE REMAIN TRACK REMAIN CHAPTER ELAPSED TOTAL ELAPSED CHAPTER REMAIN... -
Page 17: Repeat Playback
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG Press REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: DVD- VIDEO CHAPTER Repeatedly plays the selected chapter. -
Page 18: Step Function
Step Function Press STEP button. • The picture moves forward one frame each time the button is pressed during playback. • Note No sound is heard during step motion playback. Angle Function This function allows you to view the same scene in different angles. Press Cursor Press INFO button. -
Page 19: Selecting Audio Language
Selecting Audio Language Audio Language Selection Function Press Cursor Press INFO button buttons or numeric twice. buttons to select the desired audio language. • Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed. -
Page 20: Playing Media Files Using The Usb Host Feature
Playing Media Files using the USB HOST feature You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater. Press the FUNCTION Connect the USB button on the main unit... -
Page 21: Moving Directly To A Scene/Song
Moving Directly to a Scene/Song Moving to a Title/Track Press Cursor , buttons or numeric buttons to select Press INFO button. the desired title/track and then press ENTER button. 01/05 001/040 0:00:37 03/05 001/002 0:00:01 Moving to a Chapter Moving to a Specific Time Press Cursor but- Press Cursor ,... -
Page 22: Setting The Language
Setting the Language OSD(On-Screen Display) language is set to English by default. In Stop mode, press MENU button. MOVE ENTER EXIT Note • To select another language, select OTHER and enter the language code of your country. (See page 72 for language codes) AUDIO, SUB TITLE and DISC MENU language can be selected. -
Page 23: Setting Tv Screen Type
Setting TV Screen type Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. In Stop mode, press MENU button. MOVE ENTER EXIT Press Cursor but- ton to move to ‘TV DISPLAY’ and then press ENTER button. -
Page 24: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. In Stop mode, press MENU button. ENTER MOVE EXIT Press Cursor but- Press Cursor but- ton to move to ton to select the desired ‘PARENTAL’... -
Page 25: Setting The Wallpaper
MOVE SELECT RETURN EXIT Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. JPEG To select one of the 3 wallpaper settings you've made In Stop mode, press MENU button. -
Page 26: Divx (R) Registration
DivX (R) registration Please use the Registration code to register this player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod. Press the MENU button while the disc tray is open. EXIT MOVE ENTER Press Cursor button to move to ‘DIVX(R) registration’... -
Page 27: Setting The Delay Time
Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. In Stop mode, press MENU button. MOVE ENTER EXIT Setting up the Speaker Delay Time... -
Page 28: Setting The Test Tone
Setting the Test Tone Use the Test Tone feature to check the speaker connections. In Stop or no Press Cursor but- ton to move to ‘Audio’ disc mode, and then press press MENU ENTER button. button. MOVE ENTER EXIT MOVE ENTER EXIT Press RETURN button to return to the previous level. -
Page 29: Setting The Audio Quality
Setting the Audio You can adjust the balance and level for each speaker. When adjusting the audio quality using the setup screen Method 1 In Stop mode, press MENU button. MOVE ENTER EXIT Press Cursor button to move to ‘SOUND EDIT’... -
Page 30: Av Sync Setup
AV SYNC Setup Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video. Press Cursor Press the MENU button. to move to ‘Audio’ and then press ENTER button. -
Page 31: Dolby Pro Logic Ii Mode
Dolby Pro Logic II Mode You can select the desired Dolby Pro Logic II audio mode. Press PL II MODE button. • Each time the button is pressed, the mode changes as follows. • Note When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. -
Page 32: Listening To Radio
Listening to Radio Remote Control Unit Press the TUNER Tune in to the button to select desired station. the FM band. Automatic Tuning 1 When is pressed, a preset broadcast station is selected. Press and hold TUNING/CH to Automatic Tuning 2 automatically search for active broadcasting stations. -
Page 33: About Rds Broadcasting
About RDS broadcasting Using the RDS (Radio Data System) to receive FM stations RDS allows FM stations to send an additional signal along with their regular program signals. For example,the stations send their station names,as well as information about what type of program they broadcast, such as sports or music,etc. -
Page 34: Convenient Functions
Convenient Functions Sleep Timer Function You can set the time that the Home Theater will shut itself off. Press SLEEP button. • "SLEEP" will be displayed. Each time the button is pressed, the preset time changes as follows: 10 OFF. To confirm the sleep timer setting, press SLEEP button. -
Page 35: Operating A Tv With The Remote Control
TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. TV Brand Code List Brand... -
Page 36: Before Calling For Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy •... -
Page 37: Cautions On Handling And Storing Discs
Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. -
Page 38: Usb Host Feature Supported Products
Optio-S50 Pentax Digital Camera Optio 33LF Pentax Digital Camera YP-T5 VB Optio MX Pentax Digital Camera YP-53 Digimax-420 Samsung Digital Camera Digimax-400 Samsung Digital Camera Sora PDR-T30 Toshiba Digital Camera Multi Card Reader Coolpix 5900 Nikon Digital Camera Coolpix S1... -
Page 39: Specifications
Specifications (Con’t) HT- THQ22 5.1ch speaker system Speaker system Front/Rear speaker Center speaker Impedance 4Ω x 5 Frequency range 140Hz~20KHz Output sound pressure level 82dB/W/M Rated input Maximum input 150W 160W Front 90 x 1045 x 90 mm Dimensions (W x H x D) 90 x 152 x 90 mm Rear 200 x 90 x 92 mm...
