Summary of Contents for Equinox Systems Scantastic 4

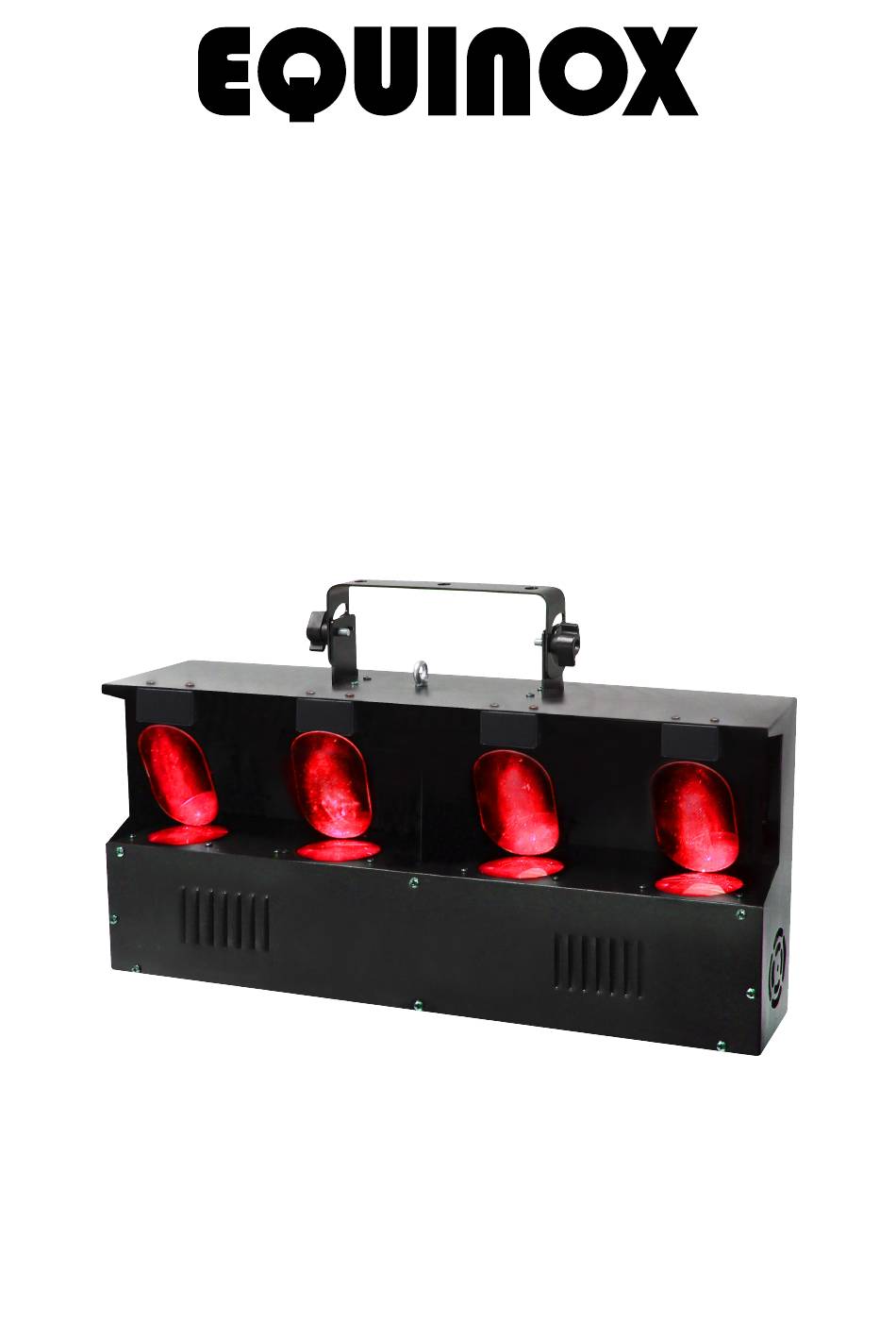

- Page 1 Scantastic 4 User Manual Order code: EQLED55...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Scantastic 4 User Manual... - Page 3 SOUND POWER CONSUMPTION: 75W ENTER 01 - Hanging bracket 06 - Sound sensitivity adjustment 02 - Hanging bracket adjustment knob 07 - Microphone 11 - 3-Pin DMX output In the box: 1 x fixture, 03 - LED display 08 - IEC power input 12 - Fuse: F3A 250V 1 x power cable 04 - Function buttons 09 - IEC power output 13 - Safety eye & 1 x user manual 05 - Mode indicators 10 - 3-Pin DMX input 14 - Earth point www.prolight.co.uk Scantastic 4 User Manual...
-
Page 4: Technical Specifications
000-255 Colour/pattern selector 1 000-255 Scanner 4 Pan 000-255 Scanner 1 Pan 000-255 Scanner 4 Tilt 000-255 Scanner 1 Tilt 000-255 Movement macros 000-255 Colour/pattern selector 2 000-255 Movement macros speed 000-255 Scanner 2 Pan 000-127 Blackout 000-255 Scanner 2 Tilt 128-255 Sound active 000-255 Colour/pattern selector 3 000-255 Scanner 3 Pan 000-255 Scanner 3 Tilt 000-255 Colour/pattern selector 4 000-255 Scanner 4 Pan 000-255 Scanner 4 Tilt www.prolight.co.uk Scantastic 4 User Manual... -
Page 5: Master/Slave Mode
LED display. Press “ENTER” to confirm the setting. Use the “UP” and “DOWN” buttons to select between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Display mode: dISP To access the display mode, press the “MENU” button on the rear of the unit to show on the LED display. To flip the display press the “ENTER” button and use the “UP” and “DOWN” buttons to dSIP select . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Test mode: To test that all the LEDs are illuminating, press the “MENU” button on the rear of the unit to show test on the LED display. Press the “ENTER” button to start the test. Once you are satisfied with the test press the “ENTER” button to stop it. To exit out of any of the above options, press the “MENU” button. Fixture hours: hour To access the fixtures hours, press the “MENU” button on the rear of the unit to show on the LED display. Press the “ENTER” button to show the total hours the fixture has been used for. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Scantastic 4 User Manual... -
Page 6: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Scantastic 4 User Manual... -
Page 7: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Scantastic 4 User Manual... - Page 8 Operating instructions & WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Scantastic 4 User Manual...
