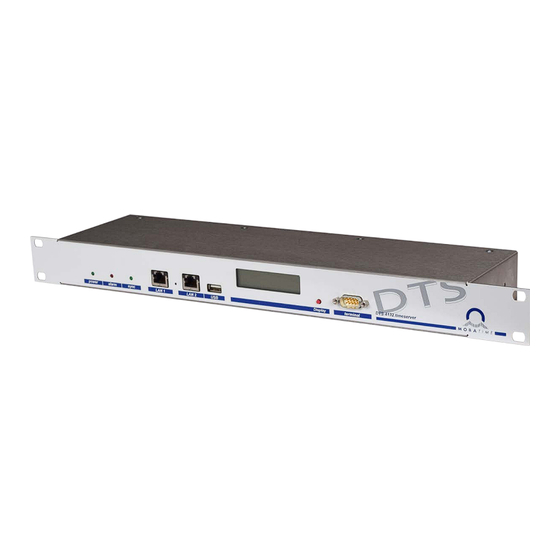

Mobatime DTS 4132.timeserver Mounting And Instruction Manual

Network time server and master clock
Hide thumbs Also See for DTS 4132.timeserver:
Table of Contents

Advertisement

Quick Links

Download this manual
MOUNTING AND
INSTRUCTION MANUAL
DTS 4132.timeserver
Network – Time Server and Master Clock
© MOBATIME
BE-801104.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTS 4132.timeserver and is the answer not in the manual?

Questions and answers

Related Manuals for Mobatime DTS 4132.timeserver

Summary of Contents for Mobatime DTS 4132.timeserver

  • Page 1 MOUNTING AND INSTRUCTION MANUAL DTS 4132.timeserver Network – Time Server and Master Clock © MOBATIME BE-801104.05...
  • Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

  • Page 3: Table Of Contents

    Time zone table ....................... 86 Alarm list .......................... 88 Troubleshooting ....................... 90 Serial Telegrams......................92 Copyright Notice ......................97 Parameters ........................98 Technical data ....................... 102 Index ..........................105 Connection table (to fill in) ..................... 107 © MOBATIME 3 / 108 801104.05...
  • Page 4 Time server ............70 Installation ............ 14 Time accuracy, time-keeping ......70 Connections ............14 Leap second ............. 71 Boot procedure of the DTS 4132.timeserver ..14 NTP Authentication ........... 71 Initial configuration ..........14 8.9.1 NTP symmetric keys ..........71 Firmware ............
  • Page 5 Serial Telegrams .......... 92 General ............. 92 Syntax of the telegram configuration file ... 93 Copyright Notice .......... 97 Parameters ..........98 Technical data ..........102 Index ............105 Connection table (to fill in) ......107 © MOBATIME 5 / 108 801104.05...

  • Page 6: Safety

    Additional information for the use of the device. Intended Use The DTS 4132.timeserver is a time server for the use in network environments. It can be synchronized from NTP and be used as NTP server. In addition, it can read the time from DCF or GPS (e.g.

  • Page 7: Observe Operating Safety

    Please observe the electromagnetic compatibility! • This device complies with the requirements of the EMC and the Low-voltage Directive. Caution! © MOBATIME 7 / 108 801104.05...

  • Page 8: Maintenance

    Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 8 / 108 801104.05...

  • Page 9: General Information: Introduction

    DTS 4132 or simply time server are used for better readability. Introduction The DTS 4132.timeserver is a NTP Time Server for use in network environments. It can be synchronized by DCF or GPS (e.g. from GPS 4500) and NTP, and act as a NTP server in a network.

  • Page 10: Device Types

    MOBA-NMS is software used for central management and inquiry of state and alarm information. It supports DTS devices as well as all MOBATIME analog and digital network clocks and can handle a network with more than 1000 devices. This software provides extensive functions for the configuration, installation, back-up / recovery etc.

  • Page 11: Overview Of The Main Functions

    3.7.2 Device management All MOBATIME network devices are displayed in the so-called device view. Here, the devices can be grouped according to user-defined criteria. For this, the individual devices can simply be moved to the according groups and sorted using drag and drop.

  • Page 12: Displays

    Orange Blinking No connection to network Right Yellow 10 Mbit 100 Mbit LED indication back side Description Color Status Description DCF (GPS reception), blinking every second  time DCF in Blinking information from receiver © MOBATIME 12 / 108 801104.05...

  • Page 13: Display

    If a USB stick has been plugged in, it will be displayed. If only telegram files should be copied or the network settings should be changed, this can be activated directly with the button. (Press the button until the copy process starts). © MOBATIME 13 / 108 801104.05...

  • Page 14: Installation

    Firmware It is recommended to install the current firmware on your device prior to the definite commissioning. The current firmware can be found under www.mobatime.com  Customer Data  Product Resources  Time Server. Basic settings (factory settings) The basic settings can be found in the table in Appendix “G Parameters”.

  • Page 15: Operation

    Backspace must be set to "delete“ with the serial terminal. Local echo: Some terminals (serial or Telnet) do not display the characters entered. It is, therefore, necessary to switch on the "local echo" in the terminal. © MOBATIME 15 / 108 801104.05...

  • Page 16: Serial Connection

    Putty User: dts Password: standard password dts NetTerm (Shareware) Linux: Start console and enter “telnet [IP address] 6.1.3 Windows XP, 7, 8, 10: e.g. with Putty Linux: Start console and enter “ssh DTS@[IP address]“ © MOBATIME 16 / 108 801104.05...

  • Page 17: Menu Structure

    In the menus where data cannot be saved (command 98), the menu is only exited with 99, but any changes are not saved. The current menu is updated, without any further entry, with ENTER. © MOBATIME 17 / 108 801104.05...

  • Page 18: Moba-Nms Operation

    (called „tabs“). These tabs are connected to the terminal menu and designated accordingly. Example: The terminal menu „Configuration  Alarms“ can be found in MOBA-NMS under the tab „Alarms“. Configuration example of a DTS 4132.timeserver: configuration pages (tabs) For further details on the general MOBA-NMS operation, check the integrated online help (menu „Help ...

  • Page 19: Main Menu

    Main menu DTS 4132.timeserver Moser-Baer AG ==================================== MAIN SELECTION Status (Actual alarms and history, timesource state, version Configuration (Configuration of the lines, timesources, alarms ...) Maintenance (Update, backup ...) 99 Exit DTS menu Enter desired menu number> Menus: Status: Display of various information regarding operation and environment See chapter “6.4 Status menu“...

  • Page 20: Status Menu

    Status menu The status menu consists of 2 pages. Status menu page 1: DTS 4132.timeserver Moser-Baer AG ==================================== CLOCK STATE Page 1 Alarm state Alarm history Time, time state Local source Power Info network config. Internal state Product information Versions of the software Press enter for next part, 99 to leave>...

  • Page 21: Time Information And Status

    Status menu page 2: DTS 4132.timeserver Moser-Baer AG ==================================== CLOCK STATE Page 2 11 NTP peer state (ntpq -np) 12 NTP state (ntpq -c rl) 13 State of the lines Press enter for next part, 99 to leave> Display of information with regard to the internal state of the NTP server.

  • Page 22: Time Source Information

    6.4.2 Time source information DTS 4132.timeserver Moser-Baer AG ==================================== TIMESOURCE INFORMATION Actual measured offset 0us GPS FULL Last time received DCF (UTC) 09:12:00 26.01.15 Sec. counter DCF Last time received link (UTC) 00:00:00 01.01.70 Sec. counter link NTP source Antenna (DCF/GPS)

  • Page 23: Configuration Menu

    Configuration menu DTS 4132.timeserver Moser-Baer AG ==================================== CONFIGURATION Outputs Time handling Alarms General Network Services (FTP, telnet, SSH) SNMP 99 Return Enter desired menu number> Path: 2 Configuration Configuring the DTS 4132 through various submenus: Configuring the lines / outputs (DCF/pulse/frequency, serial interfaces and NTP slave clock line) See chapter "6.5.1 Outputs"...

  • Page 24: Outputs

    / DCF active code line 2 6.5.2 DCF – output The DTS 4132 is equipped with one DCF output line. This line is available on the electrical current loop DCF output. DTS 4132.timeserver Moser-Baer AG ==================================== DCF OUTPUT Mode (0=off, 1=DCF)

  • Page 25: Dcf / Pulse / Frequency Output

    6.5.3 DCF / Pulse / Frequency output DTS 4132.timeserver Moser-Baer AG ==================================== DCF / PULSE / FREQUENCY OUTPUT 1 Mode (0=off, 1=DCF, 2=pulse, 3=frequency) 0 Time zone [0] UTC Pulse type (0=sec 1=min 2=hour 3=user) Pulse length 100ms User defined pulse type...

  • Page 26: Serial Interface

    6.5.4 Serial interface Serial telegram output via RS232, RS422 or RS485. DTS 4132.timeserver Moser-Baer AG ==================================== SERIAL OUTPUT 1 Mode (0=off, 1=on) Time zone Com Mode Baudrate Databit Stopbit Parity Telegram file 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 27 Path: 2 Configuration  1 Outputs  3/4 Serial line 1/2  8 Telegram file The copy procedure of telegram files is explained in chapter "7.10 Copying Telegram or Program files to the DTS 4132.timeserver“. © MOBATIME 27 / 108...

  • Page 28: Ntp Slave Clocks / Time Zone Server

    = Send an empty time zone table and return to previous mode. 2. Multicast adress for NTP and time zone server: 239.192.54.x Group address: x = 1-15 for MOBATIME devices, e.g. NCI, SEN 40. 3. Multicast port for Time zone server (enter an arbitrary value, empty is not allowed! Value e.g.: 65534).
  • Page 29 (the DTS with the more frequently NTP send rate gets higher priority for time reception). Time zone table for the NTP slave clock line: DTS 4132.timeserver Moser-Baer AG ==================================== TIME ZONE - TABLE...

  • Page 30: Mobaline

    6.5.6 MOBALine MOBALine clock line with switch function for clock illumination, switch program and world time function. Display of line 1 or 2 DTS 4132.timeserver Moser-Baer AG ==================================== MOBALine Line type Line Linemode (min) Linemode (sec) jump Time zone [+1] Brussel Max.
  • Page 31 Time zone table for the world time function: DTS 4132.timeserver Moser-Baer AG ==================================== TIME ZONE - TABLE Zone01: -1 Not configured Zone02: -1 Not configured Zone03: -1 Not configured Zone04: -1 Not configured Zone05: -1 Not configured Zone06: -1 Not configured...

  • Page 32: Impulse Line

    6.5.7 Impulse line Impulse clock line. Display of line 1 or 2. DTS 4132.timeserver Moser-Baer AG ==================================== IMPULSE CLOCK LINE Line type Imp. Line Line mode 1min Time zone [+1] Brussel Max. current 500mA Line time 07:39:39 17.01.2016 Pulse time...

  • Page 33: Dcf Active Code Line

    6.5.8 DCF active code line DCF active code line. Display of line 1 or 2. DTS 4132.timeserver Moser-Baer AG ==================================== DCF ACTIVE CLOCK LINE Line type Line Line mode Time zone [+1] Brussel Max. current 500mA 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 34 Mode 6 Mode 1/6, 2/5, 3/4 are equal. Their polarity only depends on how the line is connected to the DTS 4132.timeserver. The signal forms shows the voltage measured from terminal a to terminal b (refer to annex A). © MOBATIME 34 / 108 801104.05...

  • Page 35: Switch Function / Switch Program

    Enter requested file number, 99 = no file Press enter for next part, ESC to leave> Copying the program files is described in chapter "7.10 Copying Telegram or Program files to the DTS 4132.timeserver". Enter 99 to remove the file selection. © MOBATIME 35 / 108 801104.05...
  • Page 36 The switch function calculates sunrise and sunset on the basis of the position entered. The accuracy of the calculation is +/-5 min. within the limits 60° north 60° south. The switch function can be linked with AND, OR, or exclusive to a channel. DTS 4132.timeserver Moser-Baer AG ====================================...
  • Page 37 Channel state: DTS 4132.timeserver Moser-Baer AG ==================================== CHANNEL STATE * = channel on, [ ] = channel locked ! = external input, s = twilight 01: * 09:[*] 10:s 11: * 19:[ ] 20: 99 Return Manual switching: Enter channel number Enter desired menu number>...

  • Page 38: Time Handling

    Manual switching: DTS 4132.timeserver Moser-Baer AG ==================================== MANUAL SWITCHING Channel: 1 Channel on Channel off Channel on and lock Channel off and lock Channel unlock 99 Return Enter desired menu number> Path: 2 Configuration  1 Outputs  8 Switching functions  4 Actual channel conditions / manual control ...

  • Page 39: Time Source

    6.5.11 Time source Time source configuration. DTS 4132.timeserver Moser-Baer AG ==================================== TIME SOURCE Source type Time zone of the source [0] UTC Alarm delay for failure of the source 60min DTS stratum (0=auto, 1-15=fix) Stratum limit for synchalarm Stratum TO (1-16) DCF/GPS fail...

  • Page 40: Time Adjustment / Time-Keeping

    6.5.12 Time adjustment / Time-keeping DTS 4132.timeserver Moser-Baer AG ==================================== TIME ADJUSTMENT CONFIGURATION Adjust mode (0=follow, 1=set) Max. catch up speed 100000ns/s Time core type (0-255, default 0) Synch. only offset RTC mode 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 41: Redundant Operation

    6.5.13 Redundant operation DTS 4132.timeserver Moser-Baer AG ==================================== REDUNDANT OPERATION Mode (0=single, 1=red., 2=red. LAN1-LAN2) 0 Stratum limit (1-16) Max. offset to slave source 100000us Port for LAN link 14338 IP address 2. DTS 4132 Set master manual 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 42: Ntp Server

    (redundancy) to the actual time source. The exact behavior of NTP time sources is described in chapter “8.4 Time acceptance from NTP“. Further two multicast or broadcast addresses can be configured. DTS 4132.timeserver Moser-Baer AG ==================================== NTP SERVER CONFIGURATION...
  • Page 43 Configuration of the individual server/peer address is as follows: DTS 4132.timeserver Moser-Baer AG ==================================== ENTRY TIMESOURCE Source Minpoll Maxpoll Server/Peer server Prefer Authentication key 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  2 Time handling  4 NTP server  1/2/3/4 Configuration timeserver address 1/2/3/4 Insert time sources (IP address or name, e.g.
  • Page 44 Configuration of the Multi- / Broadcast address is as follows: DTS 4132.timeserver Moser-Baer AG ==================================== NTP MULTI- / BROADCAST-ENTRY Multi- or broadcast IP address Interval 4sec TTL (only for multicast) 1hops Authentication key 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 45 Configuration of the NTP authentication: The NTP authentication is described in chapter "8.9 NTP Authentication“. DTS 4132.timeserver Moser-Baer AG ==================================== NTP AUTHENTICATION Import keys (from /ram) Export keys (to /ram) Trusted (active) keys Request keys (ntpq) Control keys (ntpdc) Autokey password...

  • Page 46: Manual Time Set / Leap Second

    6.5.15 Manual time set / Leap second DTS 4132.timeserver Moser-Baer AG ==================================== MANUAL TIME SET Set time (UTC) Adjust time Leap second mode Leap second date (UTC) 00:00:00 01.07.15 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 47: Alarm Relay

    6.5.17 Alarm relay DTS 4132.timeserver Moser-Baer AG ==================================== ALARM CONFIGURATION 2 Alarmmask for relay 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  3 Alarms  1 Alarm relay 1. Alarm mask for relay (see chapter "6.5.18 Alarm mask") 6.5.18 Alarm mask...

  • Page 48: E-Mail

    6.5.19 E-mail DTS 4132.timeserver Moser-Baer AG ==================================== MAIL CONFIGURATION Page 1 Mailmode Alarmmask for mail ff ff ff ff ff ff ff ff Mailserver Mailport (default 25) Destination mail address1 Destination mail address2 Reply mail address From mail address 98 Return and save 99 Return and discard changes Enter desired menu number>...
  • Page 49 E-mail configuration page 2: DTS 4132.timeserver Moser-Baer AG ==================================== MAIL CONFIGURATION Page 2 11 Authentication mode 12 User name 13 Password 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  3 Alarms  2 E-Mail  ENTER 11.

  • Page 50: Snmp Traps

    6.5.20 SNMP traps For a description of SNMP functionality, see also chapter “9 SNMP“. Traps are also designated as notifications (from SNMP V2) DTS 4132.timeserver Moser-Baer AG ==================================== SNMP-TRAP CONFIGURATION Trap mode Alarmmask for trap ff ff ff ff ff ff ff ff...

  • Page 51: Alarm Input

    Configuration of the receiving systems DTS 4132.timeserver Moser-Baer AG ==================================== SNMP-TRAP DESTINATION CONFIGURATION Address trap destination Port trap destination (default 162) SNMP version 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  3 Alarms  3 Traps  4/5 Configuration of destination 1/2 1.

  • Page 52: General Settings

    6.5.22 General settings DTS 4132.timeserver Moser-Baer AG ==================================== GENERAL SETTINGS Language Timezone displayed times [+1] Brussel Power (0=single, 1=red.) Password (menu) 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  4 General Setting the display language Setting the time zone for the display, and also all alarm logs, e-mail and SNMP.

  • Page 53: Network

    6.5.23 Network DTS 4132.timeserver Moser-Baer AG ==================================== NETWORK GENERAL IPV4 Configuration LAN 1 IPV6 Configuration LAN 1 Network Interface LAN 1 auto IPV4 Configuration LAN 2 IPV6 Configuration LAN 2 Network Interface LAN 2 auto Host name (Device name) DTS4132...
  • Page 54 If only one LAN interface is used, it always has to be LAN 1! Notice: The two LAN interfaces may not be configured in the same network (subnet)! Network configuration IPv4: DTS 4132.timeserver Moser-Baer AG ==================================== NETWORK IPV4 LAN 1...

  • Page 55: Services (Network Services Ftp, Telnet, Ssh

    Network configuration IPv6: DTS 4132.timeserver Moser-Baer AG ==================================== NETWORK IPV6 LAN 1 Mode / Autoconf DHCPv6 IP address 1 / Prefix 0::0/64 Gateway 1 0::0 DNS server 0::0 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 56: Snmp

    6.5.25 SNMP For a description of SNMP functionality, see also chapter “9 SNMP“. DTS 4132.timeserver Moser-Baer AG ==================================== SNMP CONFIGURATION SNMP mode Alarmmask for SNMP ff ff ff ff ff ff ff ff DTS location Contact information SNMP V1/V2c security configuration...

  • Page 57: Snmp V1 / V2C

    6.5.26 SNMP V1 / V2c DTS 4132.timeserver Moser-Baer AG ==================================== SNMP V1/V2c CONFIGURATION Readonly community string romobatime Read/write community string rwmobatime 98 Return and save 99 Return and discard changes Enter desired menu number> Path: 2 Configuration  7 SNMP  5 SNMP V1/V2c security configuration Community string for read only (Group membership for GET).

  • Page 58: Snmp V3

    6.5.27 SNMP V3 DTS 4132.timeserver Moser-Baer AG ==================================== SNMP V3 CONFIGURATION User 1 configuration (DTSUser1) User 2 configuration (DTSUser2) Access 1 configuration (viewDTS1) Access 2 configuration (viewDTS2) 99 Return Enter desired menu number> Path: 2 Configuration  7 SNMP  6 SNMP V3 security configuration 1.
  • Page 59 Access configuration SNMP V3: DTS 4132.timeserver Moser-Baer AG ==================================== SNMP V3 ACCESS CONFIGURATION viewDTS1 Include OID 1 .1.3.6.1.4.1.8072 Include OID 2 .1.3.6.1.4.1.2021 Include OID 3 .1.3.6.1.4.1.13842.4 Exclude OID 1 Exclude OID 2 Exclude OID 3 98 Return and save 99 Return and discard changes Enter desired menu number>...

  • Page 60: Time Zone Selection

    6.5.28 Time zone selection DTS 4132.timeserver Moser-Baer AG ==================================== SELECTION TIME ZONE Page 1 00: [0] UTC 01: [0] London * 02: [+1] Brussel 03: [+2] Athens 04: [+2] Bucharest 05: [+2] Cairo 06: [+2] Amman 07: [0] UTC 08: [+3] Kuwait...

  • Page 61: Maintenance Menu

    Maintenance menu DTS 4132.timeserver Moser-Baer AG ==================================== MAINTENANCE Update software (FTP) Update software (USB) Backup configuration and log to USB Backup configuration local Restore configuration (backup) Restore configuration (default MOBA) Restart device Copy telegram files 99 Return Enter desired menu number>...

  • Page 62: Updates

    "Update in progress" appears and at the same time, “Please wait!>“ is shown in the command line. All images are copied. The DTS 4132 is automatically restarted on completion of the update. The Telnet or SSH session has to be restarted. © MOBATIME 62 / 108 801104.05...

  • Page 63: Updating Applications Or Configurations With Ftp

    DTS4132.conf from the directory /etc and any possible telegram files must be saved from the directory /var/local/dts. After the update, the file can again be written on the DTS 4132 in accordance with chapter “7.3 Updating applications or configurations with FTP“. © MOBATIME 63 / 108 801104.05...

  • Page 64: Updating Applications Or Configurations Via Usb

    To eliminate any mistakes during the update procedure, the versions should be verified after the update. Important: USB stick recognition: After removing the USB stick, wait approx. 1 min. before re-inserting the it again. Otherwise it can be, that the USB stick is not recognized. © MOBATIME 64 / 108 801104.05...

  • Page 65: Ftp Connection

    Programs (examples) CuteFTP Kbear SFTP connection SFTP = SSH File Transfer Protocol SFTP tools Windows XP, 7, 8, 10 Linux (Suse, Redhat) Integrated in the system Konqueror / Dolphin (file manager): Programs (examples) WinSCP © MOBATIME 65 / 108 801104.05...

  • Page 66: Scp Connection

    Change to the DTS 4132 directory /etc. Save the file dts4132.conf (configuration) to the user PC (e.g. copy the file to the Desktop or to the directory My Documents). Additionally also save possible telegram files from the directory /var/local/dts. © MOBATIME 66 / 108 801104.05...

  • Page 67: Copying Telegram Or Program Files To The Dts 4132.Timeserver

    When copying the configuration from one DTS 4132 to an other, the IP address may have to be changed after the download by serial connection. 7.10 Copying Telegram or Program files to the DTS 4132.timeserver Analogously to the previously described procedures telegram and program files can be copied via FTP or USB stick to the DTS 4132.

  • Page 68: Time Administration

    6.5.2 DCF – output chapter 6.5.6 MOBALine chapter 6.5.6 MOBALine chapter 6.5.4 Serial interface chapter 6.5.4 Serial interface chapter 6.5.5 NTP slave clocks / time zone server chapter 6.5.22 General settings NTP is always UTC © MOBATIME 68 / 108 801104.05...

  • Page 69: Time Acceptance

    1..16, configurable stratum, 0 = auto t_current [s]: current time t_lastsynch [s]: time of the last synchronization Tst: Offset per stratum, 0..40'000 [ms], parameter time deviation for stratum alteration by 1 Tdiff: current time difference in ms © MOBATIME 69 / 108 801104.05...

  • Page 70: Time Acceptance From Ntp

    • NTP v4 (compatible with v3) as per RFC 1305, RFC 5905 (Port 123) • SNTP (UDP), RFC 2030 (Port 123) • TIME (TCP/UDP), RFC 868 (Port 37) • DAYTIME (TCP/UDP), RFC 867 (Port 13) Time accuracy, time-keeping See appendix H Technical data. © MOBATIME 70 / 108 801104.05...

  • Page 71: Leap Second

    1 2 3 4 5 6# define trusted keys requestkey 4 # key (7) for accessing server variables controlkey 5 # key (6) for accessing server variables server ntp1.test.org key 2 server ntp2.test.org key 6 server 192.168.23.5 key 3 © MOBATIME 71 / 108 801104.05...

  • Page 72: Ntp Autokey

    NTP Autokey is relatively complex in its use and studying the functionality is definitely necessary beforehand. Autokey is descrbied at http://www.cis.udel.edu/~mills/proto.html or on the NTP homepage http://www.ntp.org. Autokey is currently defined in an IETF draft. http://www.ietf.org/internet-drafts/draft-ietf-ntp-autokey-04.txt The configuration of Autokey is explained in http://support.ntp.org/bin/view/Support/ConfiguringAutokey or in http://www.ntp.org/ntpfaq/NTP-s-config-adv.htm#S-CONFIG-ADV-AUTH. © MOBATIME 72 / 108 801104.05...

  • Page 73: Redundant Operation Of 2 Dts 4132.Timeservers

    • The slave synchronizes to the master. Whereby stratum/slave = stratum/master +1 The time of the slave is always set immediately to the master time (no fine adjustment). © MOBATIME 73 / 108 801104.05...
  • Page 74 RTC is to be deactivated for the redundant mode. Redunant operation with external NTP server: external NTP server DTS 4132 with optical link, (Master – slave operation) synchr. from one or more external NTP server © MOBATIME 74 / 108 801104.05...

  • Page 75: Snmp

    General DTS definition, always required DTS4132 (DTS4132-MIB.TXT) Device-specific DTS definitions The MIB files can be copied from the DTS 4132 with FTP (For FTP use, see chapter “7.6 FTP connection“): DTS-MIB: /etc/snmp/mibs/ Standard MIBS: /usr/share/snmp/mibs/ © MOBATIME 75 / 108 801104.05...

  • Page 76: Device Configuration With Snmp

    9.3.2 Shutdown [dts4132Shutdown] Sent out when the subagent for the DTS is stopped. This Notification is always sent out, as soon as SNMP is activated and a destination address is configured. © MOBATIME 76 / 108 801104.05...

  • Page 77: Status Changed [Dts4132Statuschanged]

    TimeTicks value in 1/100th seconds. The management system can decide on the basis of these time values, which configurations need to be reloaded. The groups and their parameters are listed in appendix “G Parameters“. © MOBATIME 77 / 108 801104.05...

  • Page 78: Alive Notification [Dts4132Alive]

    Byte 1 Byte 0 = alarm bit was deleted 1 = alarm bit was set 946684805 dts4132TrapAlMsgErrorTime Unsigned 4 Bytes PC-time in seconds since 01.01.1970 00:00:00 Failure supply 1 dts4132TrapAlMsgErrorText Text Error text Bytes © MOBATIME 78 / 108 801104.05...

  • Page 79: Description Of The Switch Function

    A maximum of 8 characters are allowed for the file name of the switch program file and its extension is PRG, Prg or prg. Additionally the SwitchEditor project file (mbs3) can be stored on the DTS. © MOBATIME 79 / 108 801104.05...

  • Page 80: Combination Of The Signals

    After starting up the DTS 4132, or after changing the program file, it can take up to 2 min until the switch states to the channel relay are correct. Important: The max. number of signal commands is limited to 15 per minute. © MOBATIME 80 / 108 801104.05...

  • Page 81: Power Supply Alternatives

    Power supply alternatives The DTS 4132.timeserver provides 3 different power supply alternatives: 1. Mains supply with 90 – 240 V / 50 - 60 Hz In the menu: ‘2 Configuration’  ‘4 General’  ‘3 Power’ must be set to Notice: '0=single'.

  • Page 82: A Connection Diagrams

    Ethernet, 10/100Mbit half- or full duplex Use only shielded cables! Notice: If only one LAN interface is used, it always has to be LAN 1! USB connection: Plug: USB host Notice: Only permitted for operations with a USB stick! © MOBATIME 82 / 108 801104.05...

  • Page 83: Connections (Rear View)

    Alarm_in + and Alarm_in - . Or voltage input: 18-36 VDC, max. 6mA Voltage level “high” (24V available) or external contact closed  configurable: alarm or no alarm. DTS extension DTS extension bus extension © MOBATIME 83 / 108 801104.05...
  • Page 84 Output for MOBALine, impulse line 2 or DCF active line 2 Clock line 2 b Output for MOBALine, impulse line 2 or DCF active line 2 DTS Link Optical connection to a 2nd DTS 4132 Mini GBIC plug-in Option, for special applications only © MOBATIME 84 / 108 801104.05...

  • Page 85: Plug-In Spring Terminals

    2 operation tools are delivered with the accessory bag. Connection GPS 4500, DCF 450 or GNSS 3000 white DCF receiver brown yellow GPS 4500 green GNSS 3000 according to manual Bx-800813 chap. 9.2 Connection schematics DCF current loop © MOBATIME 85 / 108 801104.05...

  • Page 86: B Time Zone Table

    -3.5 Sun. Mar. (02:00) Sun. Nov. (02:00) Atlantic Time (Canada) Sun. Mar. (02:00) Sun. Nov. (02:00) La Paz Bogota, Lima, Quito New York, Eastern Time (US & Canada) Sun. Mar. (02:00) Sun. Nov. (02:00) © MOBATIME 86 / 108 801104.05...
  • Page 87 The Time Zone Table is usually updated as needed. The current table is available for download under the following address: www.mobatime.com  Customer Area  Customer Support  Support Resources  Time Zone Table. In case your device is equipped with a newer version than shown in this manual, the current time zone settings should be checked.

  • Page 88: C Alarm List

    Check connection. No connection via LAN link in redundant operation. Check No DTS link (LAN) LAN connection. Switch over slave -> master has occurred. Optionally, check Change slave->master the time source of current slave. © MOBATIME 88 / 108 801104.05...
  • Page 89 Not used Error bit56 Not used Error bit57 Not used Error bit58 Not used Error bit59 Not used Error bit60 Not used Error bit61 Not used Error bit62 Not used Error bit63 Not used © MOBATIME 89 / 108 801104.05...

  • Page 90: D Troubleshooting

    24 hours until optimal accuracy is bigger than stated in the data reached (with GPS reception). sheet. • Very large temperature change (outside the specification) • Time correction was carried out manually. © MOBATIME 90 / 108 801104.05...
  • Page 91 The system software can be updated using FTP update client software or a USB stick (s. chapter 7 Updates). Your MOBATIME service informs you of use and necessity of a software update. If necessary, they can provide the needed firmware file. Needed information to...

  • Page 92: E Serial Telegrams

    2.08 2.29 2.29 2.50 9600 bit/s 0.94 1.04 1.04 1.15 1.04 1.15 1.15 1.25 19200 bit/s 0.47 0.52 0.52 0.57 0.52 0.57 0.57 0.63 38400 bit/s 0.23 0.26 0.26 0.29 0.26 0.29 0.29 0.31 © MOBATIME 92 / 108 801104.05...

  • Page 93: Syntax Of The Telegram Configuration File

    (0..999) ;HSE (Hundredth of a second) (0..99) ;ZSE (Tenth of a second) (0..9) ;SEK (Second) (0..59) ;MIN (Minute) (0..59) ;STD (12h or 24h format) (0..12) or(0..24) 1B (see !PM!) ;JAR (Year) (0..99) or (1990..2089) © MOBATIME 93 / 108 801104.05...
  • Page 94 ('00..59') ;ss = second ('00..59') ;e.g.1 telegram output every second !TI!s! ;e.g.2 telegram output daily at 13:00:00 hours !TI!d!13:00:00! ;e.g.3: the interval of the periodic time output should be 5 seconds: !TI!p!00:00:05! ;-------------------------------------------------------------------- © MOBATIME 94 / 108 801104.05...
  • Page 95 ;aa = first character considered (telegram start position: 0) ;bb = last character considered + 1 ;Missing !CK! in this case the check sum is formed via the whole telegram up to the ;check sum position. ;-------------------------------------------------------------------- © MOBATIME 95 / 108 801104.05...
  • Page 96 2) If a file with the same name is loaded on to the CTC, such as one stored on the CTC, the stored one will be OVERWRITTEN. ;e.g. !EE! @TELEDEF.TEL ;last line ;-------------------------------------------------------------------- ;last line (guarantees a <CR> after the file name) © MOBATIME 96 / 108 801104.05...

  • Page 97: F Copyright Notice

    Licence text GPL, BSD and MIT: GPL version 2: http://www.gnu.org/licenses/gpl-2.0.html BSD: http://www.opensource.org/licenses/bsd-license.php http://www.opensource.org/licenses/with-license.php The source code of the open source projects running under GPL can be requested from Moser-Baer AG (support@mobatime.com). Handling costs will be charged! © MOBATIME 97 / 108 801104.05...

  • Page 98: G Parameters

    Mode (off, DCF, pulse) dts4132OutLineDCFMode Time zone dts4132OutLineDCFTimezone Pulse interval (every dts4132OutLineDCFPulseType second, minute...) Pulse time dts4132OutLineDCFPulseTime Pulse period dts4132OutLineDCFPulsePeriod Output correction dts4132OutLineDCFPulseCorrection Frequency 1000 dts4132OutLineDCFFrequency Serial out dts4132OutLineSerial Mode (off, on) dts4132OutLineSerialMode Time zone dts4132OutLineSerialTimezone © MOBATIME 98 / 108 801104.05...
  • Page 99 Stratum dts4132TSStratumMode Max. Time offset to set dts4132TSMaxOffsetForTimeValid system time OK TO time source for error dts4132TSTimeout failure synch (TO) Max. stratum for error Stratum dts4132TSStratumErrorLimit failure synch (Stratum) TO time source stratum dts4132TSStratumTimeout © MOBATIME 99 / 108 801104.05...
  • Page 100 Trap state Trap alarm number Trap error state Trap time Trap message Time Info dts4132SystemTimeInfo DTS stratum dts4132TinfoStratum, dts4132SysStratum Last drift dts4132TinfoLastDrift, dts4132SysLastDrift Last quartz corr dts4132TInfoLastQCorr Act. corr. voltage dts4132VoltageQuartzAdjust Current offset sec dts4132DCFTInfoOffsetSec © MOBATIME 100 / 108 801104.05...
  • Page 101 IP2 v6 dts4132NetInfoxIPv6Addr2 GW v6 dts4132NetInfoxIPv6Gateway Commands dts4132SystemMaintenance Update cmd. dts4132SysUpdateCmd Backup cmd. dts4132SysBackupCmd Restore cmd dts4132SysRestoreCmd Restore default cmd dts4132SysDefaultCmd Restart cmd dts4132SysRestartCmd Copy files cmd dts4132SysCopyFiles Set all config changed dts4132SysAllChanged © MOBATIME 101 / 108 801104.05...

  • Page 102: H Technical Data

    Time zones (see App. B) Up to 80 predefined, 20 programmable entries (MOBA-NMS) 2 Network interfaces 10BaseT / 100BaseTX (IEEE 802.3) Data transmission rate: Auto-negotiation / manual Connection: RJ-45 Only shielded cables permitted. IP Configuration DHCP, Static IP, IPv4, IPv6 © MOBATIME 102 / 108 801104.05...
  • Page 103 Max. time deviation to internal time: +/- 10 ms, Jitter < 10 ms 300-38400 Bauds, 7 or 8 Data bits, Parity: no, even, odd, Stop bit: 1 or 2, no flow control The description of the telegram function is provided in Appendix E. © MOBATIME 103 / 108 801104.05...
  • Page 104 24 VDC +20% / -10% / max. 40 W Mains power supply 90 – 240 V / 50 - 60 Hz / 0.25 A Power supply output Nominal 24 VDC, max. 100 mA (respectively according to power supply) © MOBATIME 104 / 108 801104.05...

  • Page 105: I Index

    24, 84 Multicast address DCF output – techn. data Multicast NTP Default values 14, 98 DES – Data Encryption Standard Device link 41, 73, 84, 104 Network configuration DHCP Network services 55, 102, 103 DHCPv6 © MOBATIME 105 / 108 801104.05...
  • Page 106 Version SNMP – alive notification SNMP – notification SNMP – operation SNMP access configuration Week program SNMP configuration 50, 56 World time 28, 31 SNMP traps 50, 76 World Time Function SNMP user configuration © MOBATIME 106 / 108 801104.05...

  • Page 107: J Connection Table (To Fill In)

    Connection table (to fill in) Line Type Description Example: Line Type Description DCF DCF out DCF for master clock ETC1 © MOBATIME 107 / 108 801104.05...
  • Page 108 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
