Void Incubus Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Incubus System
User Guide V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Incubus Series and is the answer not in the manual?

Questions and answers

Related Manuals for Void Incubus Series

Summary of Contents for Void Incubus Series

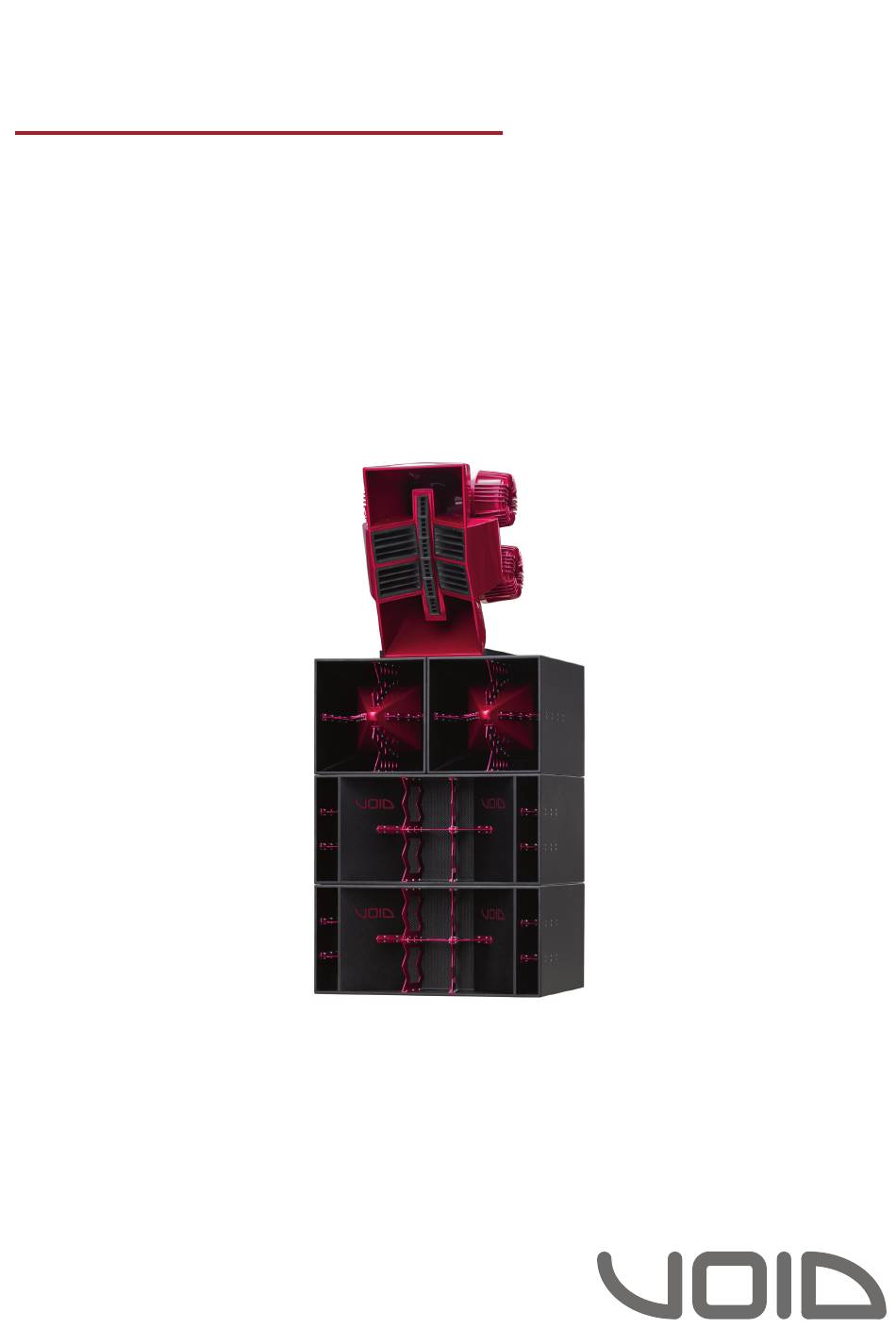

  • Page 1 Incubus System User Guide V1.1...
  • Page 2 This user guide is subject to change without notice. For the latest online version, visit: www.voidacoustics.com Void Acoustics and the Void logo are registered trademarks of Void Acoustics Research Ltd. in the United Kingdom, USA and other countries; all other Void trademarks are the property of Void Acoustics...

  • Page 3: Table Of Contents

    Limited warranty Ground stack bracket Flying bracket Unpacking and Checking Adjustments About Wheel removal Welcome Hyperfold grille removal Incubus series overview Service Specifications and dimensions Air Array Appendix 5.1.1 Key features 5.1.2 Air Array specifications 5.1.3 Air Array dimensions Hyperfold 5.2.1 Key features...

  • Page 4: Safety And Regulations

    Void Acoustics Research Ltd for 1.2 Limitations reprocessing. For more information about where you can send your waste equipment for recycling, please contact Void Acoustics Research Ltd or one of your local distributors.

  • Page 5: Limited Warranty

    Void free and clear of all liens or other specifications for each respective model. Void agrees restrictions.

  • Page 6: Unpacking And Checking

    3 Unpacking and checking All Void Acoustics products are carefully manufactured and thoroughly tested before being despatched. Your dealer will ensure that your Void products are in pristine condition before being forwarded to you but mistakes and accidents can happen.

  • Page 7: About

    In buying this product, you are now part of the Void family and we hope using it brings you years of satisfaction. This guide will help you both use this product safely and ensure it performs to its full capability.

  • Page 8: Specifications And Dimensions

    5 Specifications and dimensions 5.1 Air Array 5.1.1 Key features • Visually striking appearance for style-led environments • Fibreglass composite construction • 14 discrete proprietary drive units • Integrated flying and mounting system • Ground stack on ow frequency enclosures •...

  • Page 9: Air Array Dimensions

    5 Specifications and dimensions 5.1.3 Air Array dimensions 944 (37.2”) 1012 (39.8”) 944 (37.2”) 944 (37.2”) 944 (37.2”) Figure 5.1: Dimensions Incubus System User Guide V1.1 Page 9...

  • Page 10: Hyperfold

    5 Specifications and dimensions 5.2 Hyperfold 5.2.1 Key features • High power density in a compact footprint • Exceptional upper bass speed and articulation • Four high power 15” low frequency drivers • Distinctive aluminium cabinet bracing • 18 mm birch plywood construction •...

  • Page 11: Hyperfold Dimensions

    5 Specifications and dimensions 5.2.3 Hyperfold dimensions 738 (29.1”) 738 (29.1”) 1218 (47.9”) 738 (29.1”) 738 (29.1”) Figure 5.2: Dimensions 5.2.4 Hyperfold impedance graph Frequency (Hz) Figure 5.3: Impedance graph Incubus System User Guide V1.1 Page 11...

  • Page 12: Incubus Sub

    5 Specifications and dimensions 5.3 Incubus Sub 5.3.1 Key features • Distinctive aluminium cabinet bracing • 3 x high power 21” low frequency drivers • Extended sub frequency response to 30 Hz • 18 mm birch plywood construction • Black textured ‘TourCoat’ polyurea finish 5.3.2 Incubus Sub specifications Frequency response 29 Hz - 95 Hz ±3 dB...

  • Page 13: Incubus Sub Dimensions

    5 Specifications and dimensions 5.3.3 Incubus Sub dimensions 1479 (58.2”) 1479 (58.2”) 1218 (48”) 1479 (58.2”) 1225 (48.2”) 1479 (58.2”) Figure 5.4: Dimensions 5.3.4 Incubus Sub impedance graph Frequency (Hz) Figure 5.5: Impedance graph Incubus System User Guide V1.1 Page 13...

  • Page 14: Cabling And Wiring

    To avoid electrical hazards please note the following: • Do not access the inside of any electrical equipment. Refer servicing to Void-approved service agents 6.2 Cable considerations for fixed installations We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for permanent installations.

  • Page 15: Air Array Layout

    6 Cabling and wiring 6.4 Air Array layout For clarity throughout this guide the speakON connections on the rear of the Air Array will be referred to speakON A for the left and speakON B for the right as shown in figure 6.1. speakON speakON Figure 6.3: speakON...

  • Page 16: Air Array Wiring Diagram

    6 Cabling and wiring 6.5 Air Array wiring diagram Bottom 3” MF Right Left Bottom 12” LF 1+ 1- 1+ 1- Bottom 3” MF Bottom 12” LF speakON speakON Top 3” MF Top 12” LF Top 3” MF Top 12” LF Bottom 1.5”...

  • Page 17: Air Array Lf Bias Q5 Speakon Tma Wiring

    6 Cabling and wiring 6.6 Air Array LF Bias Q5 speakON A wiring LF 1+ LF 1- LF 2+ LF 2- LF 1+ LF 1- LF 2+ LF 2- Figure 6.6: Bias V3 left speakON A connection (NOTE: pins +/-3 and +/-4 are not connected) Bias Q5 for LF (speakON A connection) Channel...

  • Page 18: Air Array Mhf Bias Q5 Speakon

    6 Cabling and wiring 6.7 Air Array MHF Bias Q5 speakON B wiring HF 1+ (HF 3+) MF 1+ (MF 1+) HF 1- (HF 3-) MF 1- (MF 1-) HF 2+ (HF 4+) MF 2+ (MF 2+) HF 2- (HF 4-) MF 2- (MF 2-) MF 1+ HF 4-...

  • Page 19: Hyperfold Wiring Diagram

    6 Cabling and wiring 6.8 Hyperfold wiring diagram 15” LF 15” LF Out/Link 15” LF 15” LF Figure 6.8: Wiring diagram speakON pins +/-1 speakON pins +/-2 LF (2 x 15”) LF (2 x 15”) LF link LF link 6.9 Hyperfold Bias Q5 speakON wiring Figure 6.9: Bias Q5 Bias Q5...

  • Page 20: Incubus Sub Wiring Diagram

    6 Cabling and wiring 6.10 Incubus Sub wiring diagram 21” LF (1) 1+ 1- 21” LF (2) Out/Link 1+ 1- 21” LF (3) Figure 6.10: Wiring diagram speakON pins +/-1 +/-2 +/-3 +/-4 21” LF (1) 21” LF (2) 21” LF (3) LF link LF link LF link...

  • Page 21: Incubus Sub Bias Q5 Speakon

    6 Cabling and wiring 6.11 Incubus Sub Bias Q5 speakON wiring LF 1+ LF 1+ Incubus Sub 1 LF 2- LF 2- LF 1+ LF 1+ LF 1- LF 1- LF 2+ LF 2+ LF 2- LF 2- LF 3+ LF 3- LF 3+ LF 3-...

  • Page 22: System Design

    7 System design 7.1 System design principles Incubus Series loudspeakers can be arrayed as a single pair facing forward to provide a wide stereo image. Figure 7.1: Incubus pair arrangement For permanent installation, it is recommended to fly the Air Array loudspeakers for more even coverage.

  • Page 23: Loudspeaker Placement And Positioning

    7 System design 7.2 Loudspeaker placement and positioning When deploying Air Array loudspeakers, it is important to consider the speakers’ vertical position to maximise coverage in the vertical axis. Horizontal loudspeaker dispersion figures dictate the coverage of the loudspeaker, left to right, to the -3 dB points.
  • Page 24 7 System design A multi-point loudspeaker system in a club/bar environment can be very pleasing for the listener. However, it’s important that the processes applied to previous examples are still implemented. In figure 7.5 you can see the loudspeakers have been positioned and aimed optimally.
  • Page 25 7 System design Avoid directing the Air Array loudspeakers straight forward. This will result in a proportion of the power being directed towards the walls, creating possible reflective issues, as well as causing a gap in coverage at the centre of the audience area. Audience Stage Figure 7.7: Incorrect horizontal dispersion...

  • Page 26: Mounting

    Do not use a telephone (even if hands-free) while rigging. Always concentrate fully on the rigging operation • Do not rig equipment that is worn, damaged, corroded, mishandled or over-stressed in any way • Use only Void-approved mounting equipment and accessories. Incubus System User Guide V1.1 Page 26...

  • Page 27: Ground Stack Bracket

    8.2 Ground stack bracket Step 1: Remove the backing plate from the Air Array bracket by removing both M12 bolts from the bracket assembly. Figure 8.1: Backing plate removal Step 2: Remove all eight M8 bolts from the rear of the Air Array loudspeaker.
  • Page 28 8.2 Ground stack bracket Step 4: Carefully lower the Air Array loudspeaker into position onto the bracket assembly and attach the M12 bolt through the bracket assembly. Note: Air Array loudspeakers are heavy and require a minimum of two people to lift. At this stage of the mounting procedure it becomes necessary to have three people, two to lift the Air Array loudspeaker and one to attach the...

  • Page 29: Flying Bracket

    8.3 Flying bracket Note: Flying the Air Array from a ceiling involves complex and dynamic loads, always consult a Void approved distributor for guidance on how to fix it. Step 1: Remove the backing plate from the Air Array bracket by removing both M12 bolts from the bracket assembly.
  • Page 30 8.3 Flying bracket Step 3: Attached the backing plate to the Air Array ensuring that all eight M8 bolts are securely fastened. Figure 8.8: Backing plate attachment Step 4: Carefully lower the Air Array loudspeaker into position onto the bracket assembly and attach the M12 bolt through the bracket assembly.
  • Page 31 8.3 Flying bracket Step 6: Fit the M12 through the appropriate slot. Figure 8.11: M12 bolt fixing Incubus System User Guide V1.1 Page 31...

  • Page 32: Adjustments

    9 Adjustments To avoid damage when making adjustments please note the following: • Removing the grille can cause debris to collect within the enclosure, take care to remove anything that may have collected internally • Do not use impact tools. 9.1 Wheel removal Step 1: Remove all four M6 bolts with a 13 mm...

  • Page 33: Hyperfold Grille Removal

    9 Adjustments 9.2 Hyperfold grille removal Step 1: Undo all eight M6 tab bolts using a 4 mm Allen key, take care NOT to remove the tab bolts as they may become lost within the enclosure. Figure 9.4: Bolt removal Step 2: Remove grille.

  • Page 34: Service

    Before returning your faulty product for repair, please remember to get an R.A.N. (Return Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will handle the necessary paperwork and repair. Failure to go through this return authorisation procedure could delay the repair of your product.

  • Page 35: Appendix

    The external dimensions of the enclosure shall be (W) 944 mm x (H) 1240 mm x (D) 813 mm (37.2” x 48.8” x 32”). Weight shall be 144.8 kg (319.2 lbs) including stand. The loudspeaker shall be the Void Acoustics Air Array. Incubus System User Guide V1.1 Page 35...
  • Page 36 (H) 748 mm x (W) 738 mm x (D) 1218 mm (29.4” x 29.1” x 47.9”). Weight shall be 150 kg (330.7 lbs). The loudspeaker shall be the Void Acoustics Hyperfold. Incubus System User Guide V1.1...
  • Page 37 (H) 704 mm x (W) 1479 mm x (D) 1218 mm (27.7” x 58.2” x 48”). Weight shall be 214 kg (471.8 lbs). The loudspeaker shall be the Void Acoustics Incubus Sub. Incubus System User Guide V1.1 Page 37...
  • Page 40 North America Void Acoustics North America 503-854-7134 sales.usa@voidacoustics.com Head Office Void Acoustics Research Ltd Unit 15 Dawkins Road Industrial Estate Poole Dorset BH15 4JY England +44 (0) 1202 666 006 info@voidacoustics.com Registered in England & Wales No. 07533536 www.voidacoustics.com...
