OWNER'S MANUAL
Thank you, and congratulations on your choice of the Roland
OCTAPAD SPD-20X. The SPD-20X is an electronic percussion unit
that has eight pads, trigger interfaces, a high-quality digital sound
generator, and on-board digital effects.
Since the SPD-20X includes a sound generator and effects in one
light weight, compact package, you can use it anywhere, anytime.
A wide variety of options (pads, pedals, drum stand, etc.) are
available, allowing you to easily create a custom drum kit. By
adding sequencers or samplers, you can take advantage of the
possibilities of MIDI percussion.
The SPD-20X provides the flexibility and expandability that will be
appreciated by every percussionist, from beginner to professional.
About the Symbols in This Manual
Words or symbols enclosed in [square brackets] indicate panel
buttons or controls.
For example, [LAYER] signifies the Layer button.
Items marked by
MEMO
are supplementary explanations.
Items headed by
explain important points concerning the
NOTE
operation of your SPD-20X.
Items preceded by
regarding the use of the SPD-20X.
Before using this unit, carefully read the sections entitled:
"USING THE UNIT SAFELY" and "IMPORTANT NOTES"
(Owner's manual p. 1, 5 and 6). These sections provide
important information concerning the proper operation of the
unit. Additionally, in order to feel assured that you have
gained a good grasp of every feature provided by your new
unit, Owner's manual should be read in its entirety. The
manual should be saved and kept on hand as a convenient
Copyright © 2015
ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any
form without the written permission of ROLAND CORPORATION.
give you useful tips and information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Octapad SPD-20X and is the answer not in the manual?

Questions and answers

Rakshan
February 11, 2025

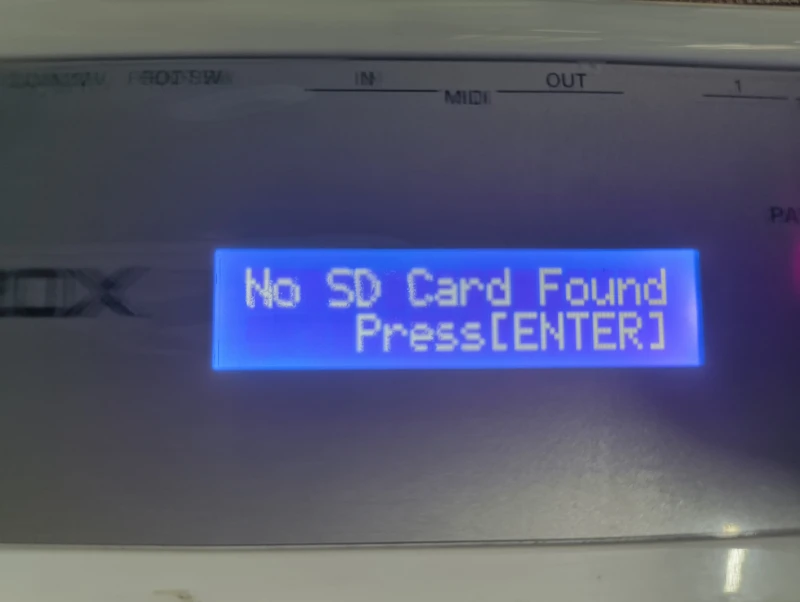

How to save without sd card
