Jensen of Scandinavia Air:Link 29150 Installation Manual

Power LED
Strøm LED
WLAN LED
Network ports LED
LED that show status
for the wireless radio.
Show status for devices
The LED will flash when active.
that are connected to
AL29150 by cable.
WLAN LED
LED som viser status for LED for nettverksport
det trådløse nettverket.
Viser status for enheter som
LED blinker ved aktivtet.
er tilkoblet til AL29150
med kabel.

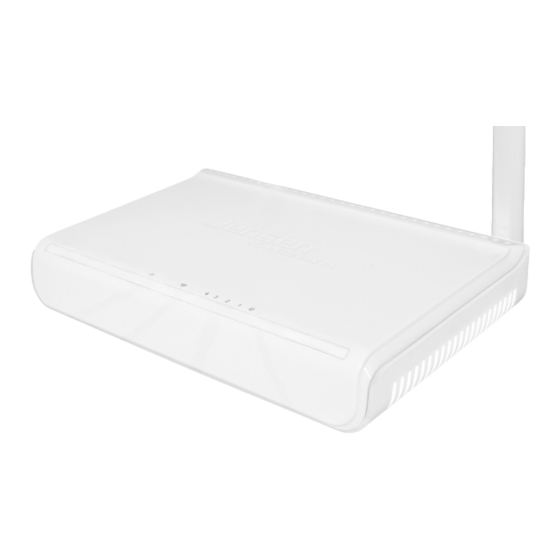

Air:Link 29150

Installation Guide

WAN LED
LED that show status
for the WAN port on the AL29150.
The LED will flash when port is active.
WAN LED
LED som viser status for WAN
porten. LED blinker når det er
aktivitet på WAN porten.
WAN port
Please connect your
broadband modem
to the internet port.
WAN port
Koble ditt bredbånds-
modem til internet porten
på AL29150.
Network ports
Ports for connecting network
devices by cable, such as computer,
TV, Media Server, Network printer,
VOIP adapter etc.
Nettverksporter
Porter for tilkobling av
nettverksenheter via kabel.
Eksempelvis datamaskin,
TV, Mediaserver, nettverksprinter,
VOIP adapter osv.
Power connector
Strømtilkobling
Reset / WPS*
Reset: Hold for about 10 seconds to
reset AL29150 to factory default.
WPS: Hold for about to 2-3 seconds
to initiate WPS connection.
* WPS is disabled as default
and needed to be activated in
router GUI (http://192.168.38.1) before
use.
Reset / WPS*
Reset: Hold knappen inne i ca. 10
sekunder for å nullstille AL29150.
WPS: Hold knappen inne i 2-3 sekunder
for å starte en WPS tilkobling.
* WPS er deaktivert som standard og
må aktiveres i rutermenyen
(http://192.168.38.1) før den kan benyttes.
