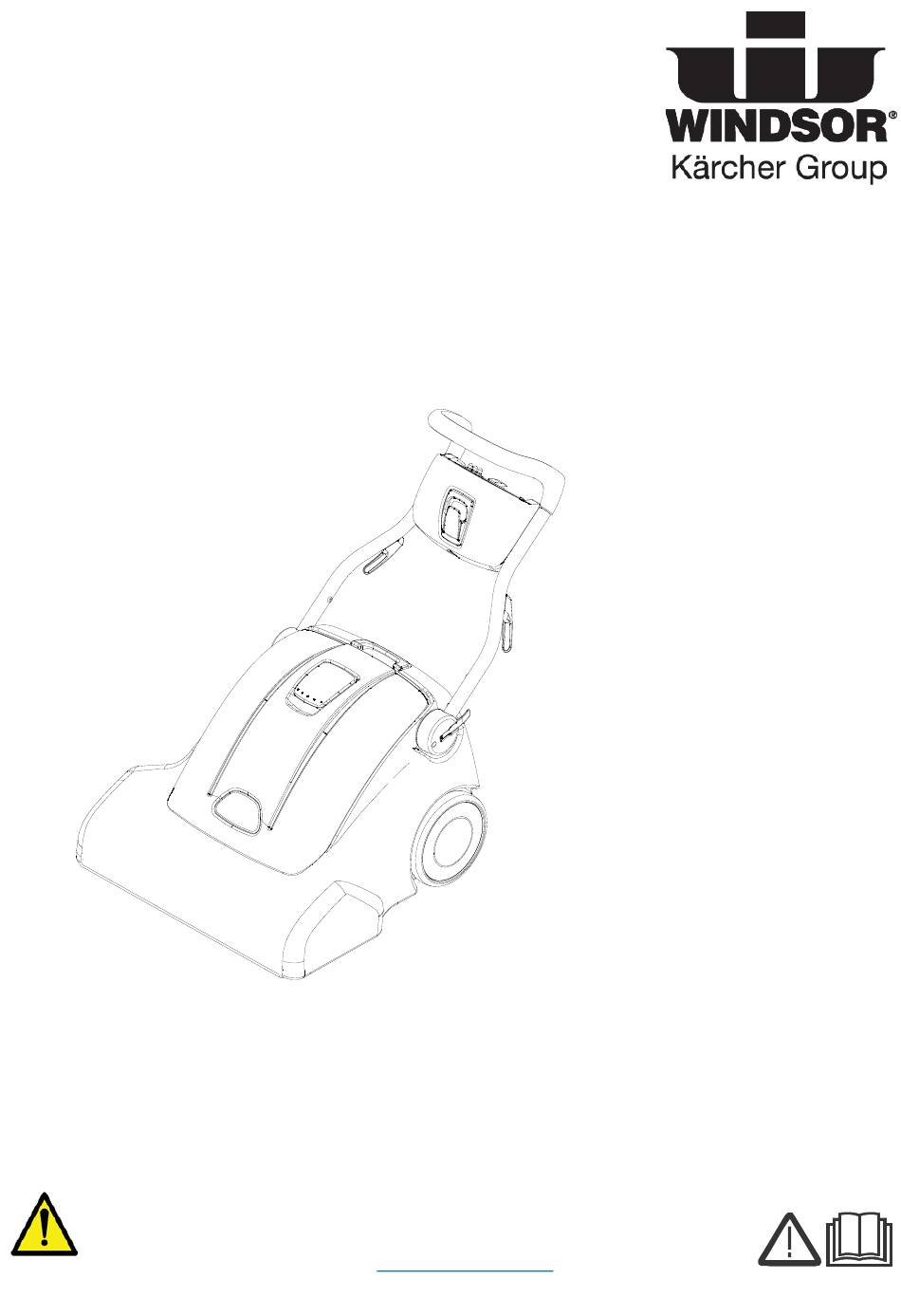

NuWave
Wide Area Vacuum
Operating instructions (ENG)
MODELS:
NW
1.012-533.0
From Serial Number (Ref No1*)
*See Serial Number Page
in Spare Parts List
or call manufacturer
WARNING:
This product and accessories may contain a chemical
known
to the
State of California to cause cancer and birth defects or other
reproductive harm.
For more information about this regulation:
www.P65Warnings.ca.gov
86400820-A
07/24/15
Advertisement
Table of Contents
Related Manuals for Windsor NuWave
Summary of Contents for Windsor NuWave
- Page 1 NuWave Wide Area Vacuum Operating instructions (ENG) MODELS: 1.012-533.0 From Serial Number (Ref No1*) *See Serial Number Page in Spare Parts List or call manufacturer WARNING: This product and accessories may contain a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Page 2: Machine Data Label
Machine Data Label Overview The NuWave™ is a electric motor powered, wide area vacuum intended for commercial use. The NuWave™ brushes and vacuums debris from carpeted surfaces and stores the collected debris in vacuum bags. Warranty Registration Thank you for purchasing a Kärcher North America product. Warranty registration is quick and easy. -
Page 3: Table Of Contents
Service Schedule ......22 Suggested Spare Parts....23 86400820 Operators Manual - NuWave... -
Page 4: How To Use This Manual
Phone Number: NOTE: The manual part number is located on the Sales Representative: lower right corner of the front cover. The model and serial number of your machine is located on the back of the machine. 86400820 Operators Manual - NuWave... -
Page 5: Safety
Do not operate without dust bag and filter in place. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. Connect to a properly grounded outlet. See Grounding Instructions. READ AND SAVE THESE INSTRUCTIONS 86400820 Operators Manual - NuWave... -
Page 6: Consignes De Sécurité Importantes
Ne pas ramasser quelque chose qui brûle ou fume,comme des cigarettes, des allumettes ou des cendres chaudes. Cet appareil ne doit être connecter qu a des prises ayant une sortie de terre. Se reporter aux instructions de mise à la terre. LIRE ET CONSERVER CES INSTRUCTIONS 86400820 Operators Manual - NuWave... -
Page 7: Hazard Intensity Level
In Flammable or Explosive areas. In areas with possible falling objects WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. 86400820 Operators Manual - NuWave... -
Page 8: Niveau D'intensité Du Danger
LORS DE L'ENTRETIEN DE LA MACHINE : Éviter les pièces mobiles. Ne pas porter de vêtements, vestes, chemises ou manches vagues lors de l'entretien de la machine. Utiliser les pièces de rechange approuvées par le fabricant. 86400820 Operators Manual - NuWave... -
Page 9: Safety Label Location
à moins qu'ils aient été donnés la surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil. 86400820 Operators Manual - NuWave... -
Page 10: Grounding Instructions
Whenever the adapter is used, it must be held in place by a metal screw. GROUNDED GROUNDED ADAPTER OUTLET BOX OUTLET TAB FOR METAL SCREW GROUNDING SCREW GROUNDING 86400820 Operators Manual - NuWave... -
Page 11: Operations
Children should be supervised to ensure that they do not play with the appliance. 86400820 Operators Manual - NuWave... -
Page 12: Controls & Components
Protects brush motor from overheating. 5. Vac Motor Circuit Breakers Protects the vac motors from overheating. 6. Bag Full Indicator Light Indicates when filter bag requires replacement or a clog in the vacuum system ducting. 86400820 Operators Manual - NuWave... - Page 13 Locates filter bag for maximum fill efficiency and easy changing. 10. Filter Bag Lift out easily for service. 11. Accessory Port Lift port to attach optional accessory hose. Brush motor will be deactivated during accessory use. 86400820 Operators Manual - NuWave...
-
Page 14: Setup
Lock back into position by closing adjustment lever. ADJUSTMENT LEVER 3. Install filter bag inside the main body by pushing the rubber collar over the chute. FILTER BAG INSTALLED 86400820 Operators Manual - NuWave... -
Page 15: Cleaning Route
Empty when 1/2 to 3/4 full. 7. When finished vacuuming, coil the cord by wrapping around the three cord hooks provided on the handle tubes and control panel. The upper hook pivots for easy release of the cord. 86400820 Operators Manual - NuWave... -
Page 16: Maintenance
2. Brush Motor Assembly 10. Drive Housing 3. Belt Guard 11. Belt Tensioning Nut 4. Brush Deck Assembly 12. Belt Tensioning Bracket 5. Vacuum Hose 13. Retaining Clips 6. Hose Clamp 7. Brush Deck Mounting Bolts 86400820 Operators Manual - NuWave... -
Page 17: Brush Deck
4. Slide brush up into retaining clip until it clicks in 1. Adjust handle into the vertical position and lock place. the cam lever. Tilt machine on it's back using handle to support it's position. 2. Pull out on the bottom of the retaining clip. 86400820 Operators Manual - NuWave... -
Page 18: Belt Replacement
7. Attach belt guard to the frame by using the (2) support it's position. mounting screws. 3. Remove belt guard by loosening the (2) 8. Plug machine into a power supply and turn it on mounting screws. to assure the machine is running properly. 86400820 Operators Manual - NuWave... - Page 19 6. The secondary belt can now be accessed on the right side of brush deck assembly by removing the (4) screws that mount the drive housing cover/plate. 86400820 Operators Manual - NuWave...
-
Page 20: Remove Vac Motor And Filters
Spring inside brush housing will damage motor if brushes are allowed to wear away completely. 8 [9.5mm] Periodically check the length of the carbon brushes. Replace both carbon brushes when either is less than 3/8" (9.5mm) long. 86400820 Operators Manual - NuWave... -
Page 21: Daily Maintenance
Frayed or cracked hoses should be repaired or replaced to eliminate vacuum loss. 5. The electrical cable must be well insulated, if the cable insulation is broken or frayed, repair or replace it immediately. Don't take chances with electrical fire or shock. 86400820 Operators Manual - NuWave... -
Page 22: Service Schedule
Check for arcing and pitting on any electrical contacts; replace if found Inspect and clean vac deck; check for dents and damage which would detrimentally effect vacuum and brush movement Check overall performance of machine 86400820 Operators Manual - NuWave... -
Page 23: Suggested Spare Parts
BRUSH, 25.5 X 4.0 OD, REAR 86215310 BELT, TIMING, 5MM X 15MM X 575 86291380 BELT, 290J6, MICRO-V 86135320 BRUSH SET 120V & 230V 86215090 BAG, PAPER WIDE AREA VAC 86224630 SPRING, BRUSH CLIP 86217850 FILTER, VAC CHAMBER 86400820 Operators Manual - NuWave...
