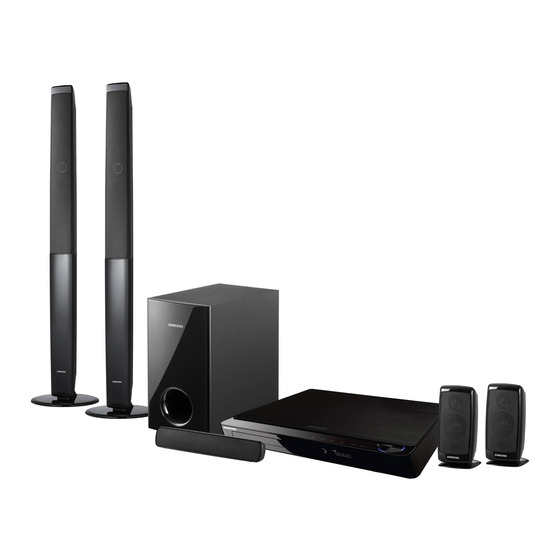

HT-BD3252
5.1CH Blu-ray

Home Theater System

user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register

Advertisement

Table of Contents
loading

Related Manuals for Samsung HT-BD3252

Summary of Contents for Samsung HT-BD3252

  • Page 1: Home Theater System

    HT-BD3252 5.1CH Blu-ray Home Theater System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...

  • Page 2: Key Features Of Your New

    Anynet+(HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit of this system using a Samsung TV remote control, by connecting the Blu-ray Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)

  • Page 3: Blu-Ray Disc Features

    BLU-RAY DISC FEATURES Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD. * The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will also vary from disc to disc.

  • Page 4: What's Included

    Key features of your new Blu-ray Home Theater WHAT’S INCLUDED Check for the supplied accessories below. Video Cable (AH39-40001V) Wireless Receiver Module (SWA-4000) (AH96-00201A) / TX Card (AH81-04177J) ASC microphone ( AH30-00099A ) FM Antenna Speaker Wire (6 EA) (AH42-00017A) iPod Dock User's Manual (AH96-00051A)

  • Page 5: Safety Information

    Safety information SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lighting fl ash and Arrowhead within Triangle Is a warning sign alerting you of dangerous voltage Inside the product CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT...

  • Page 6: Precautions

    Safety information PRECAUTIONS Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered.

  • Page 7: Table Of Contents

    Contents KEY FEATURES OF YOUR NEW BLU-RAY HOME THEATER SAFETY INFORMATION GETTING STARTED DESCRIPTION REMOTE CONTROL CONNECTIONS BASIC FUNCTIONS OF YOUR BLU-RAY HOME THEATER SYSTEM SETUP LANGUAGE SETUP Player Features Blu-ray Disc Features What’s Included Safety Warnings Precautions Before Reading the User’s Manual Disc Type and Characteristics Front Panel Rear Panel...
  • Page 8 Contents AUDIO SETUP DISPLAY SETUP PARENTAL SETUP NETWORK SETUP BD DATA MANAGEMENT SYSTEM UPGRADE WATCHING A MOVIE Setting up the Speaker Options Setting up the Display Options Setting up the Video Display/Output Options HDMI SETUP Setting up the HDMI Setup Options Setting up the Parental Lock Setting up the Network Setup Options System Device Management...
  • Page 9 LISTENING TO MUSIC VIEWING A PICTURE SOUND MODE USING THE USB FUNCTION RADIO USING AN iPod PC STREAMING FUNCTION USING THE E-CONTENTS CONVENIENT FUNCTION TROUBLESHOOTING APPENDIX Buttons on the Remote Control Used for Audio CD(CD-DA)/ MP3 Disc Playback Repeat Audio CD(CD-DA) & MP3 Playing an Audio CD(CD-DA)/MP3 Viewing a Picture Slide Show/Speed...

  • Page 10: Getting Started

    ©2009 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. This involves a function available on a BD-ROM. This involves a function available on the BD-RE.

  • Page 11: Disc Type And Characteristics

    DISC TYPE AND CHARACTERISTICS Disc types that can be played Disc Types Disc Logo BD-ROM BD-RE/BD-R DVD-VIDEO AUDIO-CD DivX DVD-RW (V mode and fi nalized only) DVD-R (V mode and fi nalized only) • This player is compatible with the NTSC color system only. •...

  • Page 12: Discs That Cannot Be Played

    Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Disc Type and Characteristics section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care center at 1-800 SAMSUNG.

  • Page 13: Disc Types

    Once a DVD-R recorded in Video Mode is fi nalized, it becomes DVD-Video. • This unit can play back DVD-R discs recorded and fi nalized with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

  • Page 14: Description

    Description FRONT PANEL POWER BUTTON OPEN/CLOSE BUTTON FUNCTION BUTTON TUNING DOWN & SKIP ( ) BUTTON STOP BUTTON PLAY/PAUSE BUTTON TUNING UP & SKIP( ) BUTTON Volume Control BUTTON DISC TRAY DISPLAY USB HOST ASC (Auto Sound Calibration) IN JACK ...

  • Page 15: Rear Panel

    REAR PANEL FM 75Ω COAXIAL JACK iPOD JACK TX CARD CONNECTION (WIRELESS SPK) HDMI IN JACKS HDMI OUT JACK AUX IN JACKS COMPONENT VIDEO OUT JACKS VIDEO OUT JACK EXTERNAL DIGITAL OPTICAL IN JACK LAN TERMINAL WIRELESS LAN JACK SPEAKER OUTPUT CONNECTORS COOLING FAN FM ANT.

  • Page 16: Remote Control

    Remote control TOUR OF THE REMOTE CONTROL...
  • Page 17 POWER button BD RECEIVER button TV button Number (0~9) buttons AUDIO button SLOW, MO/ST button Tuning Preset/CD Skip buttons PLAY button STOP button SEARCH buttons VOLUME button STEP button MENU button Cursor/ENTER button INFO button COLOR Buttons : RED(A), GREEN (B), YELLOW(C), BLUE(D) POPUP MENU, TITLE MENU button TUNER MEMORY button REPEAT button...

  • Page 18: Setting The Remote Control

     If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. Operation Range of the Remote Control The remote control can be used up to approximately 23 feet (7 meters) in a straight line.
  • Page 19 01, 15 Nikei Onking Onwa Panasonic 59, 60 Penney Philco Philips Pioneer Portland Proton Quasar Radio Shack RCA/Proscan Realistic Sampo Samsung Sanyo Scott Sears Sharp Signature 2000 (M.Wards) Sony 19, 65 Soundesign Spectricon Sylvania Symphonic Tatung Techwood Teknika Toshiba Vidtech...

  • Page 20: Connections

    Connections This section involves various methods of connecting the Blu-ray Home Theater to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. CONNECTING THE SPEAKERS Position of the Blu-ray Home Theater Place it on a stand or cabinet shelf, or under the TV stand.
  • Page 21 Connecting The Speakers Press down the terminal tab on the back of the speaker. Insert the black wire into the black terminal (–) and the red wire into the red (+) terminal, and then release the tab. Connect the connecting plugs to the back of the Blu-ray Home Theater by matching the colors of the speaker plugs to the speaker jacks.

  • Page 22: Connecting The Wireless Receiving

    Connections CONNECTING THE WIRELESS RECEIVING Wireless Receiving Module (SWA-4000) This product (HT-BD3252) should be connected with the SWA-4000 only. Surround Speaker (L) WIRELESS RECEIVER MODULE Connect the front, center and subwoofer speakers to the Blu-Ray Home Theater, referring to page 21.
  • Page 23  Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the main unit, some sound interruption may be heard due to interference.  If you use a device such as a microwave oven, wireless LAN Card or any other device that uses the same frequency (5.8GHz) near the main unit, some sound interruption may be heard due to interference.

  • Page 24: Connecting External Devices/Your Tv Via

     If you connect a Samsung TV to the Blu-ray Home Theater using an HDMI cable, the player can be easily operated using the TV remote control. (This is only available with Samsung TVs that support the Anynet+ feature.) (See page 48) ...

  • Page 25: Connecting The Component Video Out To Your Tv (Better Quality)

    • What is Anynet+? Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+ feature. - If your Samsung TV has an - If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode.

  • Page 26: Connecting The Video Out To Your Tv (Good Quality)

    Connections CONNECTING THE COMPONENT VIDEO OUT TO YOUR TV (BETTER QUALITY)  You can select from a variety of resolution settings such as 1080i, 720p, 480p and 480i, depending on the disc type. (See page 46)  The actual resolution may differ from the setting in the Setup menu if both Component and HDMI cables are connected.

  • Page 27: Connecting An Ipod

    When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.  Make sure to connect the dock connector so that the label “SAMSUNG” faces upward. iPod models that can be used with the HT-BD3252 ...

  • Page 28: Connecting Audio From External Components

    Connections CONNECTING AUDIO FROM EXTERNAL COMPONENTS OPTICAL : Connecting an External Digital Component Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box). Connect the Digital Input (OPTICAL) on the main unit to the Digital Output of the external digital component.
  • Page 29 AUX : Connecting an External Analog Component Analog signal components such as a VCR. Connect AUX IN (Audio) on the main unit to the Audio Out of the external analog component. • Be sure to match connector colors. Press the AUX button on the remote control to select AUX input. •...

  • Page 30: Connecting To The Network

    By connecting to a network, you can access the BD-LIVE, Blockbuster, Netfl ix, Pandora, YouTube services, PC streaming and Software upgrades from Samsung’s update server. We recommend you use an AP or router for the network. If you don’t have one, you'll need two network providing services to use the PC streaming function.
  • Page 31 Case 2 : Connecting to a Wireless IP sharer You can connect to network with a Wireless IP sharer. See page 54 for Wireless Network Setup. Modem Port Wireless IP sharer Modem Cable • This unit is compatible with the supplied Wireless LAN Adapter. •...

  • Page 32: Connecting The Fm Antenna

    Connections CONNECTING THE FM ANTENNA Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack. Slowly move the antenna wire around until you fi nd a location where reception is good, then fasten it to a wall or other rigid surface. SPEAKERS OUT ...

  • Page 33: Basic Functions Of Your Blu-Ray Home Theater

    Not all discs are compatible and not every disc will playback. For additional information, refer to the Disc Type and Characteristics section of this Manual. If you encounter compatibility problems, please contact SAMSUNG's customer care center. • BD-RE •...

  • Page 34: On-Screen Menu Navigation

    Basi c functi o ns of your Bl u -ray Home Theater ON-SCREEN MENU NAVIGATION ❖ The GUI (Graphical User Interface) in this manual may differ, depending on the fi rmware version. DISC Video Music Photo Setup Blockbuster e-Contents Netfl ix Pandora YouTube PLAYING A DISC...

  • Page 35: Setting The Sound

    SETTING THE SOUND Setting the Power On / Off Melody Sound A Melody sound can be set so it is heard each time you turn the player on or off. With the unit in Stop mode, press the MENU button. Press the ▲▼◄►...

  • Page 36: Slow Motion Play/Step Motion Play

    Basi c functi o ns of your Bl u -ray Home Theater SLOW MOTION PLAY/STEP MOTION PLAY Slow Motion Play In pause or step mode, press the SLOW button on the remote control for Slow Motion play. If you press the SLOW button,  1/8  1/4  1/2 •...

  • Page 37: System Setup

    System setup SETTING THE CLOCK Choose your time zone With the unit in Stop mode, press the MENU button. Press the ▲▼◄► buttons to select Setup, then press the ENTER or ► button. Press the ▲▼ buttons to select System, then press the ENTER or ►...

  • Page 38: Language Setup

    Language setup SETTING UP THE LANGUAGE OPTIONS Once you set the audio, subtitle, disc menu and player menu language options, they will be applied automatically every time you watch a movie.  If you want to choose a different audio and subtitle language while playing a disc, you can also use the disc menu to make the selection.

  • Page 39: Audio Setup

    Audio setup SETTING UP THE SPEAKER OPTIONS Dynamic Compression This is only active when a Dolby Digital signal is detected. • On : When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

  • Page 40: Dsp Function

    Audio setup SETTING UP THE SPEAKER OPTIONS Setting the Sound Edit You can adjust the level for each speaker. With the unit in Stop mode, press the MENU button. Press the ▲▼◄► buttons to select Setup, then press the ENTER or ► button. Press the ▲▼...
  • Page 41 Setting the Auto Sound Calibration By setting the ASC function just once when you relocate or install the unit, you can have the unit automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create a 5.1-channel sound fi eld optimized for your environment. L: F SW: S RONT...
  • Page 42 Audio setup SETTING UP THE SPEAKER OPTIONS Setting the Auto Sound Calibration To set the Auto Sound Calibration Plug the ASC microphone into the ASC input jack. Place the ASC microphone at the listening position. With the unit in Stop mode, press the MENU button. Press the ▲▼◄►...

  • Page 43: Setting The Test Tone

    Setting the Test Tone Use the Test Tone feature to check the speaker connections. With the unit in Stop mode, press the MENU button. Press the ▲▼◄► buttons to select Setup, then press the ENTER or ► button. Press the ▲▼ buttons to select Audio, then press the ENTER or ►...

  • Page 44: Display Setup

    Display setup SETTING UP THE DISPLAY OPTIONS This function allows you to setup the TV screen settings. This function depends on the disc or TV type. It may not work with some discs or TVs. With the unit in Stop mode, press the MENU button. Press the ▲▼◄►...
  • Page 45 Movie Frame (24 Fs) Movies are usually fi lmed at 24 frames per second. Some Blu-ray Discs have the capability of playing back at this frame rate. Setting the Movie Frame (24Fs) feature to On allows you to adjust the Blu-ray Home Theater's HDMI output to 24 frames per second for improved picture quality.

  • Page 46: Setting Up The Video Display/Output Options

    Display setup SETTING UP THE VIDEO DISPLAY/OUTPUT OPTIONS Resolution according to the output mode • Blu-ray Disc playback Output Setup 1080p, Movie Frame(24Fs) 1080p/1080i, Movie Frame (24Fs) on 1080i, Movie Frame (24Fs) 720p 480p 480i • DVD playback Output Setup 1080p 1080i 720p...

  • Page 47: Progressive Mode

    Progressive Mode The Progressive Mode helps to improve picture quality when viewing 480i resolution DVD discs. • Auto : Select this to have the player automatically set the best picture for the DVD you're watching. • Video : Select this for the best picture from Concert or TV show DVDs.

  • Page 48: Hdmi Setup

    Anynet+ is a convenient function that offers linked operations with other Samsung products with the Anynet+ feature. You can operate this unit using a Samsung TV remote control or power on your Samsung TV and Home Theater and start disc playback simply by pressing the PLAY button on the TV’s remote.

  • Page 49: Hdmi Format

    TV Anynet+ Menu When you press the Anynet+ button on your Samsung TV's remote control, the following On-Screen Display (OSD) will be shown. • Blu-ray Home Theater Menu - When playing a movie : brings up the disc’s menu (same as the DISC MENU button on the Blu-ray Home Theater’s remote control)

  • Page 50: Hdmi Audio

    HDMI setup SETTING UP THE HDMI SETUP OPTIONS HDMI Audio The audio signals transmitted over the HDMI Cable can be toggled On/Off. • On : Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only.

  • Page 51: Parental Setup

    Parental setup SETTING UP THE PARENTAL LOCK The Parental Lock function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating which helps you control the types of Blu-ray Disc/DVDs that your family watches. There are up to 8 rating levels on a disc. With the unit in Stop mode, press the MENU button.

  • Page 52: Changing The Password

    Parental setup SETTING UP THE PARENTAL LOCK If you forgot your password Remove the disc. Press and hold the STOP () button on the main unit for 5 seconds or more. • All settings will revert to the factory settings. ...

  • Page 53: Network Setup

    Network setup SETTING UP THE NETWORK SETUP OPTIONS To obtain information on the proper settings, check the network settings on your computer or contact your Internet provider. To set the network of your Blu-ray Home Theater, follow the steps below. With the unit in Stop mode/No Disc mode, press the MENU button.

  • Page 54: Enter Button

    Network setup SETTING UP THE NETWORK SETUP OPTIONS Press the ▲▼ buttons to select a desired item, then press the ENTER button. • If DHCP is set to Off and, DNS to Manual, enter your IP Address, Subnet Mask, Gateway and Primary DNS settings (Secondary DNS is optional).
  • Page 55 Press the ▲▼ buttons to select DHCP, then press the ENTER button.  If DHCP is set to On, you can't select IP Address, Subnet Mask or Gateway.  If DNS is set to Auto, you can’t select DNS Server. Press the ▲▼...
  • Page 56 Network setup SETTING UP THE NETWORK SETUP OPTIONS • If DHCP is set to On and, DNS to Manual, enter your DNS Server. • If DHCP is set to On and, DNS to Auto, you don’t need further or additional settings. ...

  • Page 57: Network Connection Test

    NTP Server (Used to Retrieve Time Information from NTP Server) To setup, follow steps 1~3 on page 53. Press the ▲▼ buttons to select NTP Server, then press the ENTER or ► button. • On : The player automatically connects to the Internet server in order to adjust the time setting.

  • Page 58: Bd Data Management

    BD data management BD Data (stored in external USB fl ash memory) is Blu-ray Disc content such as trailers and other special features downloaded from the BD-LIVE service or Blu-ray Discs. * You must have a minimum 1GB USB Memory device inserted in one of the USB slots in order to download content from BD-LIVE.

  • Page 59: System Upgrade

    System upgrade Samsung may offer upgrades to your Blu-ray Home Theater's fi rmware in the future. To upgrade this fi rmware you must : Go to samsung.com and refer to the ‘Support’ page to download the latest fi rmware. You can use a CD-R or a USB fl ash drive to perform the fi rmware upgrade. For more information, see “Upgrade Manual”...
  • Page 60 System upgrade FIRMWARE UPGRADE To perform the system upgrade, press the ◄ ► buttons to select Start and then press the ENTER button. The system update gets started. If you select Cancel during the download process, you are prompted to confi rm your selection in a message box. If you want to cancel the download, select Yes and press the ENTER button.

  • Page 61: System Information

    Press the ENTER button to select OK. FIRMWARE UPGRADE NOTIFICATION This popup menu appears when a newer fi rmware version is available from SAMSUNG's update server than what is currently on the Blu-ray Home Theater. • Yes : Select this to upgrade now.

  • Page 62: Watching A Movie

    Watching a movie USING THE DISPLAY FUNCTION During playback, press the INFO button on the remote control. • If the Blu-ray Disc has the PIP feature, press the INFO button in the PIP section to display PIP-related information. Press the ▲▼ buttons to select the desired item. Press the ◄...

  • Page 63: Using The Disc Menu & Popup/Title Menu

    USING THE DISC MENU & POPUP/TITLE MENU Using the Disc Menu During playback, press the DISC MENU button on the remote control. Press the ▲▼◄ ► buttons to make the desired selection, then press the ► or ENTER button. • The Disc menu setup items may vary from disc to disc.

  • Page 64: Repeat Play

    Watching a movie REPEAT PLAY Repeat the current chapter or title. Repeat playback During playback, press the REPEAT button on the remote control. Repeat screen appears. Press the ▲▼ buttons to select Chapter or Title. • Blu-ray Disc/DVD repeats play by chapter or title. To return to normal play, press the REPEAT button again, then press the ▲▼...

  • Page 65: Selecting The Audio Language

    SELECTING THE AUDIO LANGUAGE You can select a desired audio language quickly and easily with the AUDIO button. Using the AUDIO button Press the AUDIO button during playback. The Audio changes when the button is pressed repeatedly. • The audio languages are represented by abbreviations. To remove the Audio bar, press the EXIT button.

  • Page 66: Changing The Camera Angle

    Watching a movie SELECTING THE SUBTITLE LANGUAGE Using the INFO button During playback, press the INFO button on the remote control. Press the ▲▼ buttons to select Subtitle. Press the ◄ ► buttons on the remote control to select the desired subtitle language. ...

  • Page 67: Pip (Picture In Picture) Settings

    PIP (PICTURE IN PICTURE) SETTINGS The PIP feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. Using the PIP button If the current Blu-ray Disc features the PIP function, you can use the PIP button to turn PIP On or Off.

  • Page 68: Divx, Mkv, Mp4 Playback

    Watching a movie DIVX, MKV, MP4 PLAYBACK The functions discussed on this page apply to DivX, MKV, MP4 disc playback only. Skip Forward/Back During playback, press the #, $ button. Goes to the next fi le whenever you press the $ button, •...
  • Page 69 DivX(Digital internet video express) DivX is a video fi le format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time. MPEG4 is used for video encoding and MP3 for audio encoding so that you can watch a movie at near DVD-quality video and audio.

  • Page 70: Listening To Music

    Listening to music BUTTONS ON THE REMOTE CONTROL USED FOR AUDIO CD (CD-DA)/ MP3 DISC PLAYBACK STOP PLAY ENTER REPEAT AUDIO CD(CD-DA) & MP3 During playback, press the REPEAT or RED(A) button repeatedly to select the repeat mode you want. When playing an Audio CD(CD-DA) : When playing an MP3 disc : •...

  • Page 71: Playing An Audio Cd(Cd-Da)/Mp

    PLAYING AN AUDIO CD(CD-DA)/MP3 Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray. • For an Audio CD, the fi rst track will be played automatically. • For an MP3 disc, press the ▲▼◄ ► buttons to select Music, then press the ENTER button.
  • Page 72 Listening to music Playlist You can create a playlist with up to 99 tracks. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray. • For an Audio CD, the fi rst track will be played automatically. • For an MP3 disc, press the ▲▼◄...

  • Page 73: Viewing A Picture

    Viewing a picture VIEWING A PICTURE Insert a JPEG disc into the • The Menu screen is displayed. ▲▼◄ ► Press the buttons to select Photo, then press the ENTER button. • The Photo List is displayed. ▲▼ Press the buttons to select a picture.

  • Page 74: Zoom

    Viewing a picture ZOOM To setup, follow steps 1 to 3 in "Viewing a Picture" on page 73. Press the ENTER button. Press the YELLOW(C) button. Use the YELLOW(C) or ZOOM button to zoom the image in/out. - To move the area - Press the ▲▼◄...

  • Page 75: Sound Mode

    Sound mode SFE(SOUND FIELD EFFECT) MODE You can set the SFE best suited for the type of music you are listening to. Press the SFE MODE button. • SFE MODE appears on the display panel. • Each time the button is pressed, the selection changes as follows HALL1 ➞...

  • Page 76: Dolby Pro Logic Ii Effect

    Sound mode Dolby Pro Logic II EFFECT This function works only in Dolby Pro Logic II MUSIC mode. Press the PL II MODE button to select MUSIC mode. Press the PL II EFFECT button. • Each time the button is pressed, the mode changes as follows.

  • Page 77: Using The Usb Function

    Using the USB function PLAYING MEDIA FILES USING THE USB HOST FEATURE You can enjoy media fi les such as pictures and music saved on an MP3 player, USB memory stick or digital camera. Connect the USB device to the USB port on the front of the unit.
  • Page 78 Using the USB function USB Host Specifi cation USB Host Specifi cation Non-compliance Operational Limitations USB Devices that can be used with the Home Theater USB Storage Device MP3 Player Digital Camera Removable HDD • Removable HDDs equipped with less than 160 Gbytes are supported. Removable HDDs equipped with 160Gbytes or more may not be recognized, depending on the device.

  • Page 79: Radio

    Radio LISTENING TO RADIO Remote Control Press the TUNER button to select the FM band. Tune in to the desired station. • Automatic Tuning 1 : When the SKIP ( pressed, a preset broadcast station is selected. • Automatic Tuning 2 : Press and hold the TUNING/CH ( ) button to automatically search for active broadcasting stations.

  • Page 80: Using An Ipod

    Using an iPod You can enjoy playback of your iPod using the supplied remote control. LISTENING TO MUSIC You can play music fi les stored in the iPod player by connecting it to the Blu-ray Home Theater. Connect the iPod dock connector to the iPod jack on the Blu-ray Home Theater.
  • Page 81 To move to the Music List and select a track: Press the MENU or STOP button. • It stops playing and returns to the music list. Press the buttons to select the fi le you want to play and press the ENTER button. •...

  • Page 82: Watching A Movie

    Using an iPod WATCHING A MOVIE You can play video fi les stored in the iPod player by connecting it to the Blu-ray Home Theater. Connect the iPod dock connector to the iPod jack on the Blu-ray Home Theater. In the iPod screen, move to Videos > Settings and set the TV Out option to On.

  • Page 83: Pc Streaming Function

    Create a shared folder in the PC and store desired mp3, jpeg, DivX, MKV and MP4 fi les there. - For more detailed information about setting a shared folder, visit the Samsung website and download the "Setting the shared folder" manual from the Download center.
  • Page 84 If a confl ict occurs between Windows XP simple fi le sharing and the PC streaming function of the Blu-ray Home Theater, please disable the simple fi le sharing. - For more detailed information, visit the Samsung website (samsung.com) and download the "Setting the shared folder" manual from the Download center.

  • Page 85: Using The E-Contents

    Using the e-contents With this Blu-ray Home Theater, you can use the e-Contents service (YouTube, for example) via the network. After performing the network connection (see pages 30~31), check the network setup (see pages 53~57).  According to company policy, the specifi cations are subject to change. ...

  • Page 86: Using Netflix

    With the unit in Stop mode/No Disc mode, press the GREEN(B) button. If you don't have an account, select "no-start my FREE trial" and subscribe to <http://netfl ix.com/samsung> from your computer. A user with an existing account can select the "yes-activate instant streaming from Netfl ix".
  • Page 87  In order to activate your Blu-ray Home Theater with Netfl ix, visit the www.netfl ix.com/ samsung and then enter the activation code. To add a movie to the Instant Queue list of this Blu-ray Home Theater, select the "Add to Instant" button on the Netfl...

  • Page 88: Using Pandora

    With the unit in Stop mode/No Disc mode, press the YELLOW(C) button. To run Pandora, you need to input the activation code at <http://www.pandora.com/samsung> page with your PC. After inputting the activation code, you may have to create a new account if you don't have one yet.
  • Page 89 The www.pandora.com server refl ects the changes made on your Home Theater.  In order to activate your Blu-ray Home Theater with Pandora, visit the www.pandora.com/ samsung and then enter the activation code.  For further information on Pandora service or to unsubscribe the Pandora service, email "samsung-support@pandora.com".

  • Page 90: Using Youtube

    Using the e-contents USING YOUTUBE This Blu-ray Home Theater enables you to use the following services provided by YouTube. With the unit in Stop mode/No Disc mode, press the BLUE(D) button. ❖ YouTube screen elements YouTube / Worldwide Today Most viewed Top rated abc...
  • Page 91 Country Setup If you select a country in Country Setup, you can view videos from the YouTube site of that country. Press the ▲▼ button to select the Country Setup, then press the ENTER button. Press the ▲▼◄ ► button to select the desired country, then press the ENTER button.

  • Page 92: Playing A Video

    Using the e-contents Playing a video Press the ▲▼ button to select the desired category. Select the current sorting time period (Today, Weekly, Monthly, All) by pressing the GREEN(B) button. Press the ► button to move to the contents list, then press the ▲▼...
  • Page 93 Press the ▲▼◄ ► button to select a text fi eld. Press the ENTER button in the text fi eld repeatedly to select a desired letter, number or icon. After you have entered in the subject you want to search, press the YELLOW(C) button on the remote control.
  • Page 94 Using the e-contents My Favorites Playing a video saved in My Favorites Press the ▲▼ button to select the My Favorites in the category list. Press the ► button to move to the contents list, then press the ▲▼ button to select the desired video. Press the ENTER button.

  • Page 95: Convenient Function

    Convenient function SLEEP TIMER FUNCTION You can set the time that the Blu-ray Home Theater will shut itself off. Press the SLEEP button. • Each time the button is pressed, the preset time changes as follows : ➞ ➞ ➞ ➞...

  • Page 96: Troubleshooting

    Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG. SYMPTOM I cannot eject the disc.
  • Page 97 SYMPTOM Aspect ratio cannot be changed. • The main unit is not working. (Example: The power goes out or a strange noise is heard.) • The Blu-ray Home Theater is not working normally. The password for rating level has been forgotten.

  • Page 98: Appendix

    Appendix CAUTIONS ON HANDLING AND STORING DISCS Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface.

  • Page 99: Specifi Cations

    SPECIFICATIONS Power Requirements Power Consumption Weight General Dimensions (W x H x D) Operating Temperature Range Operating Humidity Range Signal / noise ratio FM Tuner Usable sensitivity Total harmonic distortion BD (Blu-ray Disc) DVD (Digital Versatile Disc) Disc CD : 5 inches (COMPACT DISC) CD : 3 inches (COMPACT DISC) Composite Video...
  • Page 100 Output sound pressure level Rated input Speaker Maximum input Dimensions (W x H x D) Weights - Samsung Electronics Co., Ltd reserves the right to change the specifi cations without notice. - Weight and dimensions are approximate. 5.1ch speaker system Center Front Surround 3 Ω...
  • Page 101 This Product uses some software programs which are distributed under the OpenSSL license. Accordingly, the following GPL and LGPL software source codes that have been used in this product can be provided after asking to vdswmanager@samsung.com. GPL software: Linu Kernel, Busybox, Binutilis...
  • Page 102 scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty;...
  • Page 103 equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License.
  • Page 104 BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
  • Page 105 GNU Lesser General Public License (LGPL) Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 106 use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system. Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modifi...
  • Page 107 the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
  • Page 108 whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modifi ed executable containing the modifi...
  • Page 109 section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims;...

  • Page 110: Openssl License

    This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;...
  • Page 111 SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
  • Page 112 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region Country CANADA North America MEXICO U.S.A ARGENTINE BRAZIL CHILE NICARAGUA HONDURAS COSTA RICA ECUADOR EL SALVADOR Latin America GUATEMALA JAMAICA PANAMA PUERTO RICO REP.
  • Page 113 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT WRITE Samsung Electronics America, Inc. 1-800-SAMSUNG IN THE US www.samsung.com/us 105 Challenger Road Ridgefi eld Park, (7267864) NJ 07660-0511 Code No. AH68-02231A...
