SeaHawk LD2100 Quick Start Guide
Thank you for purchasing a SeaHawk LD2100 distance-read leak detection controller. This
guide outlines basic installation and configuration. Additional support information, including
the User Guide, is available on our website - www.rletech.com. Before you install a LD2100,
check the website to ensure you are using the most recent version of our documentation.
If you need further assistance, contact RLE Technologies at support@rletech.com.
© Raymond & Lae Engineering, Inc. 2011. All rights reserved. RLE® is a registered trademark and Seahawk™, Falcon™, and Raptor™ are trade-
marks of Raymond & Lae Engineering, Inc. The products sold by RLE Technologies, 104 Racquette Dr., Fort Collins, CO, 80524 are subject to the
limited warranty, limited liability, and other terms and conditions of sale set forth at http://www.rletech.com/.
Installation Supplies
Included with the LD2100
LD2100 controller
Wall mount kit
Crossover cable (blue with yellow ends)
15 foot (4.57m) leader cable
End-of-line terminator (EOL)
Available from RLE, Sold Separately
SeaHawk sensing cable - up to 5,000 feet (1,524m) of conductive fluid sensing
cable or 3,500 feet (1,067m) of chemical sensing cable
Optional Enclosure (LD-ENC)
Isolated RLE power supply, DC (PSWA-DC-24) or AC (WA-AC-24)
Network Communications Information
Consult your IT administrator and determine the following LD2100 network
settings:
• IP Address _______________________________________________
• Subnet Mask _____________________________________________
• Default Gateway __________________________________________
v1.2
(12/2016)

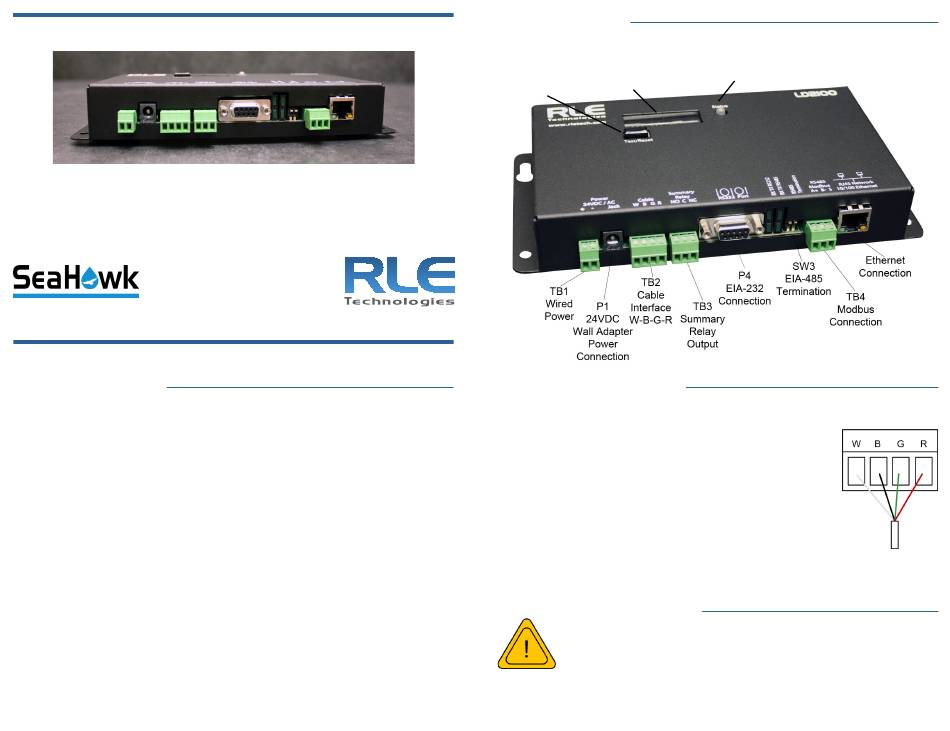

Mount the Device
THE LD2100 is a panel mounted device. Use the included wall mount kit and
mount the controller in a convenient location.
LED
Test/Reset
Display
Button
Install the Sensing Cable
Leader cable is included with the device and is used to connect sensing cable to
the LD2100, since sensing cable cannot connect directly to the controller.
1. Insert the four stripped wires of the leader cable into the
appropriate slots in the 4-pin terminal block connector -
from left to right: white, black, green, and red. Tighten
the screws on the terminal block connector to secure the
leader cable. Thread the leader cable through a knockout
on the bottom of the enclosure and plug the terminal
block connector into TB2.
2. Unscrew the EOL from the end of the leader cable.
3. Attach the first length of sensing cable to the leader cable.
4. Route the sensing cable according to your cable layout diagram.
5. Secure the EOL to the unoccupied end of the sensing cable.
Apply Power to the LD2100
The LD2100 requires an isolated power supply.
A power supply is not included with the LD2100, but isolated DC
(PSWA-DC-24) and AC (WA-AC-24) power supplies are available
from RLE.
1. Run an isolated power supply to the location of the unit and plug it into P1.
If you're wiring power directly, insert the wires into TB1 as noted.
2. Apply power. The device will boot. No alarms should be present. If an
Status LED
