Rear & Side Panel Jacks
POWER IN
1
DIGITAL AUDIO OUT (OPTICAL)
2
AUDIO OUT (R/L)
3
PC IN[PC]/[AUDIO]
4
DVI IN (HDMI 2) (AUDIO-R/L)
5
HDMI IN , 2
6
Video Input Performance Comparison
/
PC/COMPONENT
/
ANT IN
7
COMPONENT IN , 2 / AV IN
8
EX-LINK
9
HDMI IN 3
0
WISELINK
!
AV IN 2
@
HDMI/DVI
Best
Better
S-VIDEO
Good
VIDEO
Normal
PN50A550SF/PN58A550SF
#
Audio Output Performance Comparison
English -
HEADPHONE
OPTICAL (Digital)
AUDIO (Analog)
Best
Normal
Advertisement
Table of Contents
Related Manuals for Samsung PN50A550S1F
Summary of Contents for Samsung PN50A550S1F

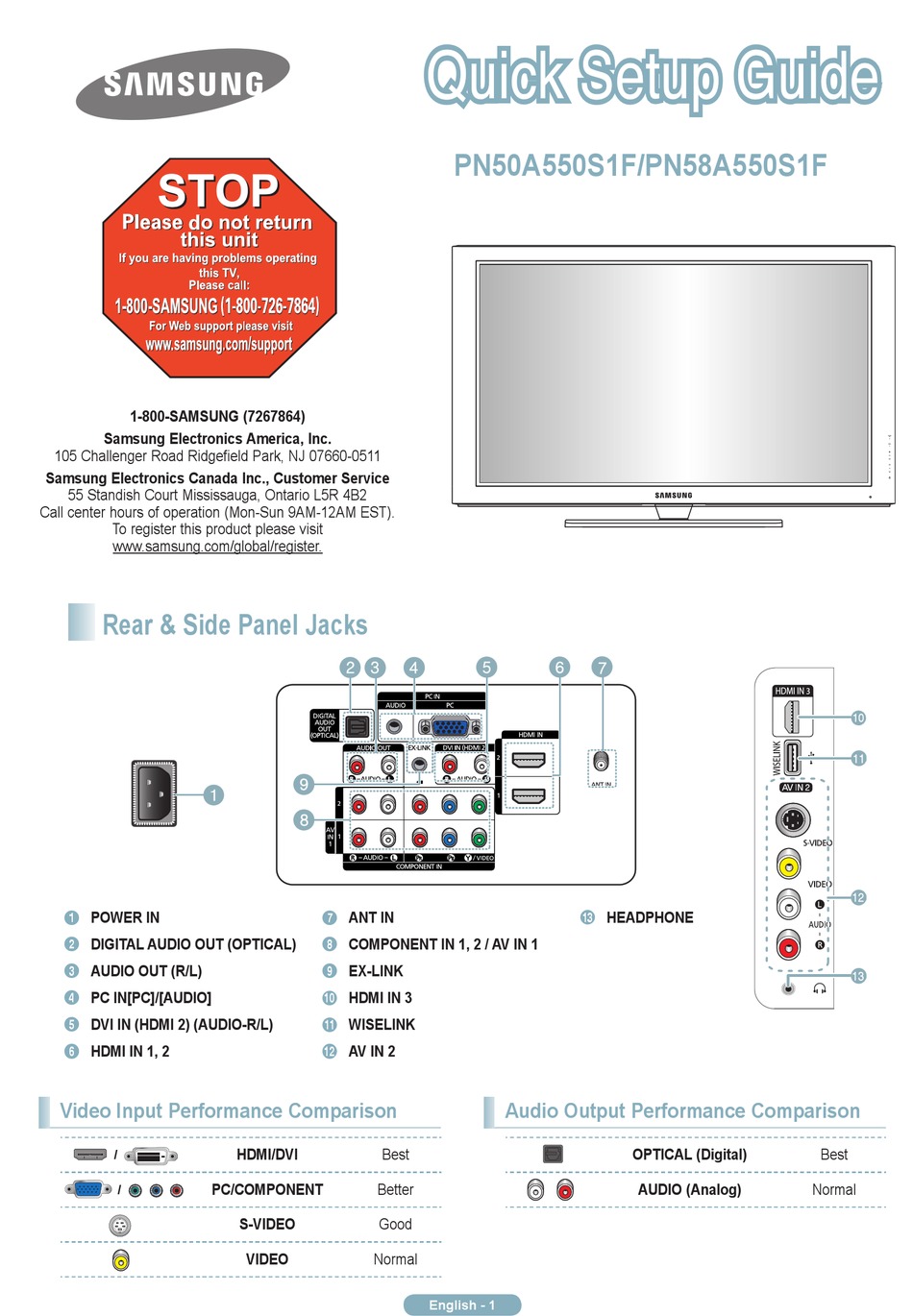

- Page 1 105 Challenger Road Ridgefield Park, NJ 07660-0511 Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Call center hours of operation (Mon-Sun 9AM-12AM EST). To register this product please visit www.samsung.com/global/register. Rear & Side Panel Jacks...
-
Page 2: Remote Control Buttons
➢ The performance of the remote control may be affected by bright light. ➢ Using the remote control to set the light button to "On" will reduce the battery usage time. ON/OFF Press to backlight the buttons on the remote. - Page 3 HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD Player or Cable Box / Satellite receiver to confirm the HDMI version, then request an upgrade.
-
Page 4: Connecting A Camcorder
Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. ➢ When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. -
Page 5: Connecting A Vcr
When connecting a VCR, match the color of the connection terminal to the cable. ➢ When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow). Connecting a S-Video... -
Page 6: Connecting A Digital Audio System
DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box... -
Page 7: Connecting A Pc
HDMI/DVI Cable (Not supplied) ➢ Each PC has a different back panel configuration. ➢ When using an HDMI/DVI cable connection, you must use the HDMI IN 2 terminal. TV Rear Panel TV Rear Panel English - 7 Using the D-Sub Cable... -
Page 8: Turning The Tv On And Off
Turning the TV On and Off Press the POWER button on the remote control. The TV will be turned on and you will be able to use its features. You can also use the Power button on the front of the TV ➢... -
Page 9: Picture Control
Antenna ■ Zoom ■ Select Option ► Next Program TOOLS Picture Control You can select the type of picture which best corresponds to your viewing requirements. Changing the Picture Standard Return Air 10 Customizing the Picture Settings Return English - Press the MENU button to display the menu. -
Page 10: To Select The Source
• Each adjusted setting will be stored separately according to its input mode. • Cell Light: Selects the brightness of PDP Cell Light. • Contrast: Adjusts the contrast level of the picture. • Brightness: Adjusts the brightness level of the picture. -
Page 11: Troubleshooting
Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center. Problem Poor picture quality. Poor sound quality. No picture or sound. - Page 12 Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Customer Care Center CANADA 1-800-SAMSUNG (7267864) U.S.A 1-800-SAMSUNG (7267864) Web Site Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada www.samsung.com/ca...
