Aruba Networks AP-214 Installation Manual

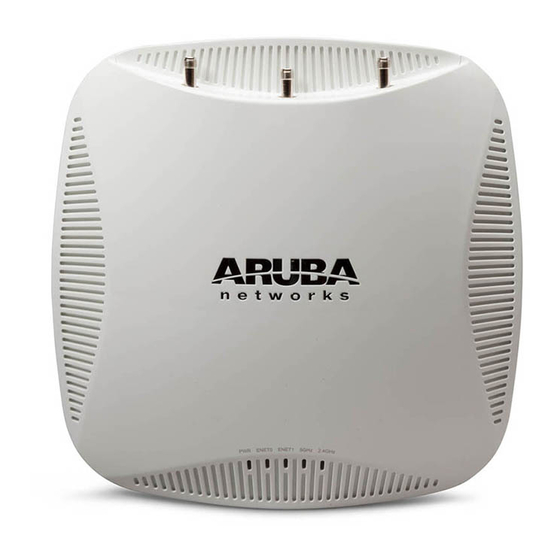

AP-210 Series Wireless Access Point
The Aruba AP-214 and AP-215 wireless access points support the IEEE 802.11n standard for
high-performance WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology
and other high-throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz and
802.11ac 5 GHz functionality while simultaneously supporting existing 802.11a/b/g wireless
services. The AP-210 Series access points work only in conjunction with an Aruba Controller.
The Aruba AP-210 Series access point provides the following capabilities:
 Wireless transceiver

Protocol-independent networking functionality
 IEEE 802.11a/b/g/n/ac operation as a wireless access point
 IEEE 802.11a/b/g/n/ac operation as a wireless air monitor

Compatibility with IEEE 802.3at PoE+ and 802.3af PoE
 Central management configuration and upgrades through a controller
This device must be professionally installed and serviced by a trained Aruba Certified
Mobility Professional (ACMP) or similar Aruba-certified technician. Aruba access
points are classified as radio transmission devices, and are subject to government
!
regulations of the host country. The network administrator(s) is/are responsible for
ensuring that configuration and operation of this equipment is in compliance with
their country's regulations. For complete list of approved channels in your country,
refer to the Aruba Domain Regulatory Table at arubanetworks.com.
The AP-210 Series requires ArubaOS 6.4.2.0 or later.
Package Contents
 AP-214 or AP-215 Access Point
 9/16" and 15/16" Ceiling Rail Adapters
 Installation Guide (this document)
Inform your supplier if there are any incorrect, missing, or damaged parts. If
possible, retain the carton, including the original packing materials. Use these
materials to repack and return the unit to the supplier if needed.
AP-210 Series Hardware Overview
Figure 1 AP-210 Series LEDs
LEDs
The AP-210 Series is equipped with four LEDs that indicate the status of the various
components of the AP.
 PWR: Indicates whether or not the AP-210 Series is powered-on
 ENET: Indicates the status of the AP-210 Series' Ethernet port
 5 GHz: Indicates the status of the 802.11a/n radio
 2.4 GHz: Indicates the status of the 802.11b/g/n radio
Table 1 AP-210 Series Series LED Meanings
LED Color/State Meaning
PWR Off No power to AP
Green - Flashing AP booting
Green - Steady AP ready
ENET Off Ethernet link unavailable
Yellow - Steady 10/100Mbps Ethernet link established
Green - Steady 1000Mbps Ethernet link established
Flashing Ethernet link activity
5 GHz Off 5 GHz radio disabled
Yellow - Steady 5 GHz radio enabled in non-HT WLAN mode
Green - Steady 5 GHz radio enabled in HT WLAN mode
Flashing - Green 5 GHz Air or Spectrum Monitor
2.4 GHz Off 2.4 GHz radio disabled
Yellow - Steady 2.4 GHz radio enabled in non-HT WLAN mode
Green - Steady 2.4 GHz radio enabled in HT WLAN mode
Flashing - Green 2.4 GHz Air or Spectrum Monitor
Figure 2
AP-210 Series Side View (AP-214 shown)
ANT2
ANT1 ANT0
USB Port
External Antenna Connectors
The AP-214 is equipped with three external antenna connectors. The connectors are labeled
ANT0, ANT1, and ANT2, and correspond to radio chains 0, 1, and 2.
For optimal performance when using articulating direct-mount antennas, professional
installers must orient the antennas with ANT0 and ANT2 at 45 degree angles and ANT1
oriented straight out (see Figure 3).
All Aruba devices with external antennas must be installed by an ACMP qualified
technician using manufacturer-approved antennas only. The ACMP installer(s) is/are
!
responsible for ensuring that Equivalent Isotopically Radiated Power (EIRP) levels for
all external antenna devices are compliant with the regulatory standards of the host
country/domain. Installer(s) are required to record the antenna gain for this device in
system management software.
Figure 3 AP-214 Antenna Orientation
USB Interface
The AP-210 Series is equipped with a USB interface for connectivity with cellular modems.
The USB interface is disabled when the AP-210 Series is powered from 802.3af
PoE.
Figure 4
AP-210 Series Rear
Console Port
The serial console port allows you to connect the
Serial Port Pin-Out
Figure 5
AP to a serial terminal or a laptop for direct local
Serial RJ-45 Female
management. This port is an RJ-45 female
Console Port Pin-Out
connector with the pinouts described in .
Connect it directly to a terminal or terminal
server using an Ethernet cable.
Direction
Input
Output
Ethernet Port
AP-210 Series is equipped with one 10/100/1000Base-T (RJ-45) auto-sensing, MDI/MDX wired-
network connectivity port. This port supports IEEE 802.3af and 802.3at Power over Ethernet
(PoE) compliance, accepting 48 VDC (nominal) as a standard defined Powered Device (PD)
from a Power Sourcing Equipment (PSE) such as a PoE midspan injector, or network
infrastructure that supports PoE.
The 10/100/1000 Mbps Ethernet ports are on the bottom of the AP. These ports have RJ-45
female connectors with the pin-outs shown in Figure 6.
Figure 6 Gigabit Ethernet Port Pin-Out
RJ-45 Female Signal Name
Pin-Out
1 BI_DA+
BI_DA-
2
BI_DB+
3
4 BI_DC+
BI_DC-
5
BI_DB-
6
7 BI_DD+
BI_DD-
8
DC Power Socket
If PoE is not available, an optional Aruba AP AC-DC adapter kit (sold separately) can be used
to power the AP-210 Series.
Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to power this
device, as long as it complies with all applicable local regulatory requirements and the DC
interface meets the following specifications:
 12 VDC (+/- 5%)/18W
 Center-positive 1.7/4.0 mm circular plug, 9.5 mm length
Reset Button
The reset button can be used to return the AP to factory default settings. To reset the AP:
1. Power off the AP.
2. Press and hold the reset button using a small, narrow object, such as a paperclip.
3. Power-on the AP without releasing the reset button. The power LED will flash within 5
seconds.
4. Release the reset button.
The power LED will flash again within 15 seconds indicating that the reset is completed. The
AP will now continue to boot with the factory default settings.
Before You Begin
FCC Statement: Improper termination of access points installed in the United
States configured to non-US model controllers will be in violation of the FCC
!
grant of equipment authorization. Any such willful or intentional violation may
result in a requirement by the FCC for immediate termination of operation and
may be subject to forfeiture (47 CFR 1.80).
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please
refer to the ArubaOS User Guide for details on restrictions.
Produit réseau local radio basse puissance operant dans la bande fréquence
2.4 GHz et 5 GHz. Merci de vous referrer au ArubaOS User Guide pour les
details des restrictions.
!
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet.
Weitere Informationen bezlüglich Einschränkungen finden Sie im ArubaOS User
Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare
riferimento alla ArubaOS User Guide per avere informazioni detagliate sulle
restrizioni.
Pre-Installation Network Requirements
After WLAN planning is complete and the appropriate products and their placement have been
determined, the Aruba controller(s) must be installed and initial setup performed before the
Aruba APs are deployed.
For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software
version installed on your controller.
AP Pre-Installation Checklist
Before installing your AP-210 Series AP, ensure that you have the following:
 CAT5e or better UTP cable of required length
 One of the following power sources:
 IEEE 802.3at or 802.3af-compliant Power over Ethernet (PoE) source. The POE source
can be any power source equipment (PSE) controller or midspan PSE device
 Aruba AP AC-DC adapter kit (sold separately)
 Aruba Controller provisioned on the network:

Layer 2/3 network connectivity to your access point
 One of the following network services:

Aruba Discovery Protocol (ADP)

DNS server with an "A" record
1
2 
DHCP Server with vendor-specific options
3 TxD
4 GND
5 GND
6 RxD Summary of the Setup Process
7
8
Successful setup of an AP-210 Series access point consists of five tasks, which must be
performed in this order:
1. Verify pre-installation connectivity.
2. Identify the specific installation location for each AP.
3. Install each AP.
4. Verify post-installation connectivity.
5. Configure each AP.
Aruba Networks, Inc., in compliance with governmental requirements, has
designed the AP-210 Series access points so that only authorized network
Function
administrators can change the settings. For more information about AP
Bi-directional pair +A
configuration, refer to the ArubaOS Quick Start Guide and ArubaOS User
Bi-directional pair -A
Guide.
Bi-directional pair +B
Bi-directional pair +C
Bi-directional pair -C
Bi-directional pair -B
Bi-directional pair +D
Access points are radio transmission devices and as such are subject to
Bi-directional pair -D
! governmental regulation. Network administrators responsible for the
configuration and operation of access points must comply with local broadcast
regulations. Specifically, access points must use channel assignments
appropriate to the location in which the access point will be used.
Verifying Pre-Installation Connectivity
Before you install APs in a network environment, make sure that the APs are able to locate and
connect to the controller after power on.
Specifically, you must verify the following conditions:
 When connected to the network, each AP is assigned a valid IP address
 APs are able to locate the controller
Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the
controller.
Identifying Specific Installation Locations
You can mount the AP-210 Series access point on a wall or on the ceiling. Use the AP
placement map generated by Aruba's Airwave VisualRF Plan software application to determine
the proper installation location(s). Each location should be as close as possible to the center of
the intended coverage area and should be free from obstructions or obvious sources of
interference. These RF absorbers/reflectors/interference sources will impact RF propagation
and should have been accounted for during the planning phase and adjusted for in VisualRF
plan.
Identifying Known RF Absorbers/Reflectors/Interference
Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field during
the installation phase is critical. Make sure that these sources are taken into consideration
when you attach an AP to its fixed location. Examples of sources that degrade RF performance
include:
 Cement and brick
 Objects that contain water
 Metal

Microwave ovens
 Wireless phones and headsets
Installing the AP
Service to all Aruba Networks products should be performed by trained service
personnel only.
Using the Ceiling Rail Adapter
The AP-210 Series ships with two ceiling rail adapters for 9/16" and 15/16" ceiling rails.
Additional wall mount adapters and ceiling rail adapters for other rail styles are available as
accessory kits .
Make sure the AP fits securely on the ceiling tile rail when hanging the
!
device from the ceiling, because poor installation could cause it to fall
onto people or equipment.
1. Pull the necessary cables through a prepared hole in the ceiling tile near where the AP
will be placed.
2. Place the adapter against the back of the AP with the adapter at an angle of
approximately 30 degrees to the tabs (see
3. Twist the adapter clockwise until it snaps into place in the tabs (see
Figure 7 Attaching the Ceiling Rail Adapter
Figure 7).
Figure 7).
