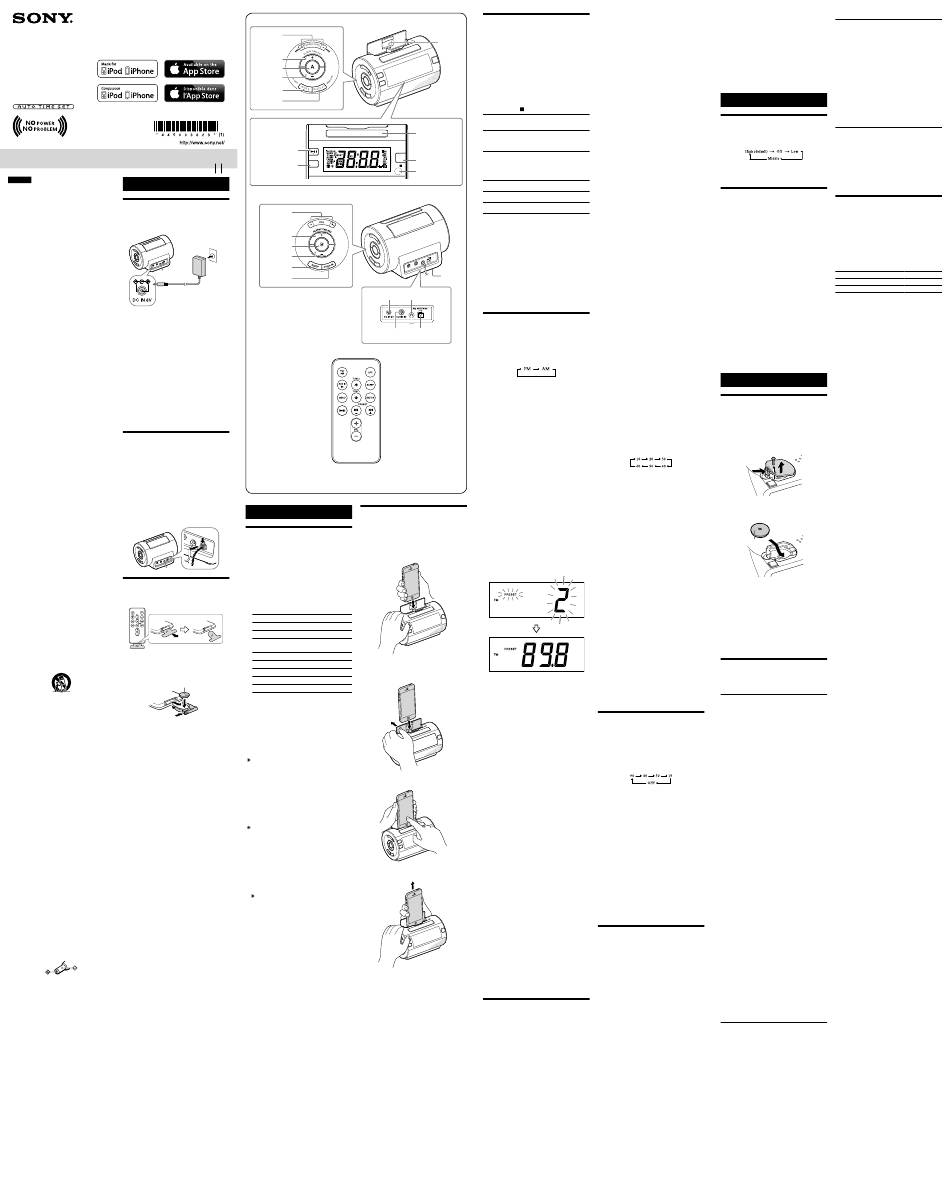

Sony ICF-C11iP Reference Manual

Personal Audio System
Reference Guide
Guide de référence (au dos)
©2013 Sony Corporation Printed in China
ICF-C11iP
English
Getting started
Before operating the system, please read this guide thoroughly
and retain it for future reference.
WARNING
Connecting to an AC
To reduce the risk of fire or electric shock, do
power source
not expose this apparatus to rain or moisture.
To reduce the risk of fire, do not cover the ventilation of the
Connect the AC adaptor (supplied) to the DC IN 6V jack on the
apparatus with newspapers, tablecloths, curtains, etc. And do
rear of this unit firmly and plug it into a wall outlet.
not place lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not expose this
apparatus to dripping or splashing, and do not place objects
filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such as a
bookcase or built-in cabinet.
Do not expose the batteries (battery pack or batteries installed)
to excessive heat such as sunshine, fire or the like for a long time.
As the main plug of AC adaptor is used to disconnect the AC
adaptor from the mains, connect it to an easily accessible AC
outlet. Should you notice an abnormality in it, disconnect it from
the AC outlet immediately.
The nameplate and important information concerning safety are
located on the bottom exterior of the main unit and on the
Notes
surface of the AC adaptor.
 Do not twist or place heavy objects on the AC adaptor cord.
You are cautioned that any changes or modifications not
 To disconnect AC power, grasp the plug itself, not the cord.
expressly approved in this manual could void your authority to
About the battery as a backup
operate this equipment.
power source
CAUTION
This unit contains a CR2032 battery as a backup power source to
Danger of explosion if battery is incorrectly replaced. Replace
keep the clock and the alarm operating during a power
only with the same type.
interruption. (No Power No Problem system)
NOTE
When to replace the battery
This equipment has been tested and found to comply with the
When the battery becomes weak, "" appears in the display.
limits for a Class B digital device, pursuant to Part 15 of the FCC
If a power interruption occurs while the battery is weak, the
Rules. These limits are designed to provide reasonable
current time and alarm will be erased.
protection against harmful interference in a residential
Replace the battery with a Sony CR2032 lithium battery. Use of
installation. This equipment generates, uses and can radiate
another battery may cause a fire or explosion.
radio frequency energy and, if not installed and used in
To replace the battery, see "Replacing the battery of the unit" for
accordance with the instructions, may cause harmful
details.
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular Note
installation. If this equipment does cause harmful interference to
 If "AM 12:00" flashes in the display when the unit is connected
radio or television reception, which can be determined by
to an AC outlet for the first time, the battery may be weak. In
turning the equipment off and on, the user is encouraged to try
this case, consult your nearest Sony dealer.
to correct the interference by one or more of the following
measures:
− Reorient or relocate the receiving antenna. Connecting the AM loop
− Increase the separation between the equipment and
receiver.
antenna
− Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
− Consult the dealer or an experienced radio/TV technician for
The shape and length of the antenna is designed to receive AM
help.
signals. Do not dismantle or roll up the antenna.
WARNING 1
Remove only the loop part from the plastic
stand.
 Replace the battery for the clock backup with a Sony CR2032
lithium battery, and the battery for the remote control with a 2
Set up the AM loop antenna.
Sony CR2025 lithium battery. Use of another battery may
Refer to the supplied Startup Guide.
present a risk of fire or explosion.
3
Insert the AM loop antenna connector in the
 Battery may explode if mistreated. Do not recharge,
AM ANTENNA jack on the rear of the unit.
disassemble or dispose of in fire.
 Dispose of used battery promptly, according to local
To remove the AM loop antenna
environmental laws and guidelines in force. Keep away from
Push and hold down the tab of the antenna terminal clamp, and
children.
remove the AM loop antenna.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat
Remote control
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or
Before using the supplied remote for the first time, remove the
grounding-type plug. A polarized plug has two blades with
insulation film.
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
When to replace the battery
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
With normal use, the battery (CR2025) should last for about 6
apparatus combination to avoid injury from tip-over.
months. When the remote can no longer operate the unit,
replace the battery with a new one.
 side facing up
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped. Note
On copyrights  If you are not going to use the remote for a long time, remove
the battery to avoid any damage that may be caused by
iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple
leakage or corrosion.
Inc., registered in the U.S. and other countries.
Lightning is a trademark of Apple Inc.
"Made for iPod, " and "Made for iPhone" mean that an electronic
accessory has been designed to connect specifically to iPod or
iPhone, respectively, and has been certified by the developer to
meet Apple performance standards. Apple is not responsible for
the operation of this device or its compliance with safety and
regulatory standards. Please note that the use of this accessory
with iPod or iPhone may affect wireless performance.
No Power No Problem is a trademark of Sony Corporation.
Auto Time Set is a trademark of Sony Corporation.
Notes
 This unit is not specified for use with an iPad, and malfunction
may result if used with one.
 In the Reference Guide, "iPhone" is used as a general reference
to functions on an iPod or iPhone, unless otherwise specified
by the text or illustrations.
Precautions
 To disconnect AC power, grasp the plug itself, not the cord.
 Since a strong magnet is used for the speaker, keep credit
cards using magnetic coding or spring-wound watches, CRT-
based TVs, or projectors, etc., away from the unit to prevent
possible damage from the magnet.
 Do not leave the unit in a location near a heat source such as a
radiator or airduct, or in a place subject to direct sunlight,
excessive dust, mechanical vibration, or shock.
 Allow adequate air circulation to prevent internal heat build-
up. Do not place the unit on a surface (a rug, a blanket, etc.) or
near materials (a curtain) which might block the ventilation
holes.
 Should any solid object or liquid fall into the unit, unplug the
unit and have it checked by qualified personnel before
operating it any further.
 During a thunderstorm, do not touch the antenna (aerial) and
plug.
 Do not touch the unit with wet hands.
 Do not place the unit anywhere near water.
Notes on the AC adaptor
 Use only the supplied AC adaptor. To avoid damaging the
system, do not use any other AC adaptor.
Polarity of the plug
 Plug the AC adaptor into a nearby wall outlet (mains). In the
case of a problem, unplug it from the wall outlet (mains)
immediately.
 Do not install the AC adaptor in a confined space, such as a
bookcase or built-in cabinet.
 To reduce the risk of fire or electric shock, do not expose the
AC adaptor to dripping or splashing, and do not place objects
filled with liquids, such as vases, on the AC adaptor.
NOTES ON LITHIUM BATTERY
 Wipe the battery with a dry cloth to assure a good contact.
 Be sure to observe the correct polarity when installing the
battery.
 Do not hold the battery with metallic tweezers, otherwise a
short-circuit may occur.
If you have any questions or problems concerning your unit,
please consult your nearest Sony dealer.
4-450-036-23(1)
PRESET/TUNE +/-,
/
buttons
ALARM TIME
SET + button
ALARM A button
ALARM TIME
SET - button
CLOCK/MODE
button
DISPLAY/MEMORY
button
SNOOZE/BRIGHTNESS
iPhone
iPhone  button
RADIO
RADIO FM/AM FM/AM
button
VOL +/- buttons
ALARM TIME
SET + button
ALARM B button
ALARM TIME
SET - button
SLEEP button
AUDIO IN
button
The VOL +, PRESET/TUNE +,  and iPhone  buttons have a tactile dot.
The VOL + and  buttons have a tactile dot.
Using an iPhone with the
Operations
unit
Setting the clock
To set an iPhone
1
To set the clock for the first time Open the Dock cover.
2 Hold the unit, and set the iPhone onto the unit
This unit is preset to the current EST (Eastern Standard Time) at
in line with the Dock connector.
the factory, and is powered by a backup battery. All you need to
do the first time is just plug it in and select your time zone.
1
Plug in the unit.
The current EST (Eastern Standard Time) appears in the display.
2 Press and hold OFF and CLOCK/MODE for at
least 2 seconds.
Area number "2" flashes in the display.
3
Press ALARM TIME SET + or – repeatedly to
select the number as follows:
Area number Time zone
0 Newfoundland Standard Time
1 Atlantic Standard Time
2 Eastern Standard Time
(default setting)
3 Central Standard Time
When an iPhone is difficult to
4 Mountain Standard Time
set
5 Pacific Standard Time
6 Alaska Standard Time Push the Dock cover slightly backwards while setting the iPhone.
7 Hawaii Standard Time
4
Press DISPLAY/MEMORY to set.
Notes
 To cancel the time zone setting, press OFF instead of
DISPLAY/MEMORY in step 4.
 Though the clock is correctly set at the factory, discrepancies
may arise during transport or storage. If necessary, set the clock
to the correct time by referring to "To set the clock manually. "
When daylight saving time (DST/
summer time) begins
This unit automatically adjusts for daylight saving time (summer
time).
" " is displayed from the beginning of daylight saving time
(summer time) and disappears at the end of the daylight saving
time (summer time) automatically.
 Daylight saving time (summer time) begins at: 2:00 AM on the
Note on operating an iPhone
second Sunday of March.
 Standard time begins at: 2:00 AM on the first Sunday of
Hold the iPhone when you are operating it.
November.
To cancel Auto DST/summer time
adjustment during the daylight saving time
(summer time) period
The Auto DST/summer time adjustment can be canceled.
Press and hold OFF and DISPLAY/MEMORY on the unit at the
same time for at least 2 seconds while the clock is displayed.
" " and "OFF" appear in the display to show that Auto DST/
summer time adjustment has been canceled. The display returns
to the clock.
Notes
 Changes to Auto DST/summer time adjustment by the unit
(see above) are subject to circumstances and laws in each
country/region. Should this interfere with desired adjustment,
cancel the Auto DST/summer time adjustment and set the
DST display manually as necessary. Customers living in a
To remove an iPhone
country/region that does not use daylight saving time
(summer time) must cancel Auto DST/summer time
adjustment before using the unit. Hold the unit when removing the iPhone.
 To activate Auto DST/summer time adjustment again, press
and hold OFF and DISPLAY/MEMORY on the unit at the same
time for at least 2 seconds.
" " and "On" appear in the display to show that Auto DST/
summer time adjustment has been activated. The display
returns to the clock.
 When Hawaii Standard Time is set, Auto DST/summer time
adjustment defaults to off. You can turn it on by the above
operation.
To set the clock manually
To change the clock setting manually, operate the unit as follows.
1
Plug in the unit.
2 Press and hold CLOCK/MODE until the year
flashes in the display.
3
Press ALARM TIME SET + or – repeatedly to set
the year, and then press CLOCK/MODE.
4 Repeat step 3 to set the month, day, hour and
Notes
minute.
 An iPhone in a case or cover can be set on this unit. Remove
The seconds start incrementing from zero.
the case or cover if it interferes with the Dock connection.
Notes  Set the iPhone on the Dock connector firmly.
 If you do not press any button for about 1 minute while
 When setting or removing the iPhone, hold it at the same
setting the clock, the clock setting will be canceled. angle as the Dock connector on the unit. Do not pull the
 A 100-year calendar (2013 - 2112) is installed in the unit. When
iPhone forward too far.
the date is set, the day of the week is automatically displayed.
 When setting or removing the iPhone, hold the unit securely.
MON = Monday, TUE = Tuesday, WED = Wednesday,
 Do not twist or bend the iPhone, as this may result in
THU = Thursday, FRI = Friday, SAT = Saturday, SUN = Sunday
connector damage.
To change the time format
 Remove the iPhone when transporting it; otherwise, a
malfunction may result.
You can choose a time format of the 12-hour system (default) or
the 24-hour system.
To charge an iPhone
Press and hold OFF and SNOOZE/BRIGHTNESS on the unit at
the same time for at least two seconds.
You can use the unit as a battery charger for an iPhone.
The time format toggles between the 12-hour system ("AM
Charging begins when the iPhone is connected to the unit. The
12:00" = midnight) and the 24-hour system ("0:00" = midnight).
charging status appears in the display of the iPhone. For details,
To display the year and date
refer to the user's guide of the iPhone.
During clock display, press DISPLAY/MEMORY once for the
month and date, and press it again for the year.
After a few seconds, the display will change back to the current
time automatically.
Operating an iPhone
1
Set the iPhone on the Dock connector.
The Dock connector can be tilted slightly.
Dock
For details, see "Using an iPhone with the unit. "
connector
2 Press .
"iPhone" appears in the display.
The iPhone begins to play back.
If the iPhone does not start playing back, operate directly on
the iPhone.
You can operate the connected iPhone via this unit or the
iPhone itself.
3 Adjust the volume using VOL + or –.
To operate from a remote
control
Aim the remote at the (Remote sensor) of the unit.
 (Play/Pause)
 Start playing the iPhone. Press again to pause/resume
playback.
SNOOZE/BRIGHTNESS
 (Forward)
button
 Go to the next track.
 Press and hold while listening to the sound to locate a
desired point.
ALARM
RESET
 (Backward)
OFF ALARM RESET/OFF
 Go back to the previous track. During playback, this
button
operation returns to the beginning of the current track. To
go back to the previous track, press twice.
Remote sensor
 Press and hold while listening to the sound to locate a
desired point.
MENU
 Go back to the previous menu.
 (Up)/ (Down)
 Select a menu item or track for playback.
ENTER
 Execute the selected menu item or begin playback.
Notes
 If a pop-up message appears in the display of the iPod touch
or iPhone, see "About App. "
 Some operations may differ or may not be available on some
models of iPhone.
 If the iPhone is already playing when set on the unit, the
sound from the iPhone will be output from the unit speaker,
even if the unit was playing sound from another function.
 If the battery of the iPhone is extremely low, charge it for a
while before operation.
 Sony cannot accept responsibility in the event that data
recorded to an iPhone is lost or damaged when using the
iPhone connected to this unit.
Battery
 For details of environmental conditions for operating an
compartment
iPhone, check the website of Apple Inc.
 MENU,  (Up),  (Down), and ENTER button on the main unit
and/or on the supplied remote control will only work with the
Apple devices (iPhone/iPod touch) installed up to iOS 6. It will
DC IN 6V jack FM wire antenna
not work with iOS 7 or later. In such case, please operate on
the screen of Apple devices directly.
Operating the radio
–Manual tuning
AUDIO IN jack AM ANTENNA jack
1 Press FM/AM to turn on the radio.
2 Press FM/AM repeatedly to select the desired
band.
Each time you press the button, the radio band toggles
between AM and FM as follows:
3
Press CLOCK/MODE repeatedly to select
"TUNING. "
When using the remote to operate the unit, you can skip this
step, and directly operate step 4.
4
Press TUNE + or – repeatedly to tune to the
desired station.
5 Adjust the volume using VOL + or –.
To turn off the radio, press OFF.
–Scan tuning
The unit automatically scans for AM or FM stations.
1
Follow steps 1 to 3 in "Manual tuning. "
2
Press and hold TUNE + or –.
+ : scans upward through the frequency bands.
– : scans downwards through the frequency bands.
Scanning starts from the currently-tuned frequency. When a
station is received, scanning stops.
3
Adjust the volume using VOL + or –.
–Preset tuning
You can preset up to 20 FM stations and 10 AM stations.
To preset a station
1
Follow steps 1 to 5 in "Manual tuning" and
manually tune into the station you wish to
preset.
2 Press and hold DISPLAY/MEMORY for at least
2 seconds.
3 Press PRESET + or – to select the preset number,
then press DISPLAY/MEMORY.
Example: The following displays appear when you preset FM
89.8 MHz to preset number 2 for FM.
The display shows the frequency for about
10 seconds, then returns to the current time.
Tips
 To preset another station, repeat these steps.
 To cancel the preset number setting, press OFF instead of
DISPLAY/MEMORY in step 3.
Note
 If you store another station with the same preset number, the
previously stored station will be replaced.
To tune in to a preset station
1
Follow steps 1 to 2 in "Manual tuning" and
select the AM or FM band.
2 Press CLOCK/MODE repeatedly to select
"PRESET. "
When using the remote to operate the unit, you can skip this
step, and directly operate step 3.
3
Press PRESET + or – to select the desired
preset number.
4
Adjust the volume using VOL + or –.
–Auto preset tuning
1
Follow steps 1 to 2 in "Manual tuning" and
select the AM or FM band.
2
Press and hold FM/AM until "AP" flashes in the
display.
3 Press DISPLAY/MEMORY.
The unit automatically presets the available stations in order.
Tip
 To stop auto preset tuning, press FM/AM.
To switch the display when listening to
radio
When listening to radio, press DISPLAY/MEMORY repeatedly to
show the preset number, the frequency of the current station,
the month and date, then the year. The display then returns to
the current time.
Note
 When listening to a station which has not been preset, no
preset number will be displayed.
To improve reception
FM: Extend the FM wire antenna fully to increase reception
sensitivity.
AM: Connect the supplied AM loop antenna to the unit. Rotate
the antenna horizontally for optimum reception.
Notes on radio reception
 Do not place the AM loop antenna near the unit, power supply
or other AV equipment during use, as noise may result.
 Keep digital music players or mobile phones away from the
AM loop antenna or the FM antenna, as this may lead to
reception interference.
 When you are listening to the radio with an iPhone connected
to the unit, interference with radio reception may occur.
 When you are listening to the radio while charging an iPhone,
interference with radio reception may occur.
Setting the alarm
This unit is equipped with 3 alarm modes—iPhone, radio and
buzzer. Set the clock to the current time before setting the alarm,
so that the alarm will sound at the correct time. (See "To set the
clock for the first time. " )
To set the alarm
1
Press and hold ALARM A or B.
"WAKE UP" appears and the hour flashes in the display.
2
Press ALARM TIME SET + or – repeatedly until
the desired hour appears.
To cycle the hour rapidly, press and hold ALARM TIME SET
+ or –.
3
Press ALARM A or B.
The minute flashes.
4
Repeat step 2 to set the minute.
5
Press ALARM A or B.
The days of the week flash.
6
Repeat step 2 to set the days of the week.
You can select the days from the following three options by
pressing ALARM TIME SET + or –:
Week day: MON TUE WED THU FRI
Weekend: SAT SUN
Every day: MON TUE WED THU FRI SAT SUN
7 Press ALARM A or B.
The alarm mode setting is entered.
8
Press ALARM TIME SET + or – repeatedly until
the desired alarm mode flashes.
You can choose one of 4 settings: "iPhone, " "FM, " "AM" or
"BUZZER. " Set the alarm mode as follows: Notes
– iPhone: see " To set the alarm as iPhone. "
 The necessary type of audio connecting cable depends on the
– FM or AM: see " To set the radio alarm. "
optional component. Be sure to use the correct type of cable.
– BUZZER: see " To set the buzzer alarm. "
 If the volume level is low, adjust the volume of the unit first. If
the volume is still too low, adjust the volume of the connected
 To set the alarm as iPhone
component.
 When you are watching TV or listening to the radio with an
optional component connected to the unit, the reception may
1
Perform steps 1 to 8 in "To set the alarm. "
be poor.
2 Press ALARM A or B to select alarm mode for  Disconnect the audio connecting cable from the unit when it
is not in use.
"iPhone. "
 When you listen to the radio with an optional component
The volume level flashes in the display. connected, turn off the connected component to prevent
noise. If noise occurs, even when the component is turned off,
3
Press ALARM TIME SET + or – to adjust the
disconnect and place the optional component away from the
volume. unit.
4 Press ALARM A or B.
The setting is entered. "A" or "B" appears in the display
indicating that the alarm has been activated. Other useful functions
The iPhone will sound at the set time.
Notes
 To wake up to music stored in an iPhone, connect the iPhone
Setting the brightness of
to the unit before the alarm sounds.
 Even if the alarm setting for iPhone is complete, if you turn the
iPhone power off after setting the iPhone on the unit, the the display
alarm will be the buzzer.
 To set the radio alarm
Four levels of brightness are available by pressing SNOOZE/
BRIGHTNESS.
1 Perform steps 1 to 8 in "To set the alarm. "
2
Press ALARM A or B to select radio band ("FM"
Even if brightness level is set to Off, it will change to Low while
or "AM").
the alarm is sounding.
Preset number flashes in the display.
Press and hold SNOOZE/BRIGHTNESS to turn off the display
3
Press ALARM TIME SET + or – to select the directly.
desired preset number or "- -" of the
corresponding band. About App
"- -" is the last station you listened to before the alarm
sounds.
A dedicated Dock App for iPod touch/iPhone available at Apple
4 Press ALARM A or B.
App Store.
The volume level flashes in the display. Search for "D-Sappli" and download the free App to find out
5
Press ALARM TIME SET + or – to adjust the more about the functions.
volume. Features
6  D-Sappli includes various timer functions: Music Play Timer
Press ALARM A or B.
and Sleep Timer.
The setting is entered. "A" or "B" appears in the display
 Music Play Timer allows you to play/pause desired music at a
indicating that the alarm has been activated.
desired time. Sleep Timer allows you to specify a time at which
The radio will turn on at the set time.
to stop music playback.
Music Play Timer and Sleep Timer are available only when D-
 To set the buzzer alarm
Sappli is activated.
 D-Sappli can display a list of Radio Preset Stations
programmed in this unit.
1 Perform steps 1 to 8 in "To set the alarm. "
You can rename the Radio Preset Stations, and change their
2 preset numbers on the D-Sappli. Preset numbers and order
Press ALARM A or B to select "BUZZER" alarm
will also be changed accordingly in the unit.
mode.
 D-Sappli also includes a clock display enlarge feature.
 You can synchronize time and date from the iPhone by simply
The setting is entered. "A" or "B" appears in the display
setting it on the Dock connector when D-Sappli is activated.
indicating that the alarm has been activated.
The buzzer will sound at the set time.
Notes
Note
 If the App to link with this unit is not downloaded to your iPod
touch/iPhone, a pop-up message prompting you to download
 The volume of the buzzer is not adjustable.
D-Sappli may appear repeatedly.
To confirm an alarm time setting Deactivate the App's link function to stop the pop-up
message.
 To deactivate the App's link function: Remove your iPod
Press ALARM TIME SET + or –. The setting will be displayed for
touch/iPhone from the Dock connector. Press  (to enter
about 4 seconds. the function for iPhone). Press and hold  then OFF on the
unit at the same time for at least 2 seconds. ("OFF" appears in
To change an alarm setting
the display to show that the App's link function has been
deactivated.)
 To re-activate the App's link function, repeat the above steps.
Press and hold ALARM TIME SET + for at least 2 seconds to
("On" appears in the display to show that the App's link
move the alarm time forwards. Press and hold ALARM TIME SET
function has been activated.)
– for at least 2 seconds to move the alarm time back.
When you release the button, the changed time will flash for
about 2 seconds. To change the alarm time again, press ALARM
General information
TIME SET + or – within these 2 seconds, otherwise the setting
change will be set as displayed.
Tips
 "A" or "B" appears in the display indicating that the alarm time Replacing the battery of
has been changed and activated.
the unit
 Even if the alarm has been set to off, the alarm will be
switched on when you change the alarm setting.
To doze for a few more minutes 1
Keep the AC adaptor connected to the wall
outlet and unit, then remove the screw of the
Press SNOOZE/BRIGHTNESS.
The sound turns off but will automatically come on again after battery compartment on the bottom of the
about 10 minutes.
unit, then open the battery compartment lid.
You can change the snooze time by pressing SNOOZE/
BRIGHTNESS repeatedly within 4 seconds.
The maximum length of the snooze time is 60 minutes.
To stop the snooze timer, press OFF.
To stop the alarm
Press OFF to turn off the alarm.
Press , FM/AM, or AUDIO IN to stop the alarm and activate
the corresponding function at the same time.
2
Remove the old battery and insert a new one
The alarm will sound again at the same time the next day.
in the battery compartment with the  side
To deactivate the alarm
facing up.
Press ALARM A or B to turn off the alarm A or B indicator in the
display.
To activate the alarm
CR2032
Press ALARM A or B to turn on the alarm A or B indicator in the
display.
Notes
 When alarm is set as iPhone, only the buzzer alarm will sound
if there is no iPhone on the Dock connector, music is not
stored in the iPhone, or the iPhone is turned off.
 The alarm function works as usual on the first and last day of
daylight saving time (summer time). As a result, if the Auto
3 Replace the battery compartment lid and
DST/summer time adjustment is set and the alarm is set at a
time skipped when the daylight saving time begins, the alarm tighten the screw.
will sound; if the alarm is set to a time that overlaps when
4 Press , FM/AM, AUDIO IN or SNOOZE/
daylight saving time ends, the alarm will sound twice.
 If the same alarm time is set for both alarm A and B, alarm A
BRIGHTNESS on the unit to turn "
takes priority.
display.
 If no operation is performed while the alarm is sounding, the
alarm will stop after about 60 minutes.
Notes
Notes on the alarm in the event of a power  When you replace the battery, do not disconnect the plug
from the AC outlet. Otherwise, the current date, current time,
interruption
alarm and station presets will be erased.
In the event of a power interruption, the buzzer alarm will last  If you are not going to use the remote for a long time, remove
the battery to avoid any damage that may be caused by
about 5 minutes if the battery is not weak. However, certain
leakage or corrosion.
functions will be affected as follows:
 The backlight will not light up.
 If the alarm mode is set to iPhone or radio, it will change to
Troubleshooting
buzzer automatically.
 If OFF on the unit is not pressed, the alarm will sound for
about 5 minutes.
Should any problem persist after you have made the following
 If "" appears in the display, the alarm will not sound in the
checks, consult your nearest Sony dealer.
event of a power interruption. Replace the battery if ""
appears.
General
 The snooze function cannot be set during a power
interruption.
 During a power interruption, each alarm will sound at the set The power does not turn on when the AC
time only once.
adaptor is connected.
 Make sure the AC adaptor is connected to the wall outlet
Setting the sleep timer
firmly.
There is no sound.
You can fall asleep to music, etc. using the sleep timer. The unit
 Make sure that the unit is connected to the AC power, and the
stops playback or radio automatically after a preset duration.
optional component is turned on.
1
Press SLEEP while playing music or listening to  Adjust the volume using VOL + or –.
radio.  Make sure that the optional component is correctly connected
"SLEEP" appears and the sleep time flashes in the display. to the unit.
2
Press SLEEP to set the sleep timer duration.
The sound is low.
Each time you press SLEEP, the duration (in minutes)
 Adjust the volume using VOL + or –.
changes as follows:
The sound is distorted.
 Deactivate the equalizer function of the connected optional
component.
The display returns to the current time for about
 Lower the volume of the unit.
4 seconds after you have finished the duration setting and
released SLEEP, then the sleep timer starts. Sound skips or noise is heard.
The unit plays for the duration you set, then stops.
 Make sure that the optional component is correctly connected
Note to the unit.
 Any currently-playing optional component connected to the  Make sure that the optional component is not near a
AUDIO IN jack will continue playing back, although its sound television.
will be muted.
 When the optional component is not in use with the unit,
disconnect the audio connecting cable from the AUDIO IN
To stop listening before the
jack.
preset time
The radio function of a connected optional
component does not work.
Press OFF.
 When an optional component equipped with radio or one
To change the sleep timer setting
segment tuner is connected to the unit, its reception
sensitivity may be poor, resulting in no radio function.
You can press SLEEP repeatedly to select the desired sleep timer
Noise is heard.
setting, even after the sleep timer has been activated.
 Ensure that the unit is not near in-use portable phones, etc.
To deactivate the sleep timer
 Disconnect the audio connecting cable from the AUDIO IN
jack when not in use.
Press SLEEP repeatedly to set the sleep timer to "OFF" in step 2.
The clock flashes "AM 12:00" or "0:00" due to
Note
a power interruption.
 When the alarm time is set during the sleep timer duration,
the sleep timer will be deactivated automatically when the  The battery is low. Replace the battery. Remove the old
alarm sounds.
battery and install a new one.
The alarm of radio, iPhone or buzzer does
Connecting optional
not sound at the preset alarm time.
 Check that alarm "A" or alarm "B" is properly displayed.
components
The alarm of radio or iPhone is activated but
no sound comes on at the preset alarm time.
To listen to sound
 Check the alarm volume setting.
You can enjoy sound from an optional component, such as a
When daylight saving time (summer time)
portable digital music player, through the speaker of this unit. Be
begins, the clock does not employ the
sure to turn off the power of all components before making any
connections. daylight saving time (summer time)
automatically.
1 Firmly connect the line output jack of a
 Make sure the clock is set correctly.
portable digital music player (or other
 Press and hold OFF and DISPLAY/MEMORY on the unit
component) to the AUDIO IN jack on the rear
simultaneously for at least 2 seconds to activate the Auto DST/
of the unit, using a suitable audio connecting
summer time function.
cable (not supplied).
When using an iPhone
2 Press AUDIO IN to activate the Audio-in
function.
There is no sound.
"AUDIO IN" appears in the display.
 Make sure the iPhone is connected firmly.
3
Turn the connected component on.
 Make sure that the connected iPhone is playing music.
4 Play the connected component.
 Make sure that the function for iPhone is activated.
Sound from the connected component is output from the
 Check that the iPhone is compatible with this unit. (See
speaker of this unit.
"Compatible iPod/iPhone models. " )
5
Adjust the volume using VOL + or –.
Operation is not performed.
To return to the radio

Make sure the iPhone is connected firmly.
 Check that the iPhone is compatible with this unit. (See
Press FM/AM.
"Compatible iPod/iPhone models. " )
The preset number followed by the frequency of the last station
The iPhone does not charge.
appears in the display.
 Make sure the iPhone is connected firmly.
To return to the iPhone
 Make sure the AC adaptor is connected firmly.

Press . Check that the iPhone is compatible with this unit. (See
"Compatible iPod/iPhone models. " )
To stop listening
Press OFF, and stop playback on the connected component.
Audio-in
There is no sound.
 Make sure the audio connecting cable is connected firmly.
 Make sure that the connected optional component is in
playback mode.
 Increase the volume of the optional component without
causing sound distortion. To adjust the volume of the optional
component, refer to its user guide.
 Make sure that the Audio-in function is activated.
The sound is low.
 Check the volume of the connected optional component.
 Increase the volume of the optional component without
causing sound distortion. To adjust the volume of the optional
component, refer to its user guide.
The sound is distorted.
 Lower the volume of the optional component till the
distortion is not heard. To adjust the volume of the optional
component, refer to its user guide.
Remote control
The remote does not function.
 Replace the battery in the remote with a new one if it is weak.
 Make sure that you are pointing the remote at the remote
sensor on the unit.
 Do not cover or place any objects directly in front of the
remote sensor.
 Remove any obstacles in the path between the remote and
the unit.
 Make sure the remote sensor is not exposed to strong light,
such as direct sunlight or fluorescent lamp light.
If the problem persists, consult your nearest Sony dealer.
Specifications
Time display
Switching between 12-hour system (default) and 24-hour
system.
iPhone
DC out: 5 V
MAX: 1 A
Radio
Frequency range
Band Frequency Frequency step
FM 87.5 MHz - 108 MHz 0.1 MHz
AM 530 kHz - 1,710 kHz 10 kHz
General
Speaker
Approx. 40 mm (1 / inch) dia.
5
8
Input
AUDIO IN jack (ø 3.5 mm stereo minijack)
Power output
Mono 0.8 W (at 10% harmonic distortion)
Power source
DC IN 6V (with supplied AC adaptor (AC 120 V, 60 Hz))
For clock back up: 3 V DC, CR2032 battery (1)
Dimensions
Approx. 126 mm × 92 mm × 100 mm (w/h/d)
(5 inches × 3 5 / inches × 4 inches)
8
including projecting parts and controls
Mass
Approx. 482 g (1 lb 1 oz)
Supplied accessories
Remote control (with a lithium battery) (1)
AC adaptor (1)
AM loop antenna (1)
Startup Guide (1)
Reference Guide (this document) (1)
Compatible iPod/iPhone models
The compatible iPod/iPhone models are as follows.
Update the software of the iPod/iPhone to the latest version
before using it with this unit.
iPhone 5s
iPhone 5c
iPhone 5
iPod touch (5th generation)
iPod nano (7th generation) *
* The remote command of "MENU," "," "," and "ENTER" will
only work with iPhone and iPod touch.
Design and specifications are subject to change without notice.
 " off in the
