Wolf COB-29 Short Operating Instructions

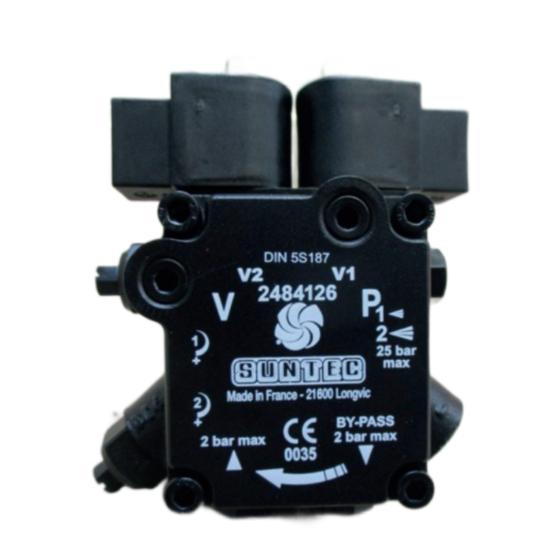

Ölpumpe COB-20/29/40 - Einstellung Pumpendruck

Oil pump COB-20/29/40 - Setting pump pressure

Werkseinstellung Pumpendruck COB-20/29 /

factory setting pump pressure COB-20/29

Einstellung Pumpendruck COB-40 /

Setting pump pressure COB-40

ST1
ST2
Pumpendruck /

Pump pressure

WOLF GMBH / POSTFACH 1380 / D-84048 MAINBURG / TEL. +49.0.875174-0 / FAX +49.0.875174-1600 / www.WOLF.eu
Art.-Nr. 3065081_201806
Kurzbedienungsanleitung -
Short operating instructions
ST 1 (Stufe 1/Stage 1) = 8,5 ± 1,0 bar
ST 2 (Stufe 2/Stage 2) = 16,8 ± 2,5 bar
SW 8
½ x
ST1
1½ x
ST2
ST1 11,0 ± 1,0 bar
ST2 23,5 ± 2,5 bar
COB-40
SW 8
¼ x
¼ x
9,8 ± 1,0 bar
18,0 ± 2,5 bar
Änderungen vorbehalten / Subject to modifications
COB-29 COB-20 COB-15
8,5 ± 1,0 bar
16,8 ± 2,5 bar
