5.10.1.1 Create a Device Representation in EdgeManager

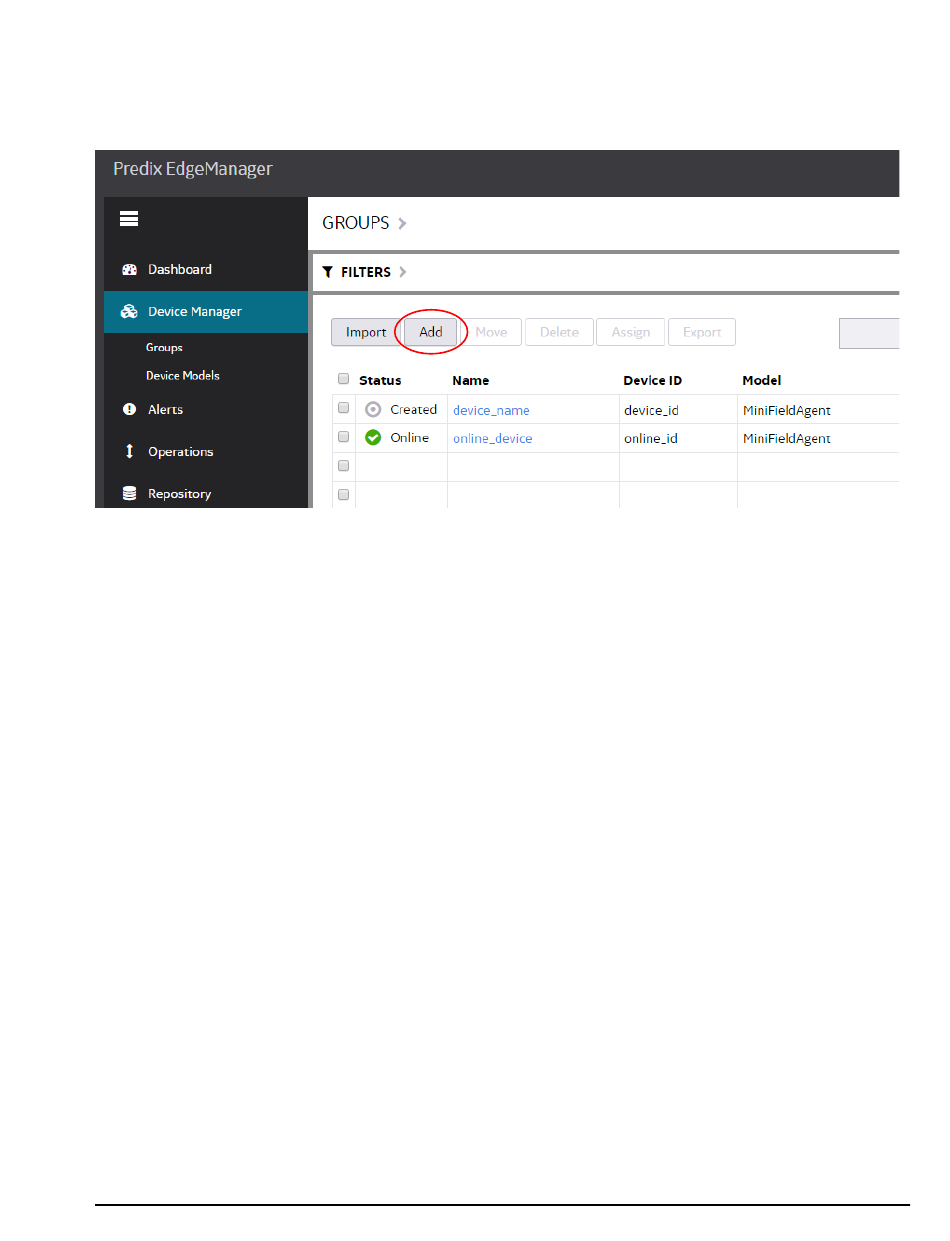

The Operator can create a device representation in EdgeManager from the Device Manager tab by pressing the Add
button. In the new dialog that appears, fill in the device details and press the Add button.
If it is desired that this device be a member of a group, the group can be created on the Groups page of the Device Manager
tab. Then, the new group must be selected on the Device Manager page before pressing the Add button. To select the group,
use the small downward facing triangle to the right of the GROUPS text on the Device Manager page.
The Device Name is used to list and filter the device in EdgeManager. The Device Name should be unique and descriptive,
and can consist of upper and lower case characters and numbers.
The Device ID is used to enroll the device in EdgeManager. While the Device ID is typically a serial number, another option
is using the MAC address of the WAN interface, which is available on the Field Agent's physical label and is auto-populated
on the Predix Cloud Enrollment page in the Field Agent's Web Console. The Device ID can consist of lower case characters
and numbers. Any upper-case characters entered during device creation will be converted to lower case.
The Device Model is the Field Agent model type. Currently, the supported Field Agent Device Models are "MiniFieldAgent"
and "CPE400".
The Technician is the EdgeManager user that will be allowed to enroll this device into EdgeManager using OAuth
enrollment.
(Optional) The Description is a freeform text field.
The Enrollment option is either Certificate or OAuth. Certificate is the preferred method and should be used whenever
possible. Certificate based enrollment is currently supported on the Mini Field Agent. Other platforms should continue to use
OAuth.
The Shared Secret is used with Certificate enrollment and is a code that will be used only for enrollment purposes on this
device. Once enrolled it is no longer needed.
By clicking the Next button, optional Location information can be configured, including:
• City (string)
• State (string)
•
Country (string)
•
Time Zone (use the drop-down to select the closest city in the desired time zone)
• Latitude (floating point, in Degrees)
•
Longitude (floating point, in Degrees)
• Elevation
After required and desired optional fields are configured, click the Finish button to create the device representation.
